The SLPESD0201M05 is a highly compact ESD (Electrostatic Discharge) protection device designed to offer superior protection in ultra-miniature electronic applications. Packaged in a 0201 size, this device is engineered to safeguard sensitive components and circuits from electrostatic discharge and transient voltage spikes. The SLPESD0201M05 provides reliable protection for low-voltage applications. It features a low reverse leakage current of 10μA and a clamping voltage (VC) of 40V, ensuring effective voltage suppression. The device’s extremely low junction capacitance of 0.05pF makes it ideal for maintaining signal integrity in high-frequency applications.
Download datasheet Inquiry
Channel Ultra-low Capacitance ESD Protection
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SLPESD0201M05 is a highly compact ESD (Electrostatic Discharge) protection device designed to offer superior protection in ultra-miniature electronic applications. Packaged in a 0201 size, this device is engineered to safeguard sensitive components and circuits from electrostatic discharge and transient voltage spikes. The SLPESD0201M05 provides reliable protection for low-voltage applications. It features a low reverse leakage current of 10μA and a clamping voltage (VC) of 40V, ensuring effective voltage suppression. The device’s extremely low junction capacitance of 0.05pF makes it ideal for maintaining signal integrity in high-frequency applications.
Features
● Ultra-Low capacitance:0.05pF(typ.)
● Low leakage current(<10nA)
● Fast response time(<1ns)
● Bi-directional,single line protection
● IEC 61000-4-2 (ESD Air): 15kV
IEC 61000-4-2 (ESD Contact): 8kV
Applications
● USB 3.0/3.1
● HDMI 1.3/1.4/2.0
● RF Antenna
● SATA and eSATA Interface

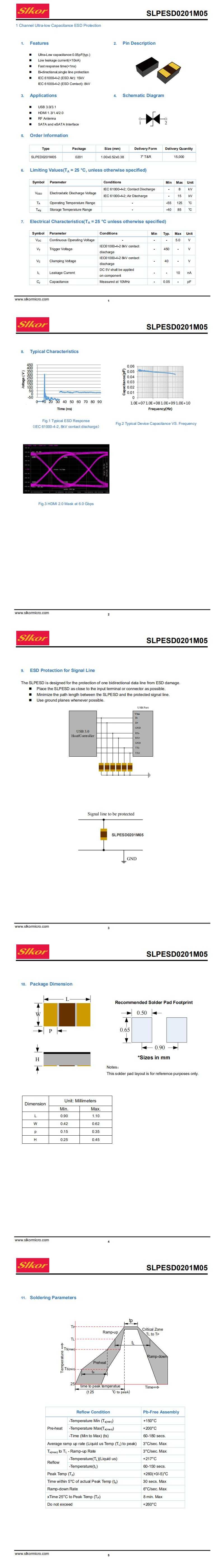

| File Name | Title | Description |
|---|---|---|
| SLPESD0201M05.pdf | SLPESD0201M05 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
