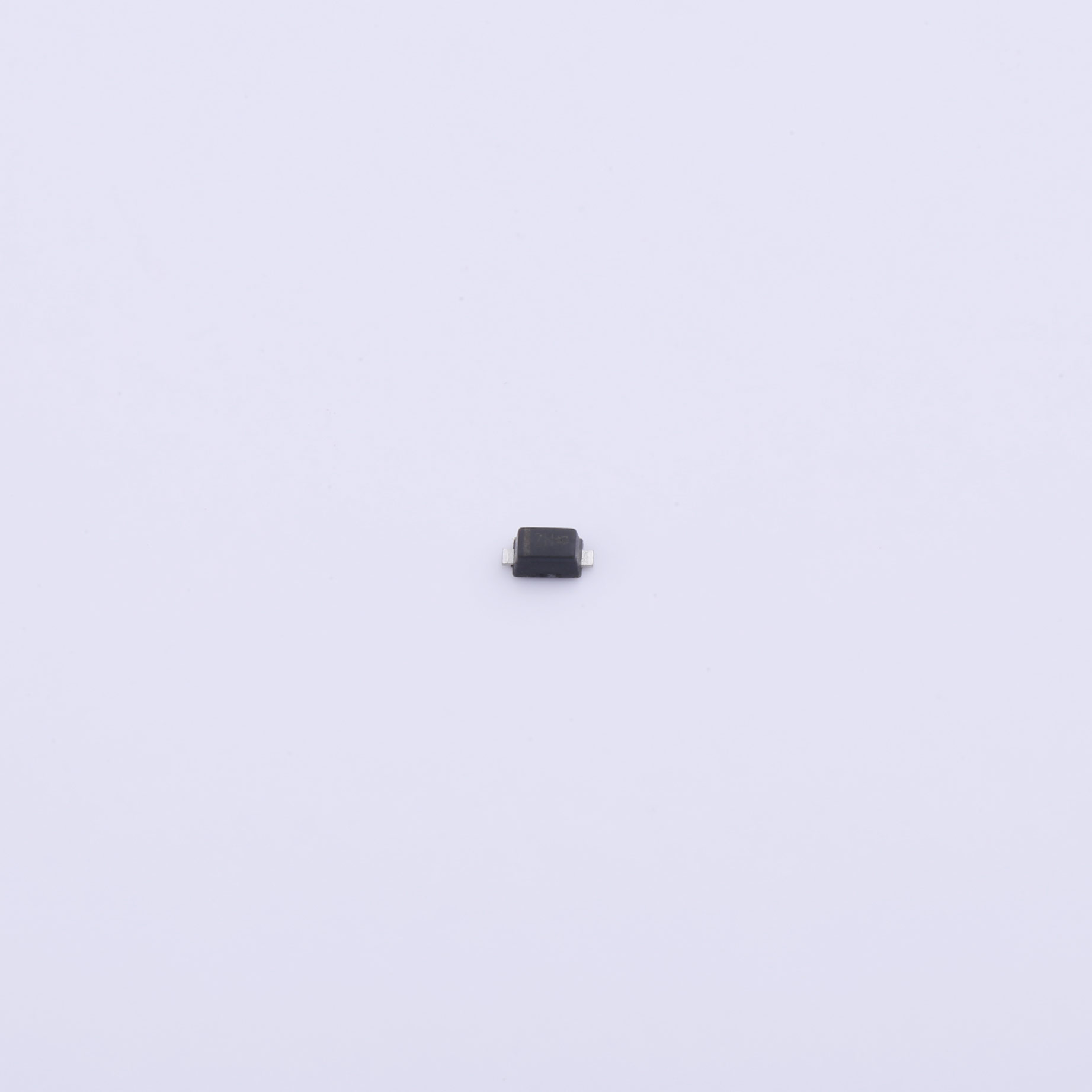

The SLESD5Z Series is designed to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capability, low leakage, and fast response time, make these parts ideal for ESD protection on designs where board space is at a premium. Because of its small size, it is suited for use in cellular phones, portable devices, digital cameras, power supplies and many other portable applications.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SLESD5Z Series is designed to protect voltage
sensitive components from ESD and transient
voltage events. Excellent clamping capability, low
leakage, and fast response time, make these parts
ideal for ESD protection on designs where board
space is at a premium. Because of its small size, it is
suited for use in cellular phones, portable devices,
digital cameras, power supplies and many other
portable applications.
Features
● IEC61000-4-2 Level 4 ESD Protection
● Protects one directional I/O line
● Low clamping voltage
● Working voltages : 2.5, 3.3V, 5V, 6V, 7V, 12V
● Low leakage current
Machanical data

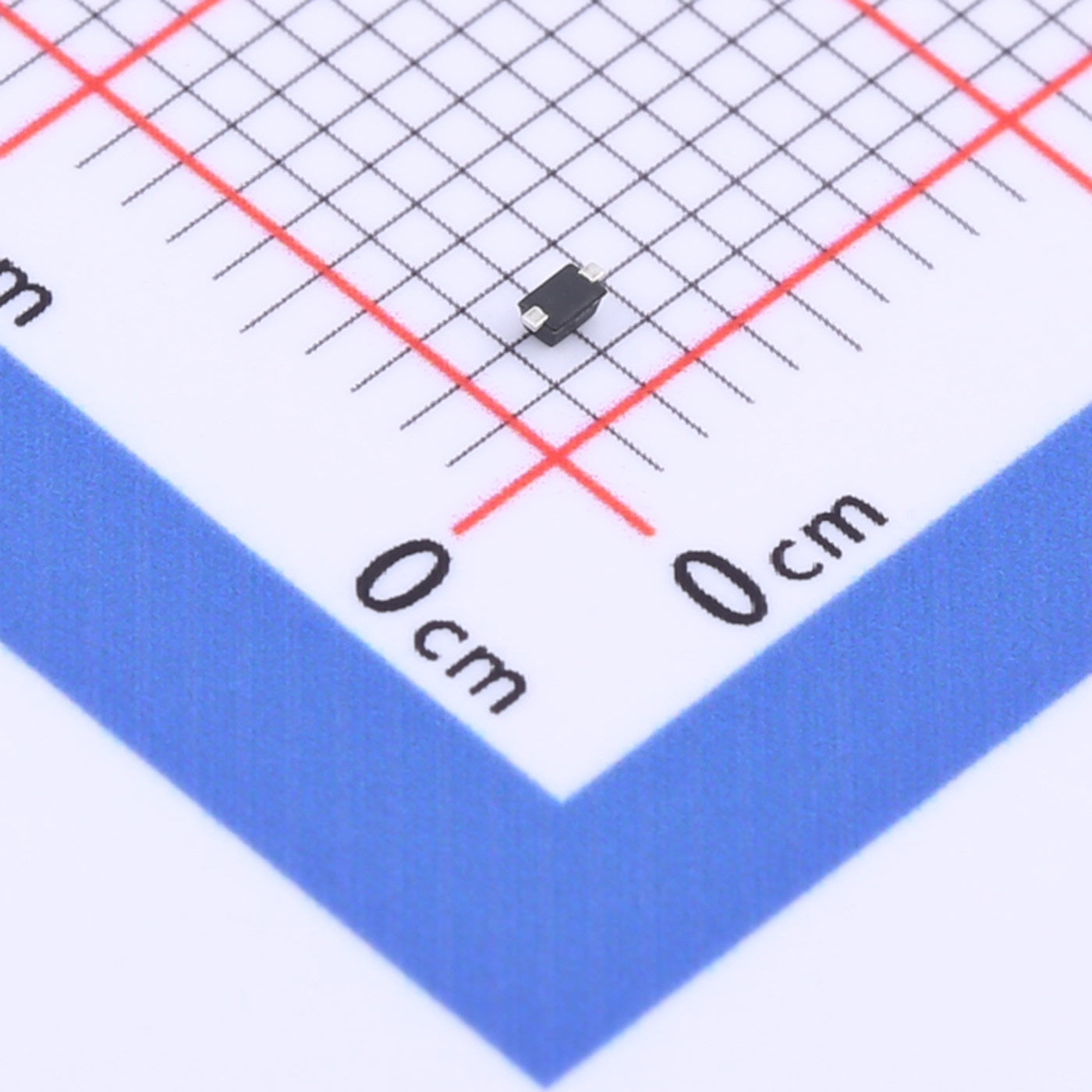

● SOD-523 package
● Flammability Rating: UL 94V-0
● Packaging: Tape and Reel
● High temperature soldering guaranted:260℃
/10s
● Reel size: 7 inch
APPLICATIONS
● Quantity per reel: 3,000pcs
Applications
● Cell Phone Handsets and Accessories
● Microprocessor based equipment
● Personal Digital Assistants (PDA’s)
● Notebooks, Desktops, and Servers
● Portable Instrumentation
● Peripherals
● Pagers
| File Name | Title | Description |
|---|---|---|
| SLESD5Z7V0 SOD-523.pdf | SLESD5Z7V0 SOD-523 | - |
