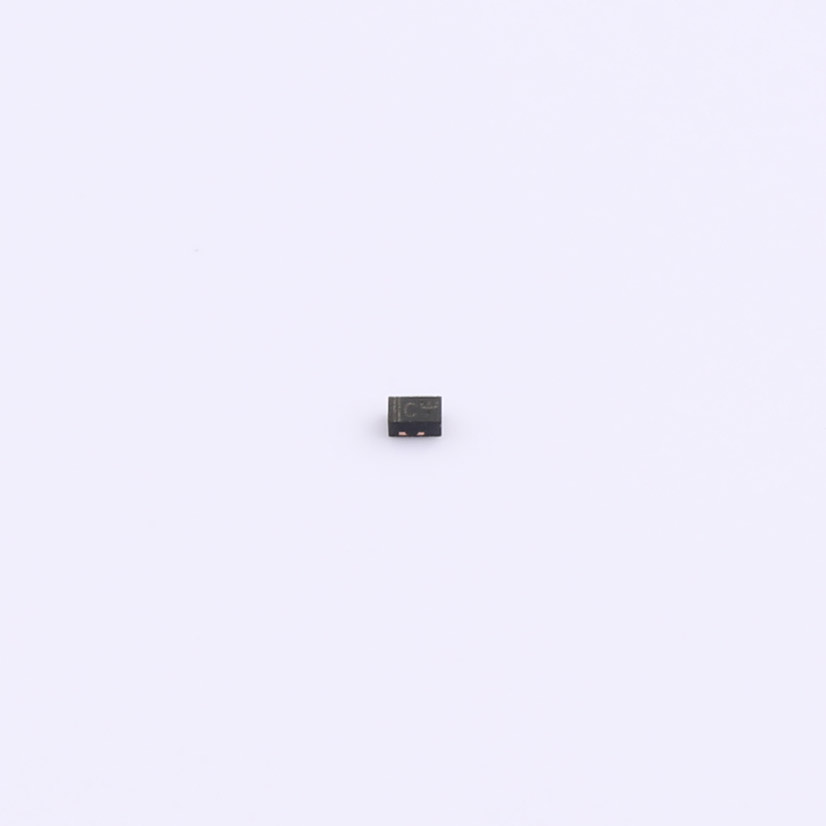

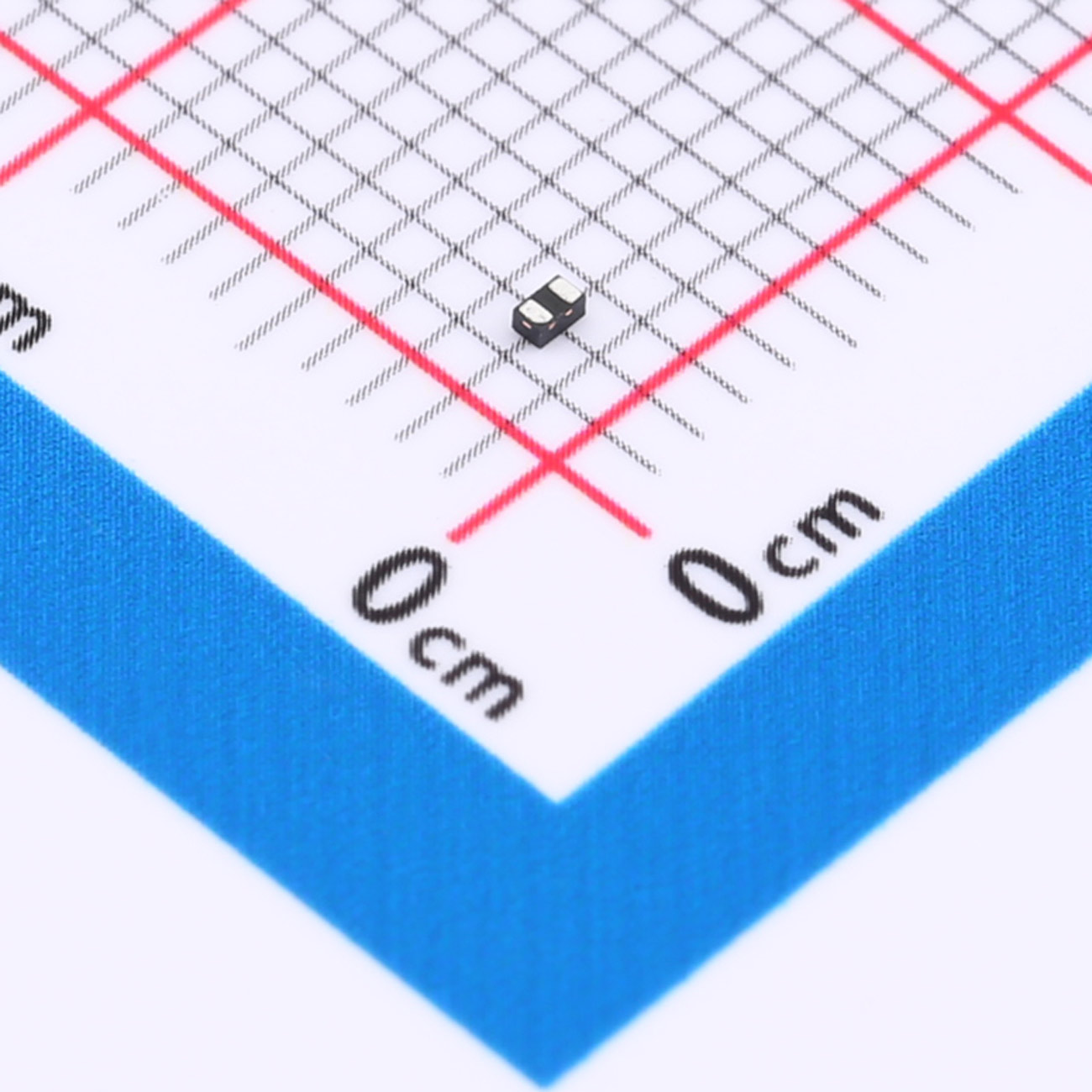

The SLESD5V0LED02 is a high-performance ESD (Electrostatic Discharge) protection device designed to safeguard sensitive electronic components from transient voltage spikes and electrostatic discharge events. Encased in a compact DFN1006 package, this device is engineered to deliver robust protection while maintaining minimal impact on circuit performance.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SLESD5V0LED02 is a high-performance ESD (Electrostatic Discharge) protection device designed to safeguard sensitive electronic components from transient voltage spikes and electrostatic discharge events. Encased in a compact DFN1006 package, this device is engineered to deliver robust protection while maintaining minimal impact on circuit performance.
Features
● Capacitance: 15pF(typ.)
● Reverse Working Voltage: 5V
● IEC 61000-4-2 (ESD Air): ±25KV
IEC 61000-4-2 (ESD Contact): ±25KV
IEC 61000-4-5 (Lightning 8/20μs): 5A
Application
● Smart Phone and Tablet PC
● TV and Set Top Box
● Wearable Devices
● PDA
| File Name | Title | Description |
|---|---|---|

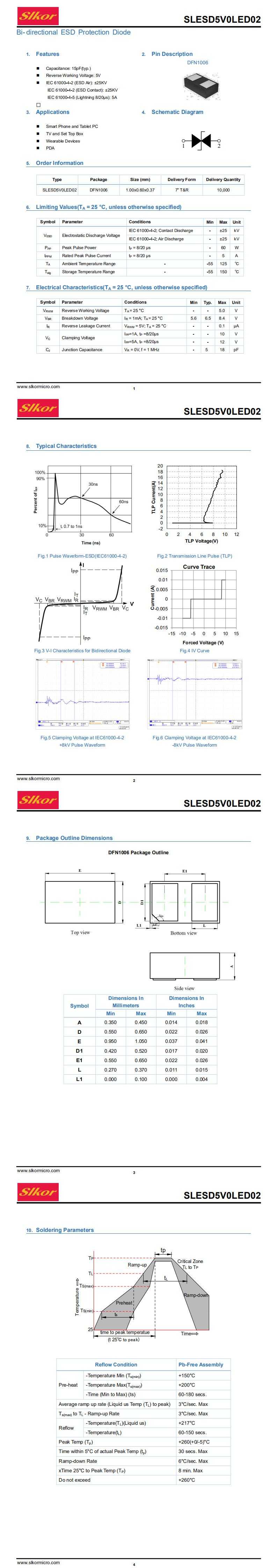

| SLESD5V0LED02 DFN1006.pdf | SLESD5V0LED02 DFN1006 | - |
