SLESD5311X is a low-capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for high-speed data interfaces. With typical capacitance of 0.5pF, SLESD5311Xis designed to protect parasitic-sensitive systems against over-voltage and over-current transient events. It complies with IEC 61000-4-2 (ESD), Level 4 (±15kV air, ±8kV contact discharge), IEC 61000-4-4 (electrical fast transient - EFT) (40A, 5/50 ns), very fast charged device model (CDM) ESD and cable discharge event (CDE), etc.
Download datasheet Inquiry
Ultra Low Capacitance ESD Protection Diode
Description
l SLESD5311X is a low-capacitance Transient Voltage Suppressor (TVS) designed to provide electrostatic discharge (ESD) protection for high-speed data interfaces. With typical capacitance of 0.5pF, SLESD5311Xis designed to protect parasitic-sensitive systems against over-voltage and over-current transient events. It complies with IEC 61000-4-2 (ESD), Level 4 (±15kV air, ±8kV contact discharge), IEC 61000-4-4 (electrical fast transient - EFT) (40A, 5/50 ns), very fast charged device model (CDM) ESD and cable discharge event (CDE), etc.
l SLESD5311X uses ultra-small DFN1006 package. Each SLESD5311X device can protect one high-speed data line. It offers system designers flexibility to protect single data line where space is a premium concern. The combined features of low capacitance, ultra-small size and high ESD robustness make SLESD5311X ideal for high-speed data port and high-frequency line applications, such as cellular phones and HD visual devices.
Features
l Transient protection for high-speed data lines
IEC 61000-4-2 (ESD) ±15kV (Air)
±8kV (Contact)
IEC 61000-4-4 (EFT) 40A (5/50 ns)
Cable Discharge Event (CDE)
l Package optimized for high-speed lines
l Ultra-small package (1.0mm×0.6mm×0.5mm)
l Protects one data, control line
l Low capacitance: 0.5pF (Typical)
l Low leakage current
l Low clamping voltage
Mechanical Data

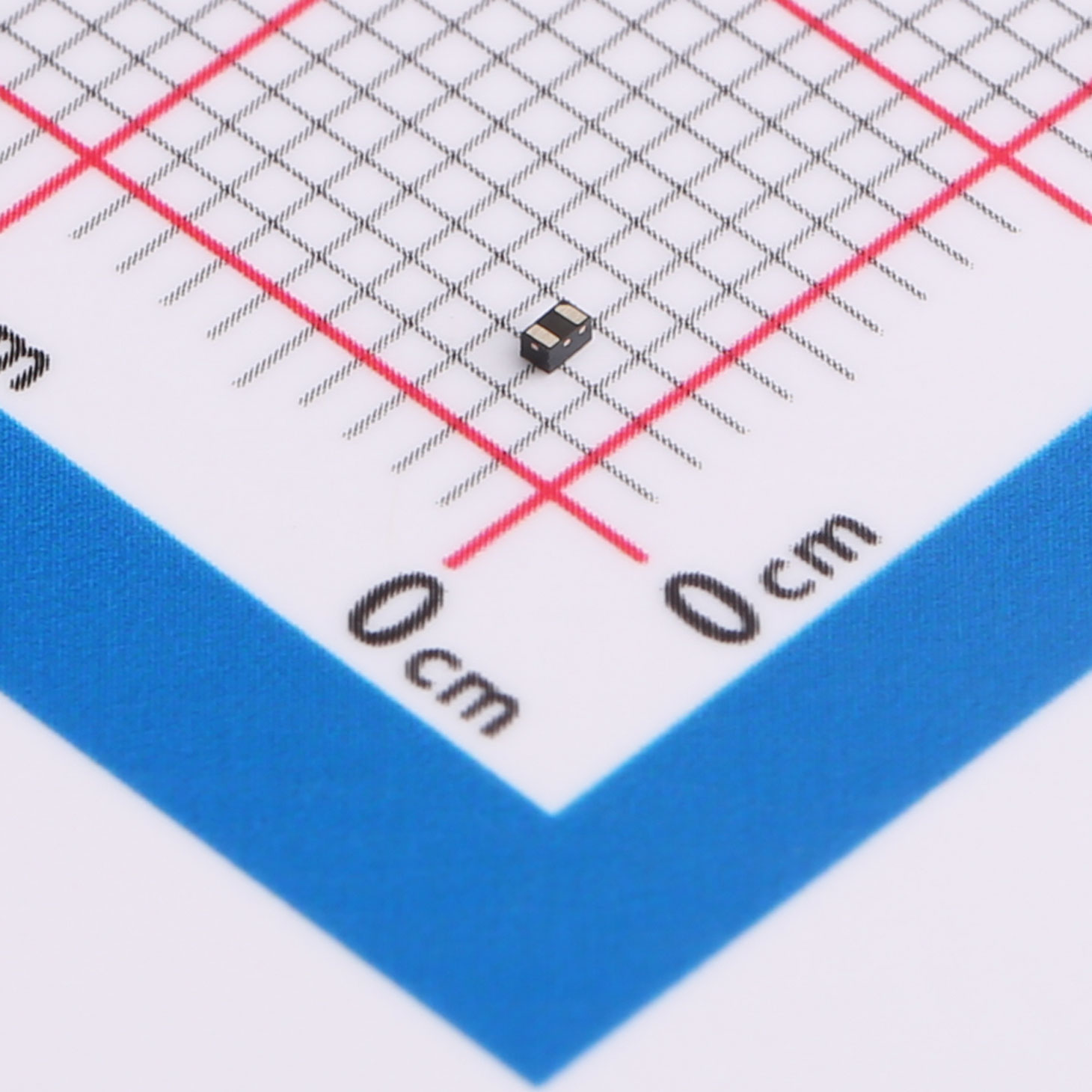

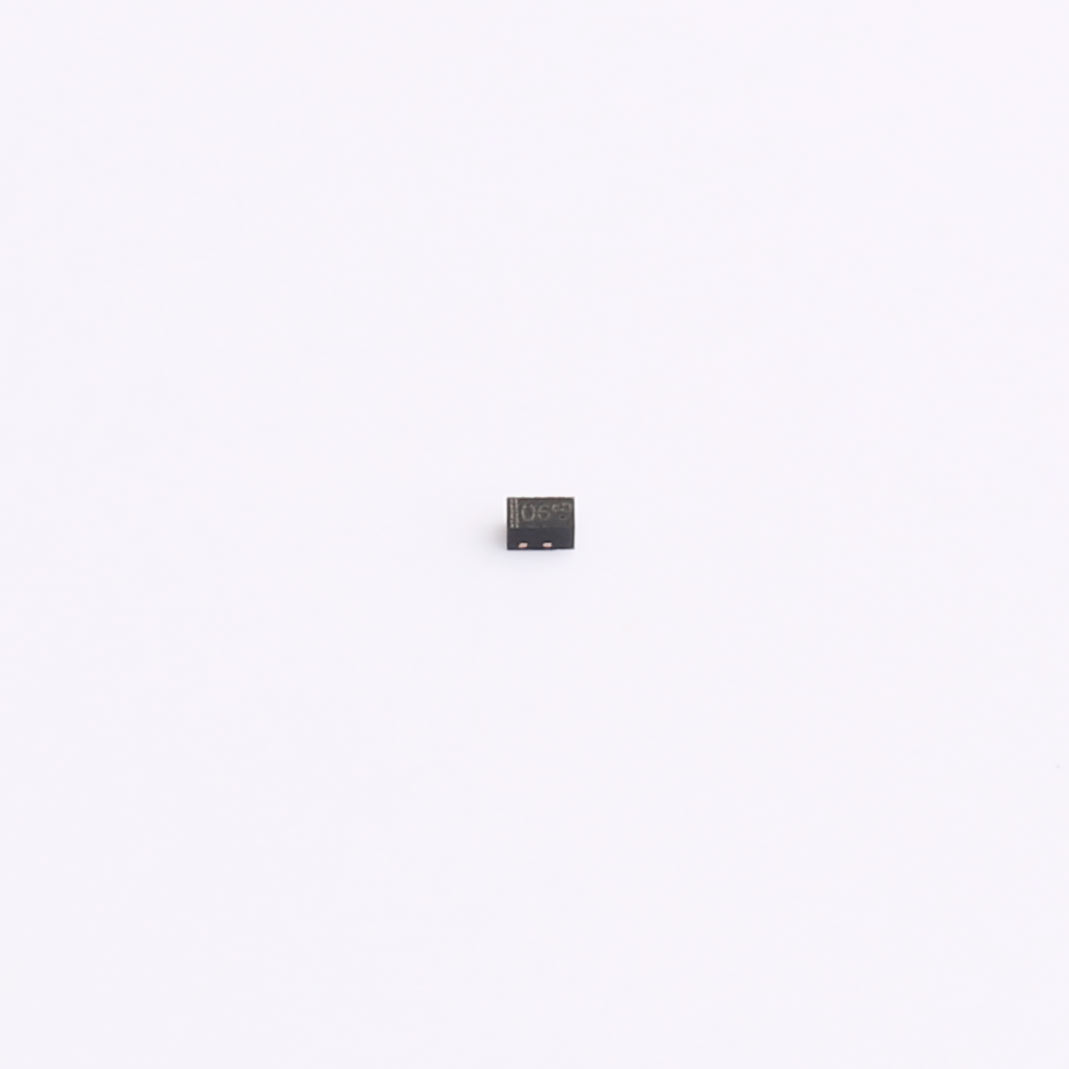

l DFN1006 package
l Flammability Rating: UL 94V-0
l Packaging: Tape and Reel
l High temperature soldering guaranted:260℃/10s
l Reel size: 7 inch
Ordering Information
l Device: SLESD5311X
l Package: DFN1006
l Marking:
l Material: Halogen free
l Packing: Tape & Reel
l Quantity per reel: 10,000pcs
Applications
l Serial ATA
l Desktops, Servers and Notebooks
l Cellular Phones
l MDDI Ports
l USB Data Line Protection
l Display Ports
l Digital Visual Interfaces (DVI)

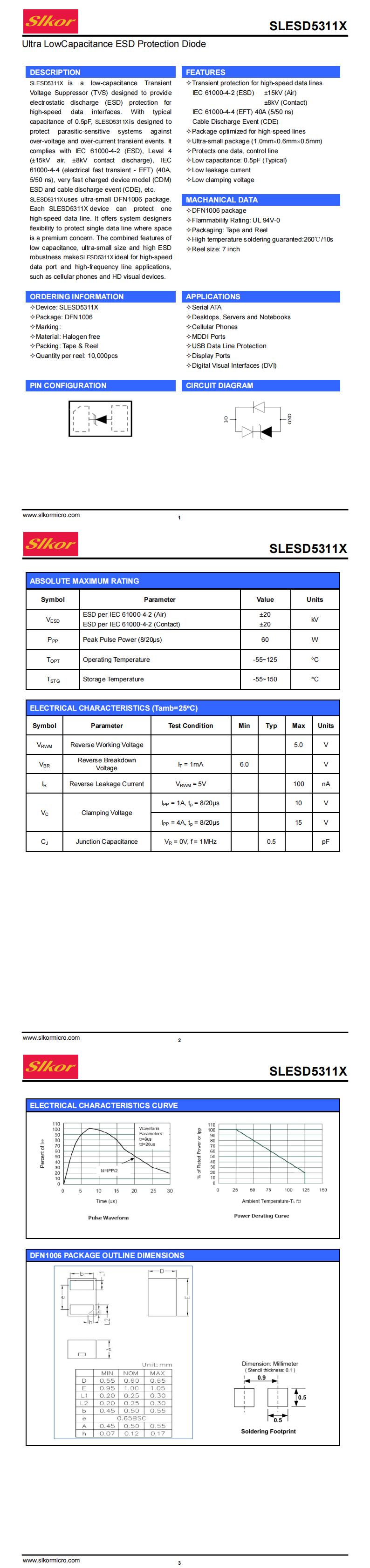

| File Name | Title | Description |
|---|---|---|
| SLESD5311X.PDF | SLESD5311X | - |
