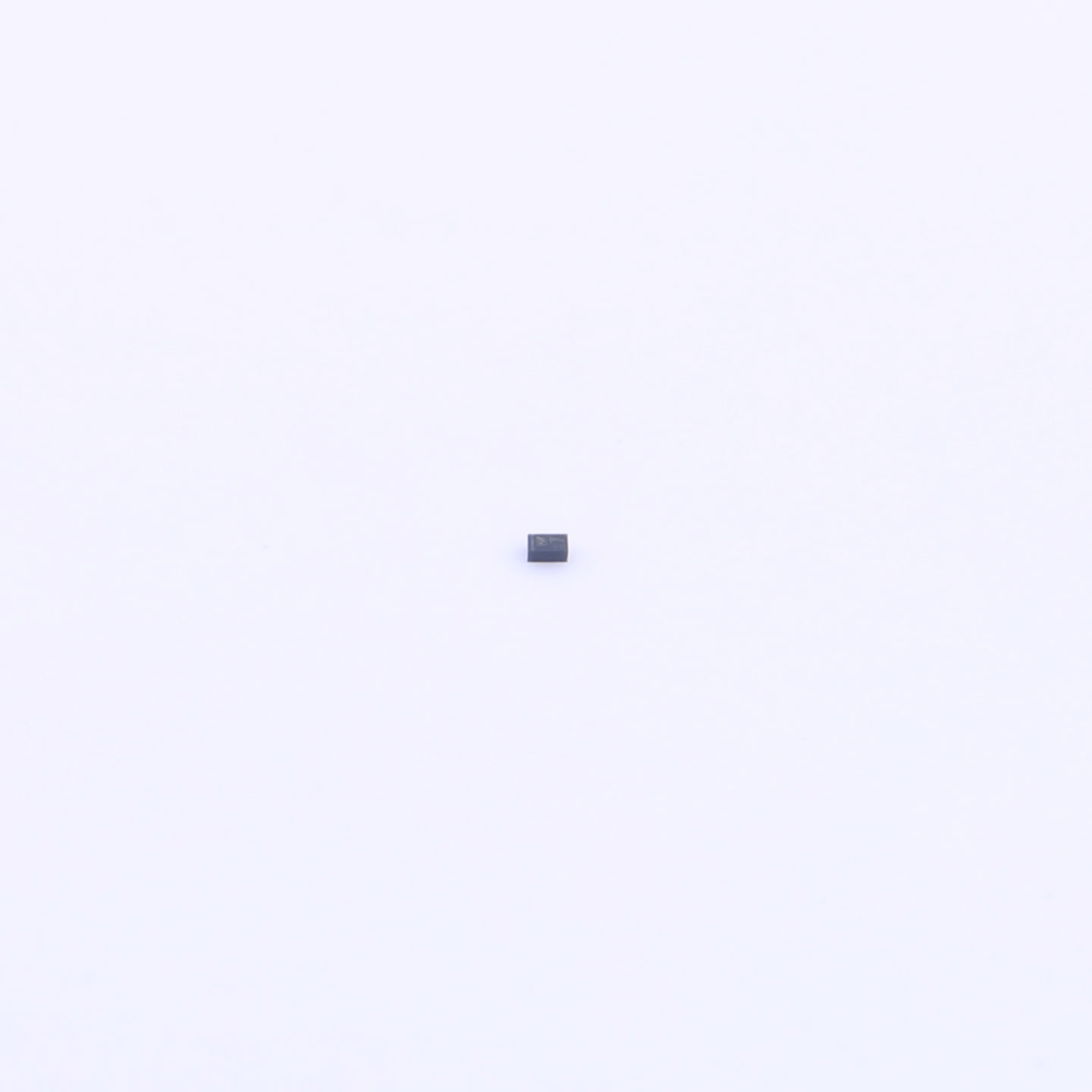

The SLESD11D5V0C features a compact DFN0603-2L package, making it ideal for modern electronic designs where space efficiency is crucial. It offers ultra-low leakage current (0.1μA) and a low clamping voltage (11V), ensuring effective protection without compromising signal integrity. With a junction capacitance of 10pF, this diode minimally affects high-frequency signals, maintaining performance across a wide bandwidth.
Download datasheet Inquiry
Transient Voltage Suppressors for ESD Protection
Our adventage
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt forproduction outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SLESD11D5V0C features a compact DFN0603-2L package, making it ideal for modern electronic designs where space efficiency is crucial. It offers ultra-low leakage current (0.1μA) and a low clamping voltage (11V), ensuring effective protection without compromising signal integrity. With a junction capacitance of 10pF, this diode minimally affects high-frequency signals, maintaining performance across a wide bandwidth.
Features

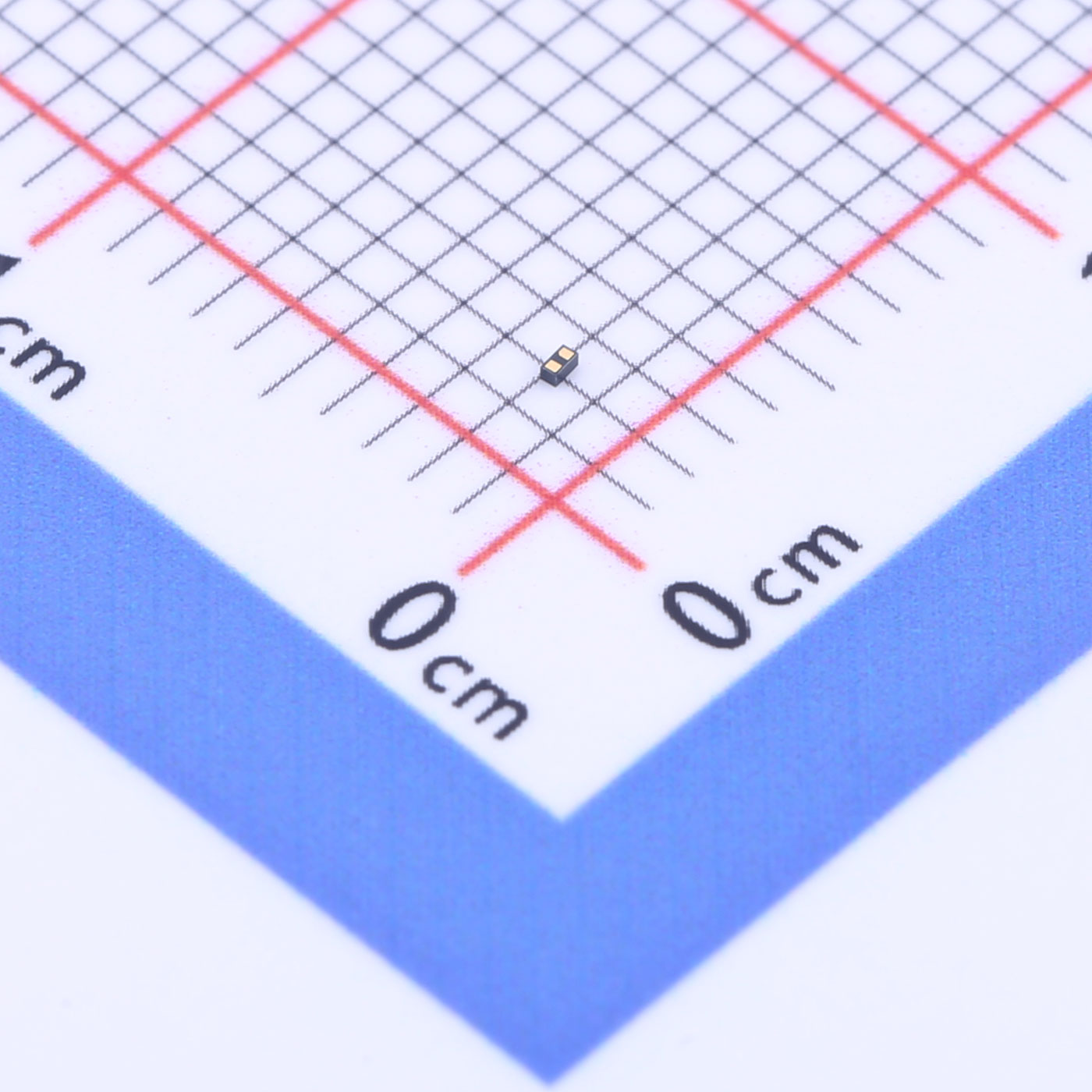

● Small Body Outline Dimensions:0.61 mm x 0.31 mm
● Low Body Height: 0.28 mm
● Low Leakage
● Response Time is Typically < 1 ns
● IEC61000?4?2 Level 4 ESD Protection
● These are Pb?Free Devices
● We declare that the material of productcompliance with RoHS requirements.
Applications
● Consumer Electronics: Protects USB ports, HDMI interfaces, and other connectors from ESD damage.
● Mobile Devices: Safeguards sensitive circuits in smartphones, tablets, and wearables.
● Industrial Control: Ensures reliability in PLCs, sensors, and automation equipment.
● Telecommunications: Protects Ethernet ports, RF interfaces, and communication modules.
| File Name | Title | Description |
|---|---|---|

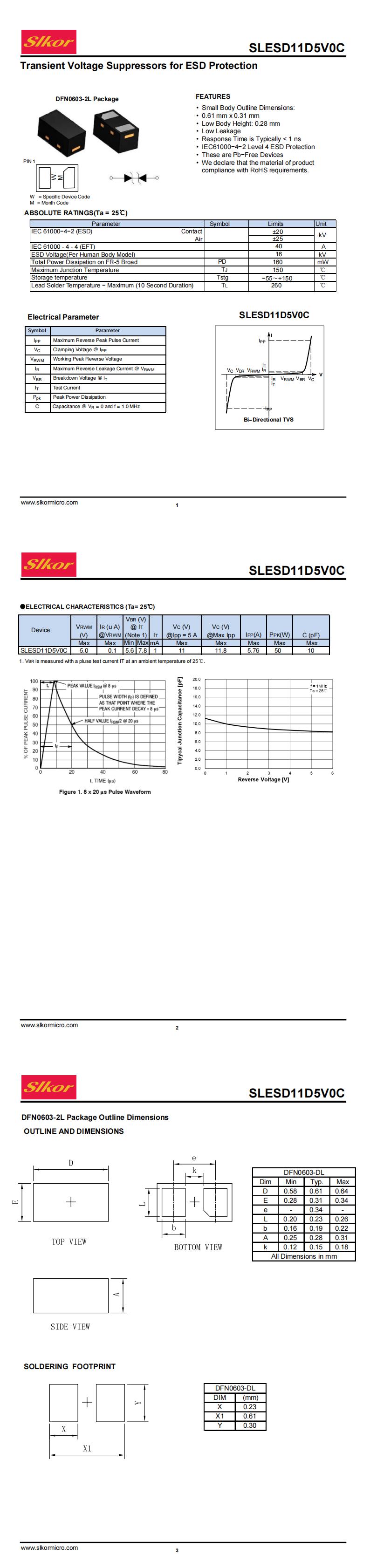

| SLESD11D5V0C DFN0603-2L.pdf | SLESD11D5V0C DFN0603-2L | - |
