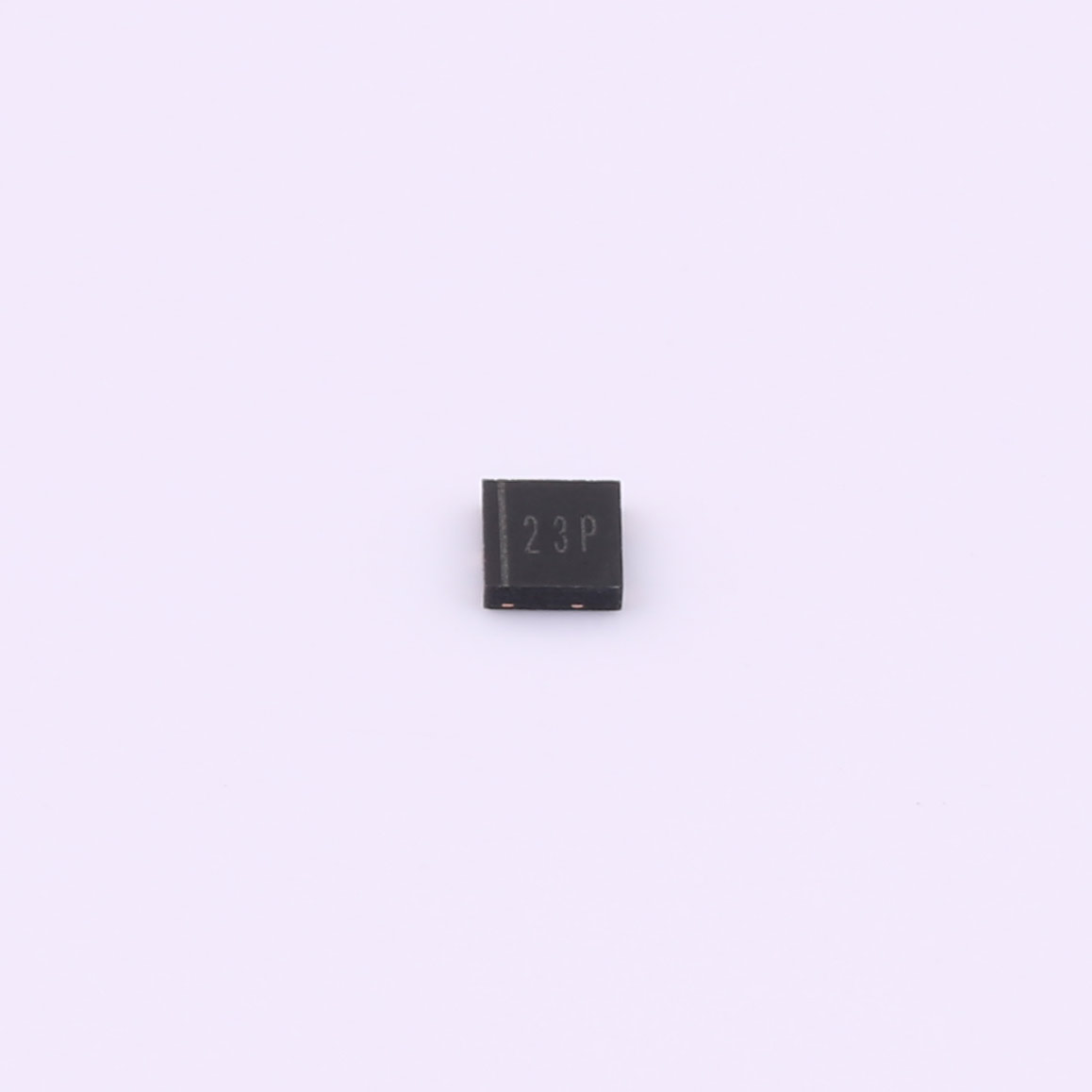

The SLES2411P4 is a high power 24V TVS diode, utilizing leading monolithic silicon technology to provide fast response time and low ESD clamping voltage, making this device an ideal solution for protecting voltage sensitive lines Small size , high surge capability of SLES2411P4 makes them ideal for use in applications such as cellular phones, LCD displays, USB, and multi media card interfaces.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SLES2411P4 is a high power 24V TVS diode, utilizing leading monolithic silicon technology to provide fast response time and low ESD clamping voltage, making this device an ideal solution for protecting voltage sensitive lines Small size , high surge capability of SLES2411P4 makes them ideal for use in applications such as cellular phones, LCD displays, USB, and multi media card interfaces.
Features
● Peak pulse power (6500W @ 8/20us)
● Working voltage: 24 V
● Ultra low clamping voltage

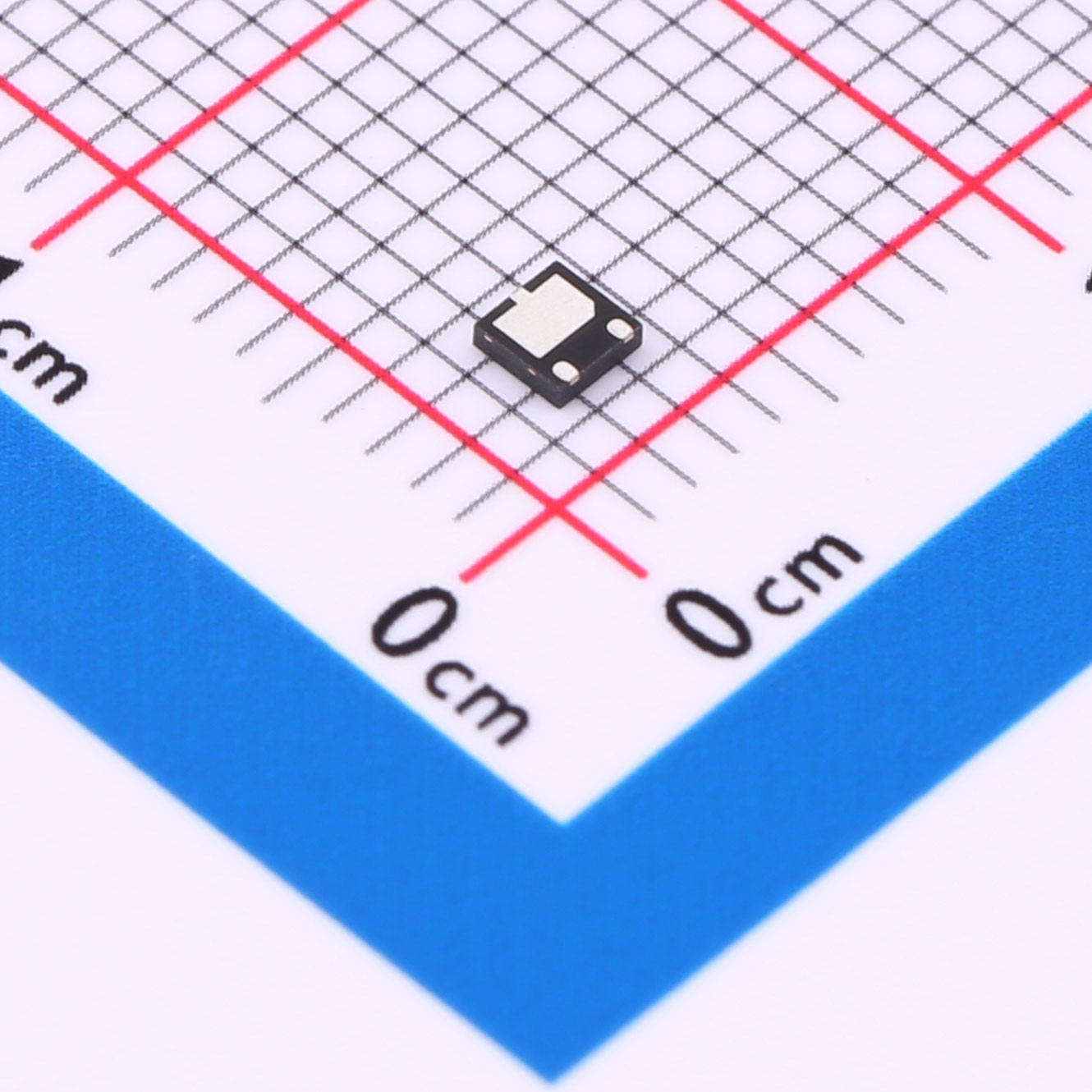

● 3-pins leadless package
● RoHS Compliant
Applications
● Power Management
● Industrial Application
● Power Supply Protection
| File Name | Title | Description |
|---|---|---|

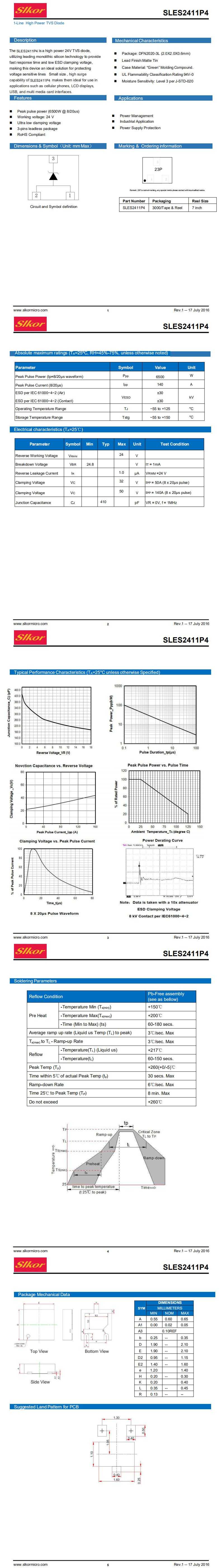

| SLES2411P4 DFN2020-3L.pdf | SLES2411P4 DFN2020-3L | - |
