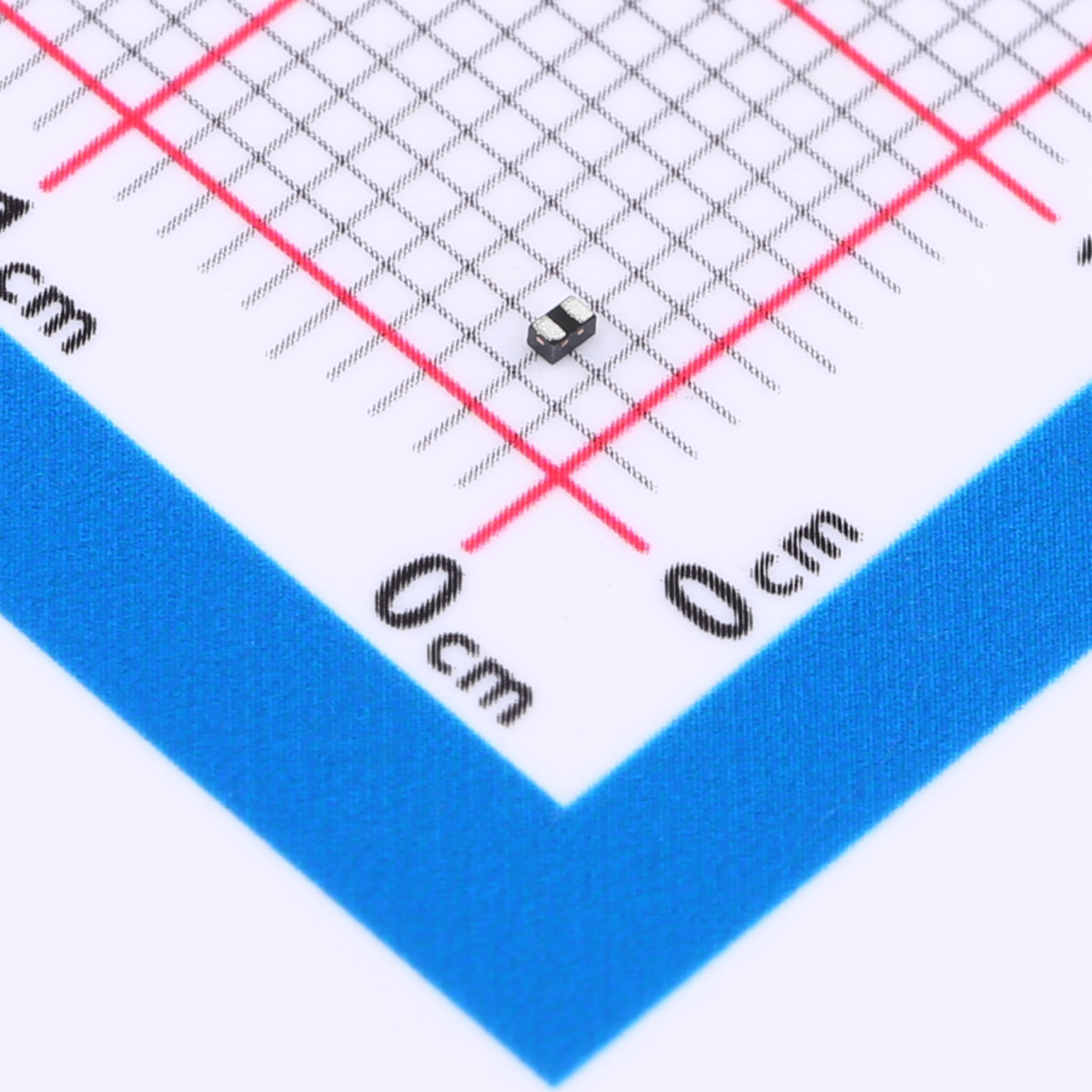

The SEU0501P1 is an advanced ESD (Electrostatic Discharge) protection device crafted to safeguard sensitive electronic components from transient voltage spikes in a compact DFN1006 package. With a working voltage (VRWM) of 5V, this device is optimized for low-voltage applications. It features a minimum breakdown voltage (VBR) of 9.5V, ensuring robust protection during ESD events. The ultra-low reverse leakage current (IR) of 0.1μA ensures minimal power loss and enhances circuit efficiency. The clamping voltage (VC) of 11V provides strong protection against high-energy surges, while the exceptionally low junction capacitance (CJ) of 0.45pF maintains signal integrity in high-speed applications. The SEU0501P1 is designed for environments where space is limited but high performance is critical.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

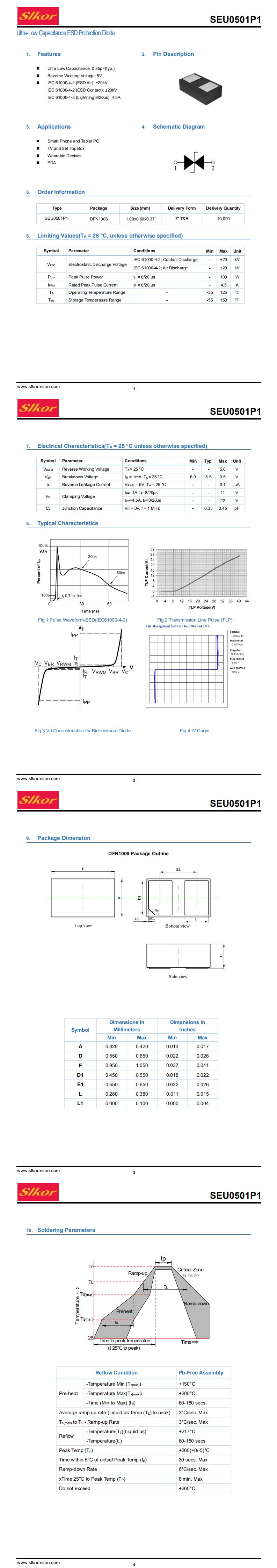

Description
The SEU0501P1 is an advanced ESD (Electrostatic Discharge) protection device crafted to safeguard sensitive electronic components from transient voltage spikes in a compact DFN1006 package. With a working voltage (VRWM) of 5V, this device is optimized for low-voltage applications. It features a minimum breakdown voltage (VBR) of 9.5V, ensuring robust protection during ESD events. The ultra-low reverse leakage current (IR) of 0.1μA ensures minimal power loss and enhances circuit efficiency. The clamping voltage (VC) of 11V provides strong protection against high-energy surges, while the exceptionally low junction capacitance (CJ) of 0.45pF maintains signal integrity in high-speed applications. The SEU0501P1 is designed for environments where space is limited but high performance is critical.
Features
● Capacitance: 0.35pF(typ.)
● Reverse Working Voltage: 5V
● IEC 61000-4-2 (ESD Air): ±20KV
IEC 61000-4-2 (ESD Contact): ±20KV
IEC 61000-4-5 (Lightning 8/20μs): 4.5A
Application
● Smart Phone and Tablet PC
● TV and Set Top Box
● Wearable Devices
● PDA
| File Name | Title | Description |
|---|---|---|
