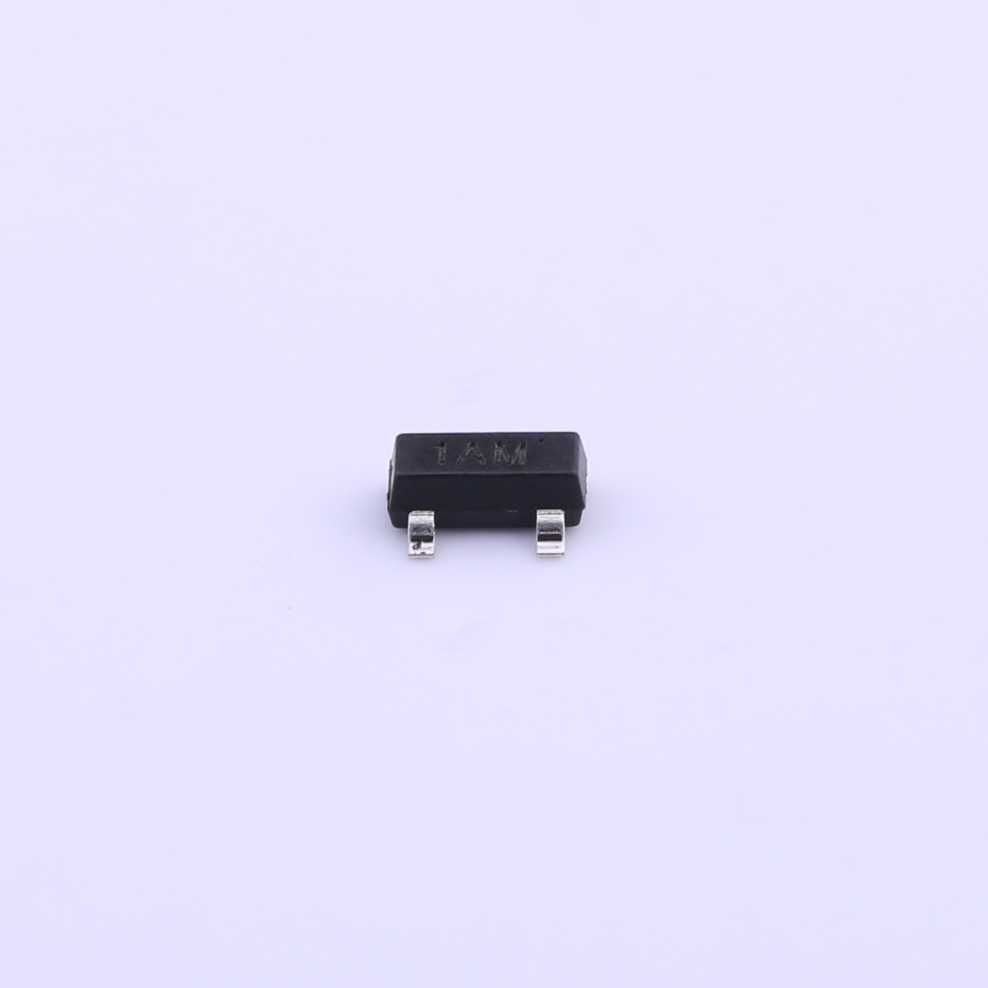

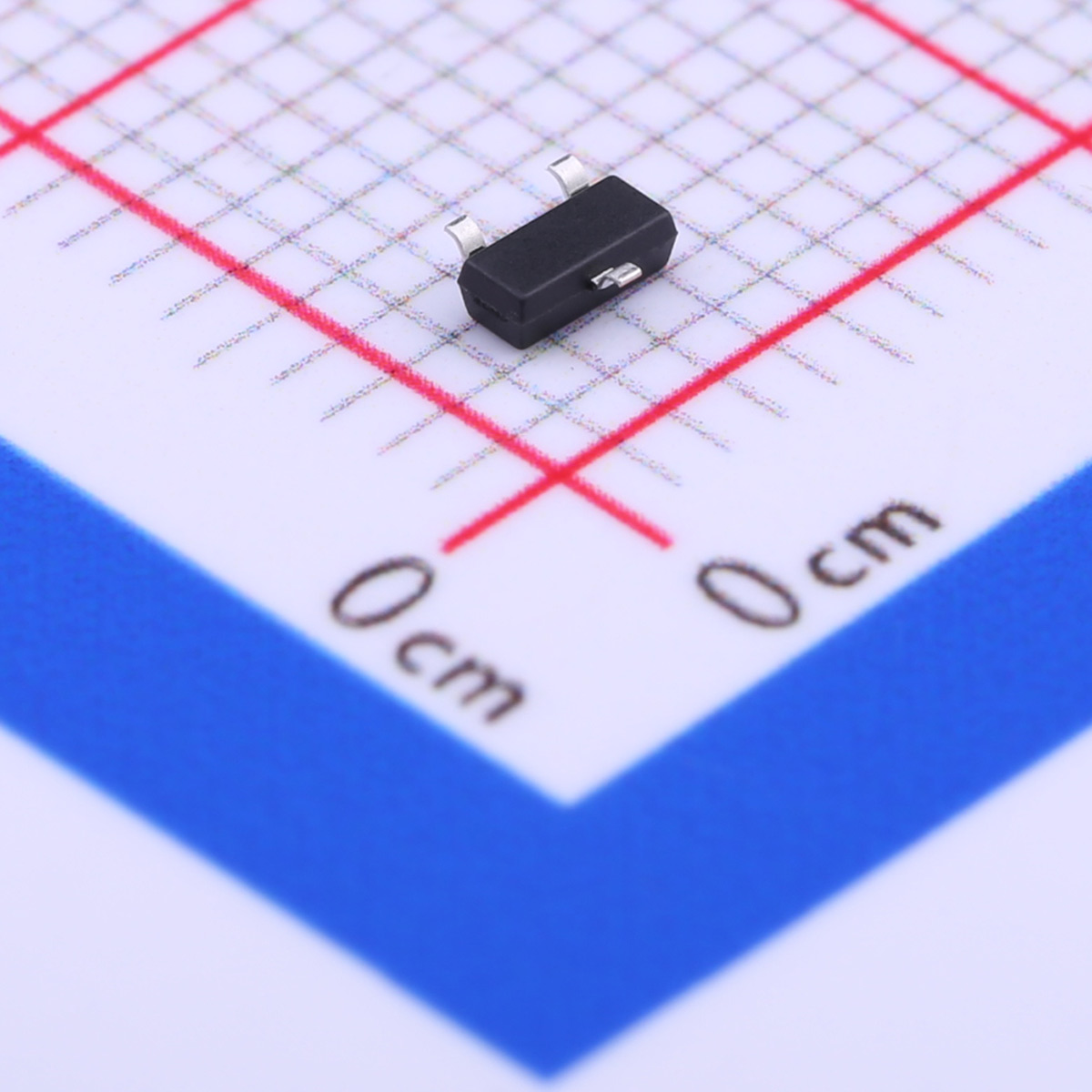

Triode SL3904
Download datasheet Inquiry
Our advantages:
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description:
The SL3904 is a versatile NPN Bipolar Junction Transistor (BJT) designed for small-signal amplification and switching applications. Featuring a Vceo of 40V and a maximum collector current (Ic) of 200mA, this transistor offers reliable performance in a compact TO-92 package. It is well-suited for use in circuits where low power dissipation and high frequency response are essential.
Features:
Applications:
The SL3904 NPN transistor is ideal for a variety of applications including:
● Audio Amplifiers: Small-signal amplification in audio circuits.
● Switching Circuits: Efficient switching applications due to low saturation voltage.
● RF Amplifiers: High-frequency signal amplification up to 300MHz.
● Sensor Interfaces: Signal conditioning and amplification in sensor applications.
● Consumer Electronics: Integrated into various low-power electronic devices.

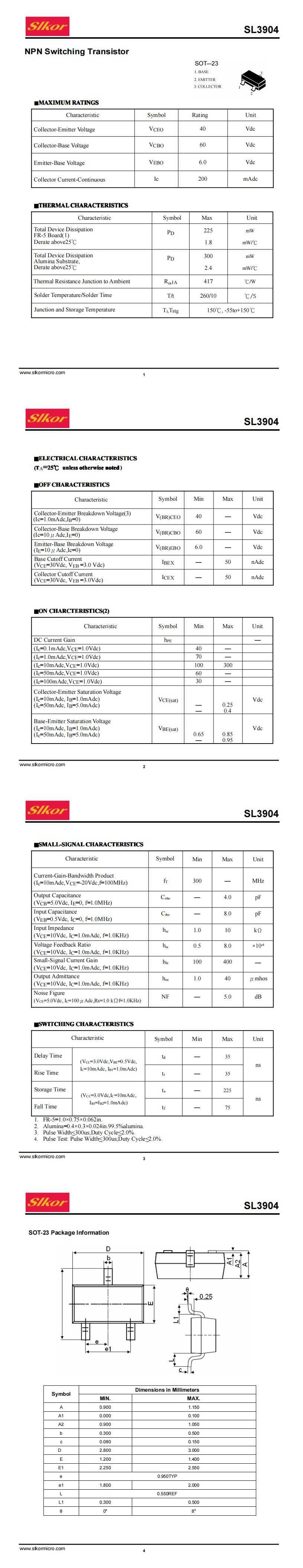

| File Name | Title | Description |
|---|---|---|
| SL3904.pdf | SL3904 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
