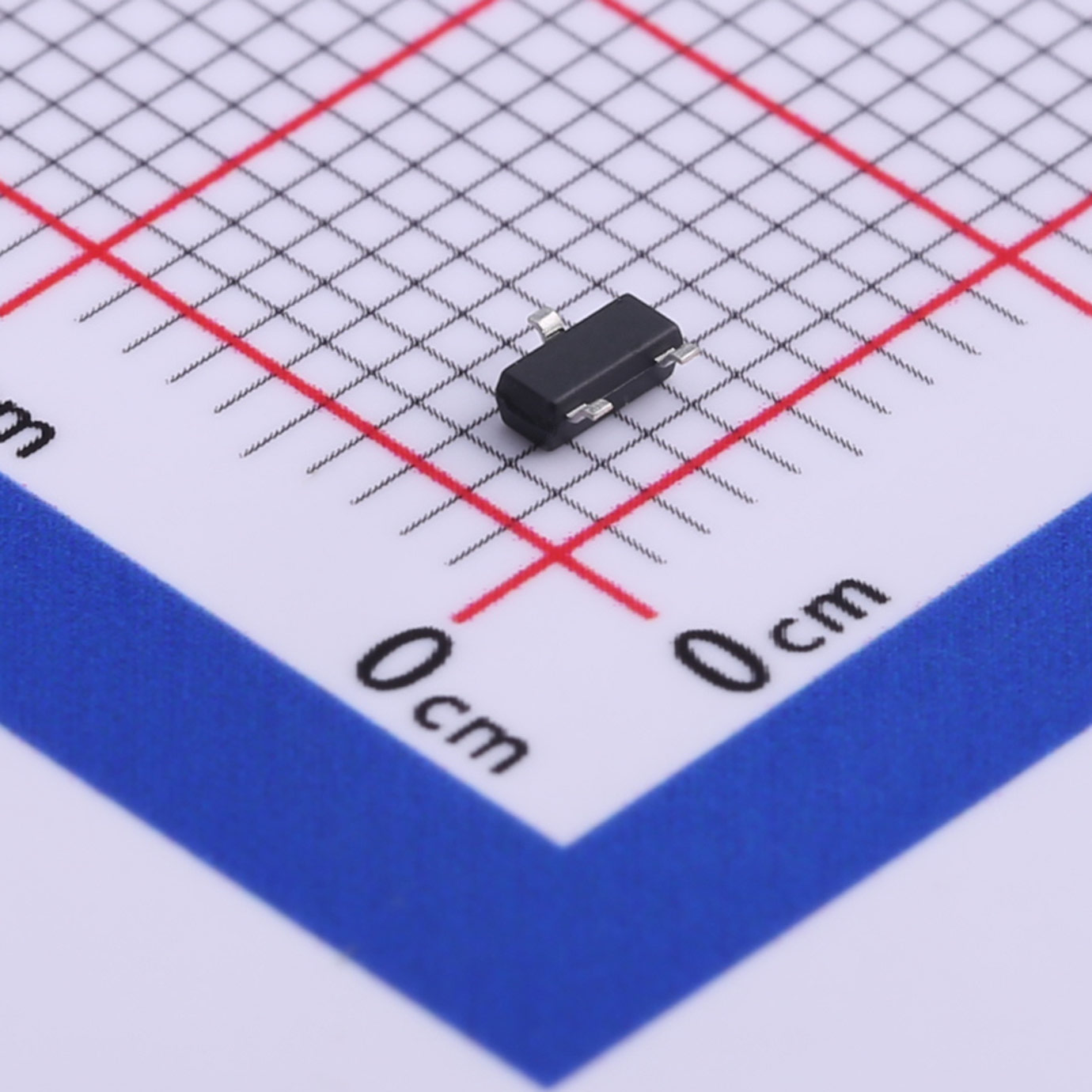

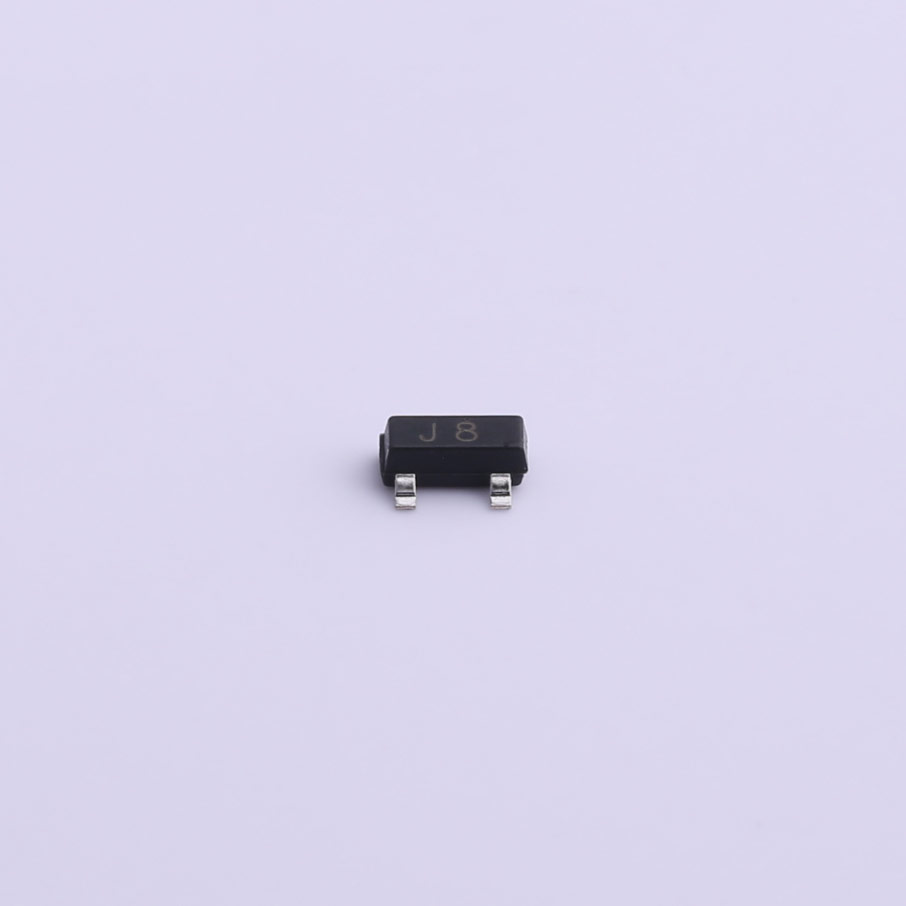

The S9018 is a high-frequency NPN bipolar junction transistor (BJT) designed for applications requiring fast switching speeds and amplification at higher frequencies. With a collector-emitter voltage (Vceo) rating of 15V, a maximum collector current (Ic) of 50mA, and a power dissipation (Pd) of 200mW, the S9018 transistor is optimized for low-power circuits where space and efficiency are critical. It comes in a compact TO-92 package, ensuring easy integration into various electronic designs.
Download datasheet InquiryOur advantages:
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description:
The S9018 is a high-frequency NPN bipolar junction transistor (BJT) designed for applications requiring fast switching speeds and amplification at higher frequencies. With a collector-emitter voltage (Vceo) rating of 15V, a maximum collector current (Ic) of 50mA, and a power dissipation (Pd) of 200mW, the S9018 transistor is optimized for low-power circuits where space and efficiency are critical. It comes in a compact TO-92 package, ensuring easy integration into various electronic designs.
Features:
● AM/FM Amplifier, Local Oscillator of FM/VHF Tuner
● High Current Gain Bandwidth Product
Applications:
The S9018 transistor is particularly suited for the following applications:

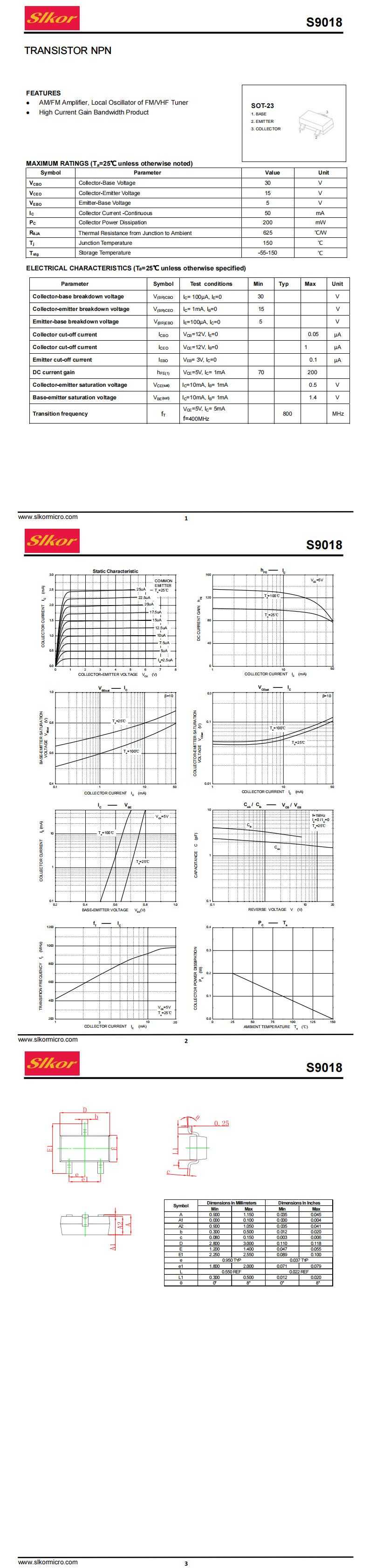

| File Name | Title | Description |
|---|---|---|
| S9018.pdf | S9018 | - |
