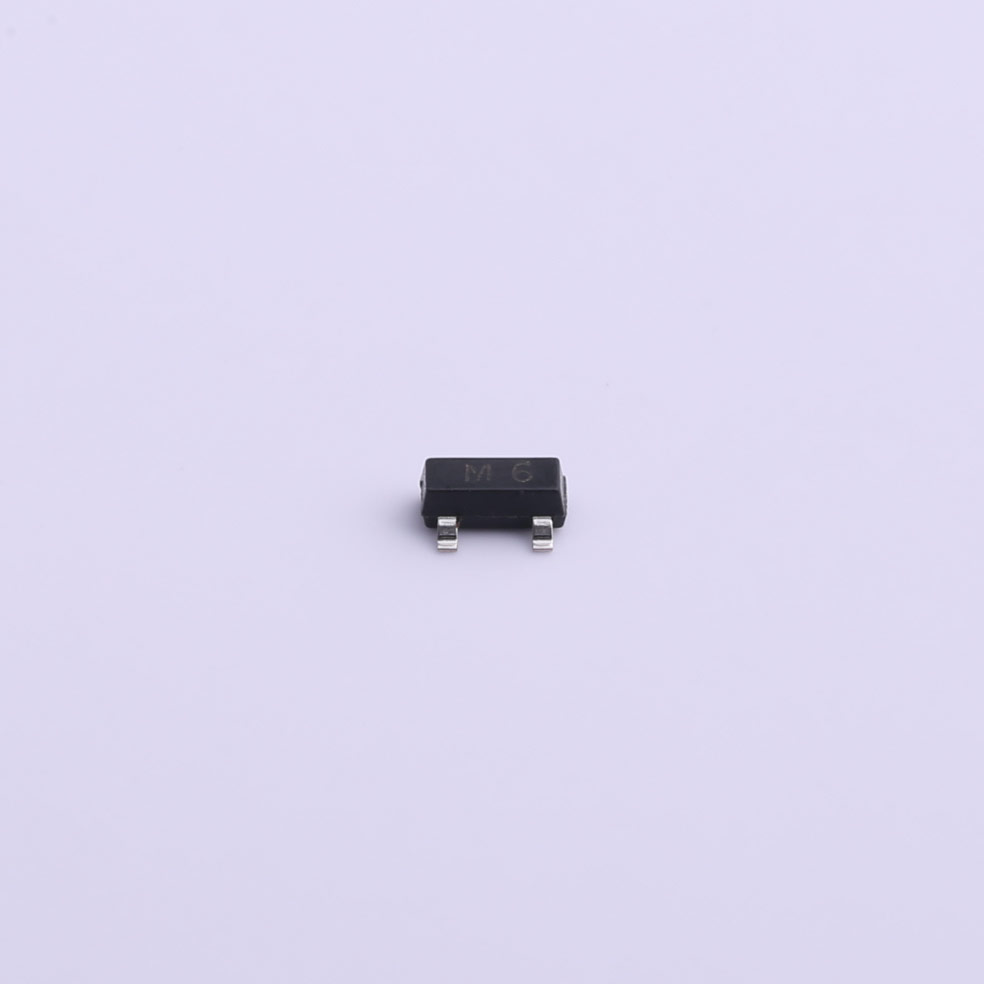

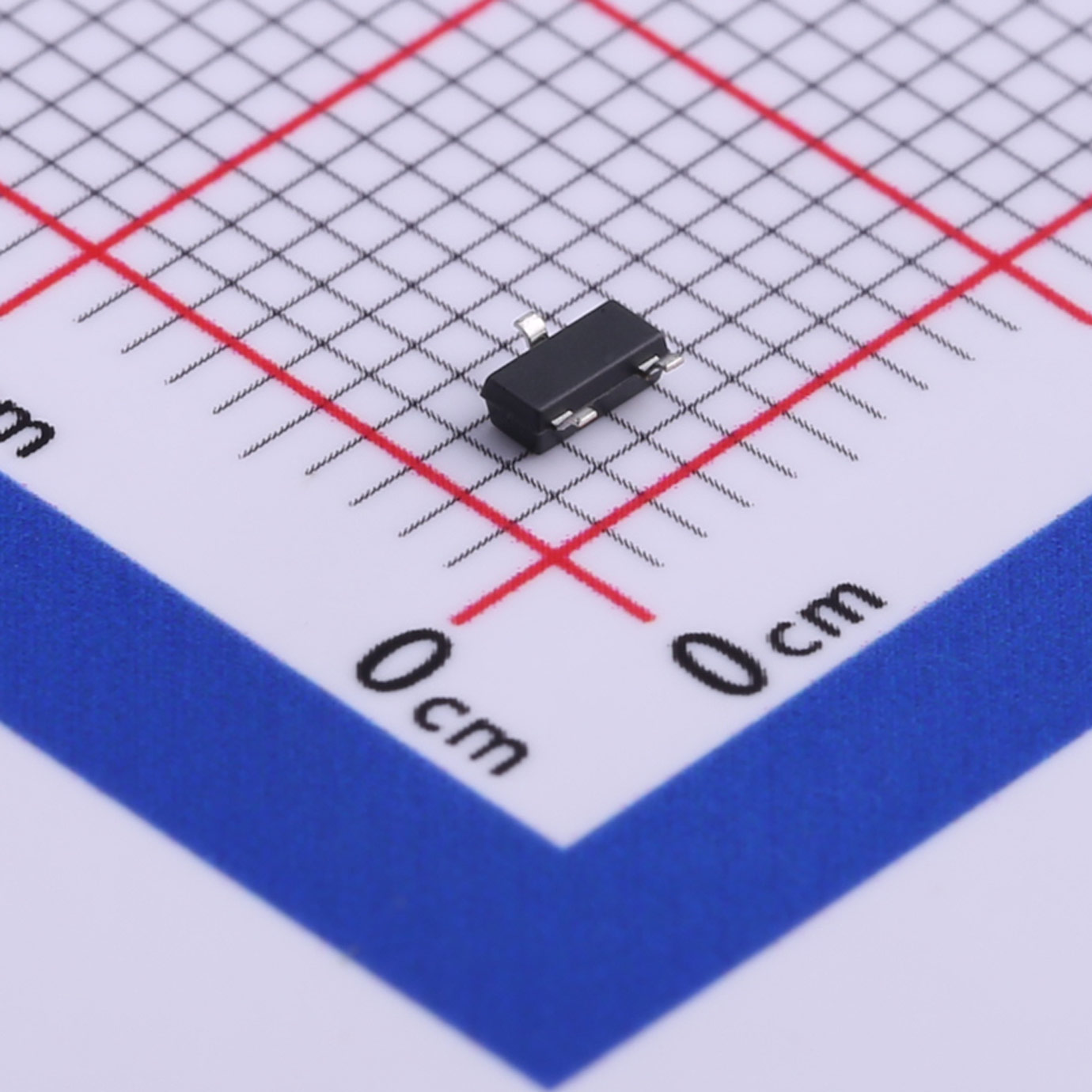

The S9015 is a compact PNP bipolar junction transistor (BJT) designed for general-purpose applications where moderate current and voltage handling capabilities are required. It features a collector-emitter voltage (Vceo) of 45V, a maximum collector current (Ic) of 100mA, and a power dissipation (Pd) of 200mW, making it suitable for various low-power electronic circuits. Packaged in a TO-92 format, the S9015 transistor is easy to use and integrate into different electronic designs.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Applications:
The S9015 transistor is suitable for a wide range of applications in electronic circuits, including:
| File Name | Title | Description |
|---|---|---|
| S9015.pdf | S9015 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
The FMMT718 PNP Bipolar Transistor designed to deliver exceptional efficiency and reliability in demanding applications. With a Vceo of 20V and an Ic rating of 1.5A, this transistor is engineered to handle substantial currents while maintaining stable operation. Its robust power dissipation capability of 625mW and low VCE(sat) of 40mV at -100mA, -10mA make it ideal for high-speed switching applications. The high transition frequency (fT) of 150MHz ensures optimal performance in fast-switching environments. Operating effectively at a maximum junction temperature of 150℃, this transistor is built to withstand extreme conditions and deliver consistent performance.
The 2SA1037-R PNP Digital Transistor is a high-performance PNP transistor designed to deliver reliable operation in demanding electronic applications. With a maximum collector-emitter voltage (Vceo) of 50V, it is well-suited for various switching and amplification tasks. The transistor boasts a high transition frequency (fT) of 140MHz, making it ideal for high-speed signal processing.
The DTC143ZCA is a high-performance PNP bipolar junction transistor (BJT) designed for precision switching and amplification tasks in electronic circuits. Encapsulated in a compact SOT-23 package, this transistor offers robust performance with a maximum collector-emitter voltage (Vcc) of 50V and a maximum collector current (Ic) of 100mA. It features low input and output voltage characteristics (VI(off) and VI(on)) of 0.5V and 1.3V respectively, enhancing its efficiency in switching applications. With a high transition frequency (fT) of 250MHz, it ensures reliable performance in high-frequency circuits.
The FMMT591 is an PNP bipolar junction transistor designed for reliable switching and amplification in various electronic applications requiring moderate power handling and high-frequency performance. With a collector-emitter voltage rating (Vceo) of 60V and a maximum collector current (Ic) of 1A, it provides robust performance in a compact package. This transistor is optimized for efficient operation and precise control of currents.
The BC857B is a versatile PNP bipolar junction transistor (BJT) designed for a wide range of applications where reliable switching and amplification are required. This transistor features a Vceo of 45V and a maximum collector current (Ic) of 100mA, making it suitable for low to medium power electronic circuits. Housed in a SOT-23 package, it offers compact size and ease of integration into various circuit designs.
The A1015 is a versatile PNP bipolar junction transistor (BJT) designed for general-purpose applications where moderate current and voltage requirements are essential. With a collector-emitter voltage (Vceo) rating of 50V and a maximum collector current (Ic) of 150mA, this transistor is suitable for various electronic circuits requiring switching and amplification functions. It is packaged in a compact TO-92 package, ensuring ease of use and integration into diverse electronic designs.
The BC856B is a high-performance PNP bipolar junction transistor (BJT) known for its versatile applications in electronic circuits requiring precision and efficiency. It features a Vceo of 65V and a maximum collector current (Ic) of 100mA, making it suitable for low to moderate power applications. Encapsulated in a SOT-23 package, it offers compactness and ease of integration into modern circuit designs.
The MMBT2907 is a high-performance PNP bipolar junction transistor (BJT) known for its robust characteristics and versatile applications in electronics. Designed for efficiency and reliability, it offers a collector-emitter voltage (Vceo) of -40V and a maximum collector current (Ic) of -600mA. This makes it suitable for both low and medium power circuits where precise current control and signal amplification are critical. Encapsulated in a compact SOT-23 package, it facilitates easy integration into modern electronic designs.
