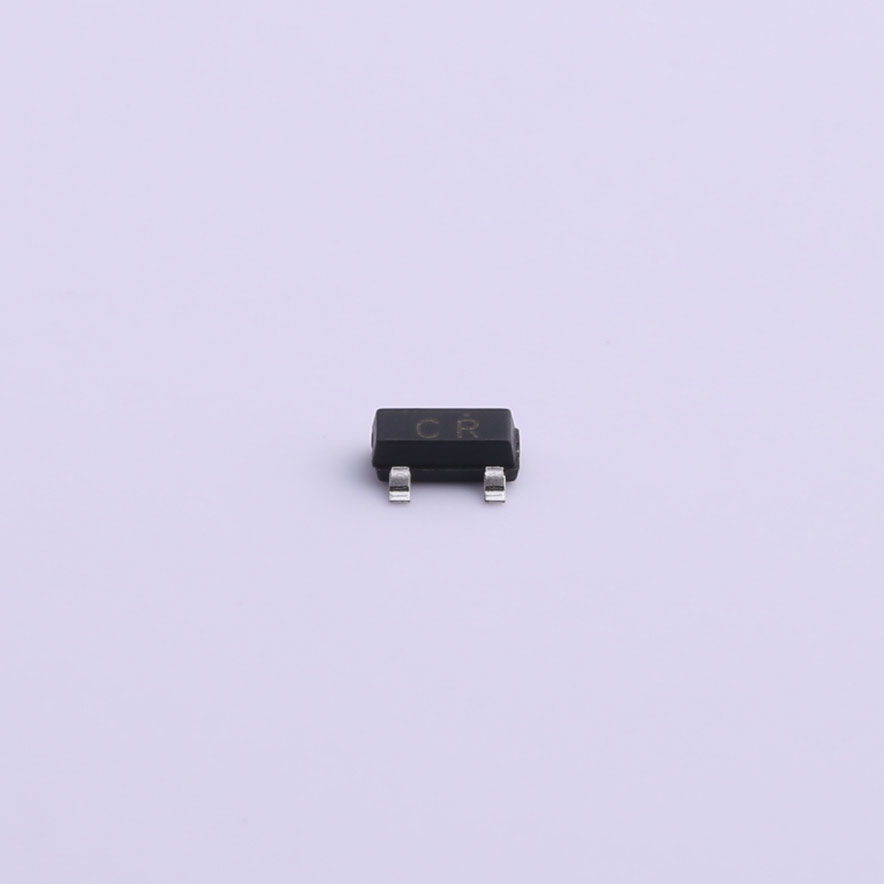

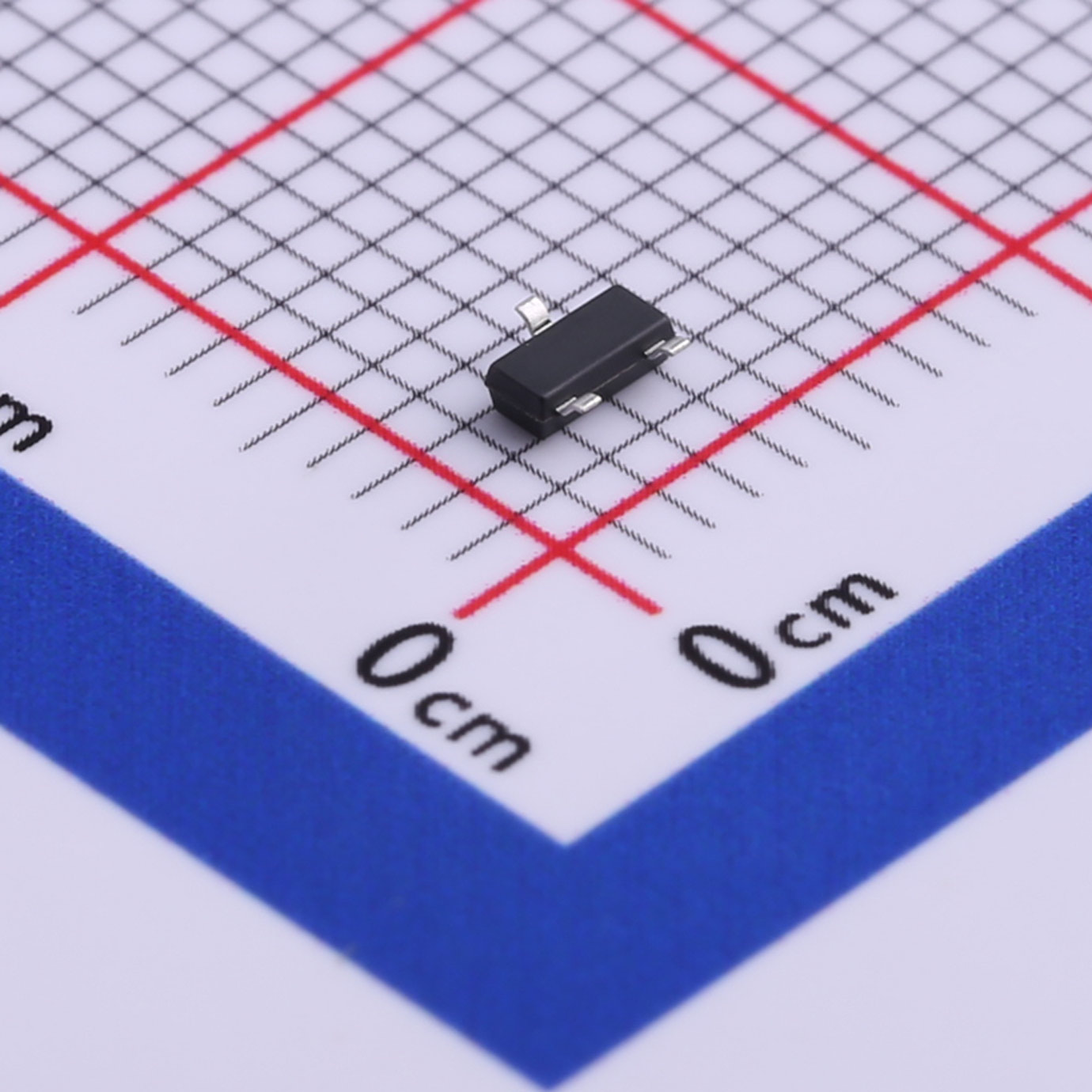

The C945 is a versatile NPN bipolar junction transistor (BJT) designed for general-purpose electronic applications requiring switching and amplification functions. With a collector-emitter voltage (Vceo) rating of 50V, a maximum collector current (Ic) of 150mA, and a power dissipation (Pd) of 200mW, the C945 transistor offers reliability and performance in a variety of circuit designs. It is typically housed in a TO-92 package, ensuring ease of integration into both through-hole and surface-mount applications.
Download datasheet InquiryOur advantages:
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description:
The C945 is a versatile NPN bipolar junction transistor (BJT) designed for general-purpose electronic applications requiring switching and amplification functions. With a collector-emitter voltage (Vceo) rating of 50V, a maximum collector current (Ic) of 150mA, and a power dissipation (Pd) of 200mW, the C945 transistor offers reliability and performance in a variety of circuit designs. It is typically housed in a TO-92 package, ensuring ease of integration into both through-hole and surface-mount applications.
Features:
● Excellent hFE Linearity
● Low noise
z Complementary to A733
Applications:
The C945 transistor is widely used in numerous electronic circuits and applications, including:
| File Name | Title | Description |
|---|---|---|

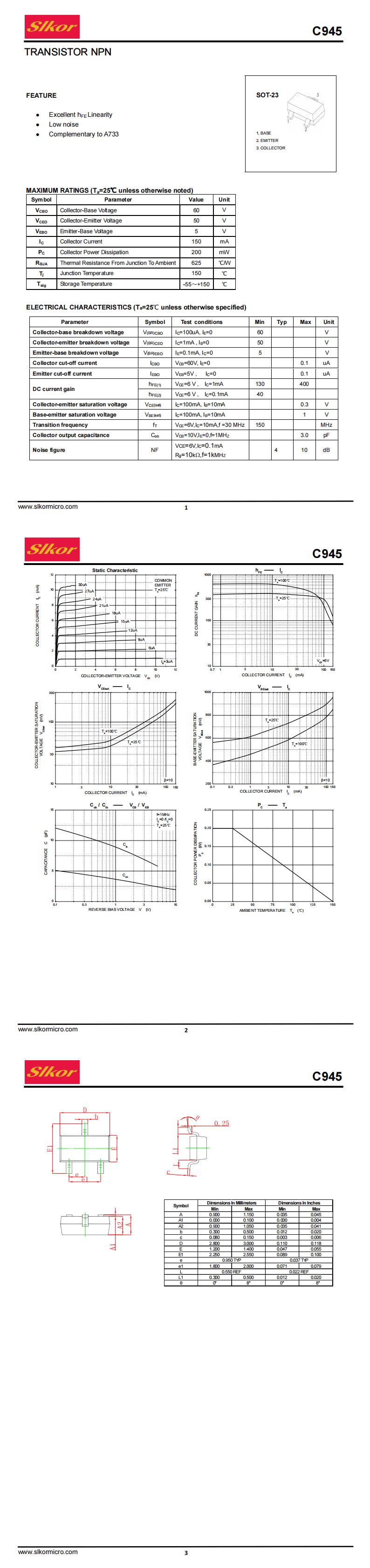

| C945.pdf | C945 | - |
