The 2SD965A-R is a high-performance NPN bipolar transistor designed for versatile electronic applications where robustness and efficiency are paramount. Encased in a TO-220 package, this transistor offers a maximum collector-emitter voltage (Vceo) of 30V and can handle a continuous collector current (Ic) of up to 5A. With a power dissipation (Pd) rating of 750mW, it efficiently manages power under various operating conditions. The 2SD965A-R features a low saturation voltage (VCE(sat)) of 1V at 3A collector current and 100mA base current, ensuring minimal power loss during operation. Its high current gain (hFE) of 340 at 500mA collector current and 2V collector-emitter voltage (Vce) facilitates reliable amplification and switching in diverse circuit designs.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description:
The 2SD965A-R is a high-performance NPN bipolar transistor designed for versatile electronic applications where robustness and efficiency are paramount. Encased in a TO-220 package, this transistor offers a maximum collector-emitter voltage (Vceo) of 30V and can handle a continuous collector current (Ic) of up to 5A. With a power dissipation (Pd) rating of 750mW, it efficiently manages power under various operating conditions. The 2SD965A-R features a low saturation voltage (VCE(sat)) of 1V at 3A collector current and 100mA base current, ensuring minimal power loss during operation. Its high current gain (hFE) of 340 at 500mA collector current and 2V collector-emitter voltage (Vce) facilitates reliable amplification and switching in diverse circuit designs.
Features:
● Low saturation voltage
● Large Collector Power Dissipation and Current
Applications:
The 2SD965A-R transistor is well-suited for a variety of applications:
● Power Switching: Efficiently switches high currents in power supplies and voltage regulators.
● Motor Control: Drives motors and actuators in automotive and industrial applications.
● Audio Amplification: Provides high-fidelity amplification with low distortion in audio circuits.
● RF Amplification: Supports high-frequency signal amplification up to 150MHz.
● Temperature Sensing and Control: Used in temperature monitoring and control circuits due to its high temperature tolerance up to +150°C.
| File Name | Title | Description |
|---|---|---|

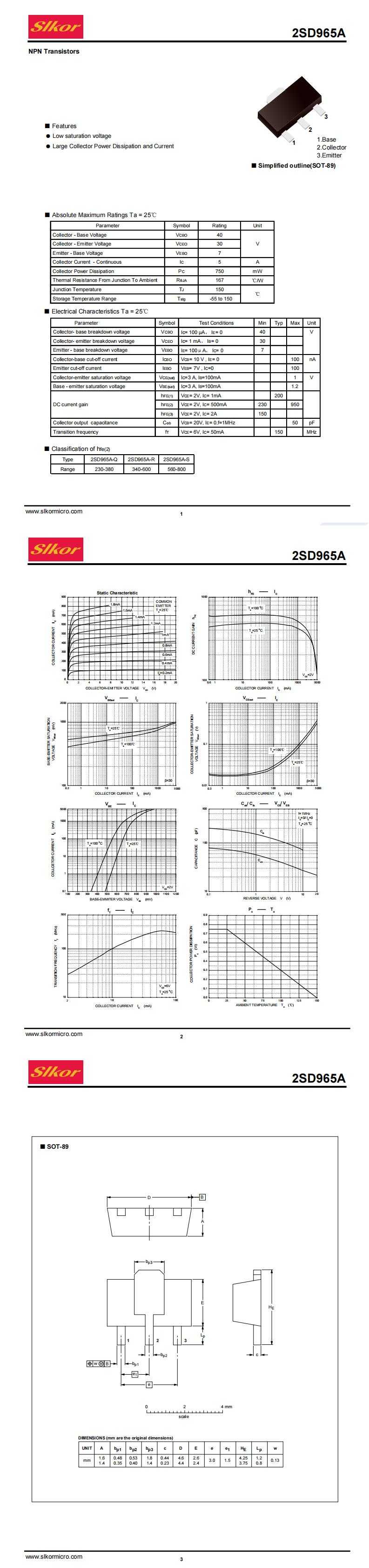

| 2SD965A-R SOT-89.pdf | 2SD965A-R SOT-89 | - |
