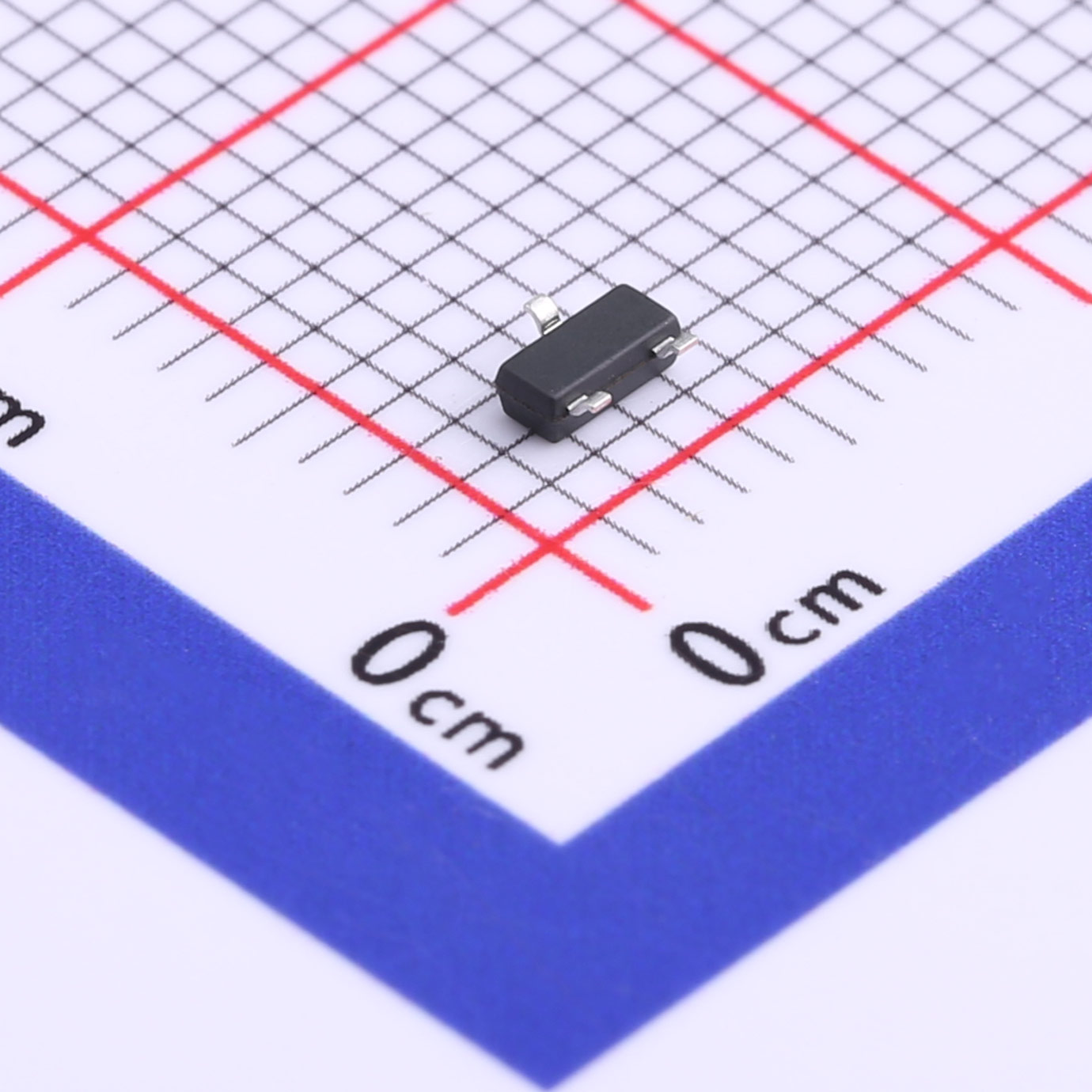

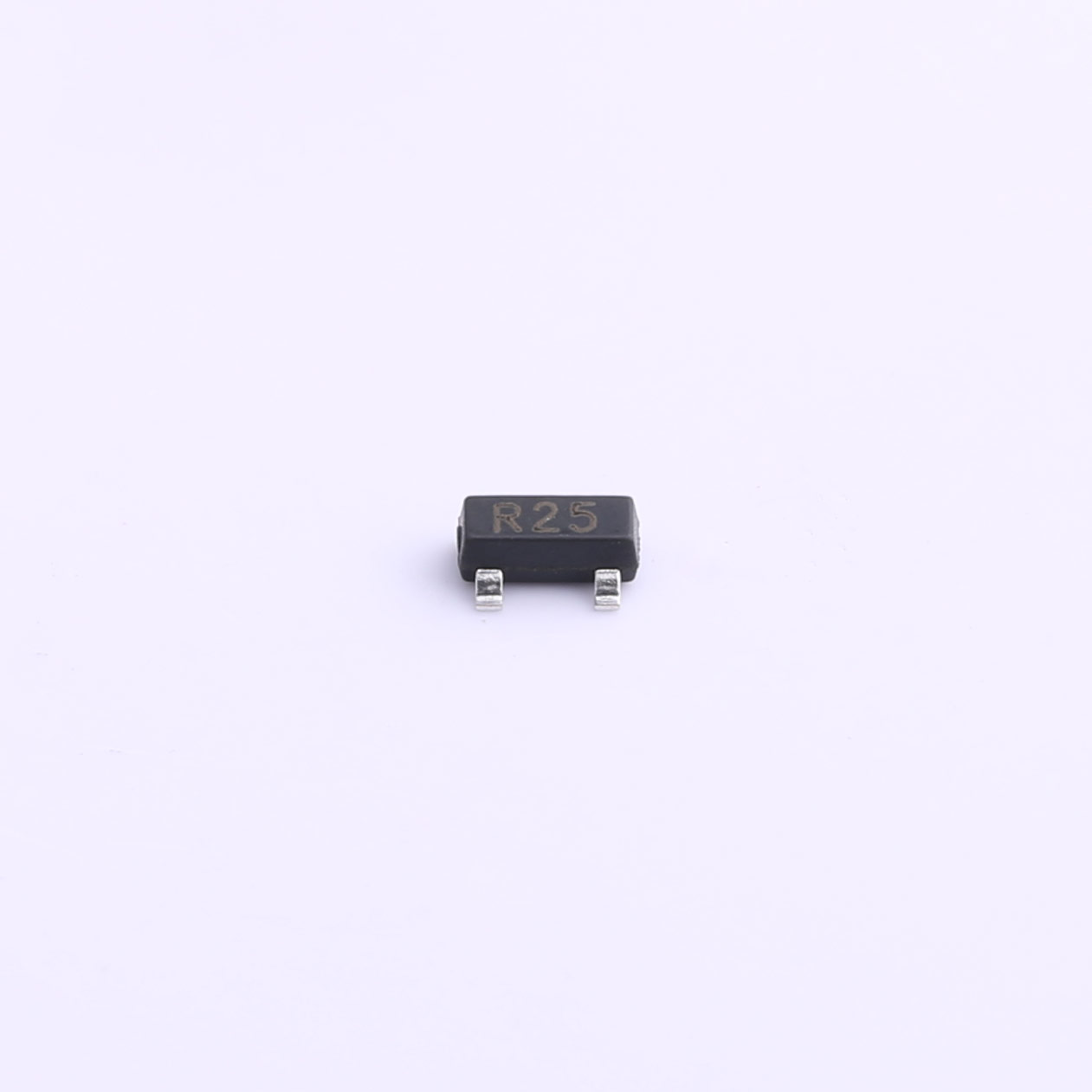

2SC3356 R25 NPN Bipolar Transistor SOT-23
Download datasheet InquiryNPN High-Frequency Low-Noise Transistor
Description
The 2SC3356 is a UHF low-noise transistor that adopts a planar NPN silicon-epitaxial bipolar process. It features high-power gain, low noise figure, wide dynamic range and perfect current linearity.
Being packaged with SOT-23, the transistor is mainly used in VHFUHF and CATV low-noise amplifiers with high-frequency broadband.
| File Name | Title | Description |
|---|---|---|

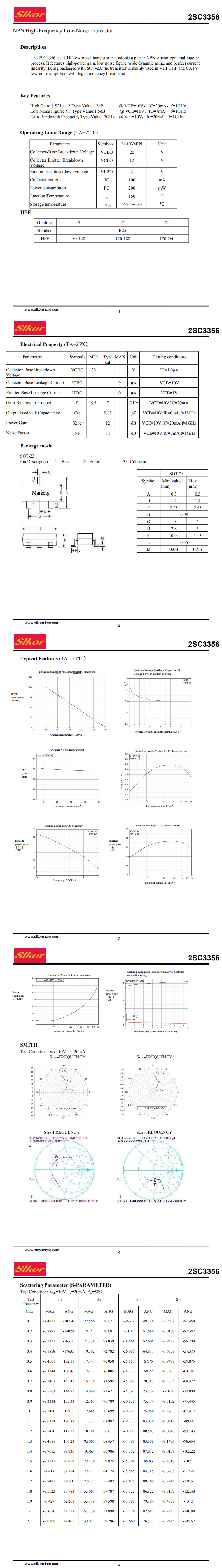

| 2SC3356 R25 SOT-23.pdf | 2SC3356 R25 SOT-23 | - |
