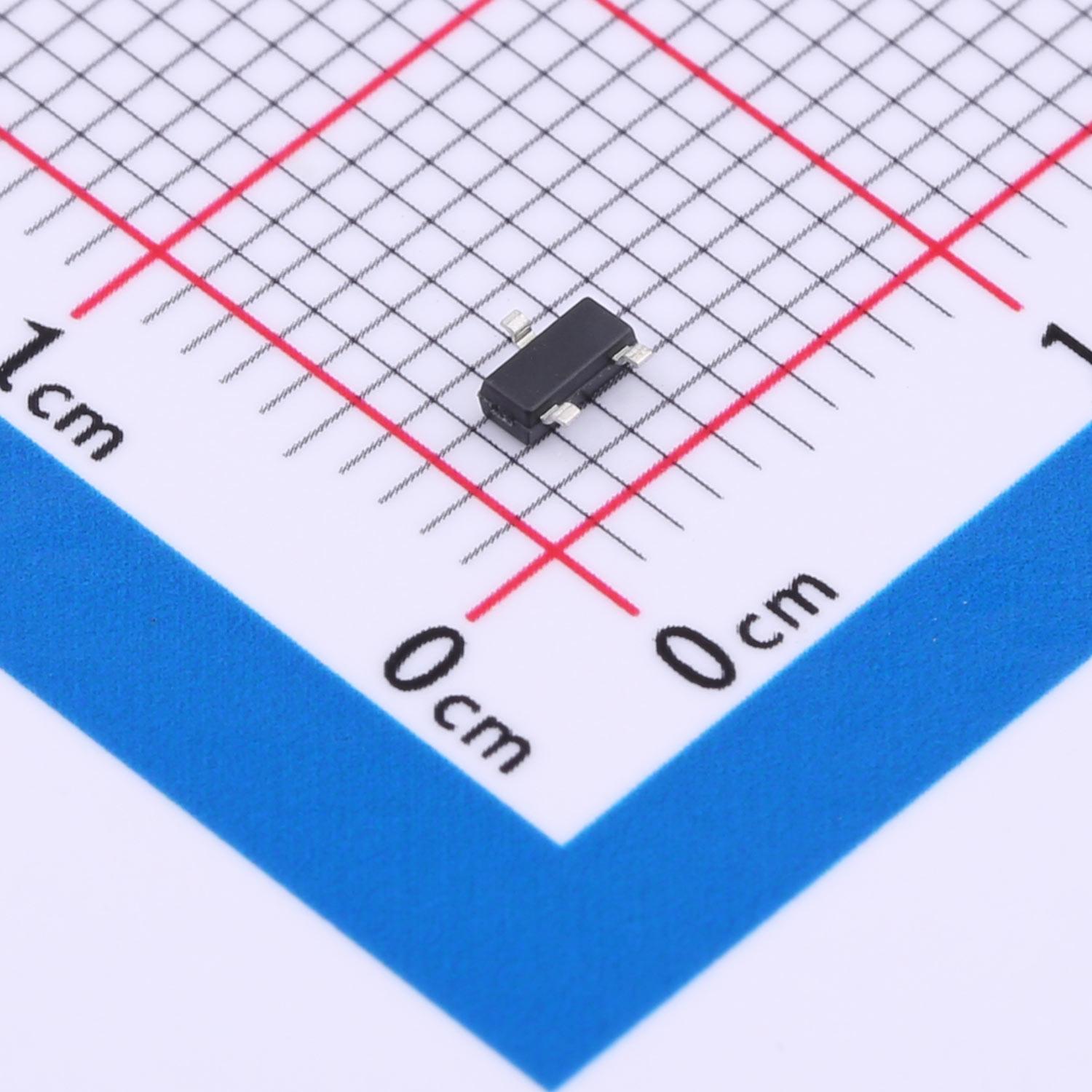

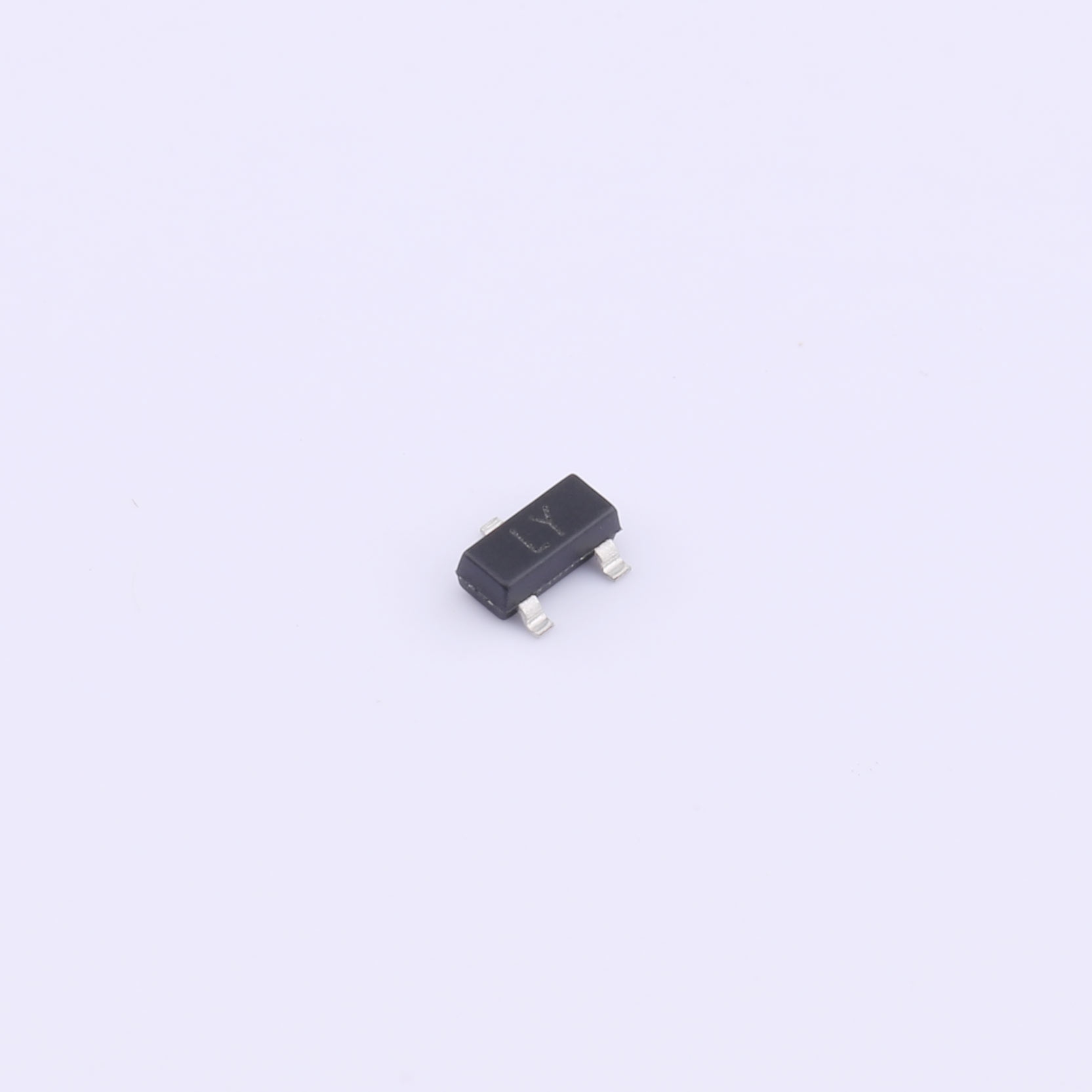

The 2SC2712-Y is a versatile NPN bipolar transistor designed for precise amplification and switching applications in electronic circuits. Housed in a compact TO-92 package, this transistor features a maximum collector-emitter voltage (Vceo) of 50V and can handle a continuous collector current (Ic) of up to 150mA. With a power dissipation (Pd) rating of 150mW, it efficiently manages heat dissipation in various circuit configurations. The 2SC2712-Y is characterized by a low saturation voltage (VCE(sat)) of 250mV at 100mA collector current and 10mA base current, ensuring minimal energy loss during operation. It offers a high DC current gain (hFE) of 120 at 2mA collector current and 6V collector-emitter voltage (Vce), making it suitable for applications requiring precise signal amplification and control.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description:
The 2SC2712-Y is a versatile NPN bipolar transistor designed for precise amplification and switching applications in electronic circuits. Housed in a compact TO-92 package, this transistor features a maximum collector-emitter voltage (Vceo) of 50V and can handle a continuous collector current (Ic) of up to 150mA. With a power dissipation (Pd) rating of 150mW, it efficiently manages heat dissipation in various circuit configurations. The 2SC2712-Y is characterized by a low saturation voltage (VCE(sat)) of 250mV at 100mA collector current and 10mA base current, ensuring minimal energy loss during operation. It offers a high DC current gain (hFE) of 120 at 2mA collector current and 6V collector-emitter voltage (Vce), making it suitable for applications requiring precise signal amplification and control.
Features:
● High voltage and high current: VCEO = 50 V, IC = 150 mA (max)
● Excellent hFE linearity : hFE (IC = 0.1 mA)/ hFE (IC = 2 mA)= 0.95 (typ.)
● High hFE: hFE = 70 700
● Low noise: NF = 1dB (typ.), 10dB (max)
Applications:
The 2SC2712-Y transistor is well-suited for a wide range of applications:
● Signal Amplification: Provides precise amplification in audio and other low-power signal circuits.
● Switching Applications: Efficiently switches signals in logic circuits and small-scale switching applications.
● Voltage Regulation: Controls voltage levels in voltage regulators and power management circuits.
● Sensor Interfaces: Interfaces with sensors due to its low power consumption and high gain characteristics.
● Temperature Monitoring: Suitable for temperature sensing applications with its operational temperature up to +125°C.

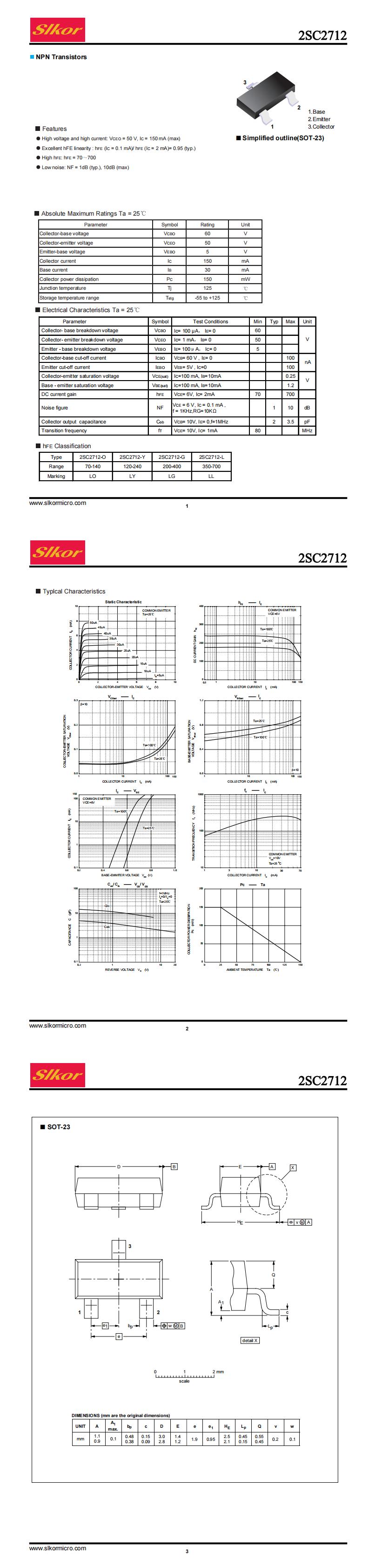

| File Name | Title | Description |
|---|---|---|
| 2SC2712-Y SOT-23.pdf | 2SC2712-Y SOT-23 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
Vceo:40V Ic:2A Pd:300mW VCE(sat):0.5V fT:100MHz Working temperature:-
The 2SC2712-G is a high-performance NPN bipolar transistor housed in a compact SOT-23 package. It is designed for various electronic applications, offering reliable switching and amplification capabilities in a small footprint.
Introducing the 13001 NPN Bipolar Transistor, a robust and versatile component engineered for high-voltage and power applications. Encased in a compact SOT-23 package, this transistor offers a maximum collector-emitter voltage (Vceo) of 600V, accommodating demanding circuit requirements. With a collector current (Ic) capacity of up to 0.2A and a power dissipation rating of 0.75W, it ensures reliable operation in various settings. The 13001 features a low saturation voltage (VCE(sat)) of 0.5V and a transition frequency (fT) of 8MHz, making it suitable for both switching and amplification tasks.
The 2SC3585 is an ultra-high-frequency low-noise transistor using planar NPN silicon epitaxial bipolar technology. It features high power gain, low noise figure, wide dynamic range, and ideal current characteristics. It comes in a SOT-23-3L surface-mount package and is primarily used in VHF, UHF, and CATV high-frequency broadband low-noise amplifiers.
The 2SC3356 is an ultra-high frequency low-noise transistor utilizing planar NPN silicon epitaxial bipolar technology. It features high power gain, low noise figure, wide dynamic range, and excellent current characteristics.Packaged in SOT-23 SMD format, it is primarily used in VHF, UHF, and CATV broadband low-noise amplifiers.
This high-performance component boasts a Vceo rating of 45V and can handle a collector current (Ic) of up to 600mA, ensuring robust and reliable operation in various circuits. With a power dissipation capability of 300mW and a saturation voltage (VCE(sat)) of just 0.3V at 100mA collector current and 10mA base current, this transistor offers exceptional efficiency and low power loss.
The 2SD1782R NPN Bipolar Transistor SOT-23 designed to deliver exceptional reliability and efficiency in demanding electronic applications. With robust specifications and advanced technology, this transistor is engineered to handle high voltages and currents while maintaining optimal performance in extreme temperatures. Ideal for both high-frequency and power applications, it offers a balanced combination of power handling, switching speed, and thermal stability.
