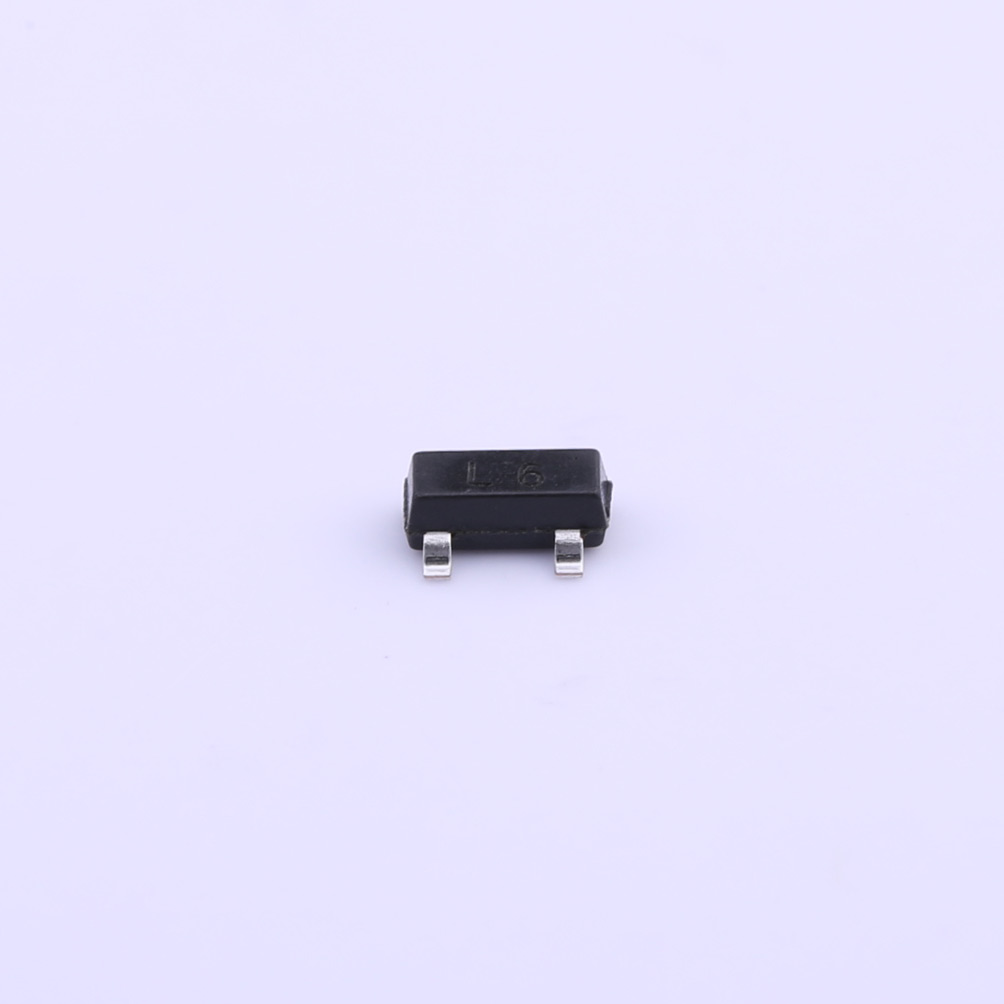

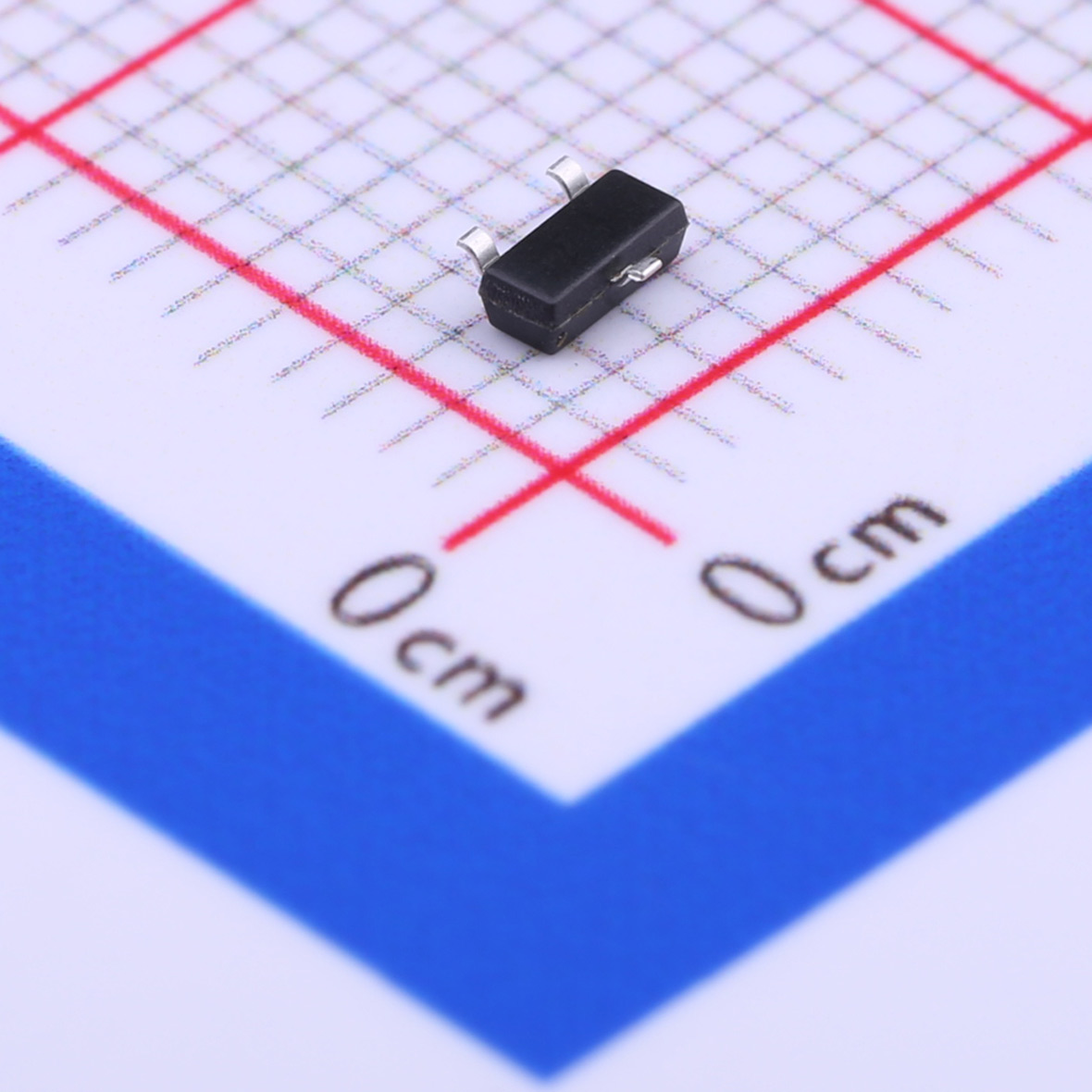

2SC1623 NPN Bipolar Transistor SOT-23
Download datasheet InquiryNPN TRANSISTOR
FEATURES
High DC current gain hFE=200(Typ), Vce=6V, lc=1mA
High Voltage: Vceo=50V
| File Name | Title | Description |
|---|---|---|
| 2SC1623.pdf | 2SC1623 | - |
