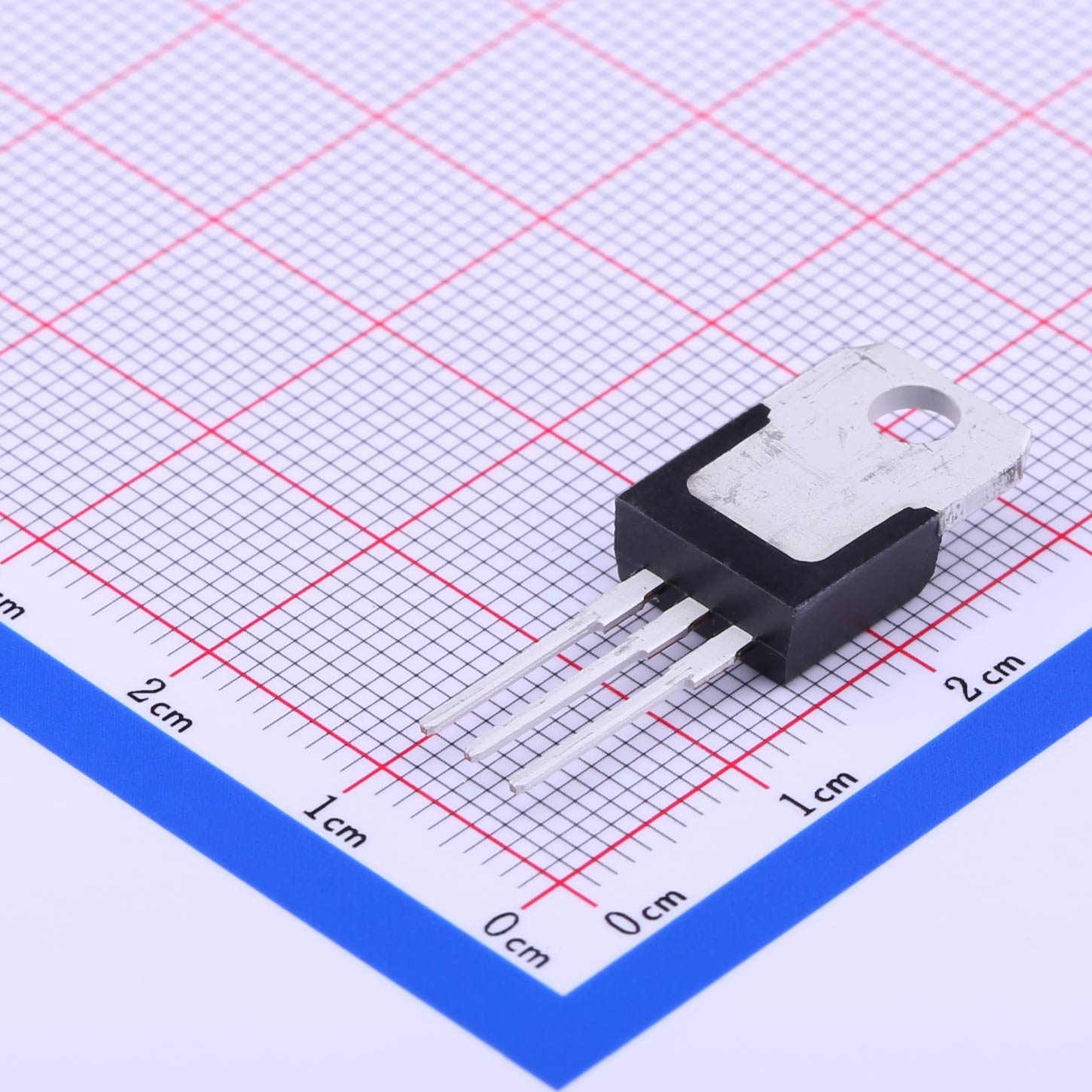

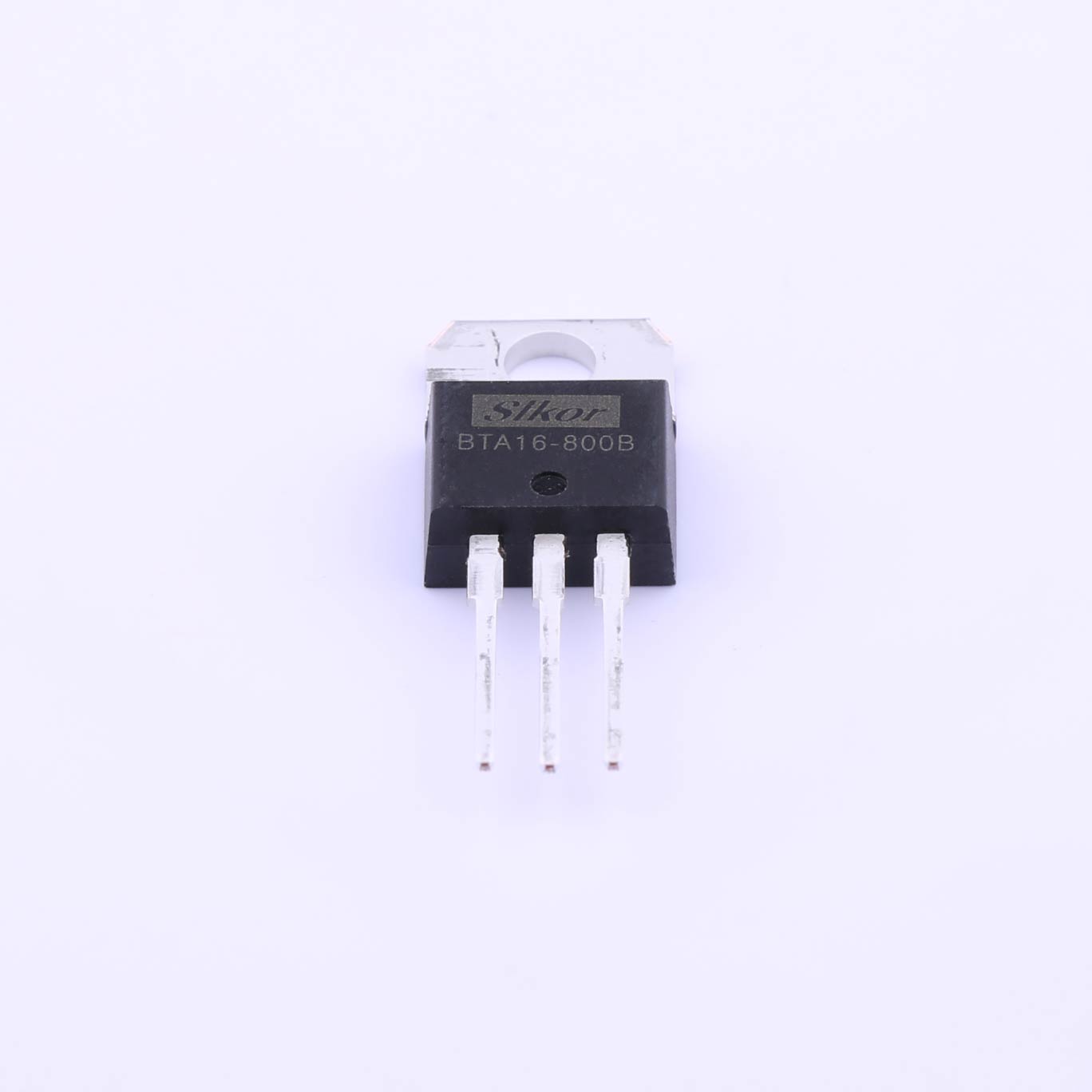

BTA16-800B TRIACs TO-220

Our advantages

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China.  As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

Slkor alternative equivalents to STMicroelectronics.

Description

Available either in through-hole or surface-mount packages, the BTA/BTB16 - 800 triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits... or for phase control operation in light dimmers, motor speed controllers. The snubberless versions (BTA/BTB...W series) are specially recommended for use on inductive loads, thanks to their high commutation performances. By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at 2500V RMS) complying with UL standards.

Features

● High voltage capability

● Least sensitive gate for highest noise immunity

● High junction operating temperature capability (T_j(max) = 150 °C)

● High minimum IGT for guaranteed immunity to gate noise

● Planar passivated for voltage ruggedness and reliability

● Triggering in all four quadrants

● Internally insulated package

● Isolated mounting base with 2500 V (RMS) isolation

Applications

● Washing machine, vacuums, massager, solid state relay, AC, Motor speed regulation

● Applications subject to high temperature (T_j(max) = 150 °C)

● Compressor starting control circuits

● General purpose motor controls

● General purpose switching
