VDRM(V)：1200V
IT(RMS)(A)：55A
IGT(mA)/Max：70mA
VGT(V) ：1.5V
Package：TO-3P
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description

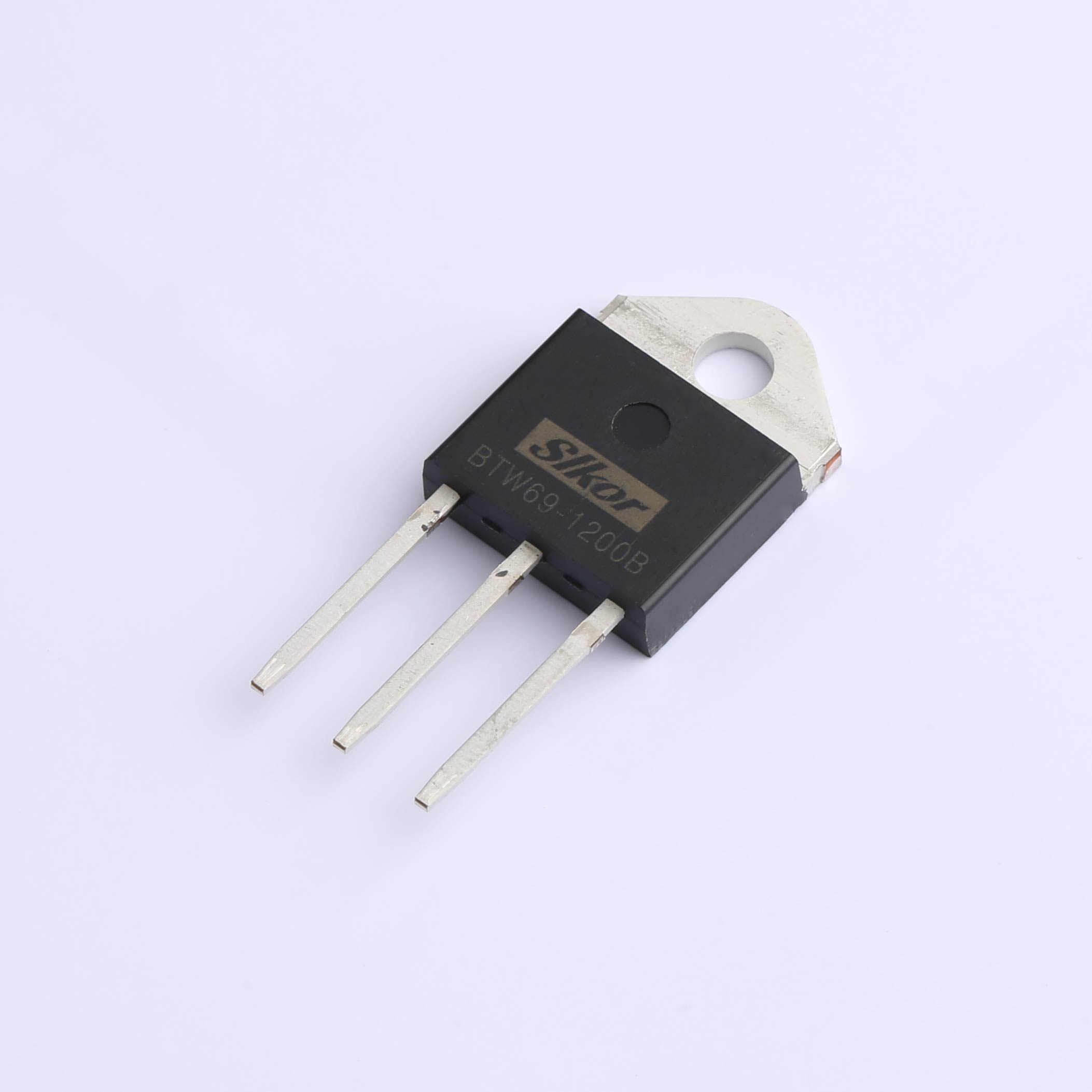

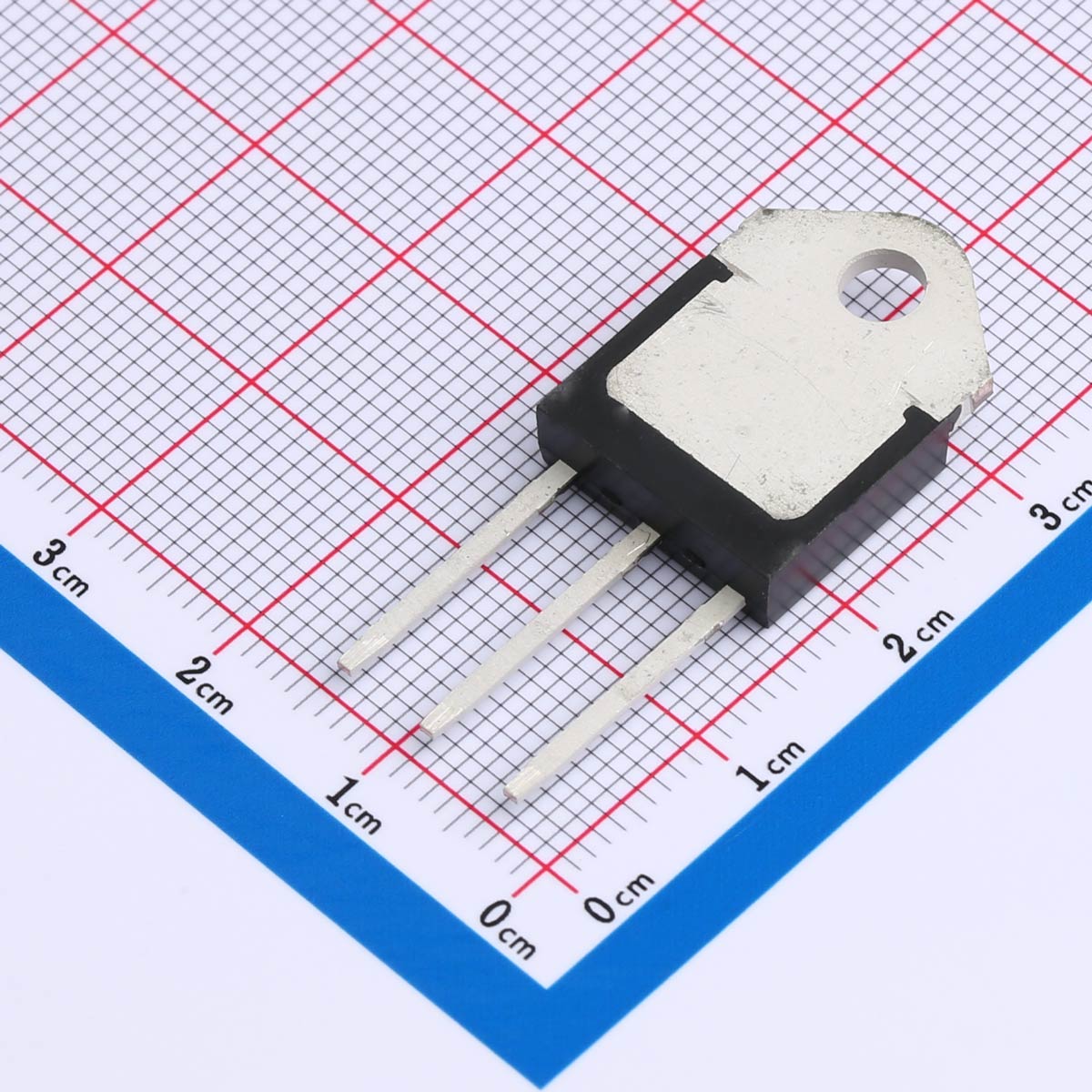

The BTW69-1200B is a robust Silicon Controlled Rectifier (SCR) designed for high-current applications. Encapsulated in the TO-3P package, it offers reliability and efficiency in controlling power circuits where precise switching and current regulation are critical.
Features
● IT(RMS):55A
● VGT:1.5V
●VDRM VRRM:1000V and 1200V
Applications
Washing machine, vacuums, massager, solid state relay，AC Motor speed regulation and so on.
| File Name | Title | Description |
|---|---|---|
| BTW69-1200B TO-3P.pdf | BTW69-1200B TO-3P | - |
