● Low gate Charge
● Fast switching capability
● High reliability and rugged

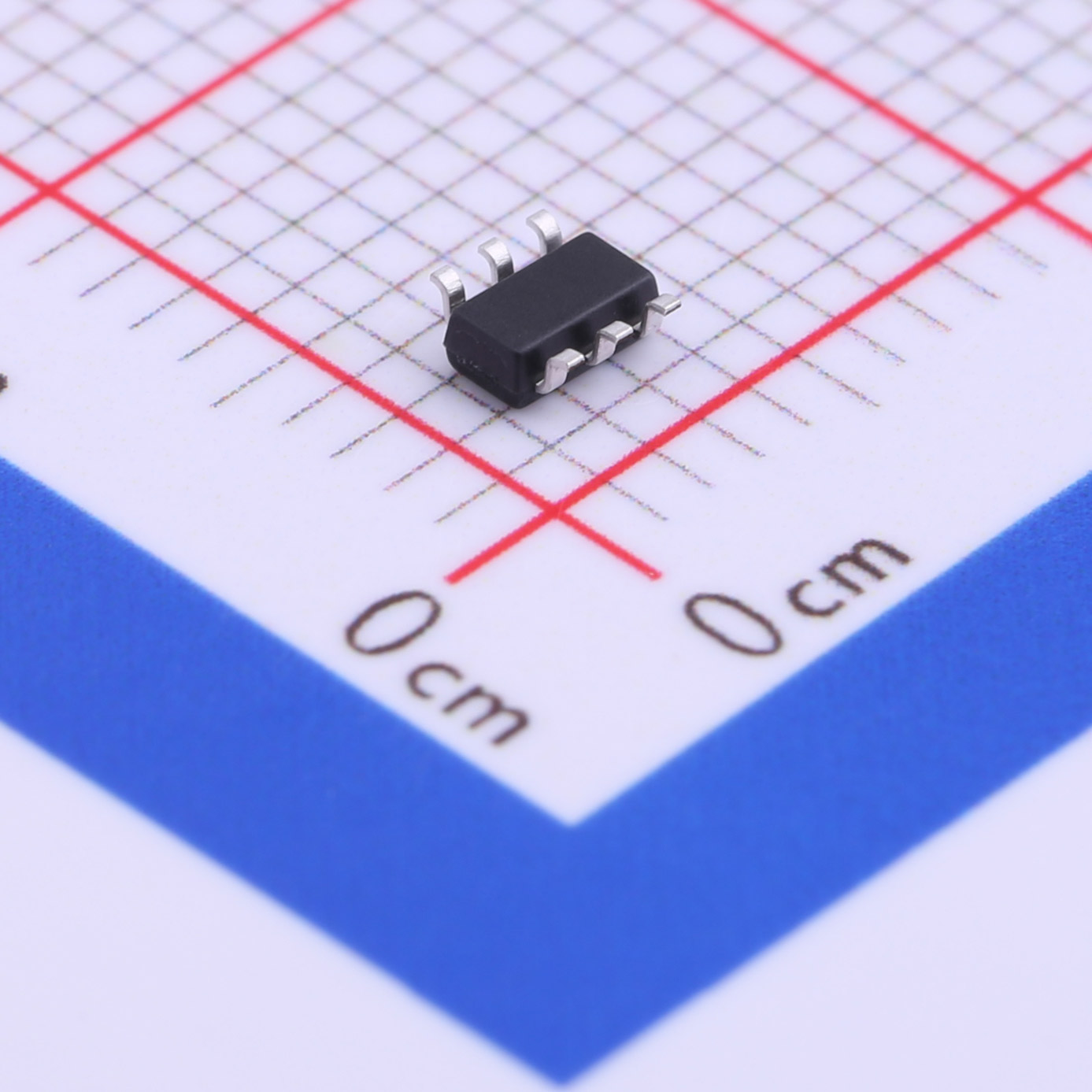

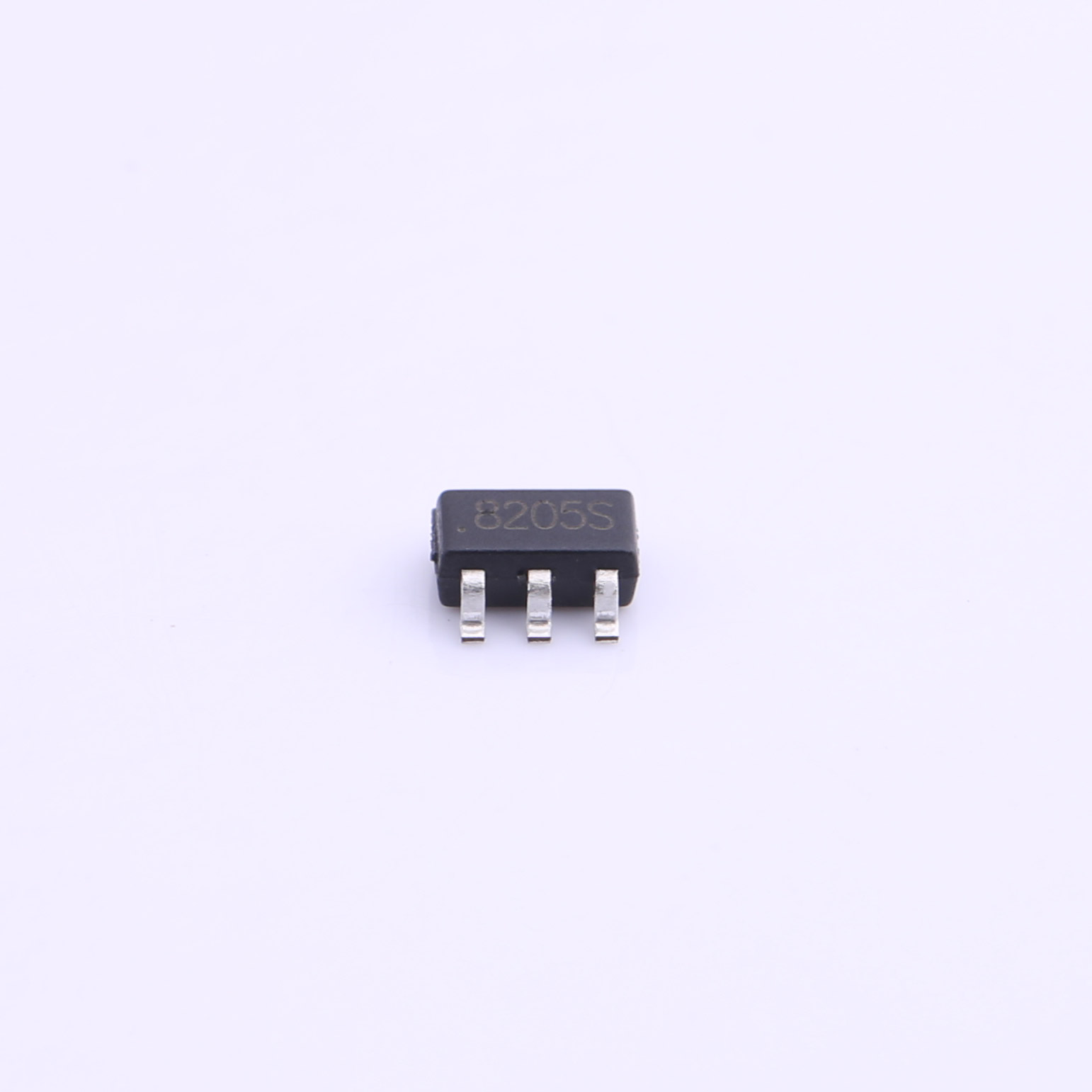

Dual N-ChannelPower MOSFET
FEATURES
● 20V 5A N-channel Trench MOSFET
RDS(ON)≤27mΩ@VGS=4.5V,Id=5A
RDS(ON)≤36mΩ@VGS=2.5V,Id=3A
● Low gate Charge
● Fast switching capability
● High reliability and rugged
APPLIACTION
● Portable Equipment
● Battery Powered System
| File Name | Title | Description |
|---|---|---|
| SL8205S.PDF | SL8205S | - |
| Proposition-65-Compliance-Report_1.pdf | Proposition 65 Compliance Report_1 | - |
| Proposition-65-Compliance-Report_2.pdf | Proposition 65 Compliance Report_2 | - |
| REACH.pdf | REACH | - |
| RoHS-1.pdf | RoHS | - |
