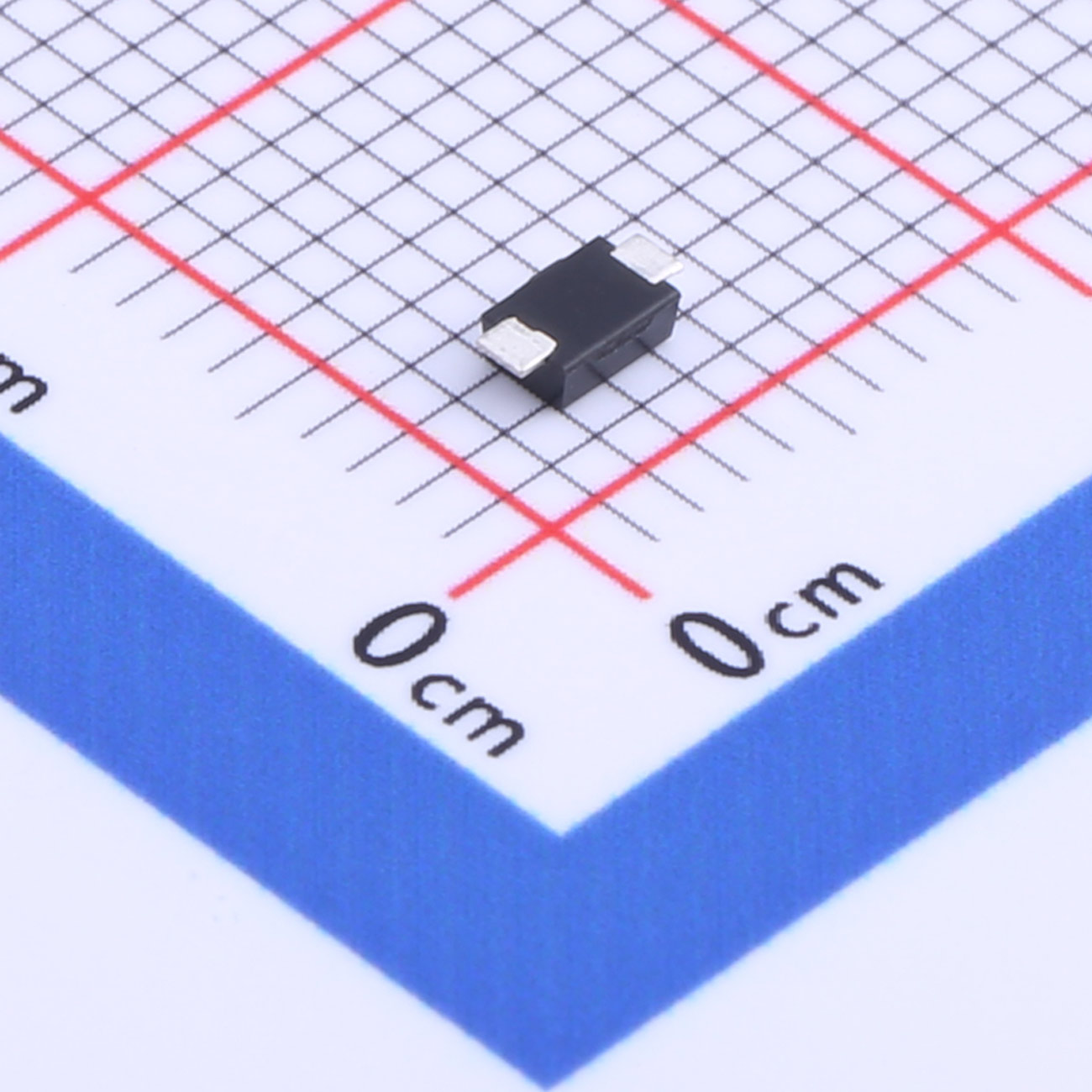

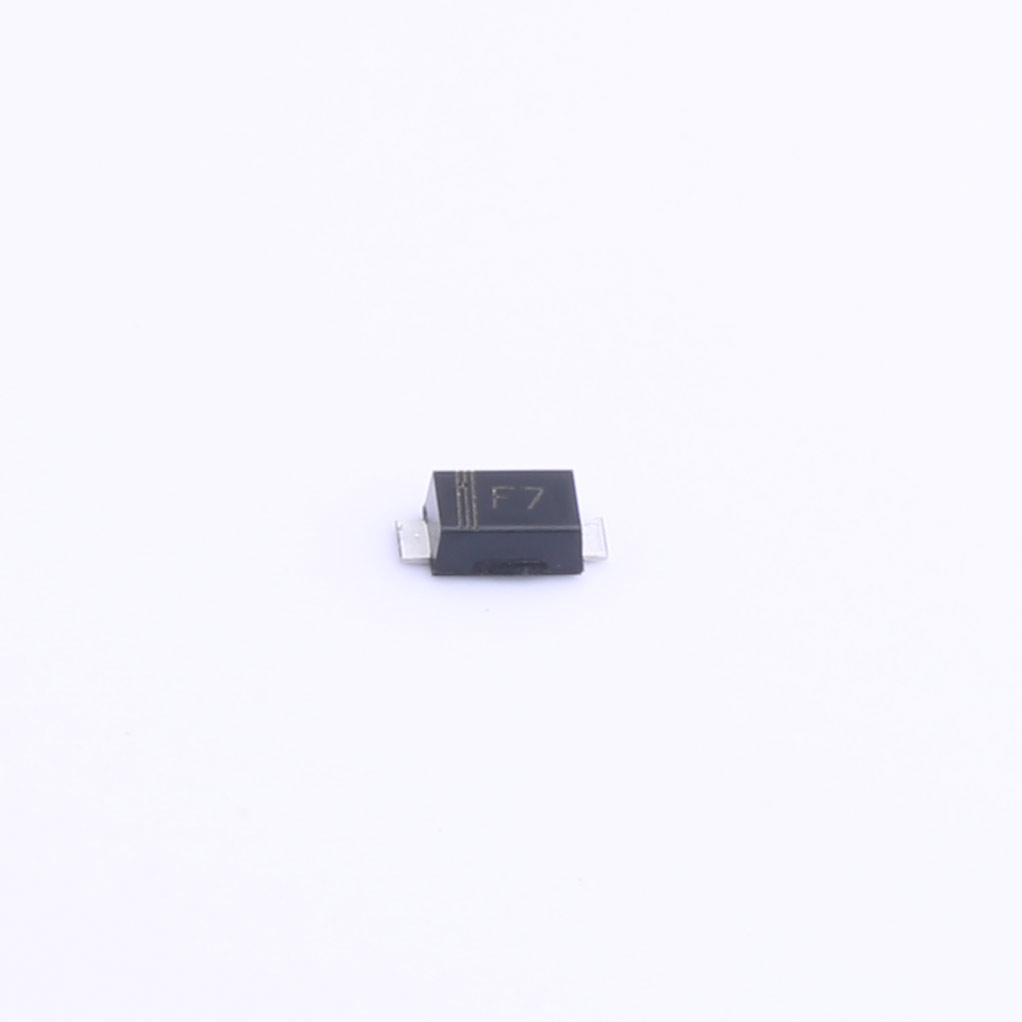

The FR107 is an ultra-fast recovery diode packaged in SOD-123FL. Constructed from high-performance silicon, it is designed for applications requiring rapid reverse recovery time and low forward voltage drop. Its ultra-fast recovery time makes it particularly suitable for high-frequency switching power supplies and other high-efficiency circuits, while its low forward voltage drop helps to minimize energy losses.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The FR107 is an ultra-fast recovery diode packaged in SOD-123FL. Constructed from high-performance silicon, it is designed for applications requiring rapid reverse recovery time and low forward voltage drop. Its ultra-fast recovery time makes it particularly suitable for high-frequency switching power supplies and other high-efficiency circuits, while its low forward voltage drop helps to minimize energy losses.
Applications
●Switching Power Supplies
●Power Inverters
●LED Lighting
●Communication Equipment
Features
●For surface mounted applications
●Low profile package
●Glass Passivated Chip Junction
●Easy to pick and place
●Fast reverse recovery time
●Lead free in comply with EU RoHS 2011/65/EU directives

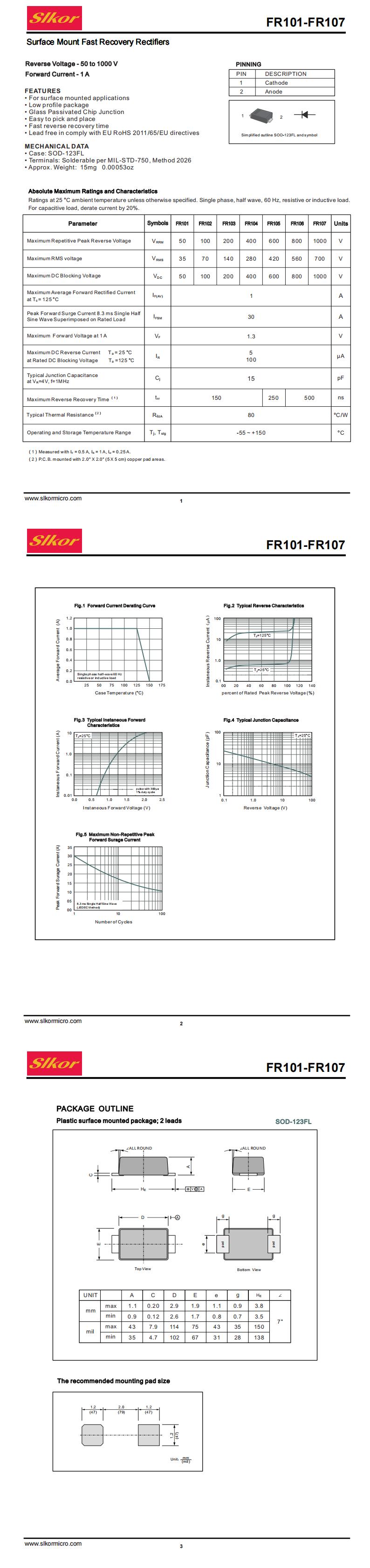

| File Name | Title | Description |
|---|---|---|
| FR107.PDF | FR107 | - |
