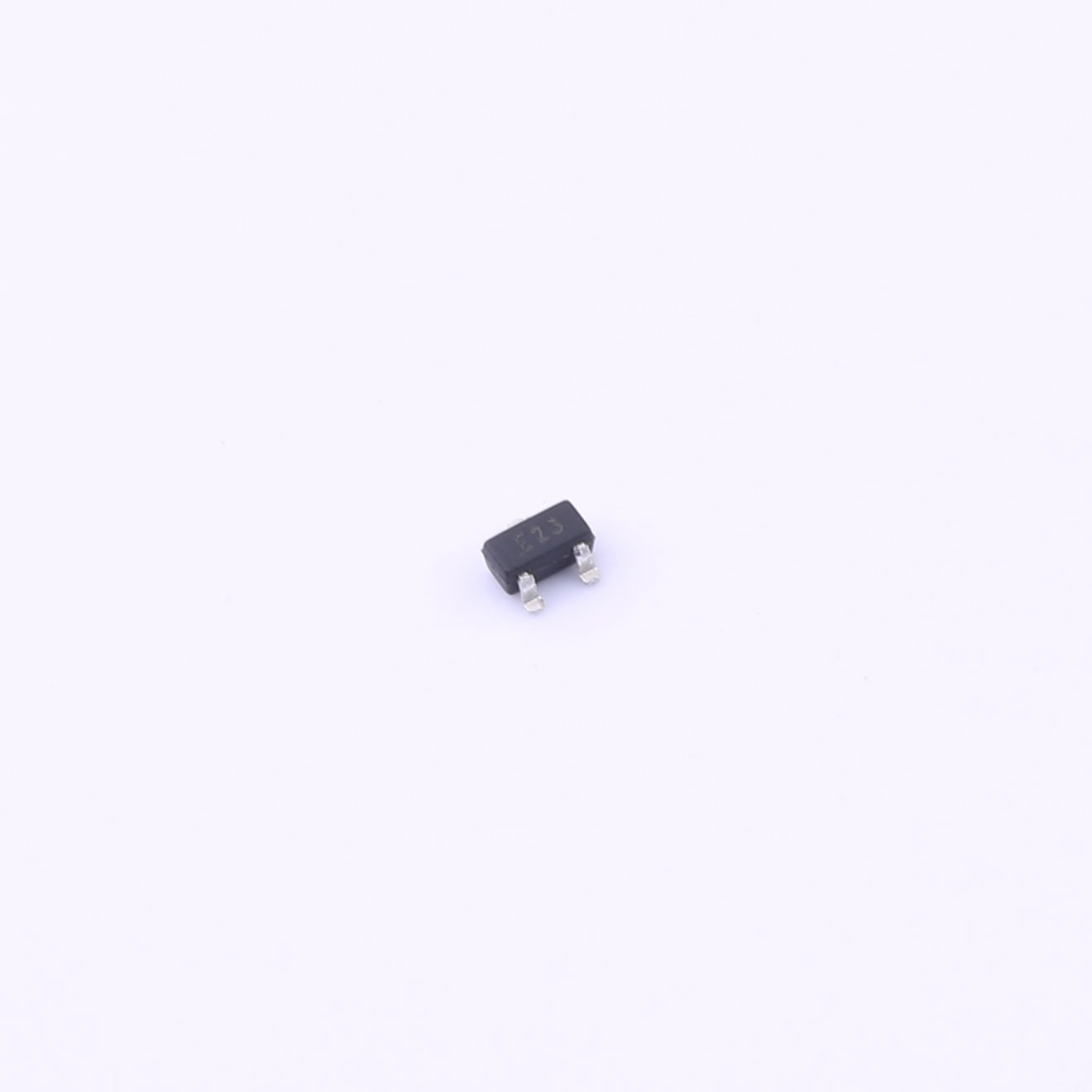

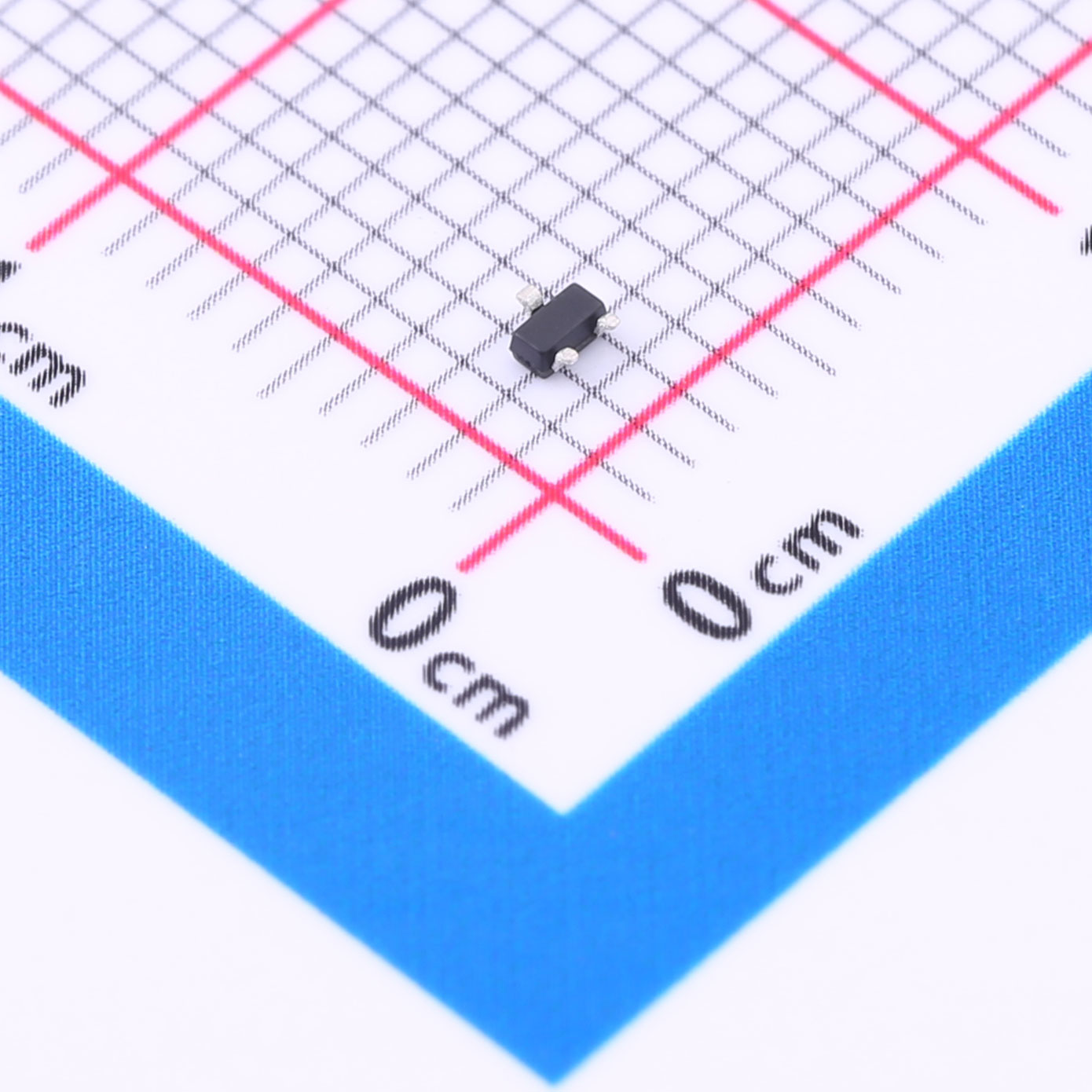

DTC143ZE NPN Digital Transistor SOT-523
Download datasheet Inquiry
Digital Transistors (Built-in Resistors)
Description
Equivalent Circuit Digital Transistor(NPN)
Features
l Built-in bias resistors enable the configuration of an inverter circuit without connecting externa linput resistors(see equivalent circuit)
l The bias resistors consist of thinfilm resistors with complete isolation to allow negative biasing of the input.They also have the advantage of almost completely eliminating parasitic effects
l Only the on/off conditions need to be set for operation,making devicede sign easy
| File Name | Title | Description |
|---|---|---|

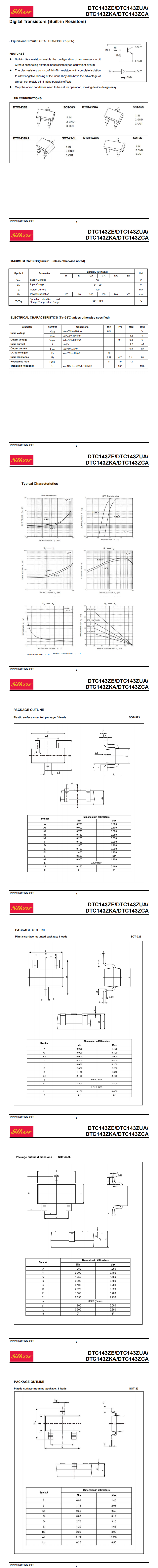

| DTC143ZE SOT-523.pdf | DTC143ZE SOT-523 | - |
