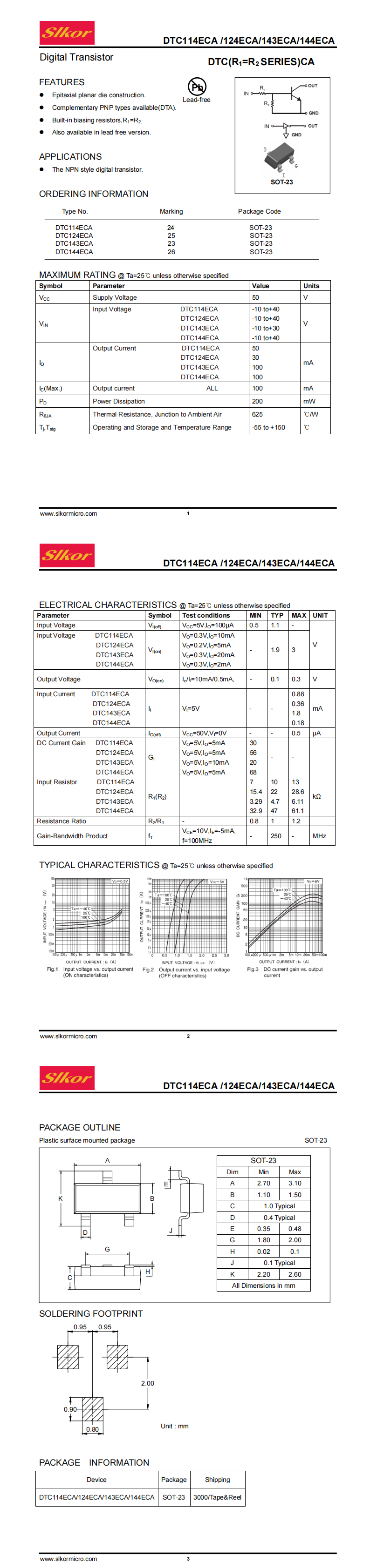

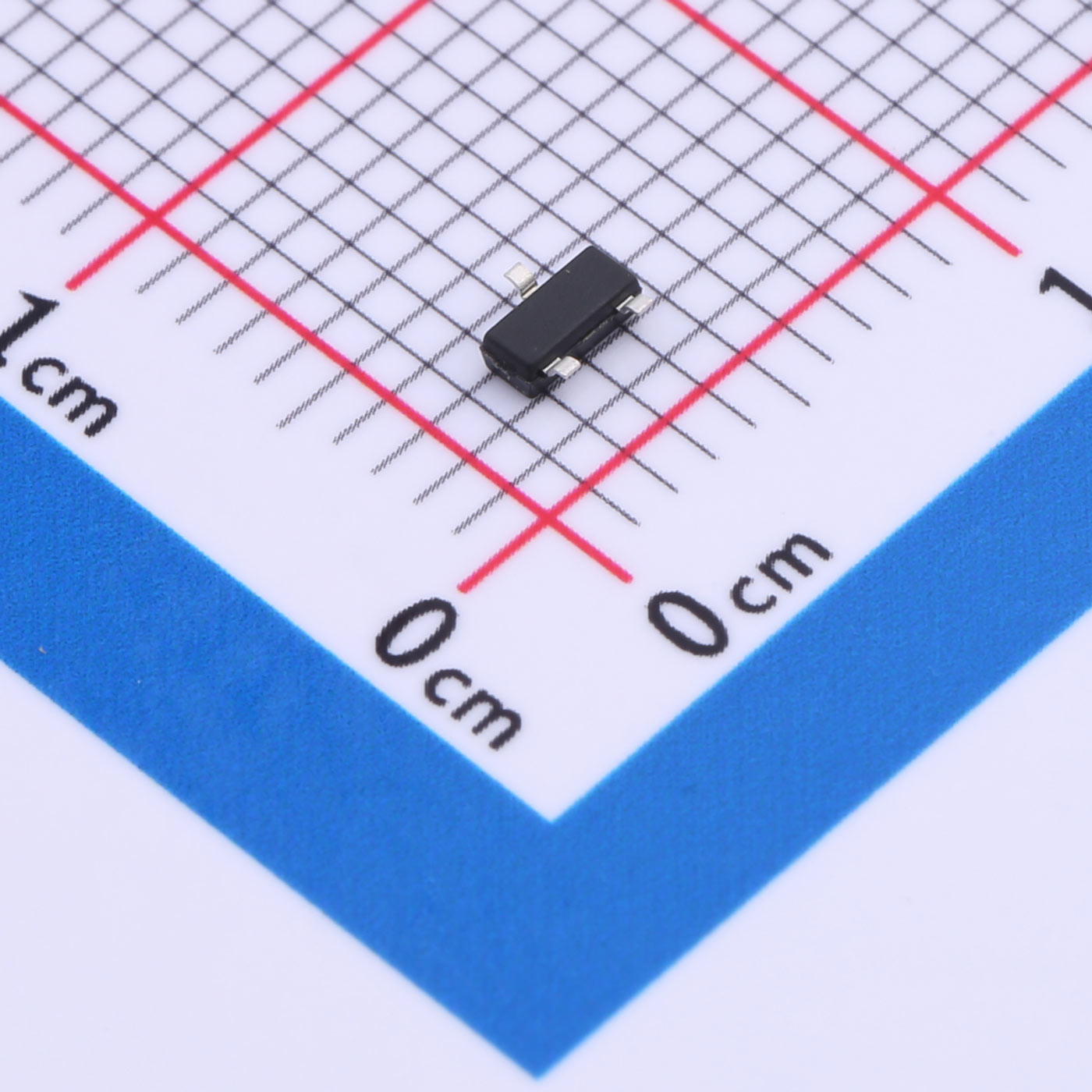

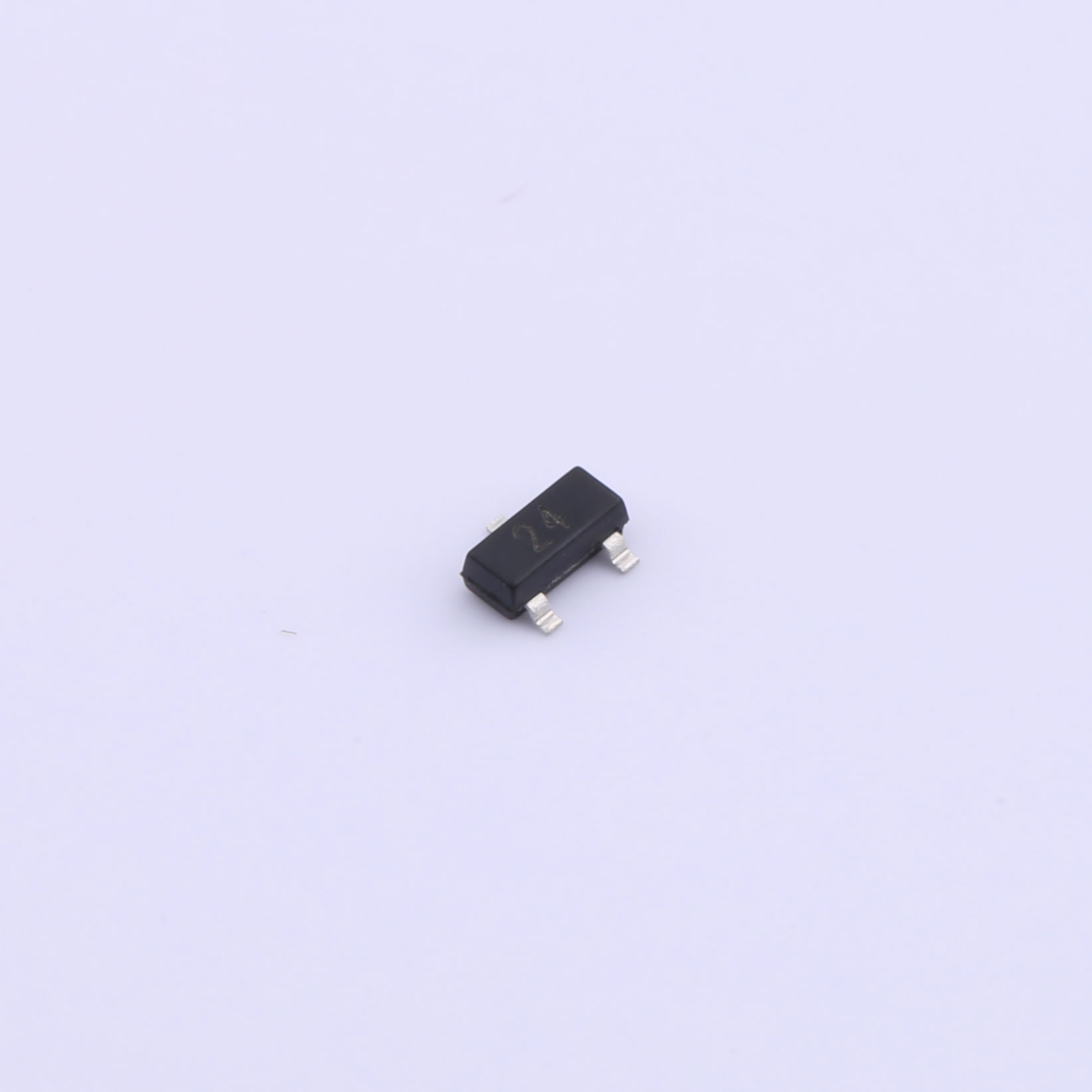

DTC114ECA NPN Digital Transistor SOT-23
Download datasheet Inquiry
Digital Transistors
Features
l Epitaxial planar die construction.
l Complementary PNP types available(DTA).
l Built-in biasing resistors,R1=R2.
l Also available in lead free version.
Application
l The NPN style digital transistor.
| File Name | Title | Description |
|---|---|---|
| DTC143ECA SOT-23.pdf | DTC143ECA SOT-23 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
Our transistor operates at a maximum VCC of 50V, making it suitable for high-voltage applications while maintaining stable operation. It supports a current output of up to 100mA, ensuring reliable performance in various circuit configurations. The transistor has a low turn-off voltage (VI(off)) of just 0.3V and a turn-on voltage (VI(on)) of 2.5V, which facilitates precise switching control and enhances circuit efficiency. With a transition frequency (fT) of 250MHz, it supports high-speed operation, making it ideal for fast-switching applications. Packaged in a compact SOT-23 form factor, it is well-suited for space-constrained designs.
PDTC114ET NPN Digital Transistor SOT-23
DTC143ECA NPN Digital Transistor SOT-23
VCC(V)：5V IO(mA)：100mA VI(off)(V)：4.9V VI(on)(V)：0.2V fT(MHz)：- Package：SOT-363
Vceo:40V Ic:2A Pd:300mW VCE(sat):0.5V fT:100MHz Working temperature:-
VCC(V)：50V IO(mA)：50mA VI(off)(V)：0.5V VI(on)(V)：3V fT(MHz)：250MHz Package：SOT-323
VCC(V)：50V IO(mA)：100mA VI(off)(V)：0.5V VI(on)(V)：3V fT(MHz)：250MHz Package：SOT-323
The 2SC2712-G is a high-performance NPN bipolar transistor housed in a compact SOT-23 package. It is designed for various electronic applications, offering reliable switching and amplification capabilities in a small footprint.
