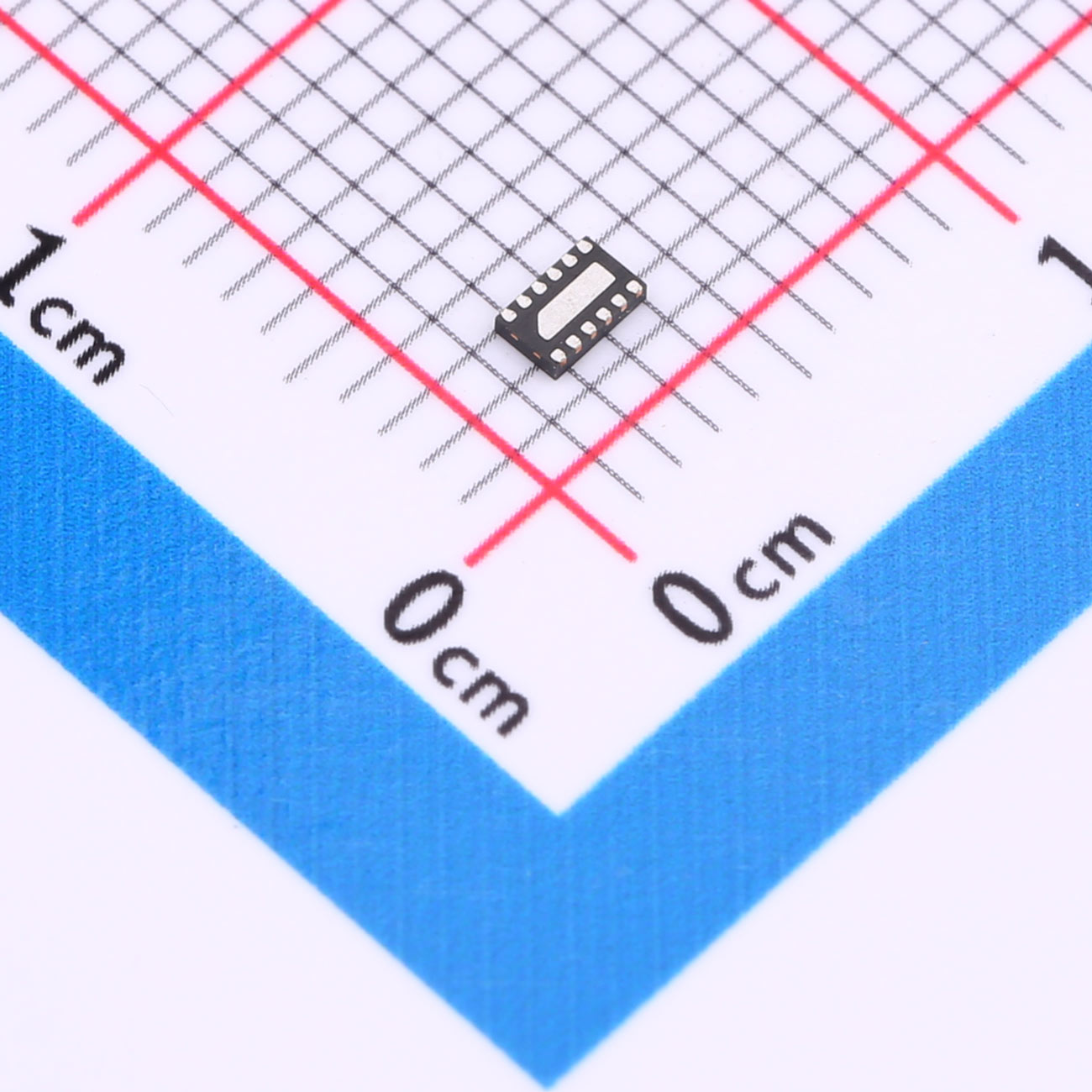

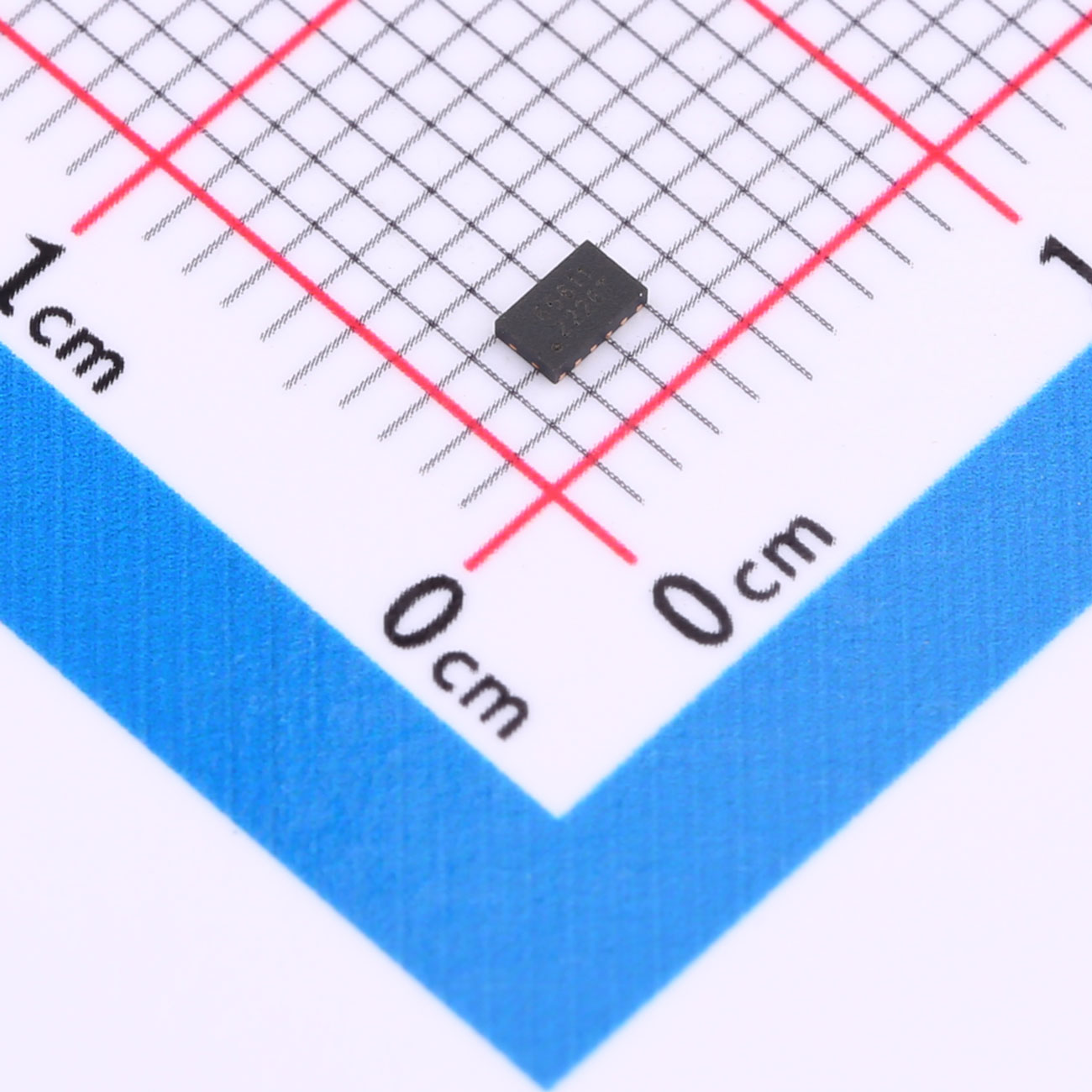

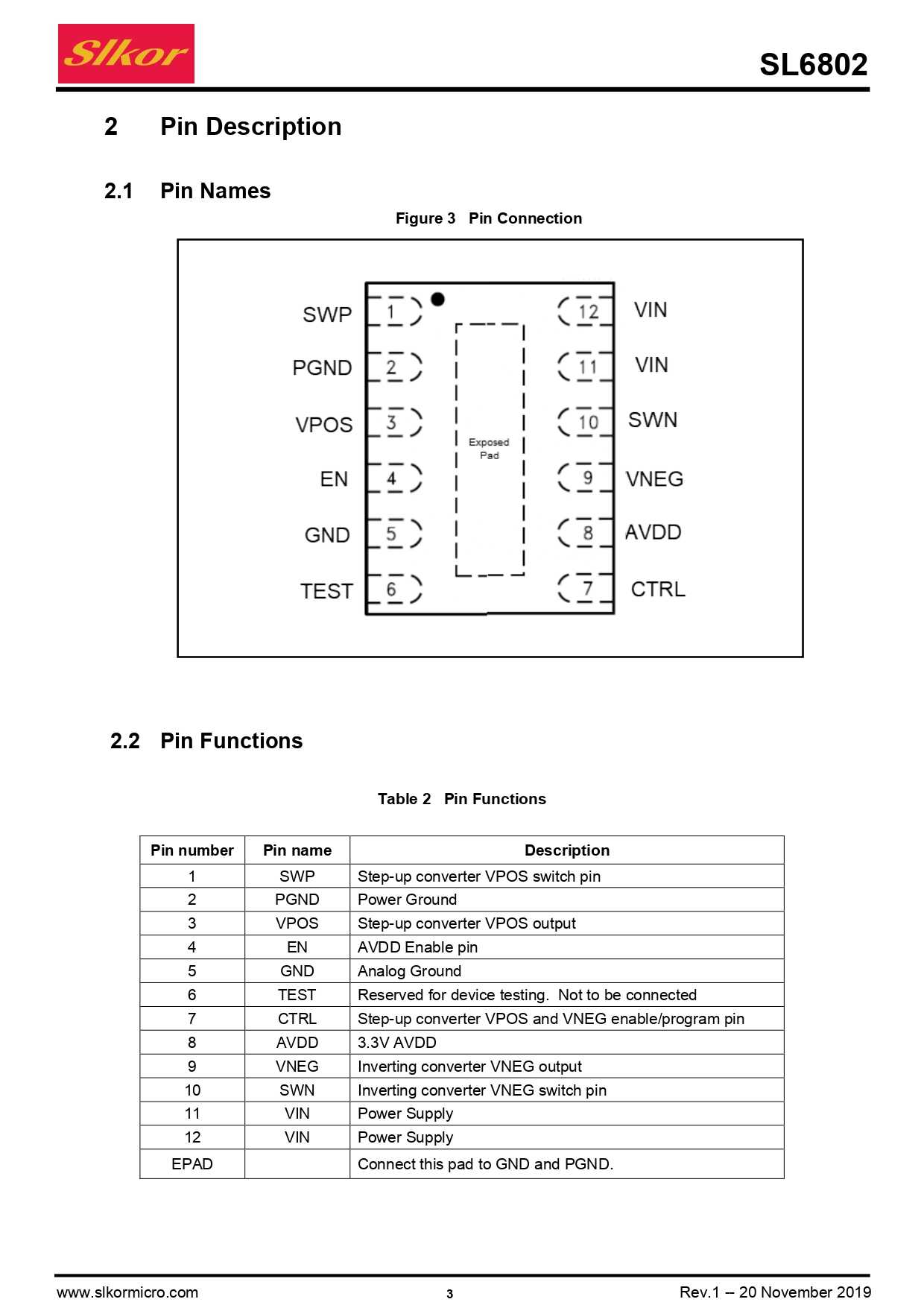

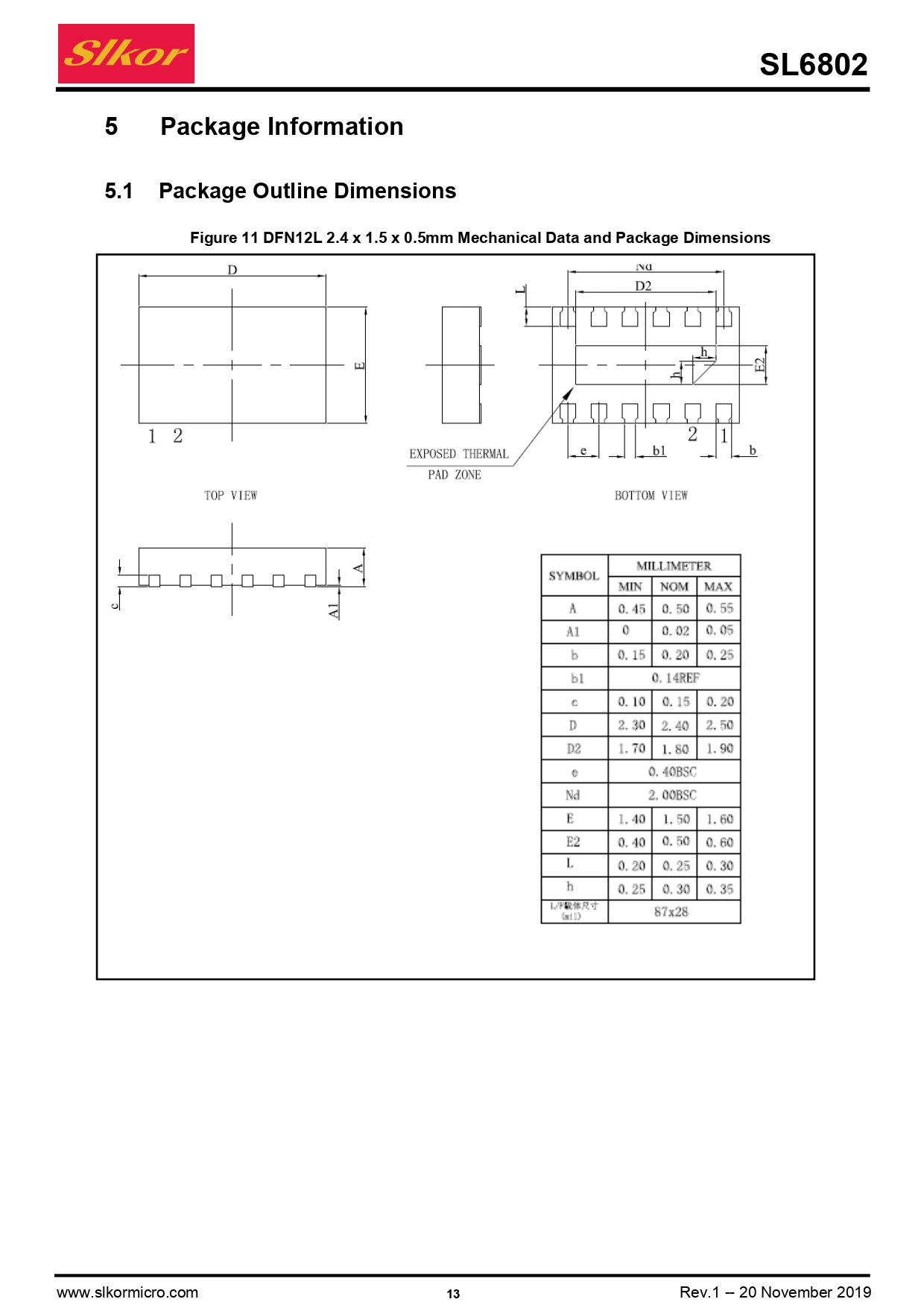

SL6802 DC-DC Converter DFN-12
Download datasheet Inquiry

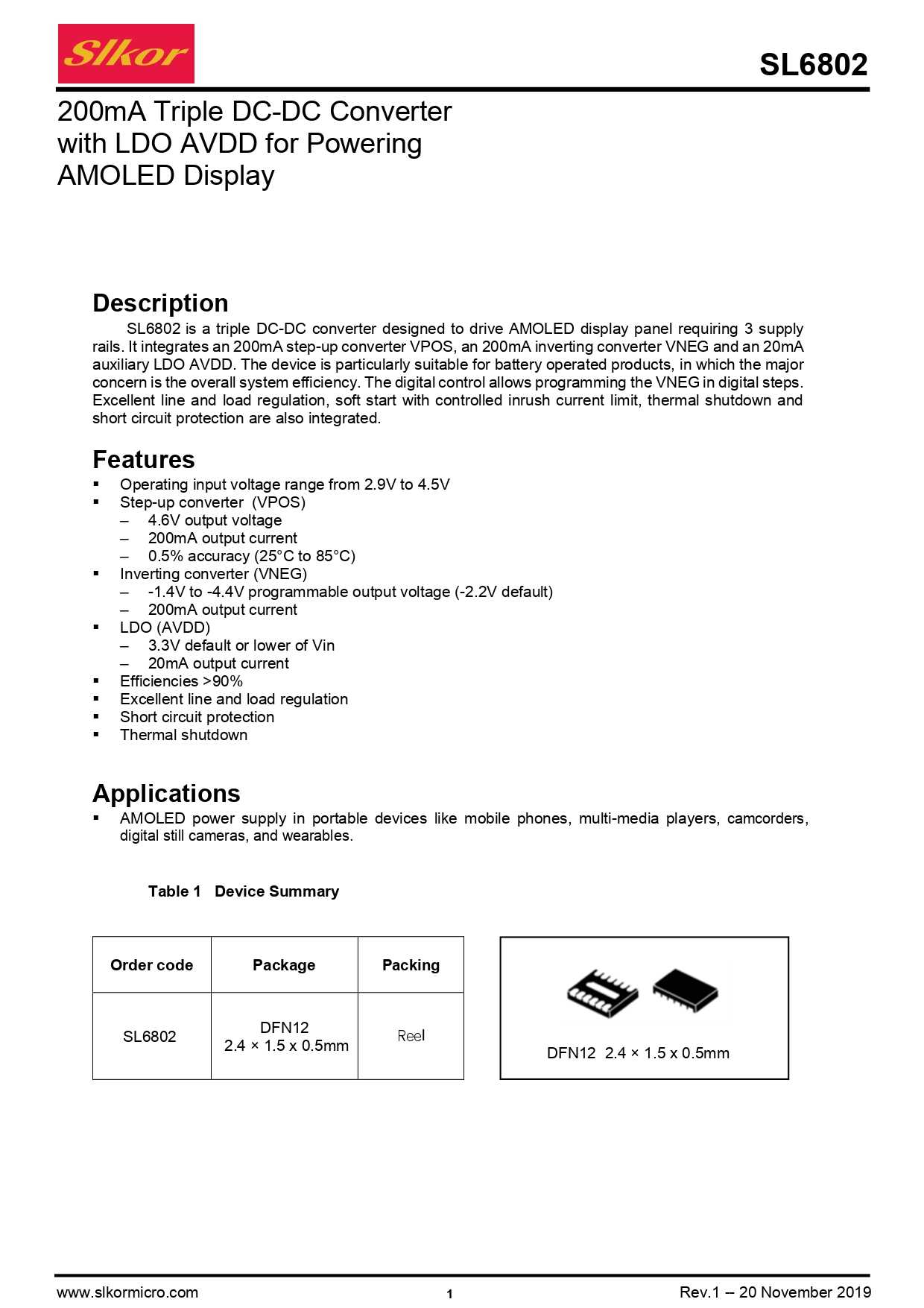

Description

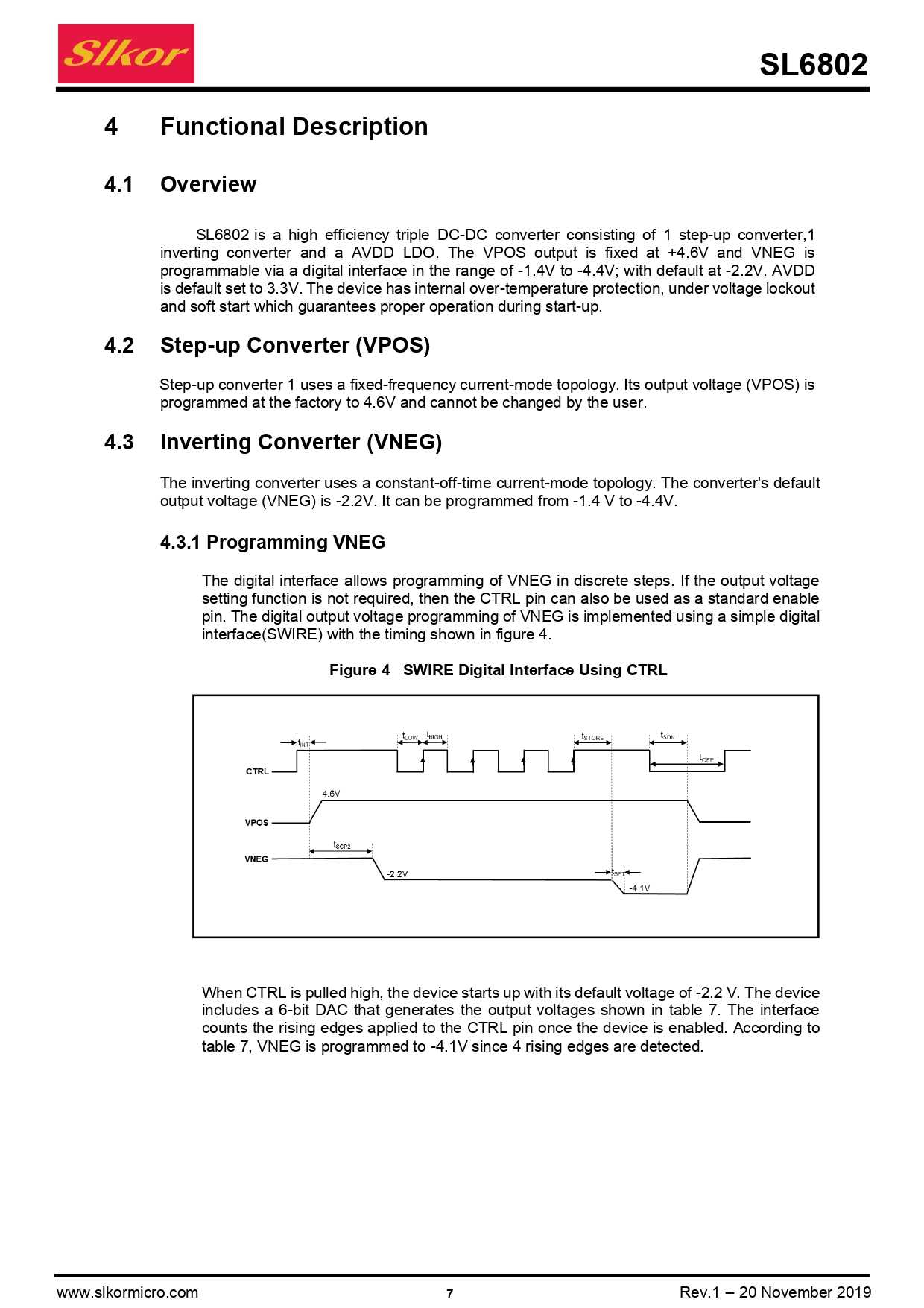

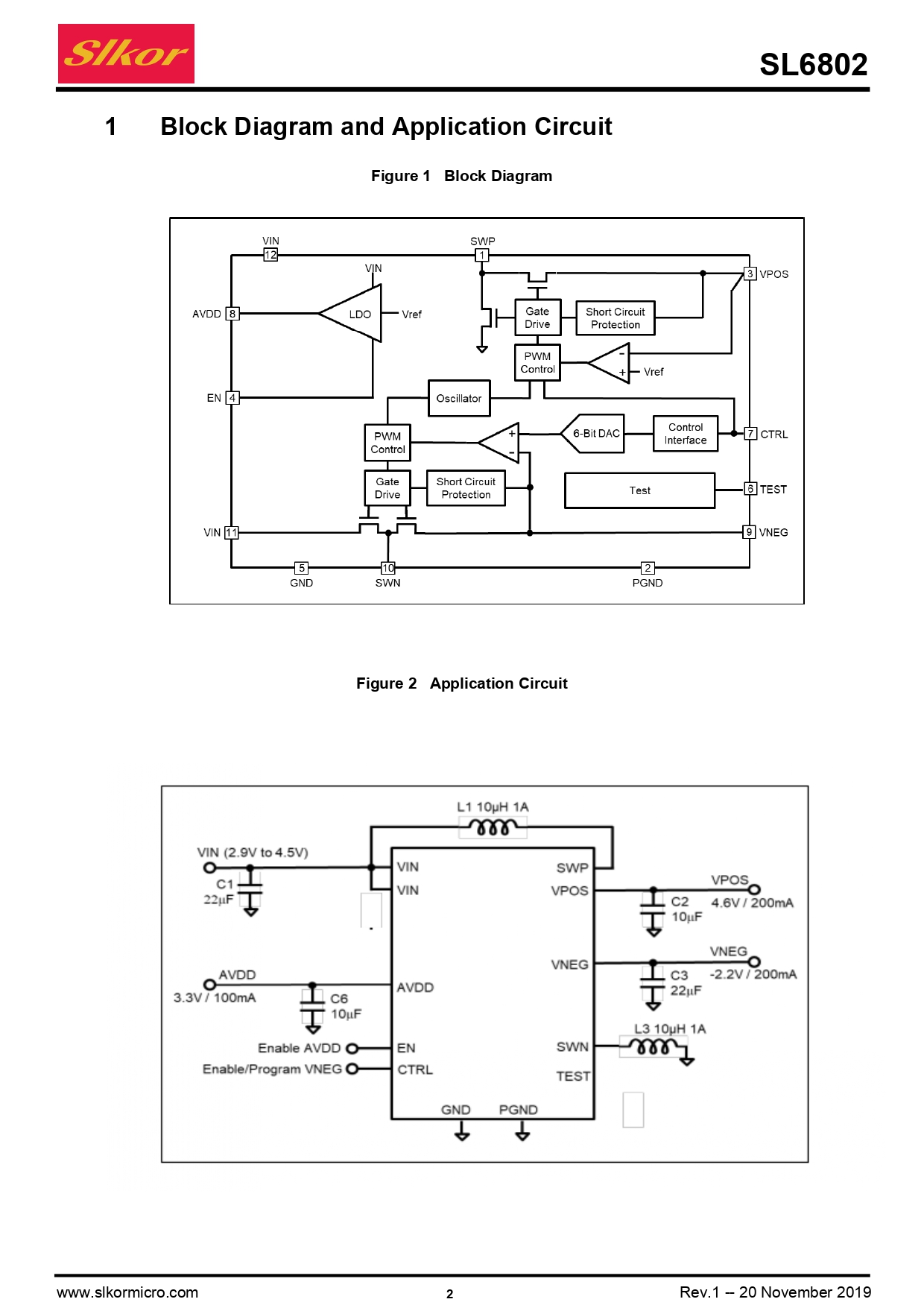

SL6802 is a triple DC-DC converter designed to drive AMOLED display panel requiring 3 supply rails. It integrates an 200mA step-up converter VPOS, an 200mA inverting converter VNEG and an 20mA auxiliary LDO AVDD.
The device is particularly suitable for battery operated products, in which the major concern is the overall system efficiency. The digital control allows programming the VNEG in digital steps.

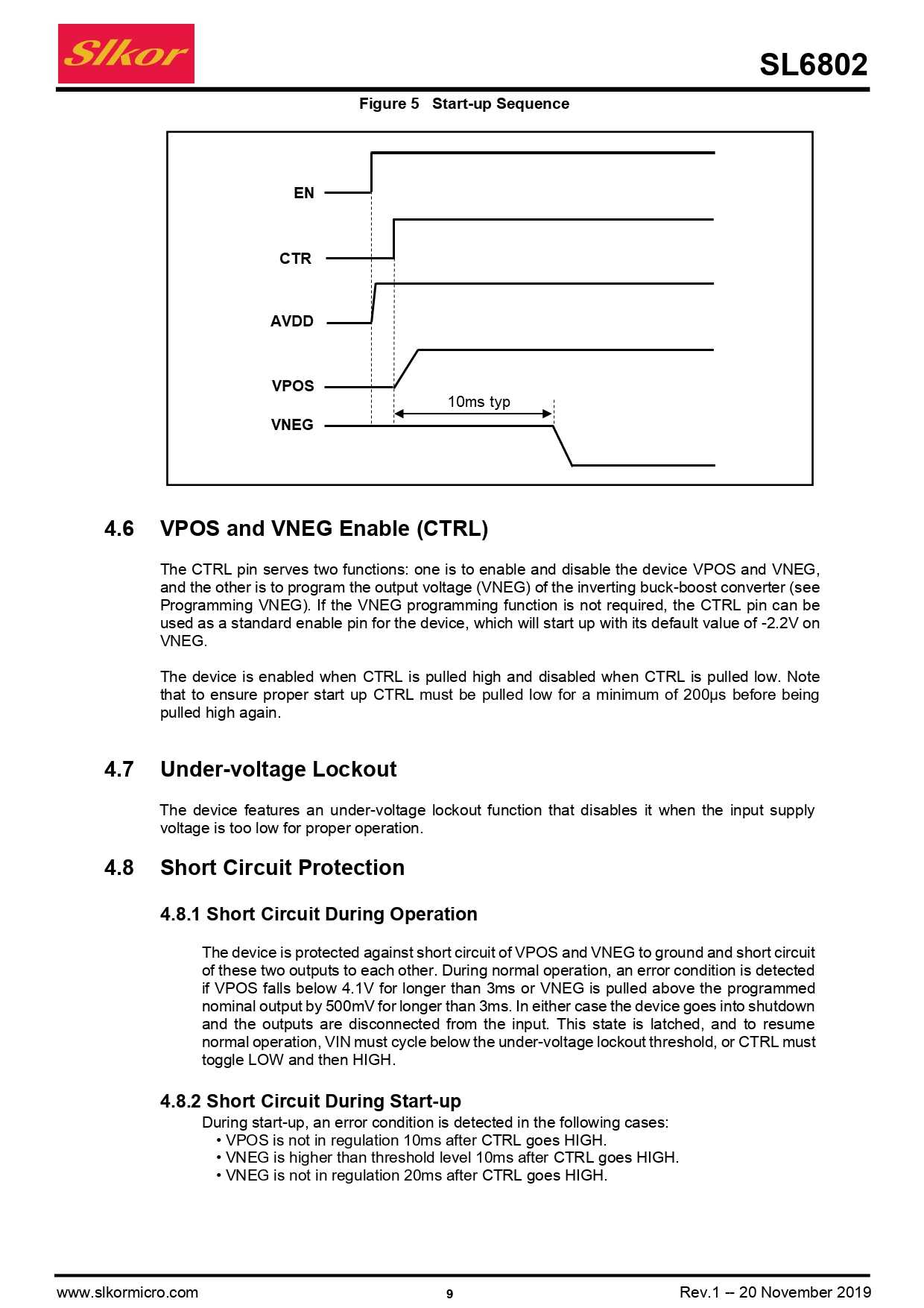

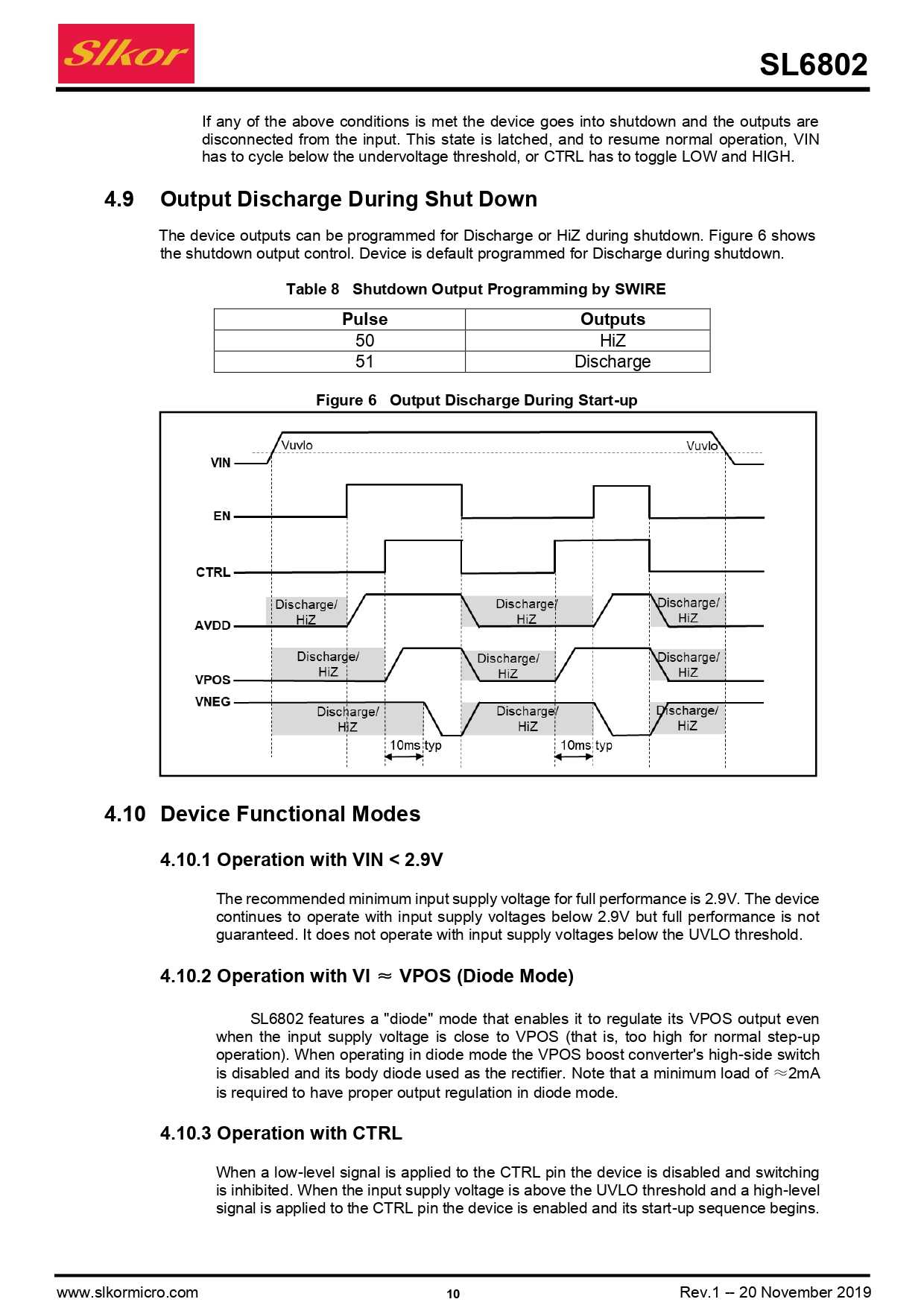

Excellent line and load regulation, soft start with controlled inrush current limit, thermal shutdown and short circuit protection are also integrated.

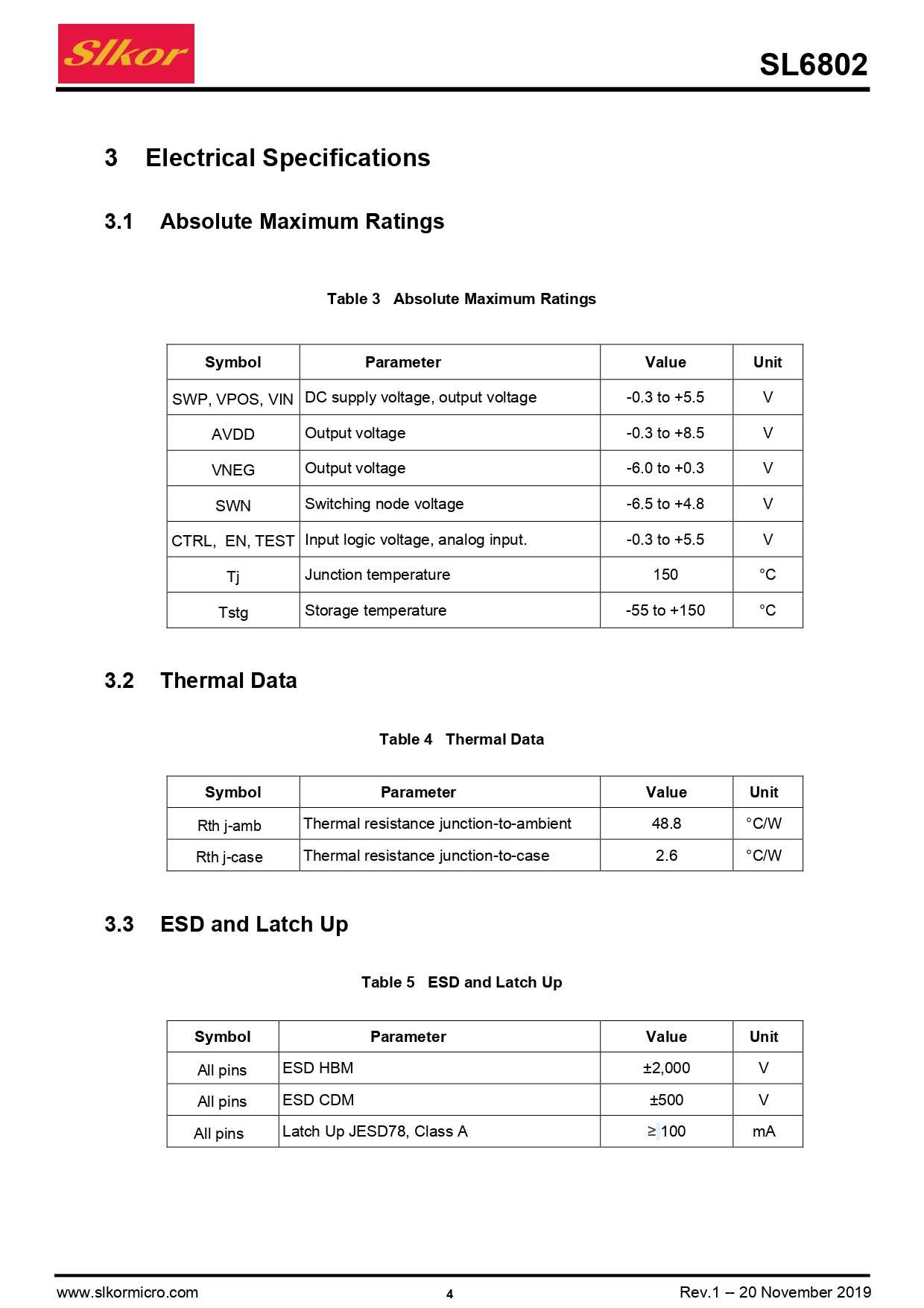

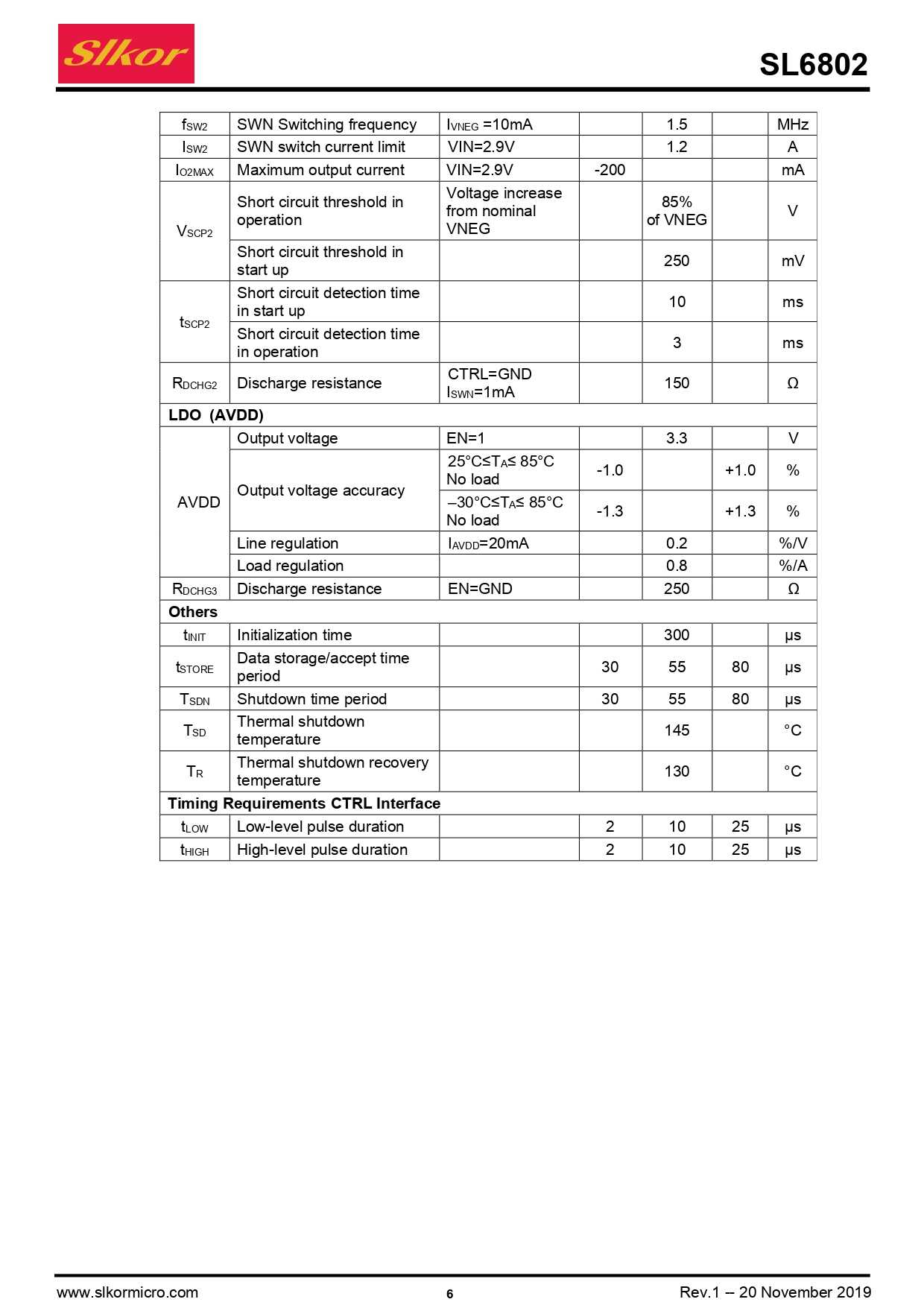

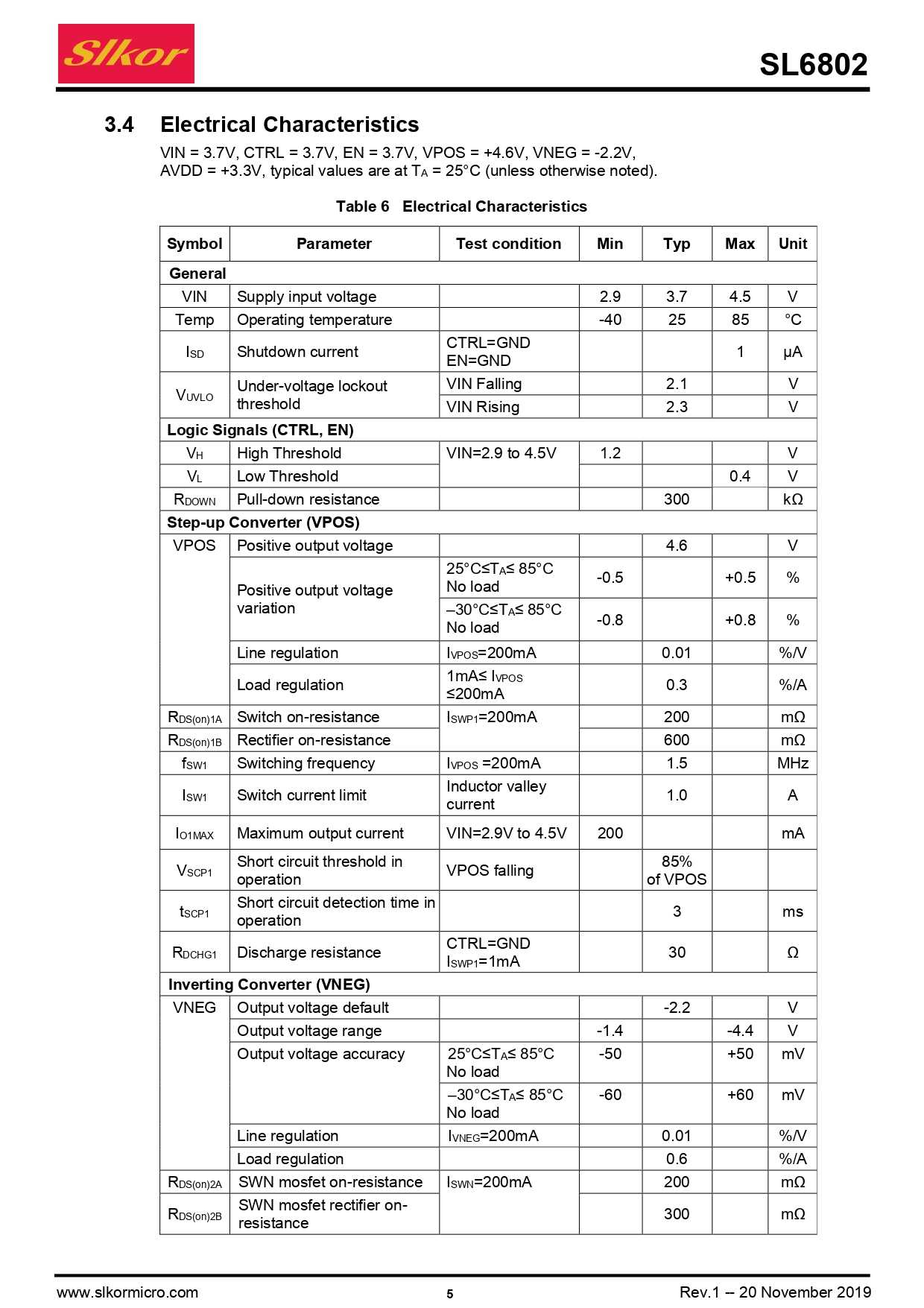

Features
Operating input voltage range from 2.9V to 4.5V
Step-up converter (VPOS)
4.6V output voltage
200mA output current
0.5% accuracy (25°C to 85°C)
Inverting converter (VNEG)

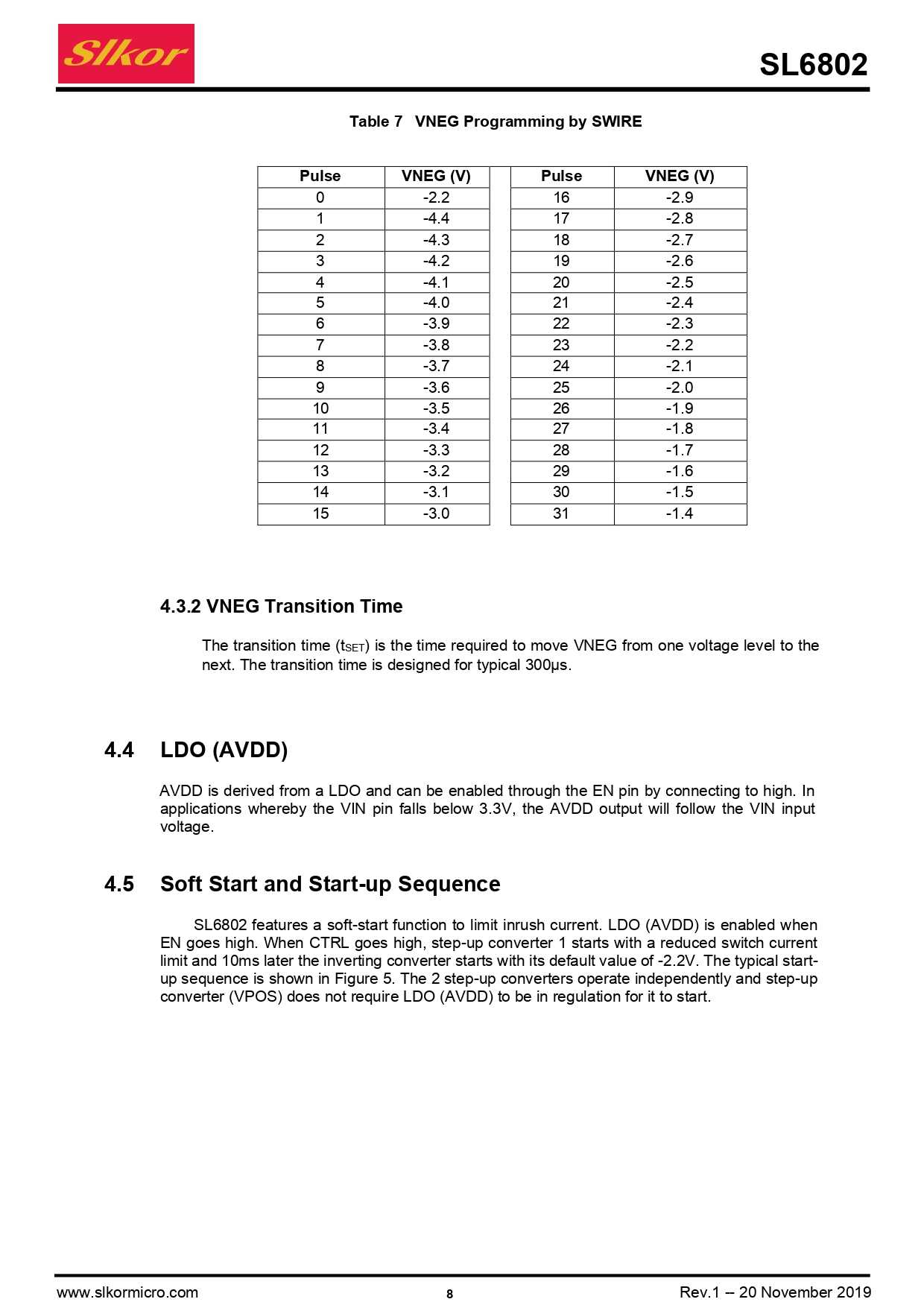

-1.4V to -4.4V programmable output voltage (-2.2V default)
200mA output current
LDO (AVDD)
3.3V default or lower of Vin
20mA output current

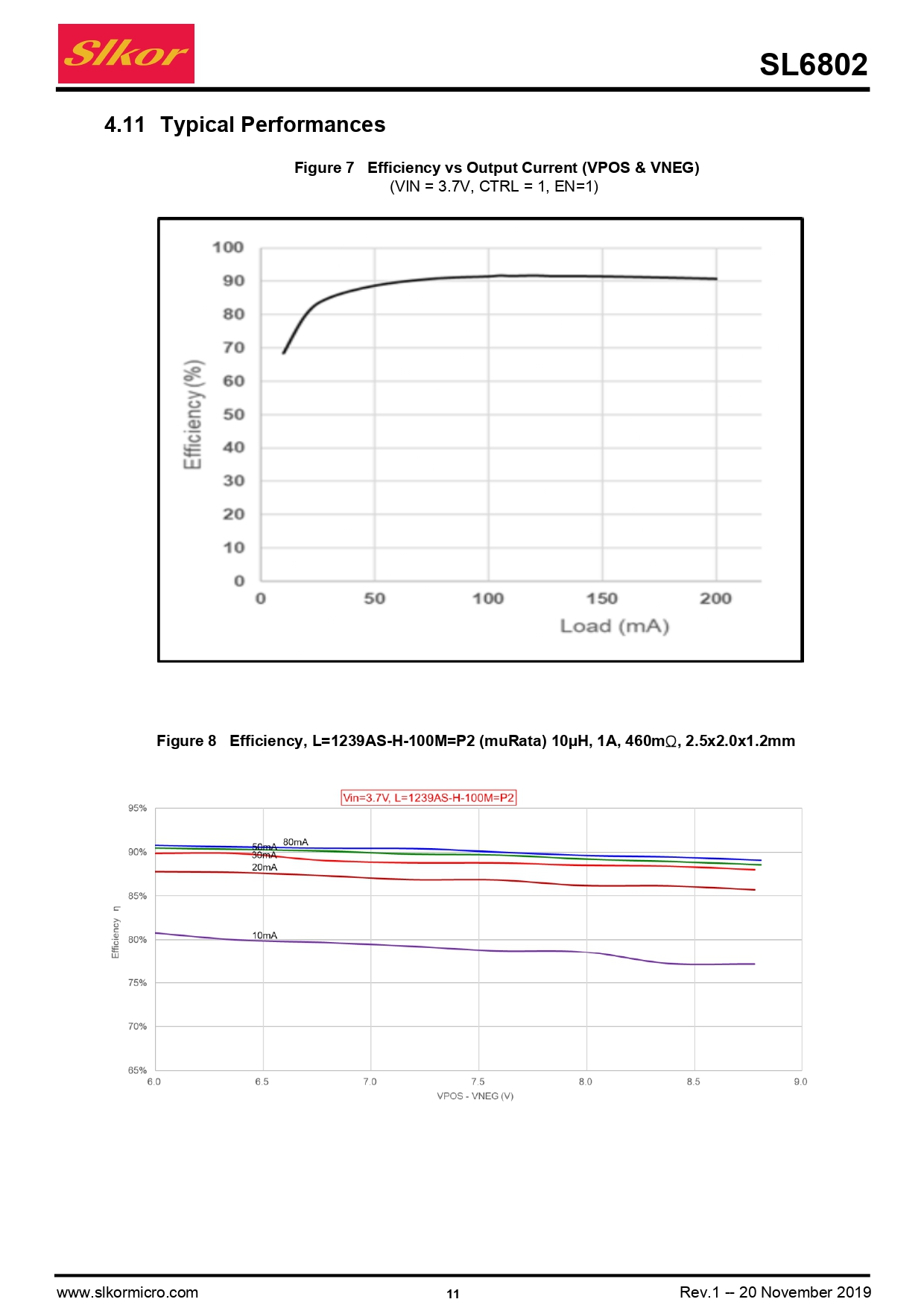

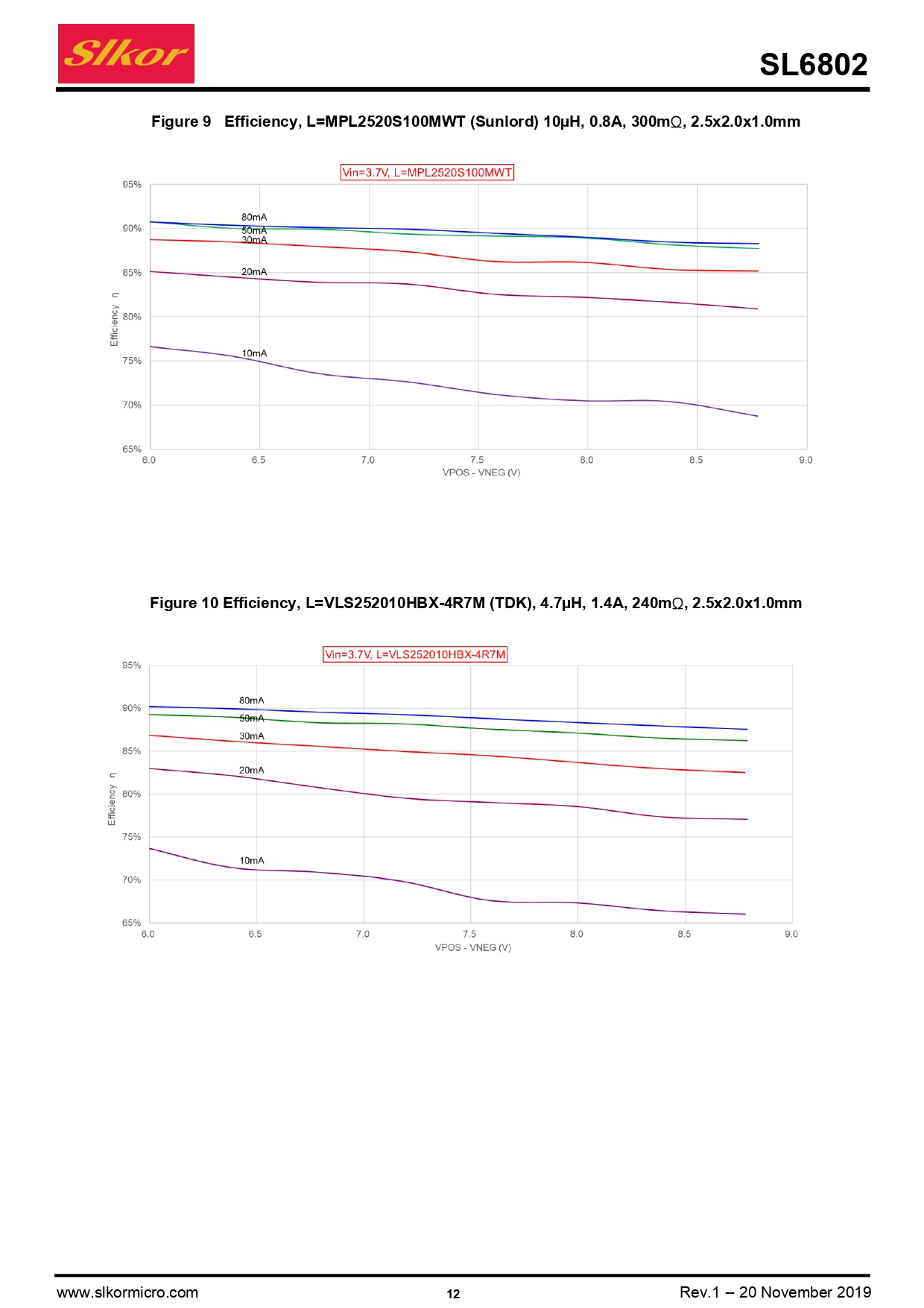

Efficiencies >90%
Excellent line and load regulation
Short circuit protection
Thermal shutdown
Applications
AMOLED power supply in portable devices like mobile phones, multi-media players, camcorders, digital still cameras, and wearables.
