?The Polar Unidirectional TVS Diode is a compact and efficient electronic component designed to protect sensitive circuits from transient voltage spikes and surges in a specified direction. With a VRWM (Working Peak Reverse Voltage) of 15V, this diode is specifically tailored for applications requiring unidirectional transient voltage suppression. It features a VBR (Breakdown Voltage) ranging from 16.7V (minimum) to 18.5V (maximum), ensuring effective clamping of voltages exceeding these thresholds in the specified direction. The diode maintains an ultra-low Ir (Reverse Leakage Current) of 1μA, minimizing standby power consumption while providing reliable protection. It can handle peak pulse currents (Ipp) of up to 8.2mA for 10/1000μs pulses, with a low VC (Clamping Voltage) of 24.4V. Rated for Ppp (Peak Pulse Power) of 200W for 10/1000μs pulses, it efficiently dissipates transient power to safeguard connected electronics.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The Polar Unidirectional TVS Diode is a compact and efficient electronic component designed to protect sensitive circuits from transient voltage spikes and surges in a specified direction. With a VRWM (Working Peak Reverse Voltage) of 15V, this diode is specifically tailored for applications requiring unidirectional transient voltage suppression. It features a VBR (Breakdown Voltage) ranging from 16.7V (minimum) to 18.5V (maximum), ensuring effective clamping of voltages exceeding these thresholds in the specified direction. The diode maintains an ultra-low Ir (Reverse Leakage Current) of 1μA, minimizing standby power consumption while providing reliable protection. It can handle peak pulse currents (Ipp) of up to 8.2mA for 10/1000μs pulses, with a low VC (Clamping Voltage) of 24.4V. Rated for Ppp (Peak Pulse Power) of 200W for 10/1000μs pulses, it efficiently dissipates transient power to safeguard connected electronics.
Features
● For surface mounted applications
● Low profile package
● Low incremental surge resistance, excellent clamping capability
● 200W peak pulse power capability with a10/1000 ms wave from,repetition rate (dutycycle):0.01%
● High temperature soldering guaranteed: 260 ℃/10 seconds, at terminals
Mechanical Data

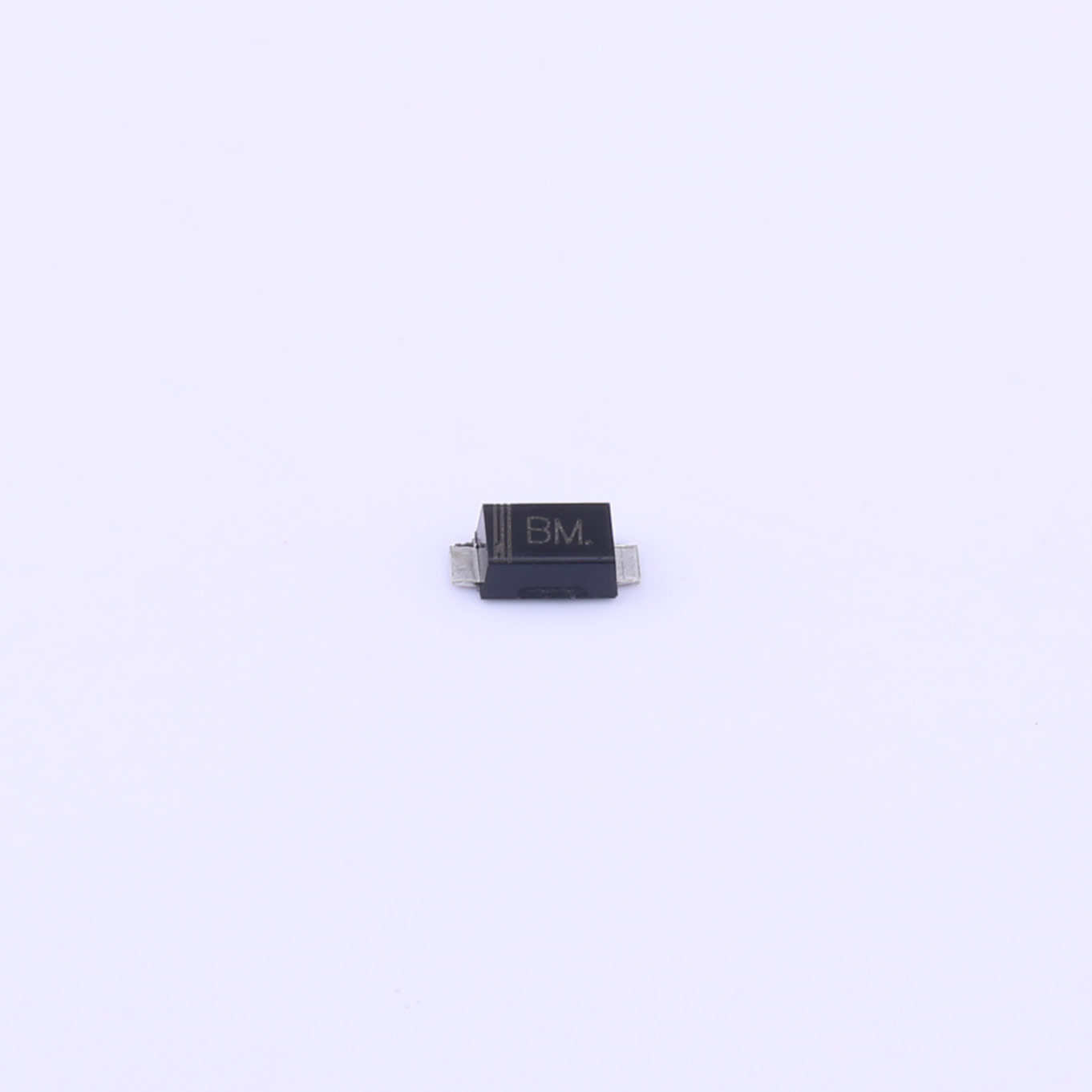

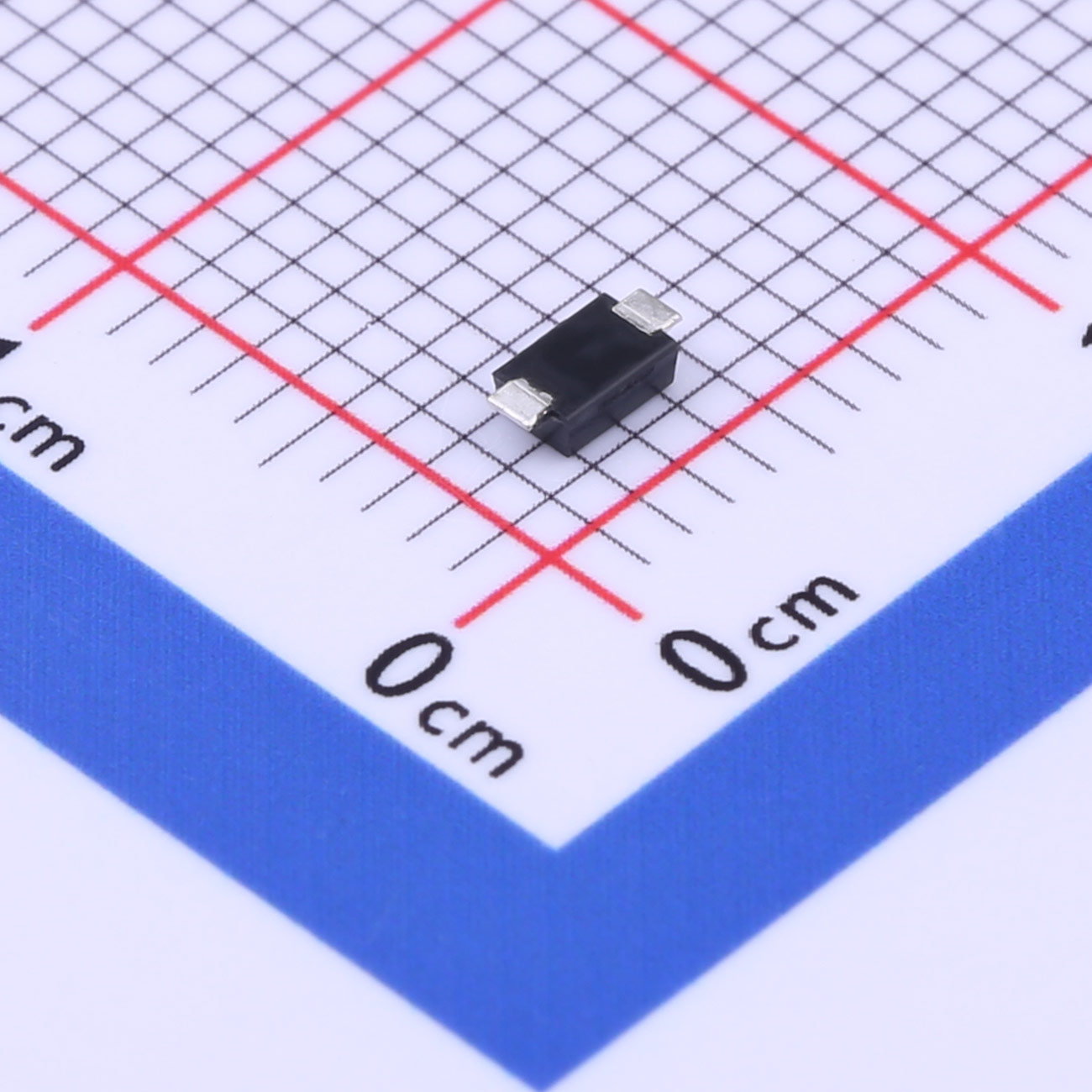

● Case: JEDEC SOD-123FL, molded plastic over passivated chip
● Polarity: Color band denotes positive end ( cathode ) except for bidirectional
● Mounting position: Any
● Weight: 0.006 ounces, 0.02 gram
Applications
● Consumer Electronics
● Embedded Systems
● Automotive Electronics
● Telecommunications
● Industrial Control Systems
| File Name | Title | Description |
|---|---|---|
| SMF30CA.pdf | SMF30CA | - |
