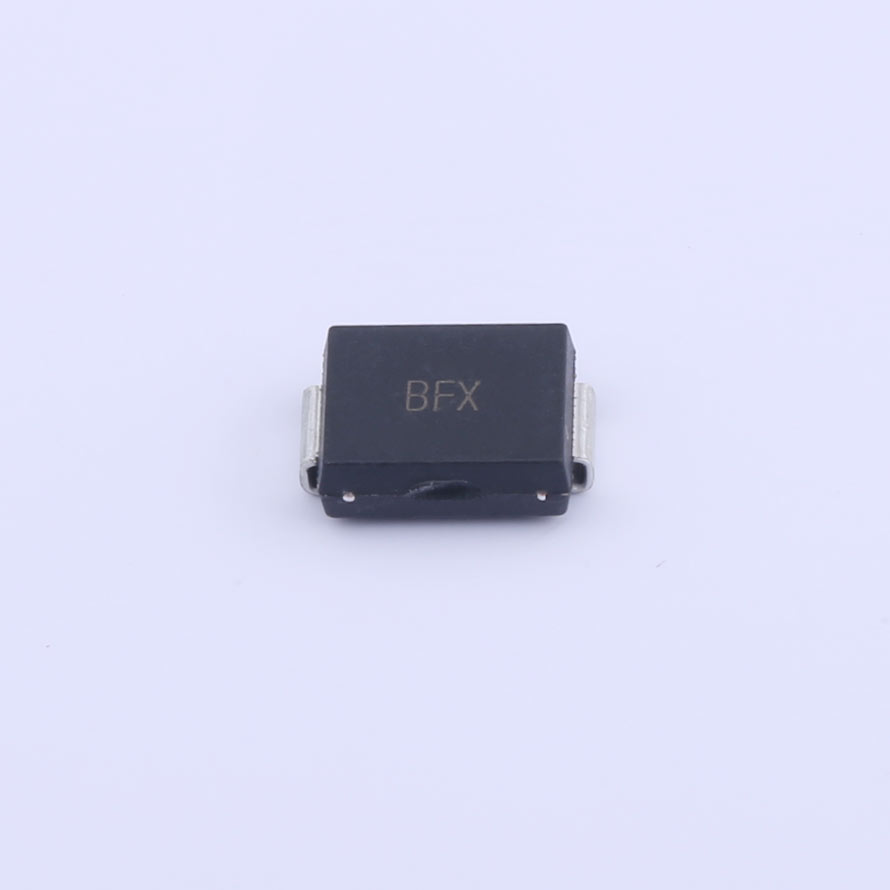

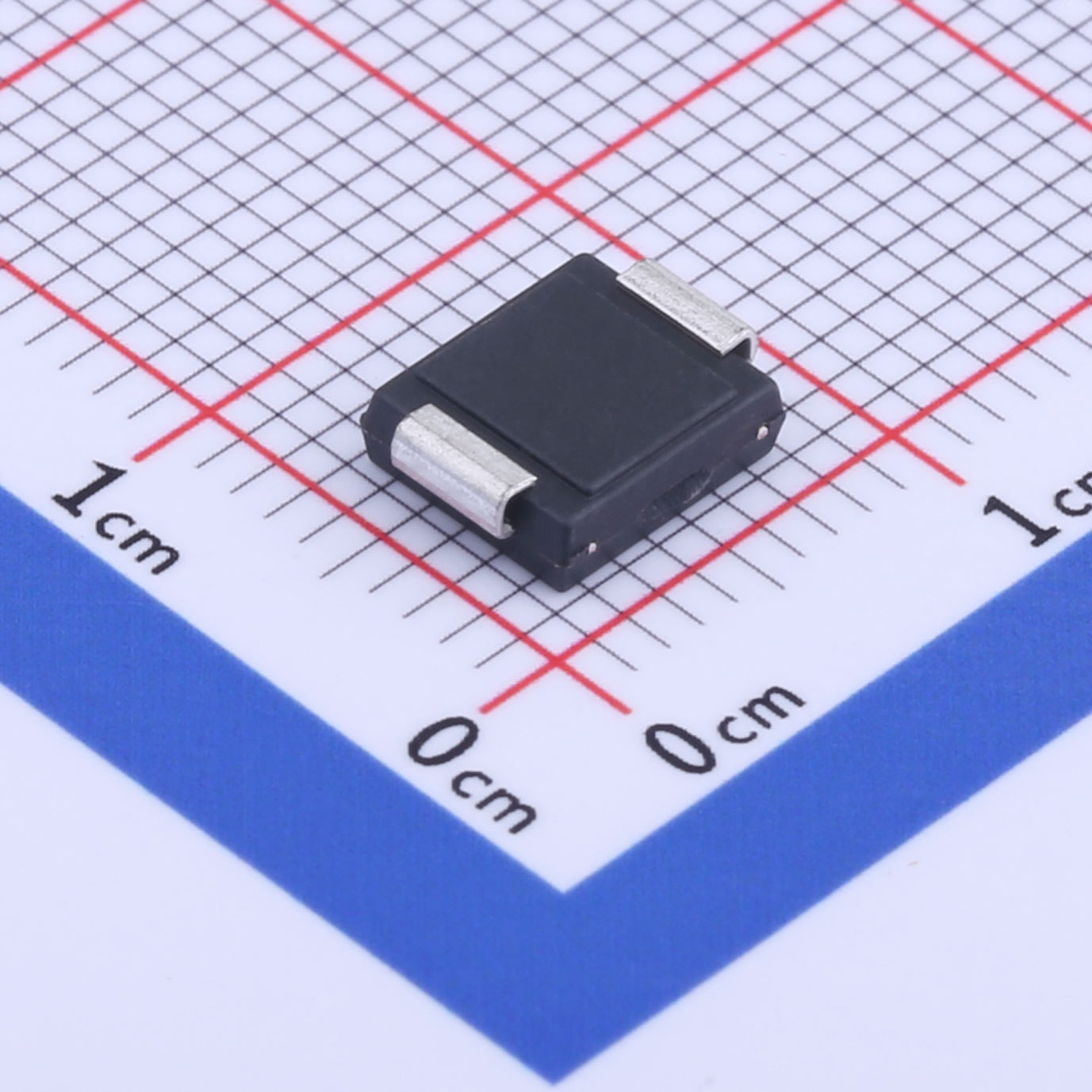

?The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is an essential component designed to protect sensitive electronic circuits from transient voltage spikes and surges in both directions. Featuring a VRWM (Working Peak Reverse Voltage) of 48V, this diode effectively clamps transient voltages that exceed its breakdown voltage (VBR), which ranges from 53.3V (minimum) to 58.9V (maximum). With an ultra-low reverse leakage current (Ir) of 1μA, it ensures minimal power dissipation during normal operation. Capable of handling peak pulse currents (Ipp) of up to 19.4A and transient power dissipation (Ppp) of 1500W for 10/1000μs pulses, this diode offers robust protection for a variety of electronic applications.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The Polar Bidirectional TVS (Transient Voltage Suppression) Diode is an essential component designed to protect sensitive electronic circuits from transient voltage spikes and surges in both directions. Featuring a VRWM (Working Peak Reverse Voltage) of 48V, this diode effectively clamps transient voltages that exceed its breakdown voltage (VBR), which ranges from 53.3V (minimum) to 58.9V (maximum). With an ultra-low reverse leakage current (Ir) of 1μA, it ensures minimal power dissipation during normal operation. Capable of handling peak pulse currents (Ipp) of up to 19.4A and transient power dissipation (Ppp) of 1500W for 10/1000μs pulses, this diode offers robust protection for a variety of electronic applications.
Features
● 1500W peak pulse power capability at 10/1000μs waveform
● For surface mounted applications to optimize board space
● Glass passivated chip junction
● Halogen free and RoHS compliant
Mechanical Data
● Case: SMC
● Terminals: Solderable per MIL-STD-750, Method 2026
● Approx. Weight: 0.22g (0.0077oz)
Applications
● Telecommunications
● Automotive Electronics
● Industrial Automation
● Consumer Electronics.
● Power Supplies
| File Name | Title | Description |
|---|---|---|
| SMCJ36CA.pdf | SMCJ36CA | - |
