Vdrm(V)：6V
Vs(V)：25V
Idrm(μA)：5μA
Ih(mA)：150mA
Vt(V)：4V
It(A)：2.2A
Co(pF)：60pF
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description

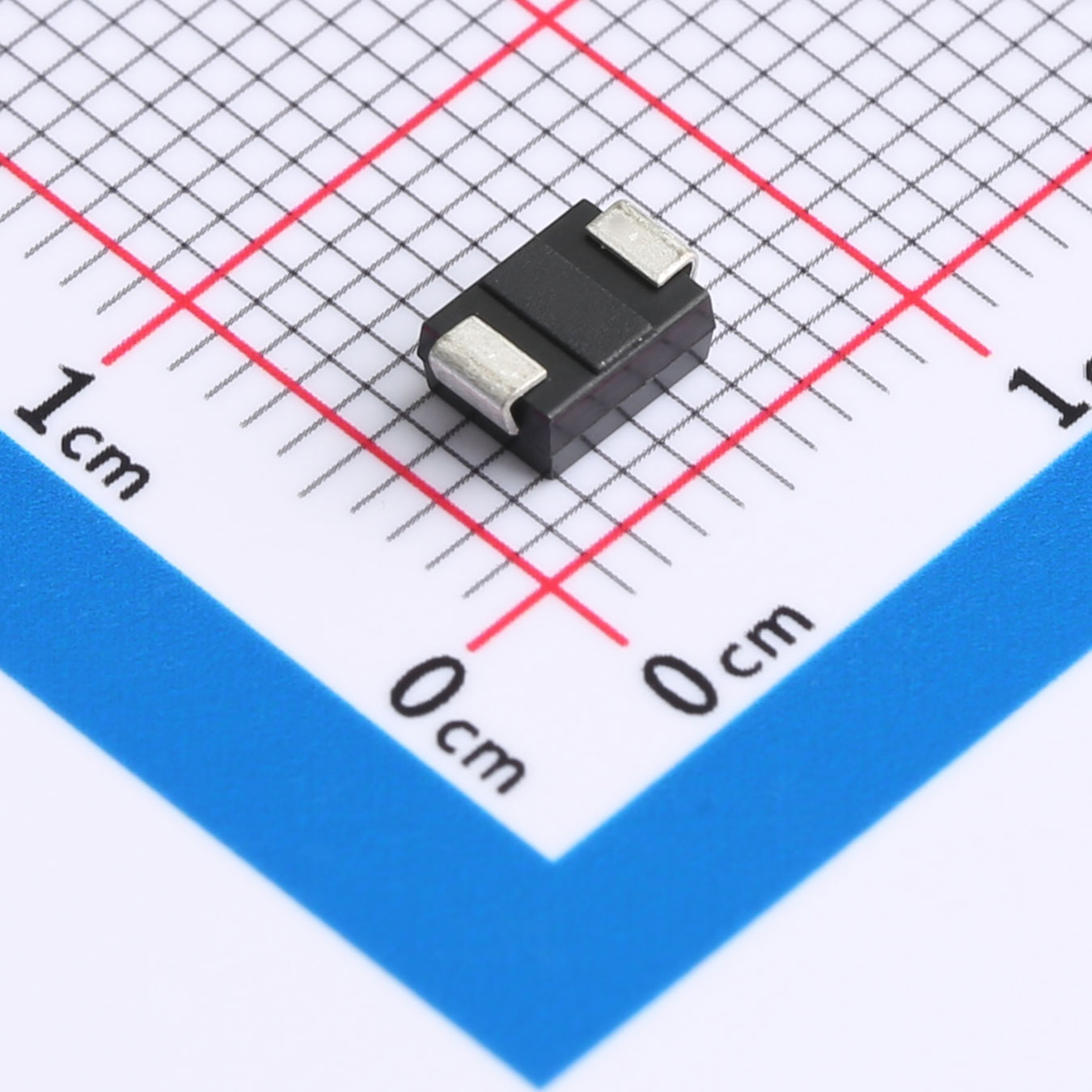

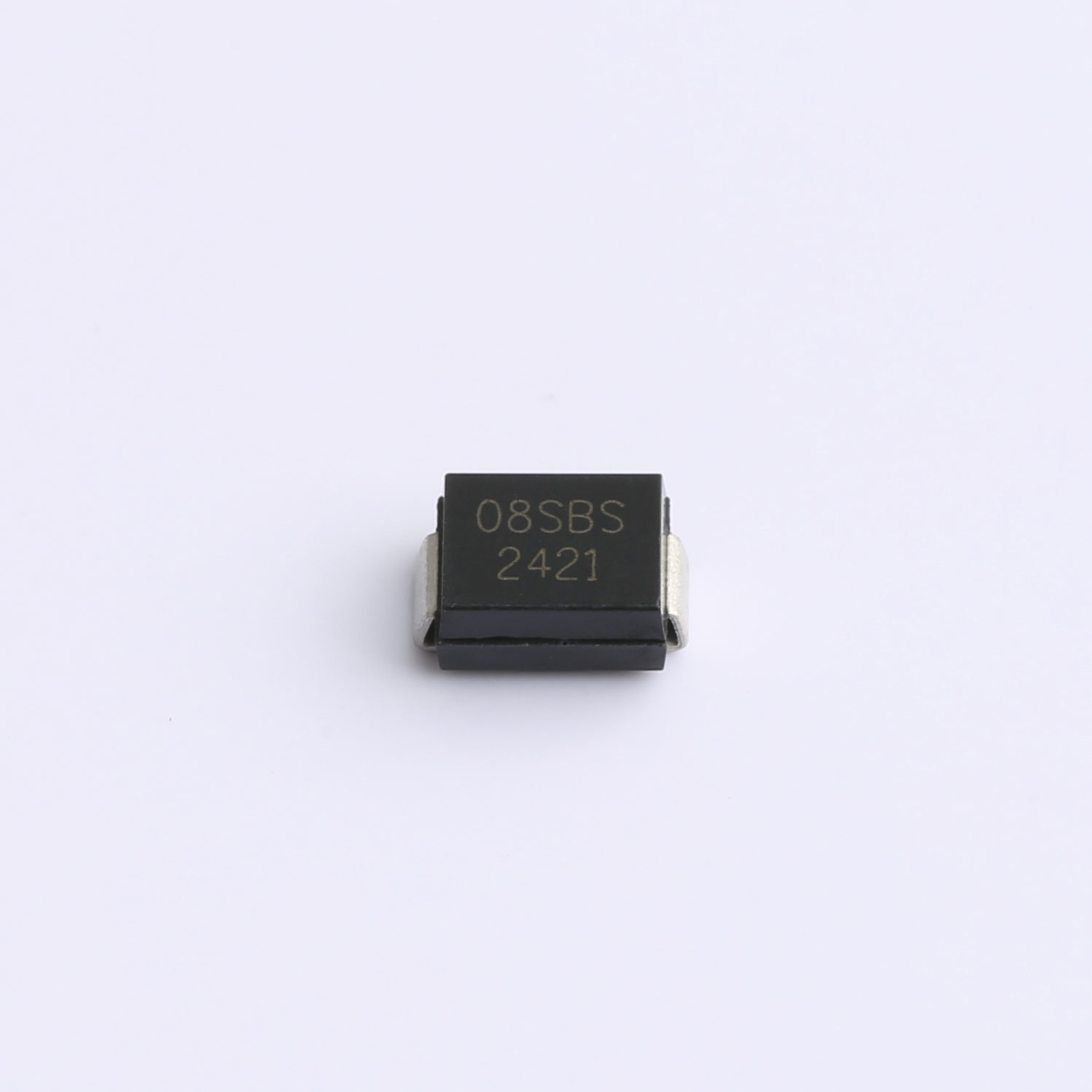

The P0080SB Thyristor Surge Suppressor (TSS) is a high-performance device designed to protect sensitive electronic equipment from damaging voltage surges and transient spikes. Featuring thyristor technology, it quickly detects and clamps excess voltage, preventing it from reaching and potentially damaging connected circuits. Ideal for use in power supply systems, industrial controls, and communication devices, the P0080SB ensures reliable protection against electrical disturbances like lightning strikes and power fluctuations. With its fast response time and robust design, the P0080SB helps extend the lifespan and improve the stability of your electronic systems.
Features
Excellent capability of absorbing transient surge
Quick response to surge voltage (ns Level)
Non degenerative
Eliminates overvoltage caused by fast rising transients
Bi-directional
Rating Surge Voltage:4KV (10/700μs)
Application
RS485/232/422
| File Name | Title | Description |
|---|---|---|
| P0080SB SMB.pdf | P0080SB SMB | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
Vdrm(V)：58V Vs(V)：77V Idrm(μA)：5μA Ih(mA)：350mA Vt(V)：4V It(A)：2.2A Co(pF)：55pF
This high-power TVS (Transient Voltage Suppression) Diode is engineered to provide superior protection against voltage spikes and transients. It features a color-banded cathode for easy installation and ensures reliable performance in a range of electronic applications.
This high-power TVS (Transient Voltage Suppression) Diode is designed to provide exceptional protection against high-energy transient voltage spikes. It features a color-banded cathode for easy identification, ensuring straightforward installation and reliable performance in demanding electronic applications.

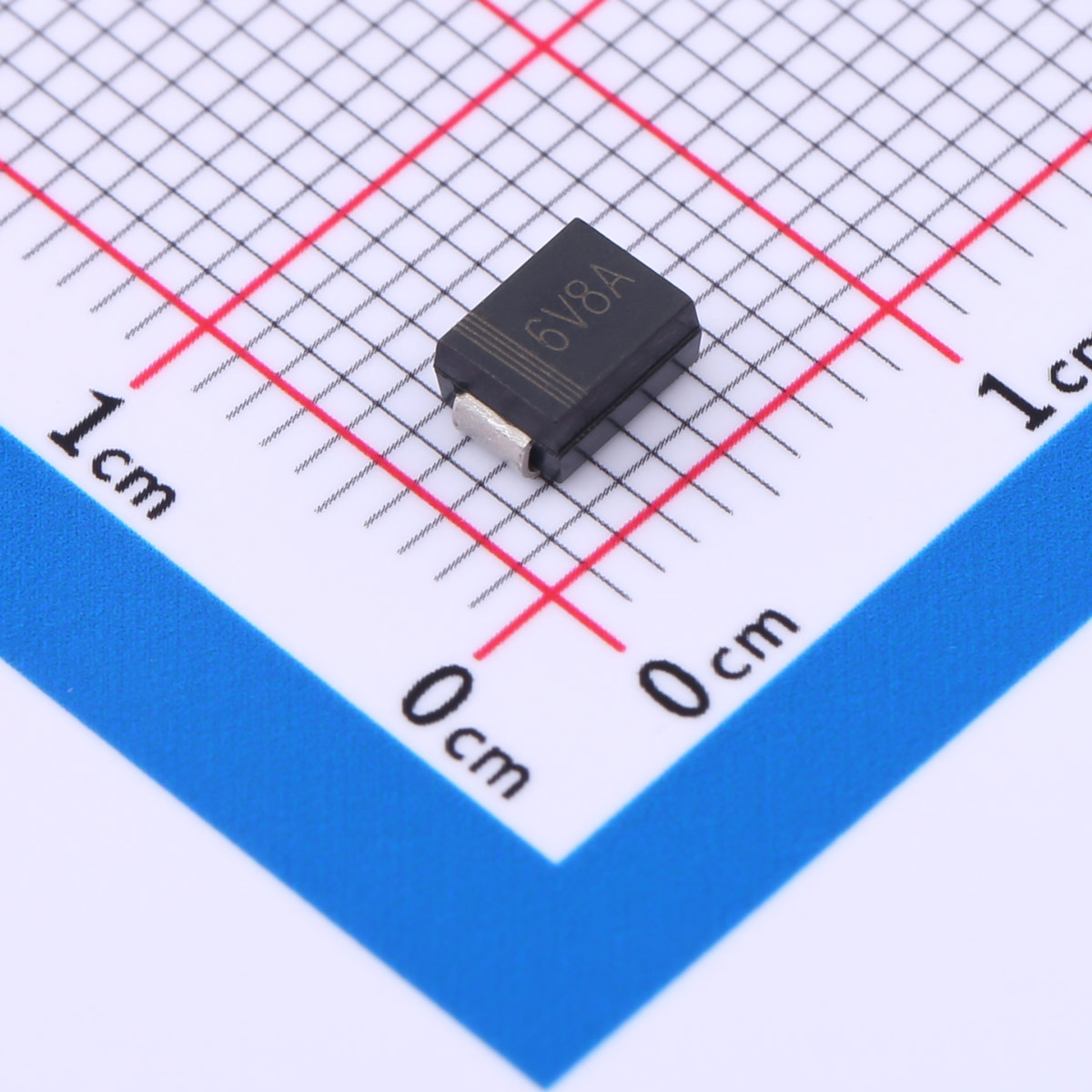

This TVS (Transient Voltage Suppression) Diode, marked with a color-banded cathode, is designed for effective protection in circuits requiring high-power transient suppression. With a breakdown voltage range of 6.45V to 7.14V and a peak pulse power capability of 600W, it offers reliable*against voltage spikes.
