Introduction to Silicon Carbide Schottky Diode

Electronics Basics|Basic understanding for semiconductors and electronics.|

2024-07-30 16:55:25 609

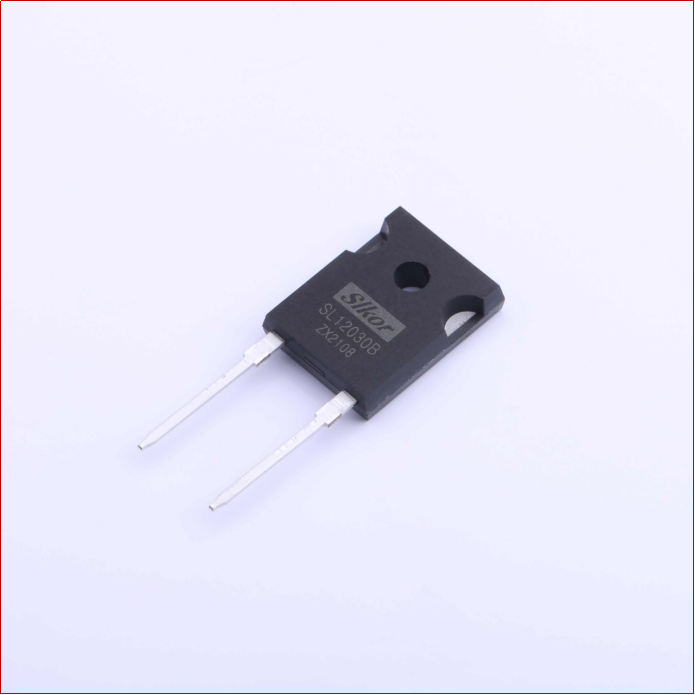

Silicon Carbide (SiC) Schottky diodes are advanced semiconductor devices that offer significant advantages over traditional silicon diodes. This article explores their features, advantages, functionalities, main parameters, applications, and differences from conventional Schottky diodes.

Advantages of Silicon Carbide Schottky Diodes

Silicon Carbide Schottky diodes excel in several aspects compared to their silicon counterparts:

l Higher Efficiency: SiC Schottky diodes have lower forward voltage drop (V_F) and lower reverse recovery charge (Q_rr), resulting in reduced power losses and higher efficiency in power conversion applications.

l High Temperature Operation: They can operate at higher temperatures than silicon diodes, typically up to 175°C or more, making them suitable for harsh environments and high-power applications.

l Fast Switching Speed: SiC Schottky diodes have faster switching capabilities due to their superior material properties, enabling them to handle higher frequencies and switching speeds.

l Reduced Size and Weight: Their superior performance allows for the design of smaller and lighter systems, which is crucial in applications where space and weight are critical factors.

l Reliability: SiC devices exhibit better reliability and longevity compared to silicon diodes, especially under high temperature and high voltage conditions.

Functionality of Silicon Carbide Schottky Diodes

The functionality of SiC Schottky diodes is based on their structure and material properties. They are typically constructed with a Schottky metal (like platinum or titanium) on a silicon carbide substrate, forming a metal-semiconductor junction. This junction allows for fast switching and minimal reverse recovery losses.

Main Parameters of Silicon Carbide Schottky Diodes

Key parameters include:

l Forward Voltage drop (V_F): Typically lower than silicon diodes, reducing conduction losses.

l Reverse Leakage Current (I_R): Minimal reverse current due to the absence of minority carrier injection.

l Switching Time (t_rr): Very short reverse recovery time, almost zero, leading to negligible recovery losses.

l Maximum Operating Temperature: Up to 175°C or higher depending on the specific device.

l Applications of Silicon Carbide Schottky Diodes

SiC Schottky diodes find applications in various industries and sectors:

l Power Electronics: Used in power factor correction (PFC) circuits, switch-mode power supplies (SMPS), and motor drives due to their high efficiency and fast switching capabilities.

l Renewable Energy: Inverters for solar photovoltaic systems and wind turbines benefit from SiC diodes' efficiency and reliability.

l Automotive: Electric vehicles (EVs) and hybrid electric vehicles (HEVs) use SiC diodes in onboard chargers and powertrain systems for enhanced efficiency and performance.

l Industrial Applications: High-power industrial equipment such as welding machines and UPS systems benefit from the compact size and high efficiency of SiC diodes.

l Difference Between Silicon Carbide Schottky Diodes and Silicon Schottky Diodes

l The primary differences between SiC Schottky diodes and traditional silicon Schottky diodes lie in their material properties and resulting performance:

l Material: SiC diodes use silicon carbide as the semiconductor material, offering superior thermal conductivity and higher breakdown voltage compared to silicon.

l Performance: SiC diodes have lower V_F and Q_rr, faster switching speed, and higher operating temperature range compared to silicon diodes.

Applications: SiC diodes are preferred in high-power, high-frequency, and high-temperature applications where efficiency, size, and reliability are critical.

In conclusion, Silicon Carbide Schottky diodes represent a significant advancement in semiconductor technology, providing superior performance and efficiency across various applications. As technology continues to evolve, SiC diodes are expected to play a crucial role in advancing power electronics and contributing to energy-efficient solutions worldwide.
