Everything about Schottky Diodes

What is a Schottky Diode?

A Schottky Diode is a semiconductor device with unique properties compared to traditional diodes. Named after the physicist Walter Schottky, these diodes are known for their low forward voltage drop and fast switching speed. The Schottky Diode is widely used in electronic circuits where high-speed switching and low power loss are critical. Its structure typically consists of a metal-semiconductor junction rather than a p-n junction, which contributes to its distinctive characteristics.

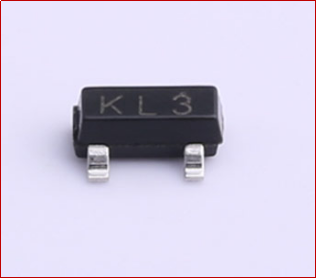

Slkor BAT54C Schottky Barrier Diode | Alternative equivalent for DIODES BAT54C-7-F

The Development History of Schottky Diodes

The development of the Schottky Diode dates back to the 1930s, but it gained prominence in the 1950s and 1960s as semiconductor technology advanced. Initially, these diodes were used in high-frequency applications. As technology evolved, their use expanded to various electronic devices due to their advantageous properties. Today, Schottky Diodes are integral to modern electronics, including power supplies and radio frequency circuits.

Characteristics of Schottky Diodes

Schottky Diodes are distinguished by several key characteristics:

Low Forward Voltage drop: Typically 0.15 to 0.45 volts, which improves efficiency.
Fast Switching Speed: Ideal for high-speed applications.
Low Reverse Recovery Time: Reduces power loss in switching circuits.

These attributes make Schottky Diodes a preferred choice for many electronic applications where speed and efficiency are crucial.

Parameters of Schottky Diodes

Understanding the parameters of Schottky Diodes is essential for their effective application. Key parameters include:

Forward Voltage: The voltage drop across the diode when conducting.
Reverse Leakage Current: The small current that flows when the diode is reverse-biased.
Maximum Reverse Voltage: The highest reverse voltage the diode can handle without breakdown.
Capacitance: The amount of charge the diode can store when reverse-biased.

These parameters help in selecting the right Schottky Diode for specific applications and ensuring optimal performance.

Roles of Schottky Diodes in Electronics

Schottky Diodes play several important roles in electronic circuits. They are frequently used in:

Rectification: Converting AC to DC power in power supplies.
Clamping: Protecting circuits from voltage spikes.
Mixers: In radio frequency circuits for signal processing.

These roles highlight the versatility and importance of Schottky Diodes in modern electronic systems.

Applications of Schottky Diodes

The Schottky Diode finds extensive use in various applications. Key applications include:

Power Rectifiers: In power supplies and converters.
High-Frequency Circuits: Used in RF applications due to their fast switching capabilities.
Solar Panels: To prevent backflow of current from the battery to the solar cells.

These applications illustrate the adaptability of Schottky Diodes across different sectors of electronics.

Manufacturers of Schottky Diodes

Several reputable manufacturers specialize in Schottky Diodes. Notable companies include:

Texas Instruments: Known for high-quality Schottky Diodes with reliable performance.
ON Semiconductor: Offers a broad range of Schottky Diodes for various applications.
Diodes Incorporated: Provides innovative solutions in the Schottky Diodes market.

These manufacturers ensure the availability of high-performance Schottky Diodes for diverse electronic needs. For more information, visit Semantics Scholar.
