Everything about General Op-amp

The General Op-amp is one of the most essential components in modern consumer electronics, used widely in a variety of applications ranging from audio processing to signal amplification. For procurement and engineering teams in consumer electronics companies, understanding the General Op-amp's characteristics, roles, and applications is crucial. In this article, we will explore all aspects of the General Op-amp, from its development history to its modern-day applications and the top manufacturers in the field.

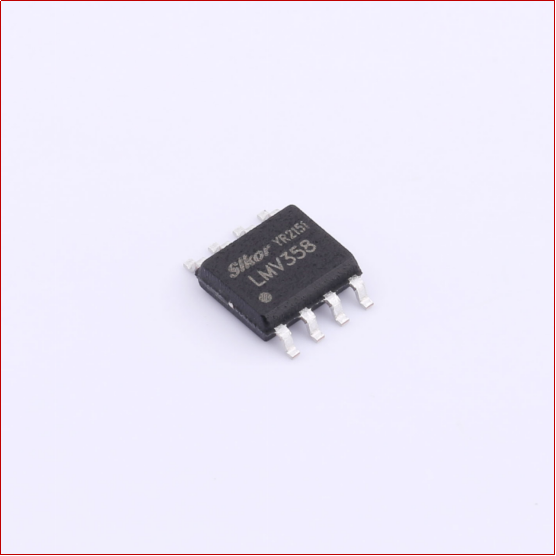

Slkor LMV358 General Op-amp | Alternative equivalent for Texas Instruments LMV358QD

What is a General Op-amp?

A General Op-amp (Operational Amplifier) is a high-gain electronic voltage amplifier with a differential input and usually a single-ended output. The main function of an op-amp is to amplify a small voltage difference between its two input terminals. This makes it a crucial element in electronic circuits, where amplification is required, such as in audio, sensor applications, and signal processing.

The General Op-amp is a versatile and highly adaptable component used in many types of consumer electronics. They are commonly used for both analog signal processing and for creating active filters, oscillators, and other important circuit functions. Op-amps typically have very high input impedance and very low output impedance, which makes them suitable for various applications, particularly where high precision is required.

The Development History of General Op-amps

The history of the General Op-amp dates back to the early 1960s when the need for more efficient and reliable amplifiers in various industrial and consumer applications began to grow. Initially, operational amplifiers were built using vacuum tubes, but with the advent of solid-state electronics, they transitioned to transistor-based designs.

By the late 1960s, integrated circuit (IC) technology allowed for the development of General Op-amps that could be produced in high volumes, which significantly reduced costs and opened up new markets. Over time, manufacturers such as Texas Instruments, Analog Devices, and National Semiconductor played a key role in the development and commercialization of op-amps, making them widely available for consumer electronics applications.

Characteristics of General Op-amp

The General Op-amp has several key characteristics that make it so widely applicable. Understanding these features is essential for engineers and procurement teams in selecting the right op-amp for their designs. Below are some of the primary characteristics:

High Input Impedance: This characteristic ensures that the op-amp draws minimal current from the input signal, which is ideal for applications involving sensitive signal sources.
Low Output Impedance: This helps to deliver the amplified signal to the next stage of the circuit with minimal loss.
High Gain: The General Op-amp provides a very high voltage gain, which is ideal for signal amplification.
Negative Feedback: Op-amps generally use negative feedback to stabilize gain and reduce distortion, which is crucial in precision applications.

Parameters of General Op-amp

The performance of a General Op-amp is defined by several important parameters that engineers must consider when designing circuits. These parameters include:

Open-Loop Gain: The intrinsic amplification ability of the op-amp without any feedback applied.
Bandwidth: The frequency range over which the op-amp can maintain its gain. This is an important factor when dealing with high-frequency applications.
Slew Rate: The rate at which the output of the op-amp can change in response to a rapid change in the input voltage.
Input Offset Voltage: A small voltage difference that exists between the op-amp's two input terminals even when the inputs are ideally at the same potential.
Common-Mode Rejection Ratio (CMRR): The ability of the op-amp to reject common-mode signals, which are unwanted signals that appear on both input terminals.

Roles of General Op-amps in Consumer Electronics

In consumer electronics, General Op-amps play a critical role in a variety of circuits. Some of the main functions they serve include:

Amplification: The most common use of op-amps is to amplify weak signals, making them suitable for audio, video, and sensor applications.
Signal Conditioning: Op-amps are often used to filter or condition signals, removing noise or boosting certain frequencies in applications like audio processing and instrumentation.
Active Filters: Op-amps are key components in designing low-pass, high-pass, band-pass, and band-stop filters.
Voltage Follower: Op-amps can be used as voltage followers or buffers, providing high input impedance and low output impedance, useful in many digital-to-analog conversions and signal isolation circuits.

Applications of General Op-amps

General Op-amps have a broad range of applications in consumer electronics. Some of the most common uses include:

Audio Amplifiers: Op-amps are frequently used in audio amplifiers, whether in headphones, speakers, or professional sound equipment.
Sensor Signal Processing: In devices such as thermometers, pressure sensors, and accelerometers, op-amps help condition the weak signals produced by the sensors.
Voltage Regulation: In power supply circuits, op-amps are often used for voltage regulation, ensuring consistent output voltages.
Analog-to-Digital Converters (ADC): Op-amps play a key role in ADC circuits, providing signal conditioning before the conversion process.

Manufacturers of General Op-amps

Several well-established manufacturers produce General Op-amps, each offering a wide range of options with varying specifications to meet different requirements in consumer electronics. Some of the leading companies include:

Texas Instruments: Known for their broad range of op-amps, from high-precision to general-purpose models.
Analog Devices: Renowned for their high-performance op-amps, particularly in industrial and scientific applications.
ON Semiconductor: Offers a variety of op-amps optimized for low-power, automotive, and industrial applications.
STMicroelectronics: A key player in the consumer electronics sector, providing op-amps with a focus on power efficiency and integration.

Conclusion

The General Op-amp is an indispensable component in the world of consumer electronics. Its versatility, high-performance capabilities, and broad range of applications make it a cornerstone of many designs. Whether you're working on audio systems, sensor interfaces, or power management, understanding the characteristics, parameters, and applications of General Op-amps is crucial for engineers and procurement teams. By choosing the right op-amp for your needs, you can ensure the efficiency and success of your electronic products.

For more information on op-amps and related technologies, visit Analog Devices Op-amps.
