VRM(V)：100V
IO(mA)：200mA
VF(V)：1V
IR(A)：25nA
trr(ns)：4ns
Package：SOD-323
FAST SWITCHING DIODE
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description

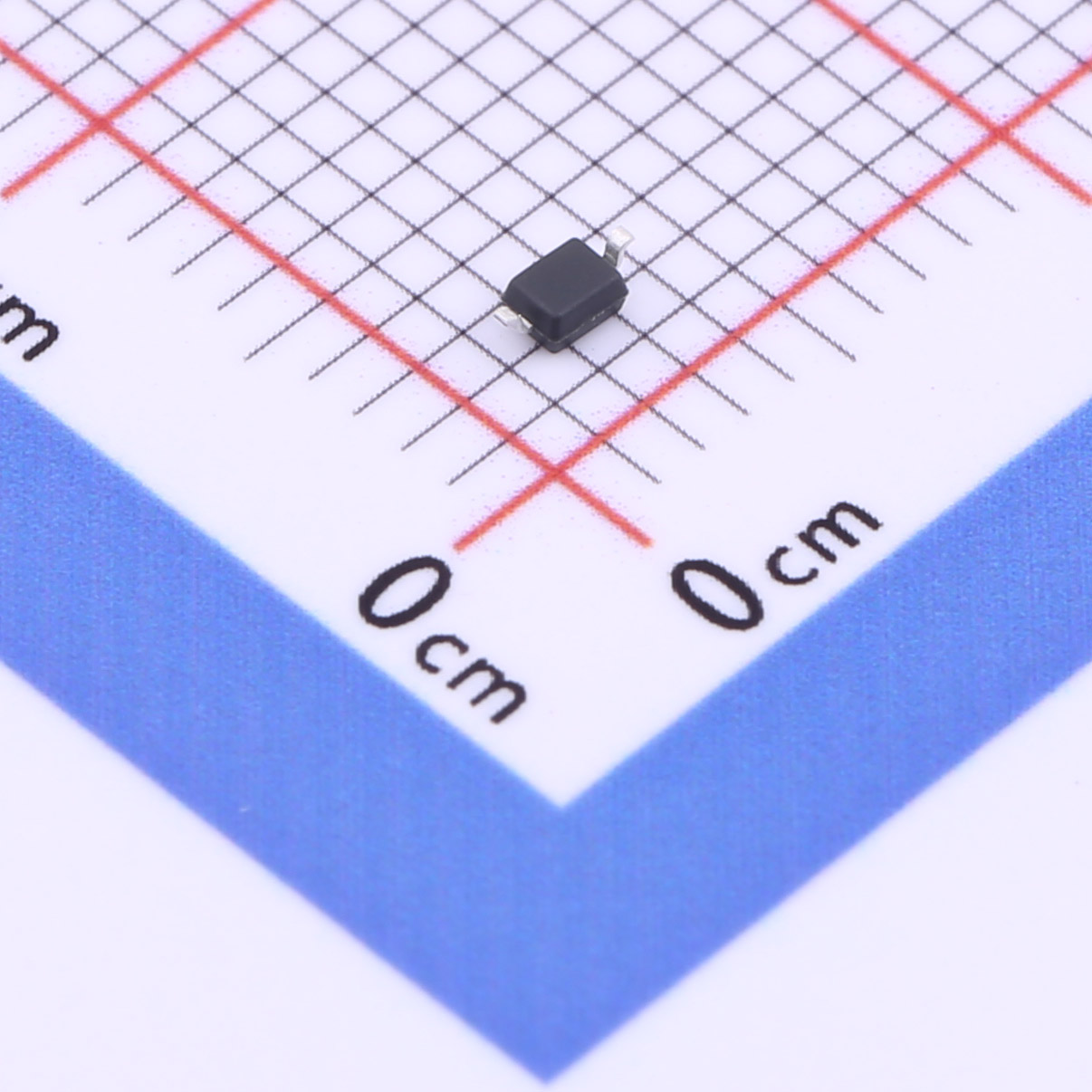

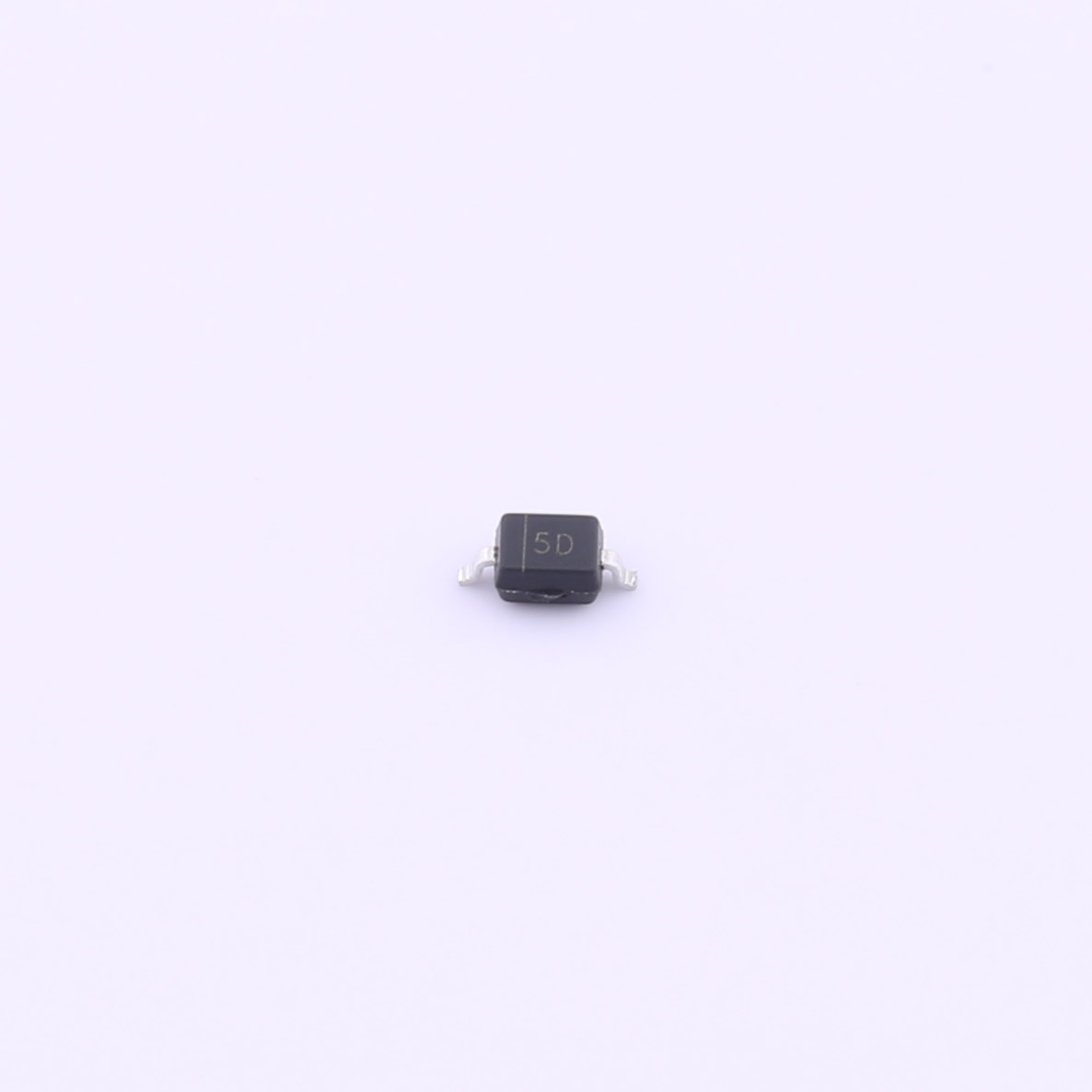

The MMDL914 is a high-performance switching diode housed in a compact SOD-323 package. With its robust specifications, this diode is designed to efficiently handle switching applications in various electronic circuits.
Features
● Small Surface Mounting Type: SOD-323
● High Speed :t=4.0ns Typ.
Applications
● High speed switching
| File Name | Title | Description |
|---|---|---|
| MMDL914 SOD-323.pdf | MMDL914 SOD-323 | - |
