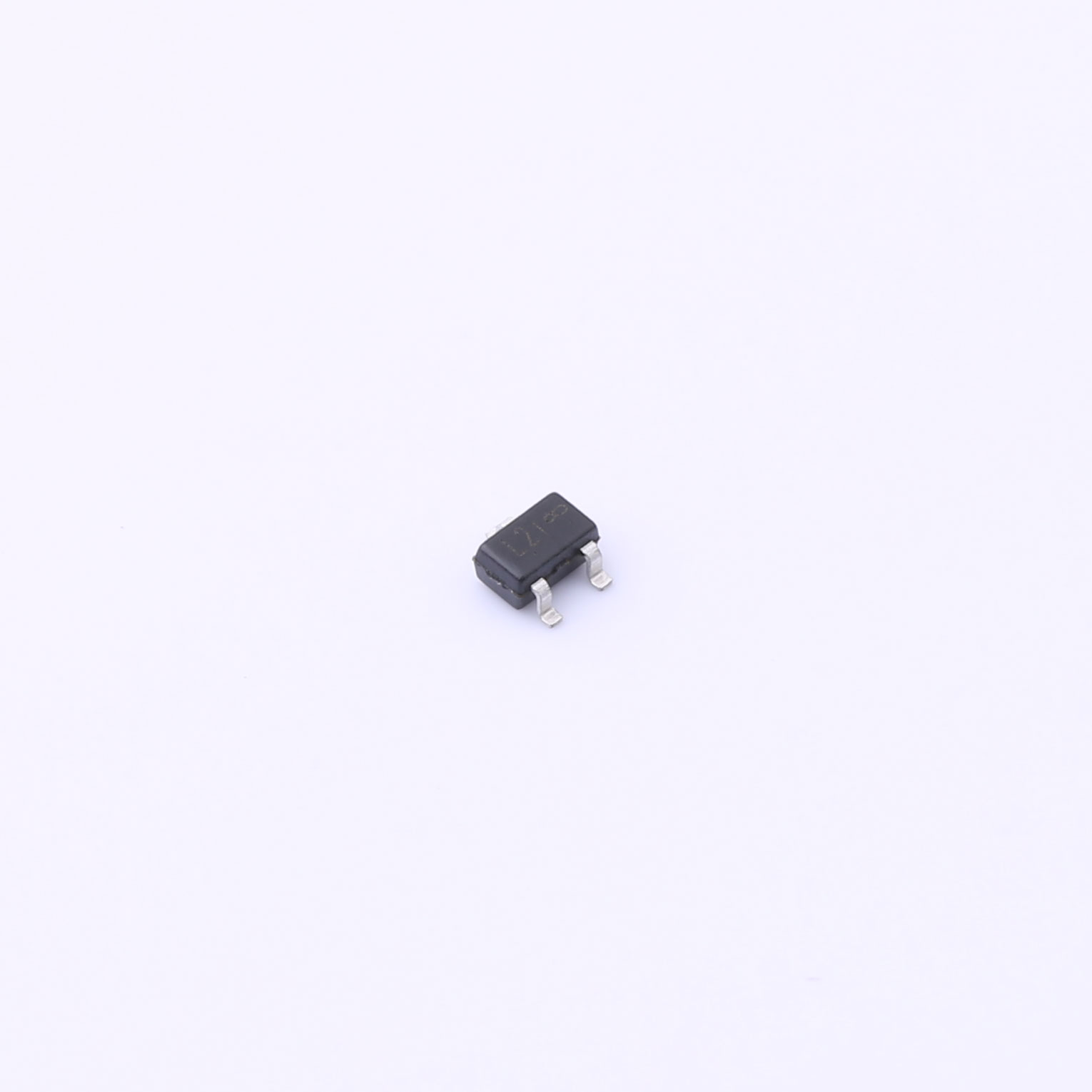

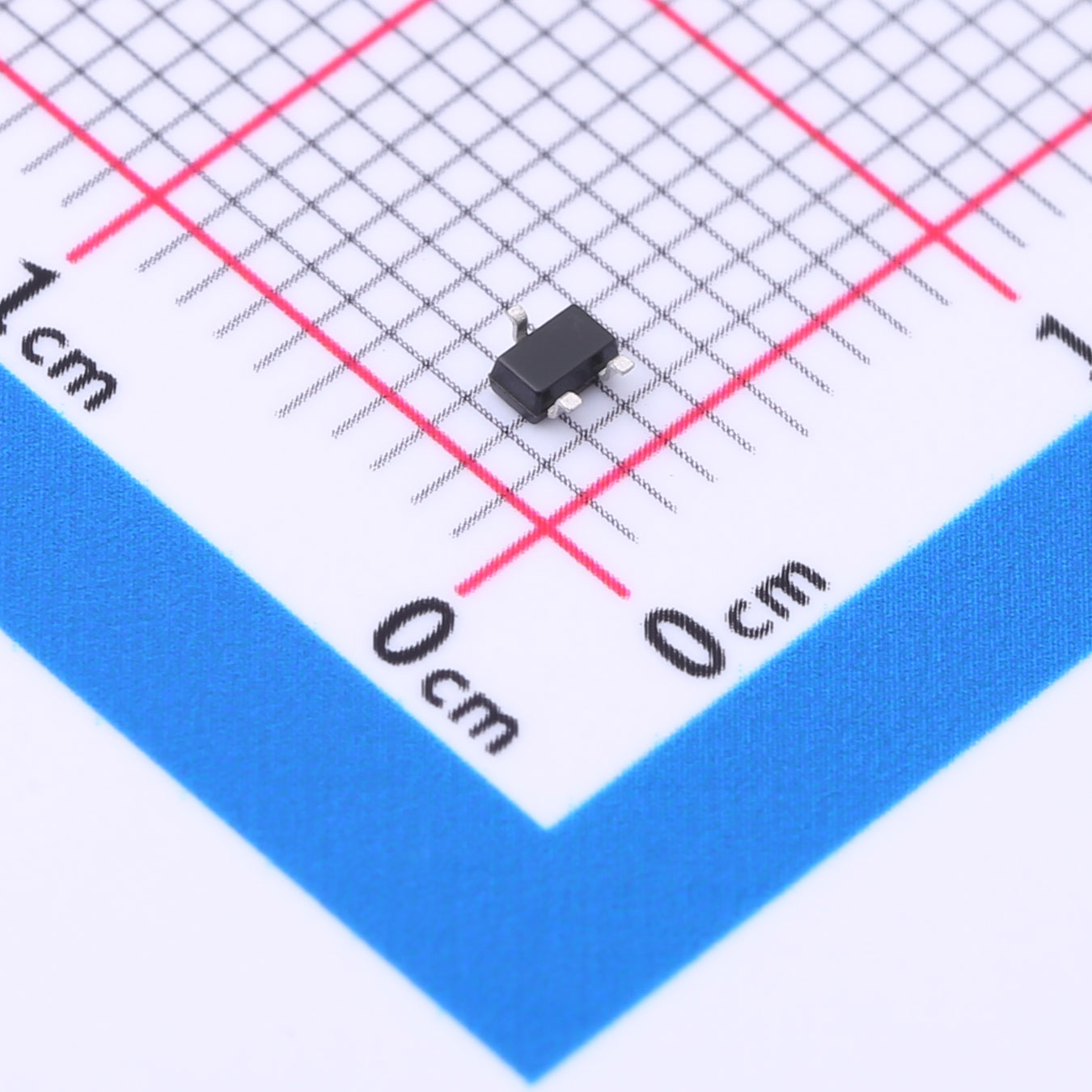

The BAV199W is a high-performance fast switching diode designed for precision rectification and rapid signal switching applications. Packaged in the compact SOT-323 form factor, this diode offers excellent speed, efficiency, and reliability, making it an ideal choice for modern electronic circuit designs where fast response times are critical.
Download datasheet Inquiry
Plastic-Encap sulate Diodes
Our adventage
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The BAV199W is a high-performance fast switching diode designed for precision rectification and rapid signal switching applications. Packaged in the compact SOT-323 form factor, this diode offers excellent speed, efficiency, and reliability, making it an ideal choice for modern electronic circuit designs where fast response times are critical.
Features
● Low Leakage Current Applications
Applications
● Consumer Electronics: Enables rapid signal processing in mobile devices, tablets, and digital cameras.
● Telecommunications: Facilitates quick data switching and transmission in telecommunications equipment and networking devices.
● Automotive Electronics: Supports efficient operation in control circuits and sensor applications within automotive systems.
● Industrial Automation: Provides reliable performance in industrial control systems requiring fast response times and precise signal conditioning.
| File Name | Title | Description |
|---|---|---|

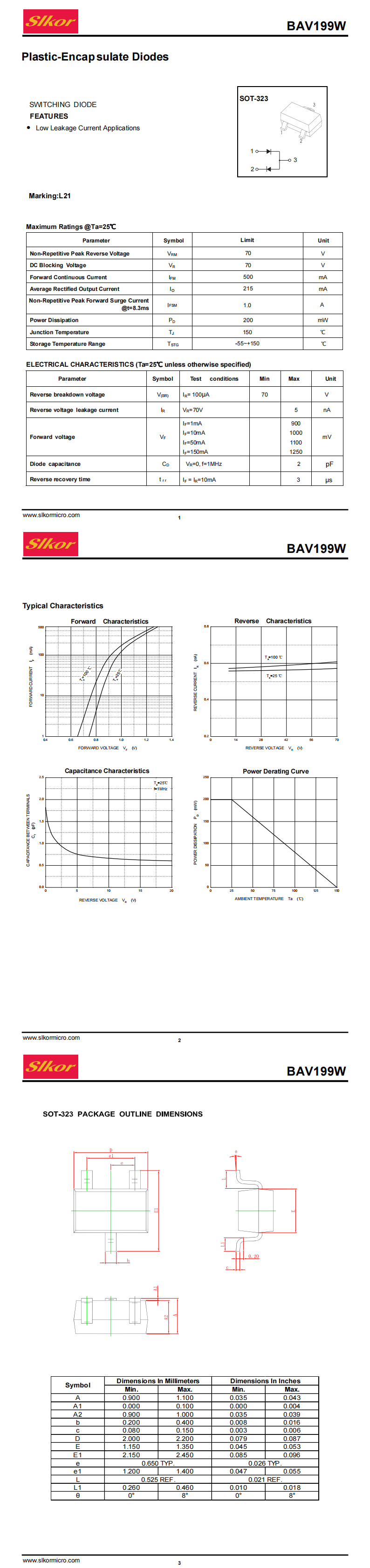

| BAV199W SOT-323-1.pdf | BAV199W SOT-323-1 | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
VRM(V)：30V IO(mA)：200mA VF(V)：0.24V IR(A)：2μA trr(ns)：5ns Package：SOT-323
VRM(V)：30V IO(mA)：200mA VF(V)：0.24V IR(A)：2μA trr(ns)：5ns Package：SOT-323
