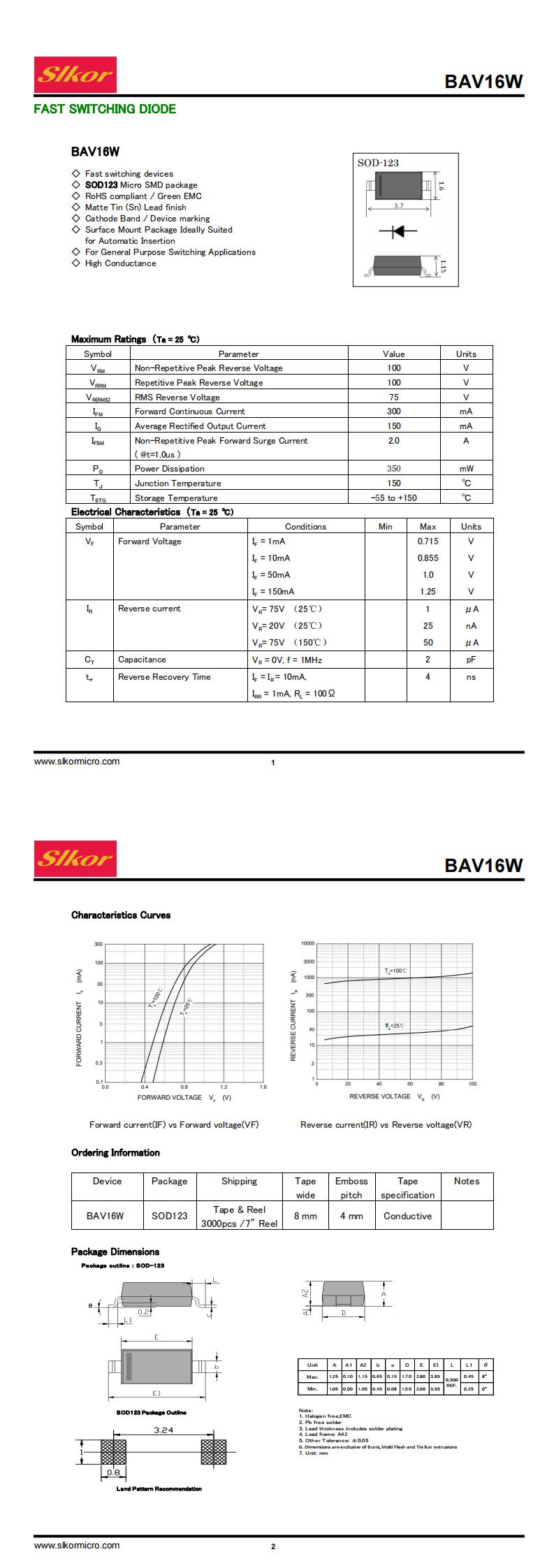

BAV16W Small Signal Diode SOD-123

Fast Switching Diode

Our adventage

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China.  As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

Description
The BAV16W is a high-performance small signal diode designed for ultra-fast switching and efficient rectification applications. Packaged in the compact SOD-123 form, this diode offers superior speed and reliability in a robust, space-saving design.

Features

● High Voltage Capability: With a VRM (Maximum Reverse Voltage) of 100V, the BAV16W supports applications requiring robust voltage handling.

● High Current Rating: Capable of handling up to 150mA of average rectified current (IO), ensuring reliable performance in various circuit designs.

● Low Forward Voltage drop: Provides efficient power management with a forward voltage (VF) of 1V at 50mA, minimizing energy loss during operation.

● Low Leakage Current: Maintains circuit integrity with a low reverse leakage current (IR) of 1μA at 75V, ensuring stable performance over extended periods.

● Ultra-Fast Switching Speed: Features a fast reverse recovery time (trr) of 4ns, enabling rapid switching transitions in high-frequency applications.

● Compact Package: Housed in the space-efficient SOD-123 package, the diode facilitates easy integration into compact electronic designs while ensuring mechanical         robustness and heat dissipation.

Applications

● Consumer Electronics: Enables efficient signal processing and power management in mobile devices, televisions, and audio equipment.

● Telecommunications: Facilitates rapid data transmission and signal switching in communication systems.

● Automotive Electronics: Enhances performance in control circuits and sensor applications requiring quick response times.

● Industrial Automation: Supports precise signal conditioning and pulse generation in control systems.
