IGBT module selection guidance

Technical Blogs|Technical Blogs|

2022-03-17 18:36:27 96

The following points should be paid attention to in the selection of domestic IGBT modules:

Loss of IGBT module

The loss of IGBT module comes from the loss of internal IGBT and diode (freewheeling FWD, rectification) chips, mainly the loss caused by IGBT and FWD.

IGBT is not an ideal switch, which is embodied in:

1) Saturated voltage when IGBT is turned on–vcesat

2) IGBT has switching energy consumption when switching–-Eon and Eoff, which is the root of IGBT loss. Vcesat causes conduction loss, while Eon and Eoff cause switching loss. Turn-on loss+switching loss = total IGBT loss.

FWD also has two losses, because:

(1) When conducting in the forward direction (i.e. freewheeling), there is a forward conducting voltage: Vf
(2) There is reverse recovery energy consumption in the process of reverse recovery: Erec. Vf leads to conduction loss, and Erec leads to switching loss. On-loss+switching loss = FWD total loss.

The Vcesat, Eon, Eoff, Vf and Erec embody the technical characteristics of IGBT/FWD chips. Therefore, IGBT/FWD chip technology is different, so are Vcesat, Eoff, Vf and Erec.

f86ac30bcd16beaa323a17a8ede44357
Loss of IGBT module -IGBT conduction loss

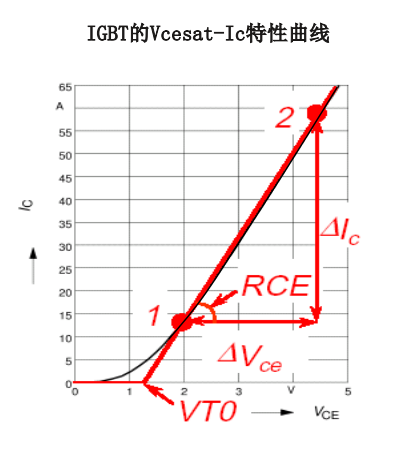

The relationship between Vcesat and Ic can be described by the approximate linear method in the left figure.
Means: Vcesat = Vt0+Rce× Ic

Turn-on loss of IGBT:

Pcond = d * Vcesat × Ic, where D is the on duty ratio of IGBTThe magnitude of IGBT saturation voltage is related to the passing current (Ic),The junction temperature (Tj) of the chip is related to the gate voltage (Vge).

f6c347c6509c7a83091f79b0471f2850
Loss of IGBT module -IGBT switching loss

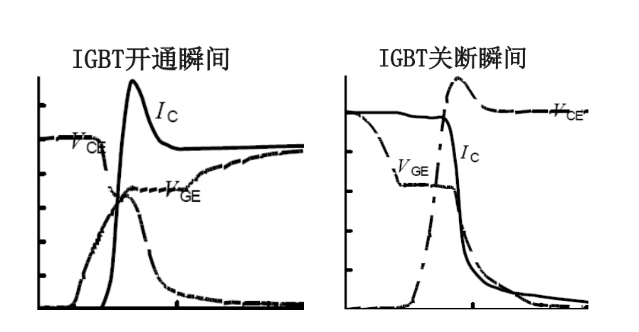

The reason why IGBT has switching power consumption is that the current and voltage have overlapping periods at the moment of turning on and off.

When Vce is close to the test conditions, Eon and Eoff can be approximately regarded as proportional to Ic and Vce:

Eon = EON × Ic/IC,NOM ×
Vce/ test conditionsEoff = EOFF×
Ic/IC,NOM×
Vce/ test conditions
Switching loss of IGBT: Psw = fsw × (Eon+Eoff), fsw is the switching frequency.

The power consumption of IGBT is related to the current (Ic), voltage (Vce) and junction temperature (Tj) of the chip.

Eon definition: 10% Ic to 2%Vce n
Eoff definition: 10% Vce to 2%Ic

Loss of IGBT module -FWD conduction loss

970ea7fc9dd9ad830714208d208fff42

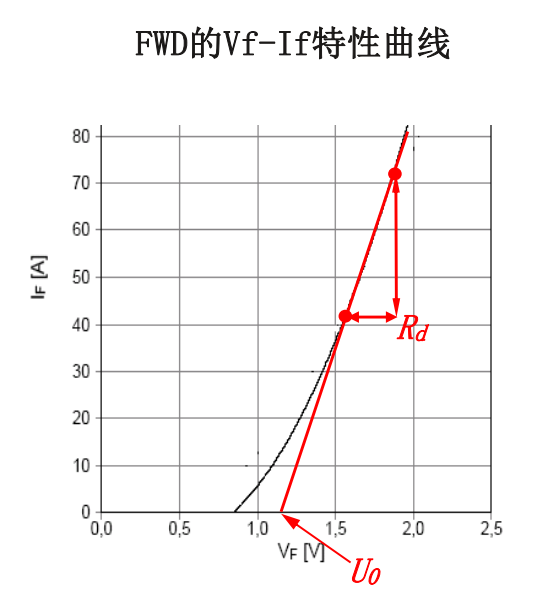

The relationship between Vf and If can be expressed by the approximate linear method in the left figure:
Vf = U0 + Rd × If

Turn-on loss of FWD: Pf = d * Vf × If, where d is the on duty cycle of FWD.
The module gives the characteristic value of FWD's forward conduction voltage: VF, and the test conditions.
The FWD forward conduction voltage is related to the current (If) and the junction temperature (Tj) of the chip.

Loss of IGBT module -FWD switching loss

e9722b42c318432cb7e41181903290c5

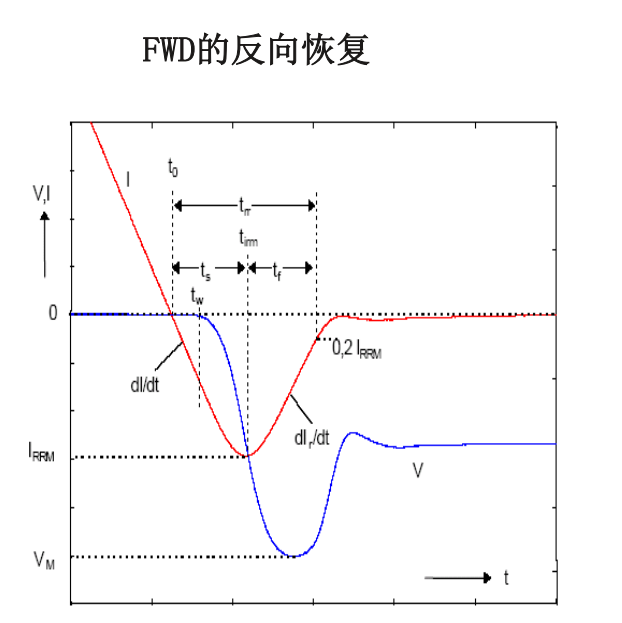

Reversal is the inherent characteristic of FWD, which occurs at the moment when the forward conduction turns to the reverse blocking, and then returns to the reverse blocking state after passing the reverse current.

When Vr is close to the test conditions, Erec can be approximately regarded as proportional to If and Vr:Erec = EREC ×
If/IF,NOM × Vr/ test conditions
Switching loss of FWD: Prec = fsw× Erec and fsw are switching frequencies.
The energy consumption of FWD reverse recovery is related to the current (If), current change rate dif/dt, reverse voltage (Vr) and junction temperature (Tj) of the chip during forward conduction.

Loss of IGBT module-summary

IGBT

Conduction loss:
(1) related to IGBT chip technology
(2) It is related to the operating conditions: it is proportional to the current and the duty cycle of IGBT, and increases with the increase of Tj.
(3) It is related to driving conditions: it decreases with the increase of Vge.

switching loss:
(1) related to IGBT chip technology
(2) Related to working conditions: proportional to switching frequency, current and voltage, increasing with Tj.
(3) It is related to driving conditions: it increases with the increase of Rg and decreases with the increase of gate turn-off voltage.

FWD

Conduction loss:
(1) related to FWD chip technology
(2) Related to working conditions: proportional to current and FWD duty cycle.

switching loss:
(1) related to FWD chip technology
(2) Related to working conditions: proportional to switching frequency, current and voltage, increasing with Tj.

Temperature of IGBT module

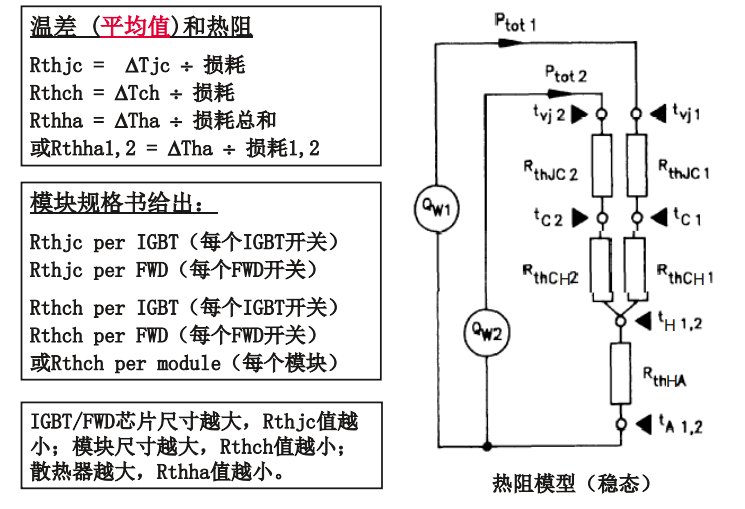

06b2eac9c15ace757941c59ea0e63357 246d2d79bc2234090b1f07ee0aab58a7

MacArthur Wei Yang: RTCH of arm = &timesn of modules Rth = rth _ IGBT//rth _ FWD of each arm MacArthur Wei Yang: RTHA of arm = RTHA & Times: n Yune, poor guy Zhou Yafu? Zhou Yafu? Zhou Yafu (IGBT+FWD), n Wu Yaling Wu Yaling Wu Yaling-Hello.

48c29d6010b0d370cc5f220a7e390b86

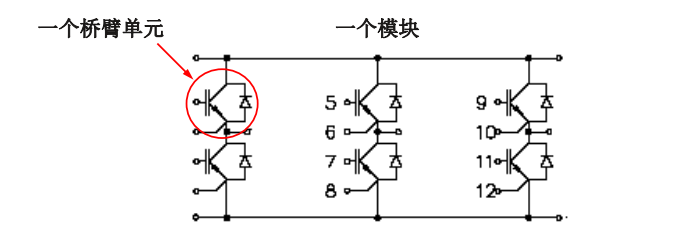

For PIM with rectifier bridge, the conversion of Rthch can be calculated according to the ratio between Rthjc.

907bb6f435d68bb8832da87c35d84004 528097fd6c22d789385f1d91cf9e4580

Temperature of IGBT module-summary

The temperature difference T of each part of IGBT module depends on
(1) Loss (chip technology, operating conditions, driving conditions);
(2) Thermal resistance (module specification and size)

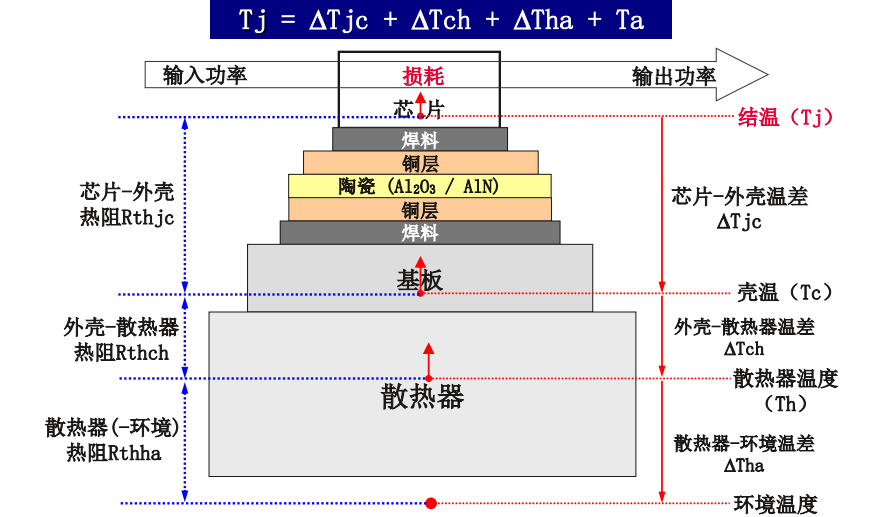

The junction temperature of the chip is the sum of the temperature difference of each part and the ambient temperature: Tj = ΔTjc +ΔTch +ΔTha+Ta.If the shell temperature Tc is constant, Tj = ΔTjc+Tc；

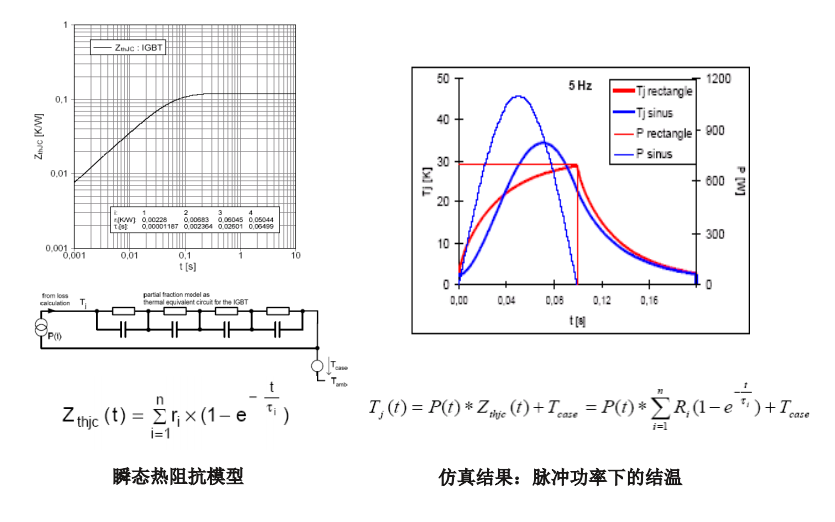

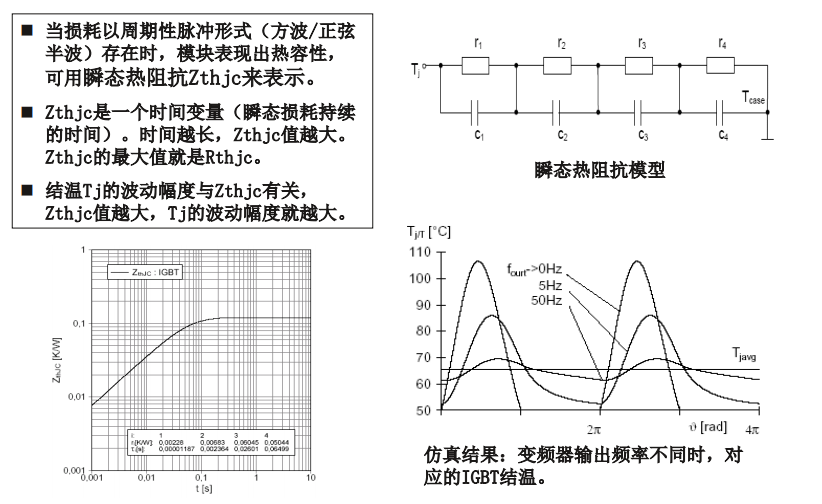

If the radiator temperature Th is constant, Tj =ΔTjh+Th.Average junction temperature of IGBT depends on average loss, Rthjc and shell temperature Tc.In actual operation, the junction temperature of IGBT fluctuates, and its fluctuation depends on the transient loss and Zthjc, which is related to the operating conditions (such as the output frequency of inverter).The peak junction temperature of IGBT is the average junction temperature+fluctuation amplitude.

Conclusion:

The junction temperature (average/peak value) of IGBT is related to chip technology, operating conditions, driving conditions, IGBT specifications, module size, heat sink size and ambient temperature.

Safe operation of IGBT module

Basic conditions for safe operation:
Temperature: peak value TJ _ peak of IGBT junction temperature ≤ 125c & deg; （150C° *）
The module specification gives the maximum allowable junction temperature of two IGBT:Tjmax = 150C° （150C° *)-refers to the constant conduction state without switch operation;
Tvj(max) = 125° （150C° *)-refers to the normal switch operation state.
Tvj(max) specifies the maximum junction temperature allowed by IGBT's turn-off current, short circuit and power alternation (PC).* 600V IGBT3； 200v and 1700V IGBT4；; 3300V IGBT3 nShort circuit time: Vcc=2500V, Vge<=15V, Tvj=150° ,
Tp<=10usOthers: Vce ≤ VCES (i.e. voltage specification of IGBT)Vge ≤VGES（± 20V) Ic is specified by RBSOA. Under the working condition of continuous switching, it shall not exceed 2× IC,NOM。 Minimum opening time, etc.
