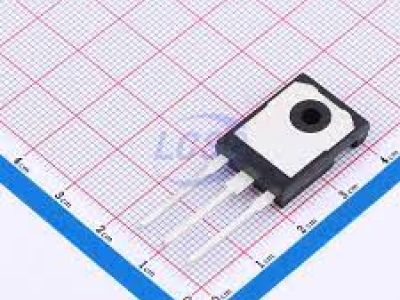

【Daily Highlight】SL15T120FL contribute to the fields of high-frequency converters and uninterruptible power supplies

Read more
【Daily Highlight】L20T65FL Excellent Alternative

?Today, we introduce the Slkor SL20T65FL, which is a product that competes with Infineon's IKW20N60H3.
Read more
【Daily Highlight】DW01 Protective Circuit for Lithium Batteries

DWOI is a protective circuit for subulate lithium batteries,which is designed to prevent loss of service life or damages of batteries due to over-charging,over-discharging and over-current. It is equipped with a high-accuracy voltage detection and time delay circuit.With the function of 0V charging enabling,it can recover functions automatically.
Read more

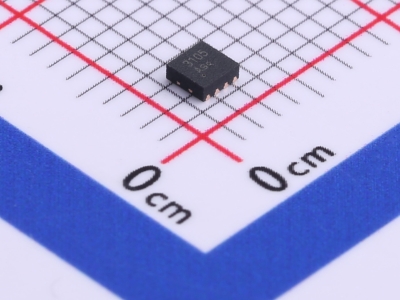

【Daily Highlight】SL3105A Linear Li-lon Battery Charger

The SL3105 Series is a complete constant current constant voltage linear charger for single cell lithium-ion batteries.Its DFN package and low external component counts make the SL3105 Seres ideally suited for portable applications.Furthemmore,the SL3105 Series is specifically designed to work within USB power specifications. No extemal sense resistor is needed,and no blocking diode is required due to the internal MOSFET architecture.The charge voltage is fixed at 4.2V/4.3V/4.35V/4.4V,and the charge current can be programmed externally with a single resistor.The SL3105 Series automatically terminates the charge cycle when the charge current drops to 1/10 the programmed value after the final float voltage is reached. When the input supply (wall adapter or USB supply)is removed.the SL3105 Series automatically enters a low current state,dropping the battery drain current to less than 2uA.The SL3105 Series can be put into shutdown mode, reducing the supply cumrent to 50uA. Under-voltage lockout,automatic recharge and two status pins to indicate charge and charge termination.
Read more

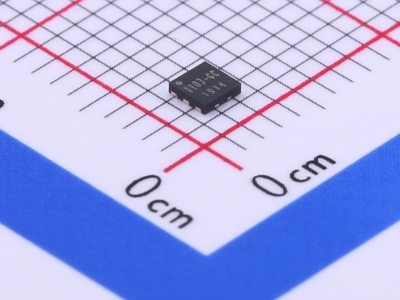

【Daily Highlight】SL197-1 Lithium Battery Protection IC

SL19 7-1 is internally installed with a high-accuracy voltage detection circuit and a delay circuit, to realize over-charging,over-discharging and over-current protection to the battery by detecting voltage and current of the battery.It is applicable to protective circuits of single Li-ion/Li-polymer rechargeable batteries.
Read more

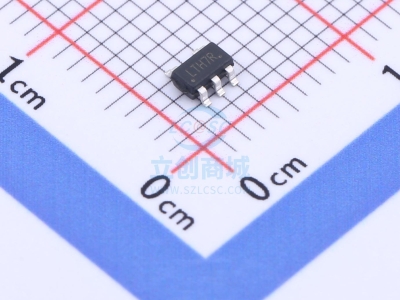

【Daily Highlight】SL4054 Linear Li-Ion Charger

The Slkor?4054 is a complete constant-current/constant-voltage linear charger for single cell lithium-ion batteries. Its SOP package and low external component count make the SL4054 ideally suited for portable applications. Furthermore, the SL4054 can work within USB and wall adapter. No blocking diode is required due to the internal PMOSFET architecture and have prevent to negative Charge Current Circuit. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The charge voltage is fixed at 4.2V, and the charge current can be programmed externally with a single resistor. The SL4054 automatically terminates the charge cycle when the charge current drops to 1/10th the programmed value after the final float voltage is reached. When removing input power automatically puts the SL4054 into a low current mode to reduce the battery's leakage current to below 2uA, and the shutdown mode reduces supply current to 45μA. SL4054 Other features include current monitor, under voltage lockout, automatic recharge and two status pin to indicate charge termination and the presence of an input voltage. The Slkor? SL4054 is available in a SOT23-5 (ThinSOTTM) package.
Read more

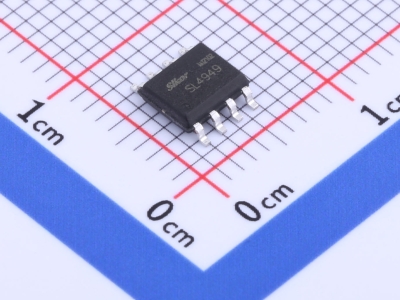

【Daily Highlight】SL4949 Linear Voltage Regulators (LDO)

SL4949 is a low voltage drop LDO voltage regulator with the output voltage of 5V, integrated with the power on reset function and the input voltage monitoring function in the chip. SL4949 can provide stable supply voltage for the control system of micro-processors,with typical output current as high as 100mA and transient input voltage of 42V,and is very suitable for applications in working environment of automotive electronics. Supporting Reset output,it can be applied to logic control of micro-processors,in addition, it supports Sense monitoring,and can output the waming signal before the output of the reset signal.Reasonable use ofthe Sense monitoring function can make micro-processors conduct necessary treatment measures before the stop of micro-processors with Reset.
Read more

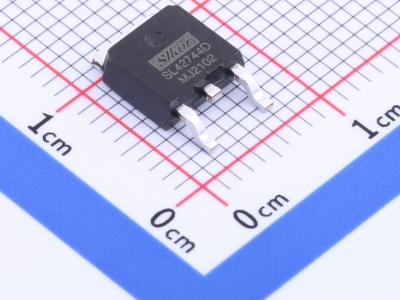

【Daily Highlight】SL42744D Low dropout Linear Voltage Regulator

Today,wewillintroducetheSL42744DLowdropoutLinearVoltageRegulator. Description ●SL42744D is a 3-pin TO package one-chip integrated voltage regulator,with the suggested maximum driving current of 400mA and chip package of TO252-3.The chip is a
Read more

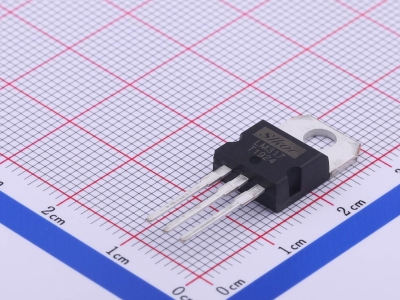

【Daily Highlight】LM317 Adjustable Output Positive Voltage Regulators

The LM317 is an adjustable 3?terminal positive voltage regulator capable of supplying in excess of 1.5 A over an output voltage range of 1.2 V to 37 V. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, it employs internal current limiting, thermal shutdown and safe area compensation, making it essentially blow?out proof.
Read more

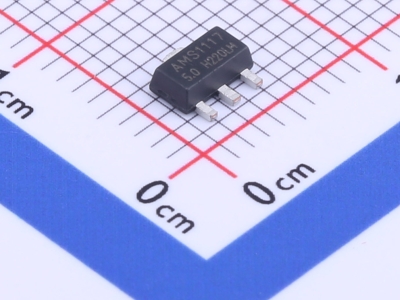

【Daily Highlight】1117-5.0 1A Low dropout Voltage Regulator

The 1117 is a series of low dropout voltage regulators which can provide up to 1A of output current. The 1117 is available in six fixed voltage, 1.2, 1.5, 1.8, 2.5, 3.3 and 5.0V.Additionally it is also available in adjustable version. On chip precision trimming adjusts the reference/output voltage to within 2%.On-chip thermal limiting provides protection against any combination of overload and ambient temperatures that would create excessive junction temperatures. The 1117 series is available in SOT-223.TO-252.SOT89 packages. A minimum of 10uF tantalum capacitor is required at the output to improve the transient response and stability.
Read more
