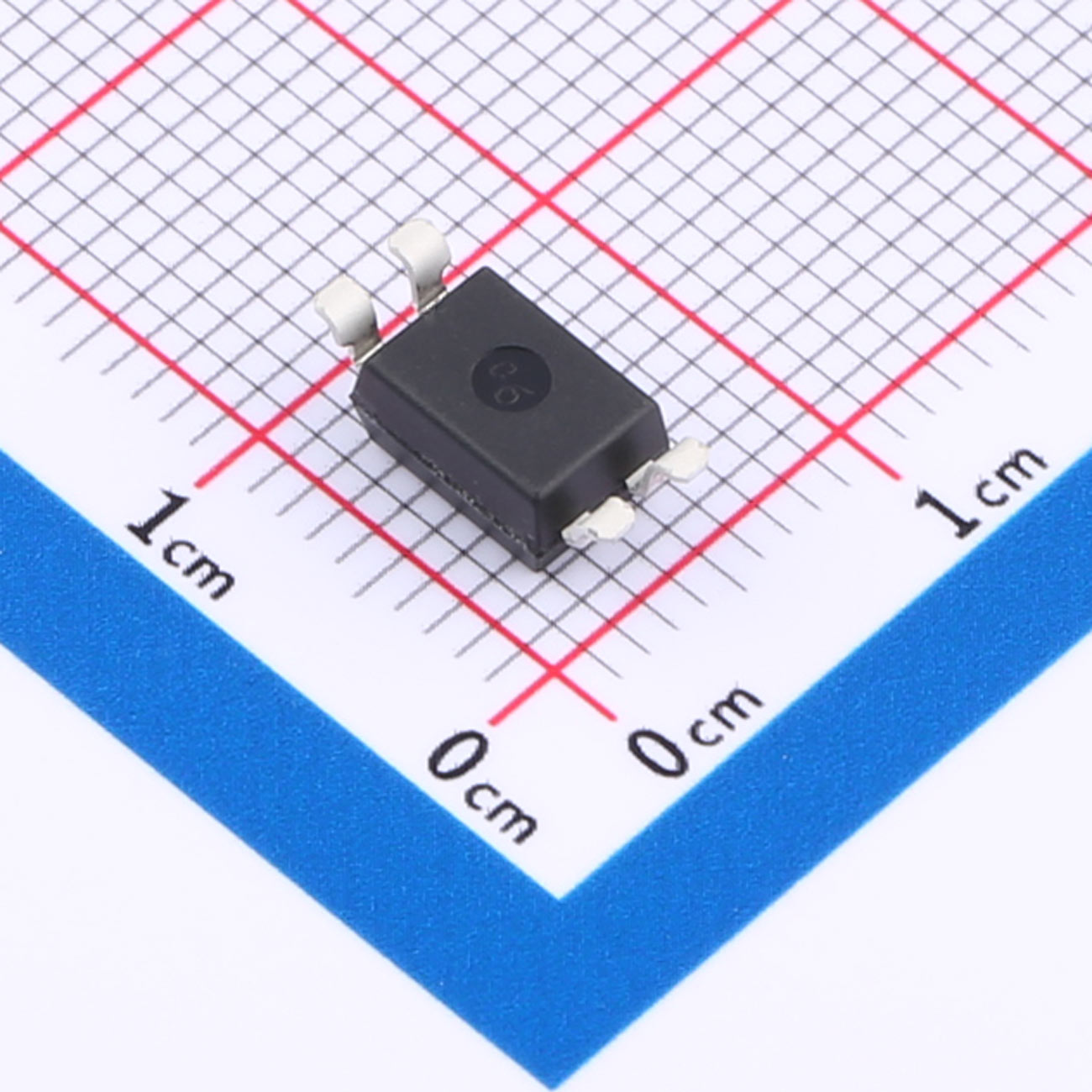

The SL816 series contains a infrared emitting diode optically coupled to a phototransistor. It is packaged in a 4-pin DIP and SMD .
Download datasheet Inquiry
Description
l The SL816 series contains a infrared emitting diode optically coupled to a phototransistor. It is packaged in a 4-pin DIP and SMD .
Features
l Current transfer ratio(CTR:MIN.50%at Ir=5mA,VcE=5V)
l High isolation voltage between input and output (Viso=5000 Vrms)
l Compact dual-in-line packageSL-816:1-channel type
l Pb free
Applications
l Computer terminals
l System appliances,measuring instruments
l Registers,copiers,automatic vending machines
l Cassette type recorder
l Electric home appliances,such as fan heaters,etc.
l Signal transmission between circuits of different potentials and impedances
| File Name | Title | Description |
|---|---|---|

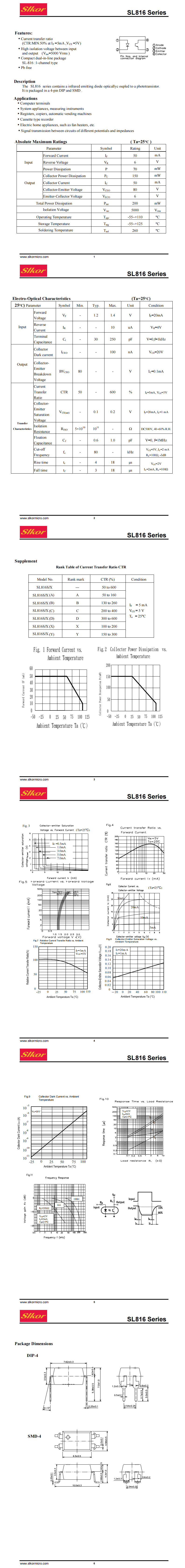

| SL816S-C SMD-4.pdf | SL816S-C SMD-4 | - |
