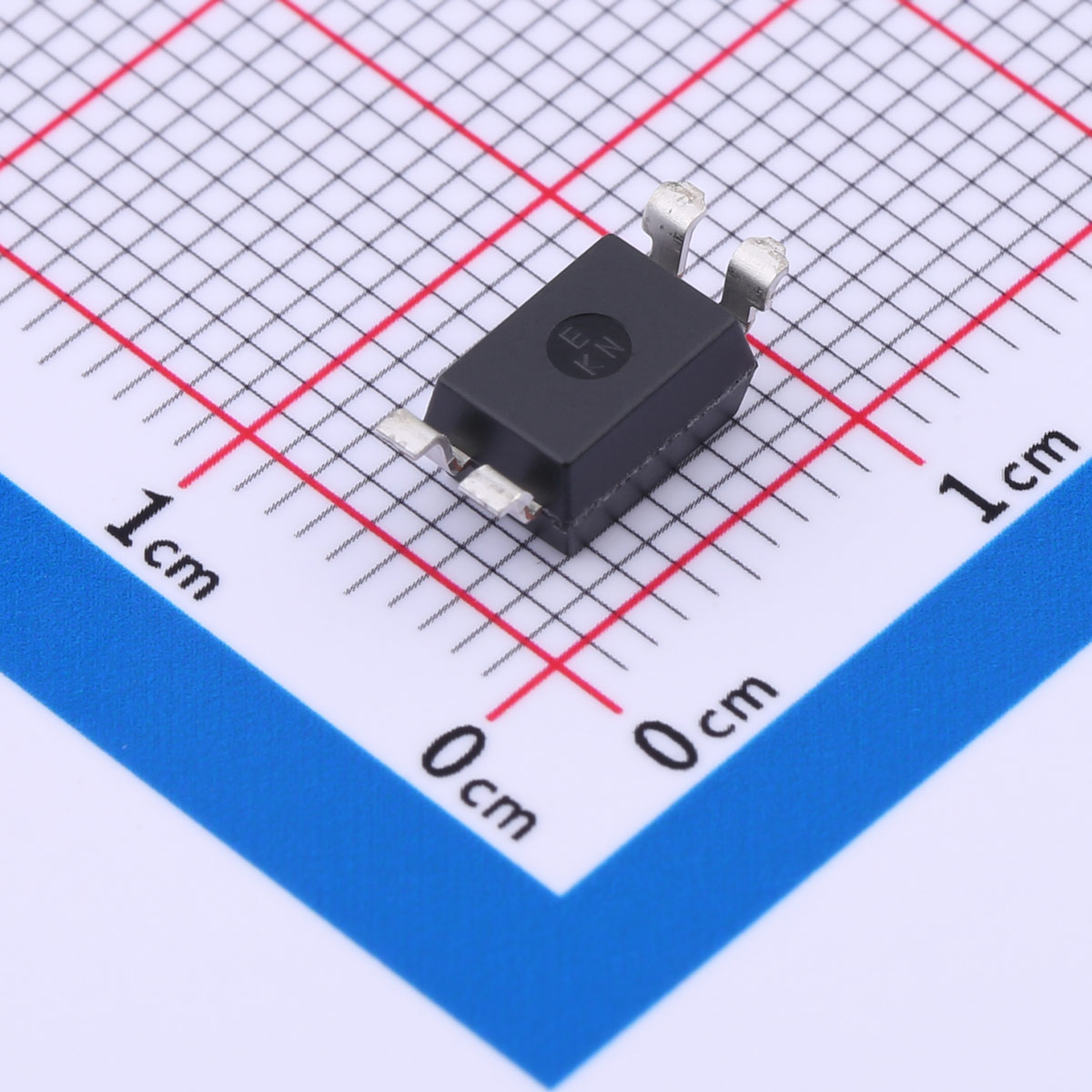

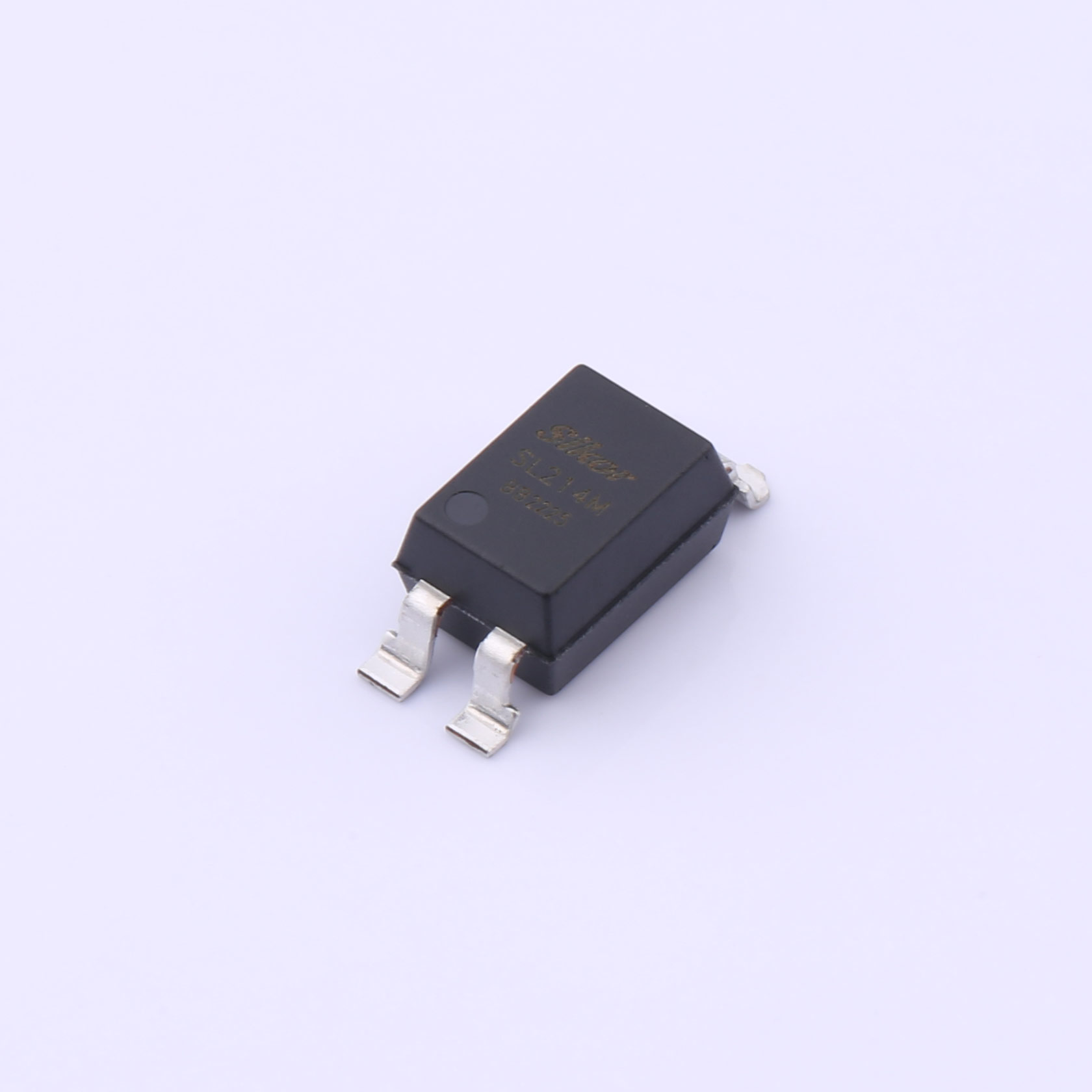

The SL214X optical relay consists of an infrared light-emitting diode, a photoelectric generator, and an optically coupled MOSFET.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SL214X optical relay consists of an infrared light-emitting diode, a photoelectric generator, and an optically coupled MOSFET.
Features
● Normally open, single-pole single-throw
● Control 400V AC or DC voltage
● Switch 120mA load
● Control low-level analog signals
● High sensitivity, low on-resistance
● Low leakage current in the off-state at low level
● High isolation voltage 5KV (DIP/SMD) ? Lead-free, compliant with RoHS standards
Applications
● Communication products (personal computers, laptop computers)
● Modems/sensors
● Mobile phones/security devices
● Measurement and testing equipment
● Factory automation equipment
● High-speed inspection machines

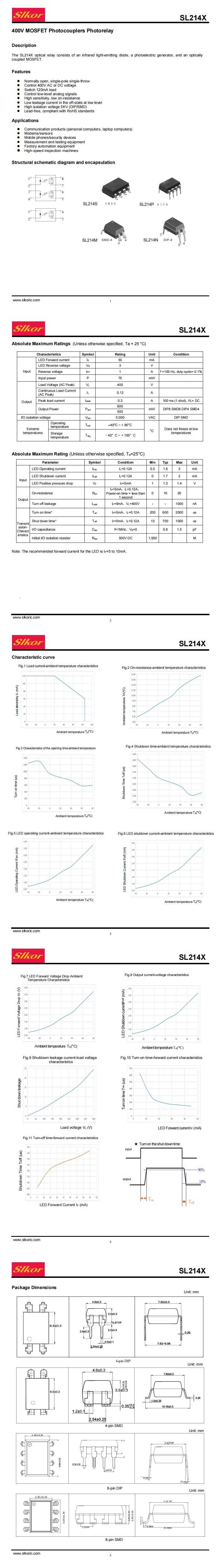

| File Name | Title | Description |
|---|---|---|
| SL214M.pdf | SL214M | Solid State Relay |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
The SL214X is used to replace relays in many applications. It uses GaAlAs LEDs to emit light to drive the control and integrated monolithic die switch outputs. Die dielectric isolation technology manufactured with high voltage consists of a photodiode array, a switching control circuit and an optical MOSFET switch coupling.
