LMV358 includes two independent, high-gain and internal frequency-compensated dual-operational amplifiers. It is applicable to application of single power supply with very wide supply voltage ranges, and is also applicable to the dual-power working mode. It has wide working ranges.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
LMV358 includes two independent, high-gain and internal frequency-compensated dual-operational amplifiers. It is applicable to application of single power supply with very wide supply voltage ranges, and is also applicable to the dual-power working mode. It has wide working ranges.

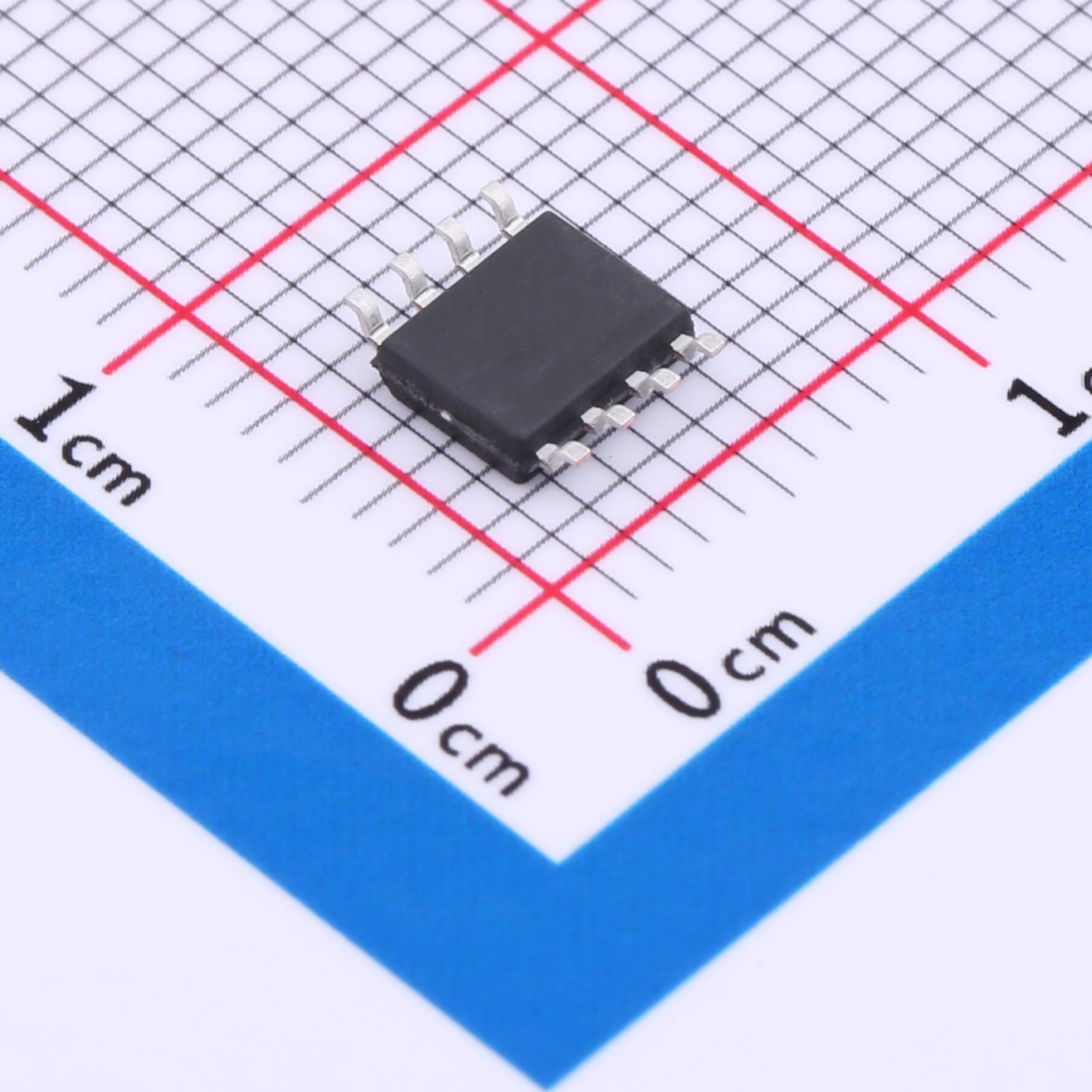

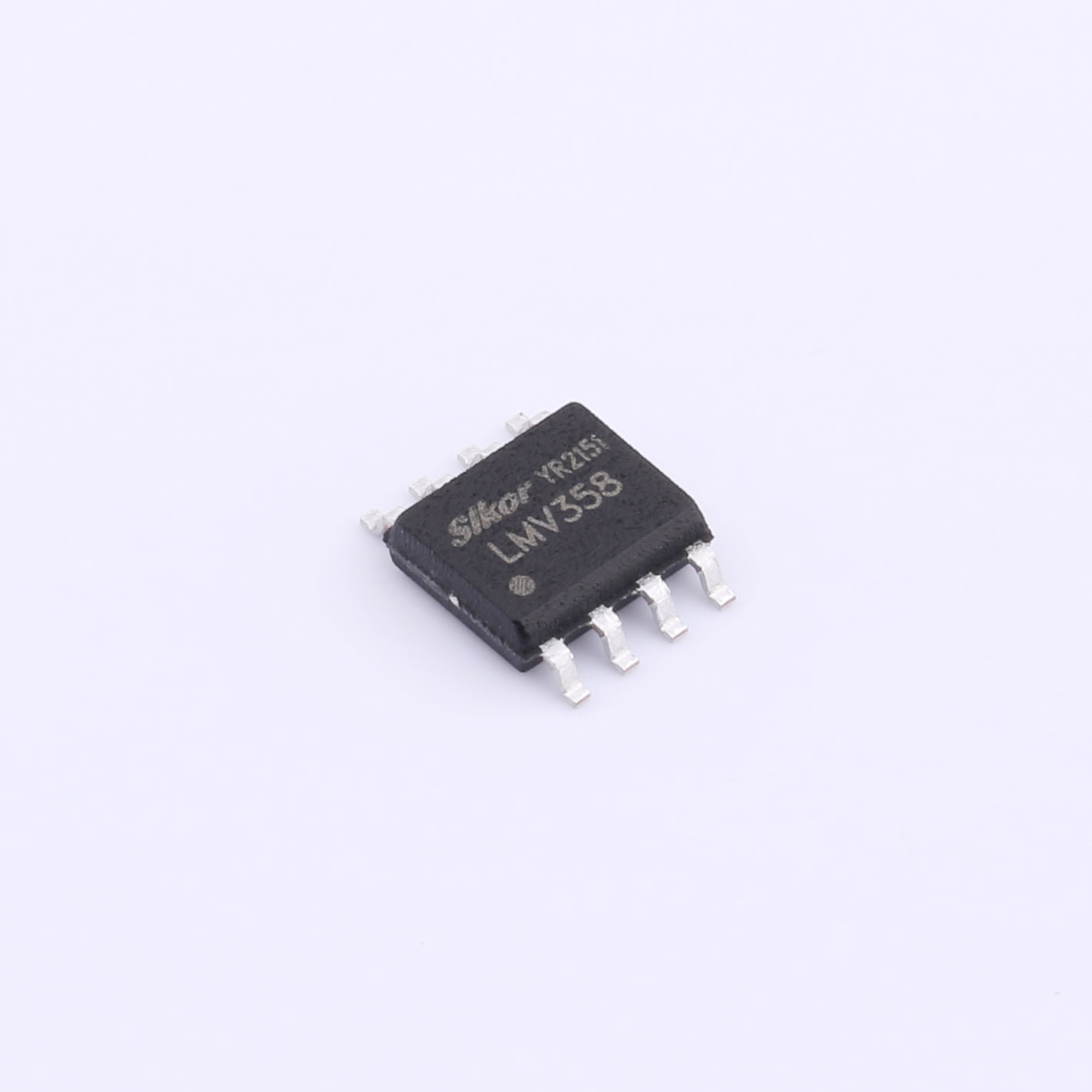

SOP8 package is adopted for LMV358. Generally, LMV358 is an operational amplifier with low power consumption and wide power supply ranges, which can be designed for various applications with favorable price at the premise of not giving away precious circuit board space.
Features
●Internal frequency compensation, DC voltage gain of 100dB higher
●Unit gain frequency bandwidth: 1MHZ
●Low power consumption current, suitable for battery supply
●Low input bias current 45nA
●Volt Current Condenser Input +3V to5V
●Low input offset voltage and offset current
●Wide common-mode input voltage ranges
●Wide difference-mode input voltage ranges
●Large output voltage swing
Applications
●Charger
●Power adapter
●Sensor amplifier
●Piezoelectric sensor amplifier
●Medical instruments, industrial control
●Audio amplifier output
●DC gain module DC gain parts
| File Name | Title | Description |
|---|---|---|

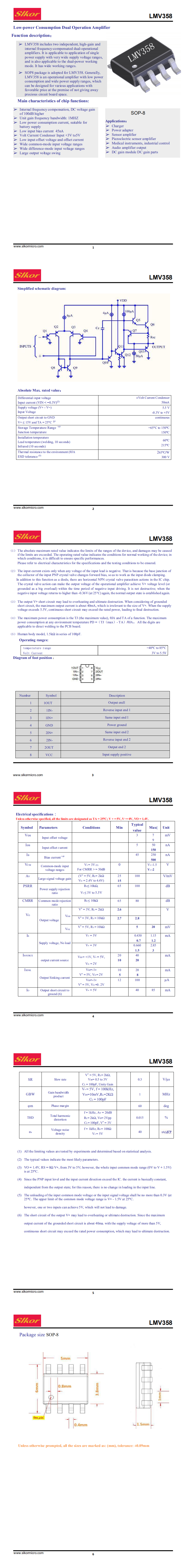

| 译文-LMV358.pdf | 译文-LMV358 | - |
