This circuit consists of four independent, high gain,internally frequency compensated operational amplifiers which were designed specially for automotive and industrial control systems. It operates from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.
Download datasheet Inquiry

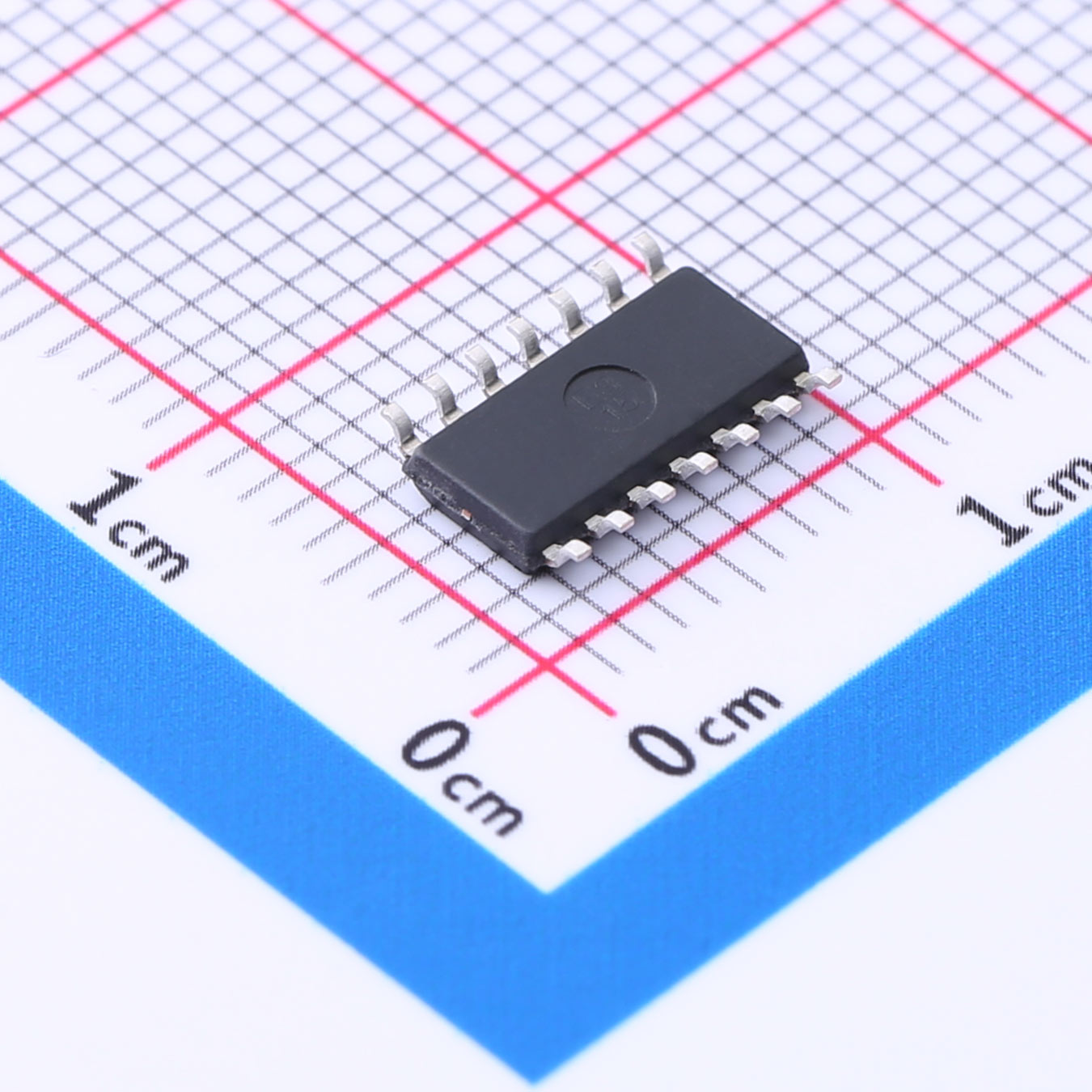

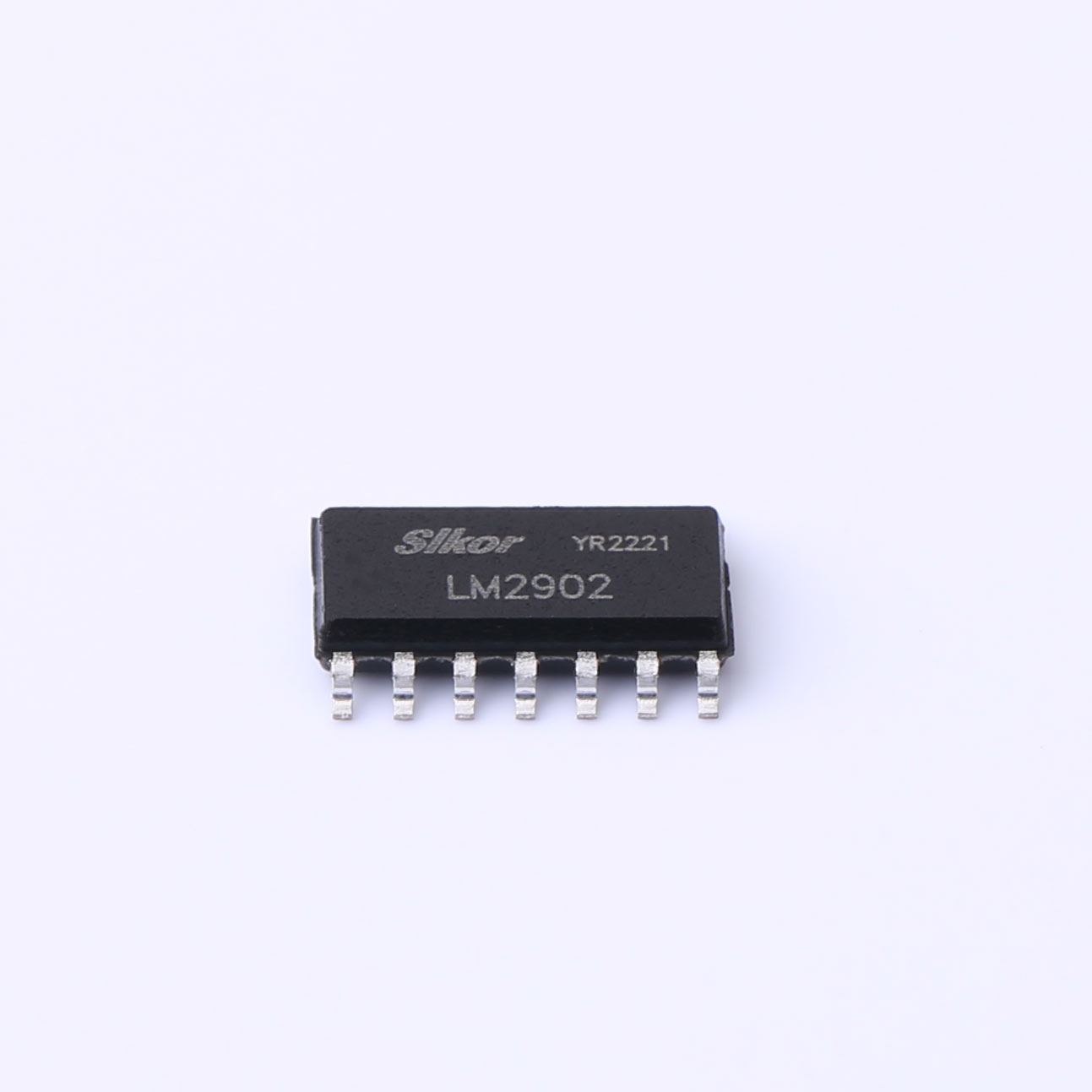

Low Power Quad Operational Amplifier
Description
l This circuit consists of four independent, high gain,internally frequency compensated operational amplifiers which were designed specially for automotive and industrial control systems. It operates from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage.
Features
l wide gain bandwidth: 1.3mhZ
l input common-mode voltage range includes ground
l large voltage gain: 100Db
l very low supply current/ampli:375μa
l low input bias current: 20Na
l low input offset current:2Na
l wide power supply range:
single supply: +3v to +30v
dual supplies: ±1.5v to ±15v
| File Name | Title | Description |
|---|---|---|
| LM2902 SOP-14.pdf | LM2902 SOP-14 | - |
