Low thermal impedance copper leadframe SOP-8 saves board space
Fast switching speed
High performance trench technology

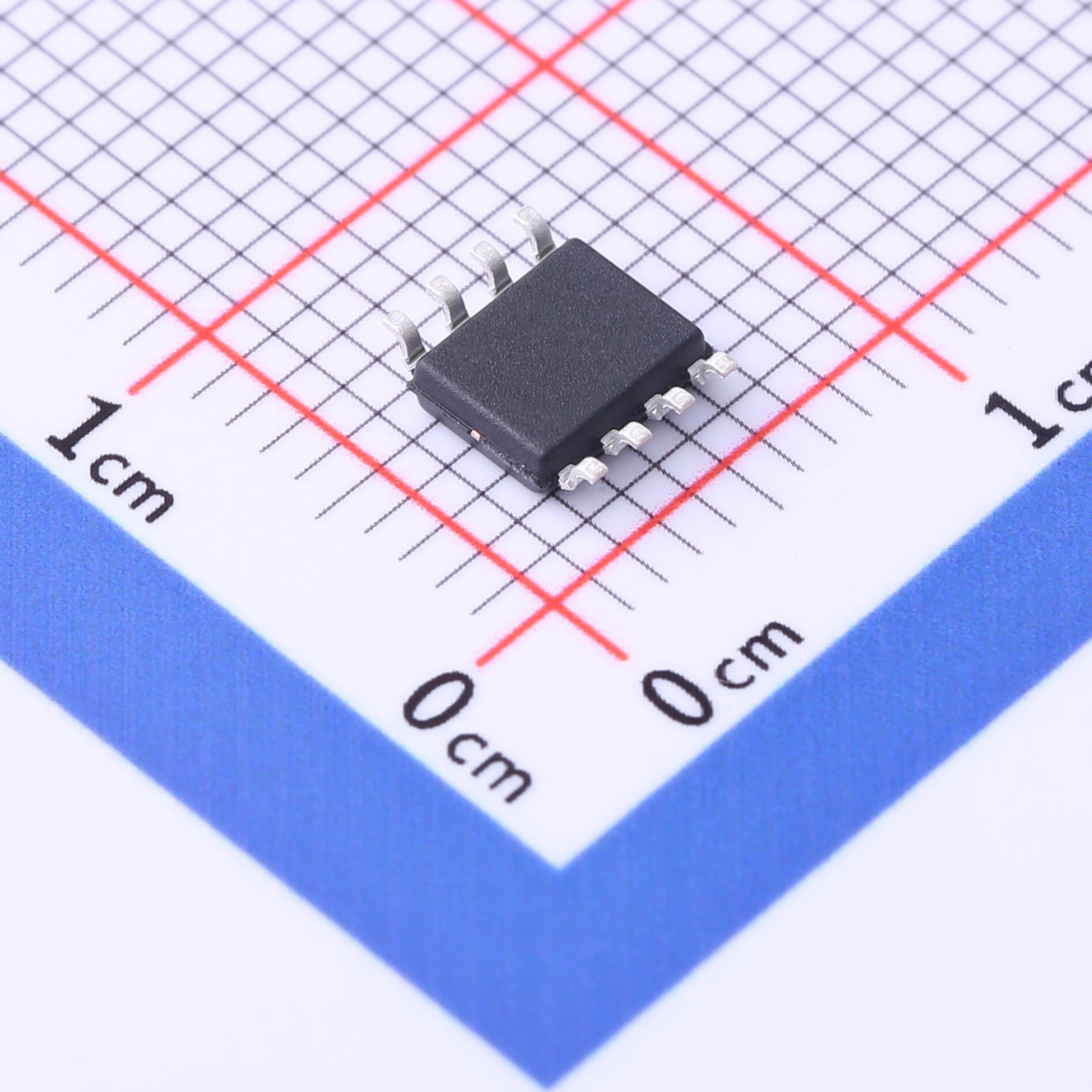

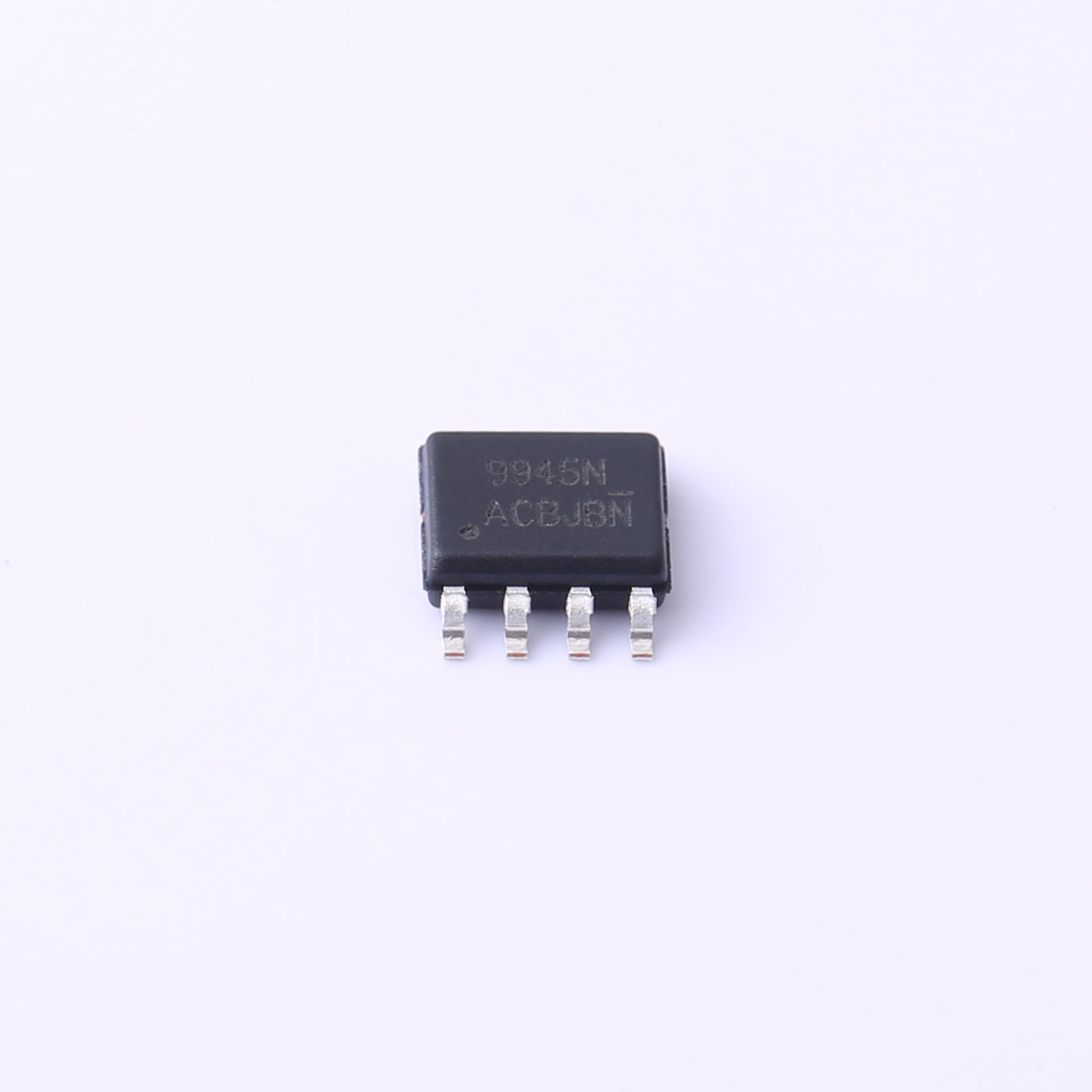

60V N+N-Channel Enhancement Mode MOSFET
These miniature surface mount MOSFETs utilize a high cell density trench process to provide low RDS(on) and to ensure minimal power loss and heat dissipation. Typical applications are DC-DC converters and power management in portable and battery-powered products such as computers, printers, PCMCIA cards, cellular and cordless telephones.
Features
● Low RDS(on) provides higher efficiency and extends battery life
● Low thermal impedance copper leadframe SOP-8 saves board space
● Fast switching speed
● High performance trench technology
| File Name | Title | Description |
|---|---|---|
| SL9945.pdf | SL9945 | - |
| Proposition-65-Compliance-Report_1.pdf | Proposition 65 Compliance Report_1 | - |
| Proposition-65-Compliance-Report_2.pdf | Proposition 65 Compliance Report_2 | - |
| REACH.pdf | REACH | - |
| RoHS-1.pdf | RoHS | - |
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
