Green device available
Excellent package for good heat dissipation
Advanced high cell denity trench technology for ultra lowRDS(ON)

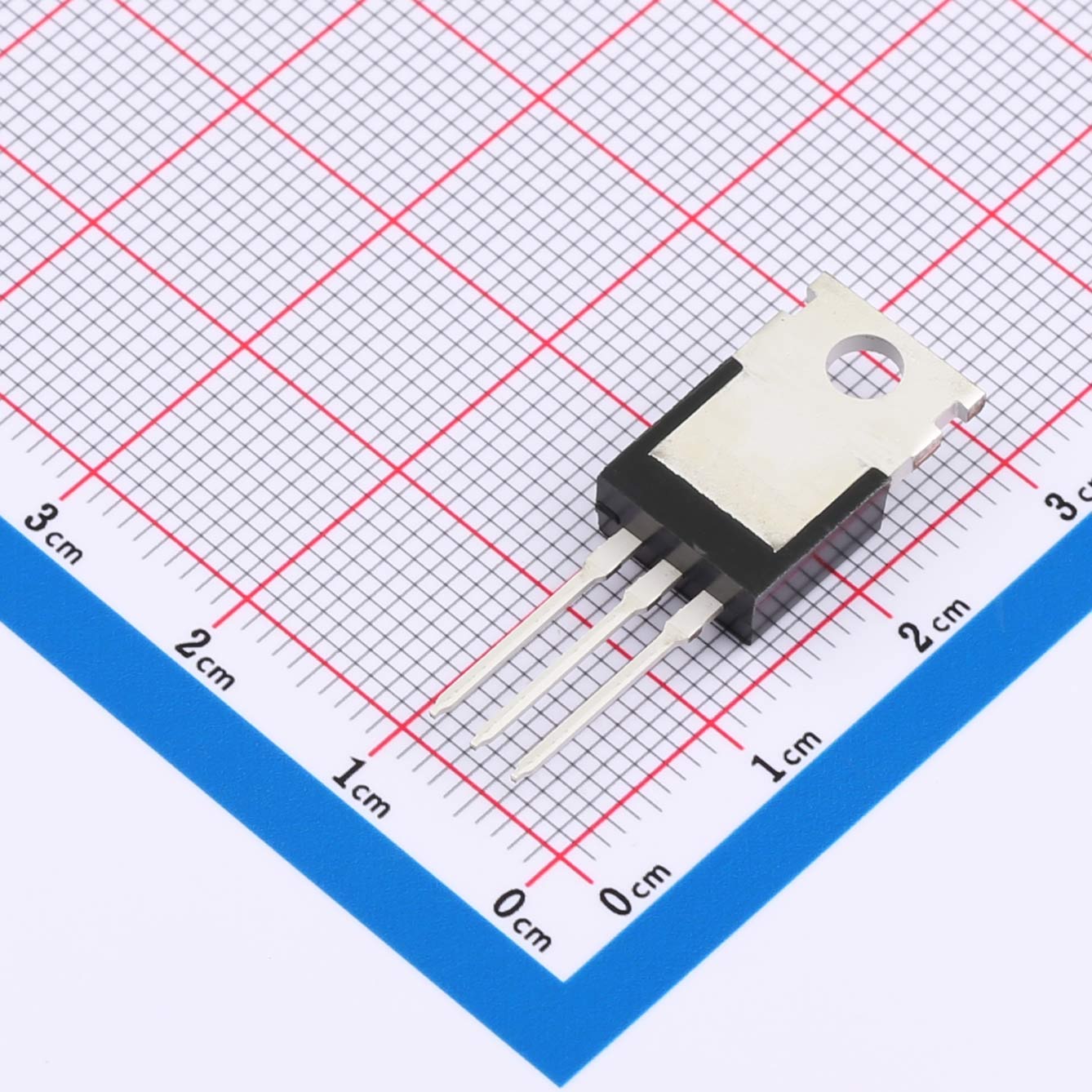

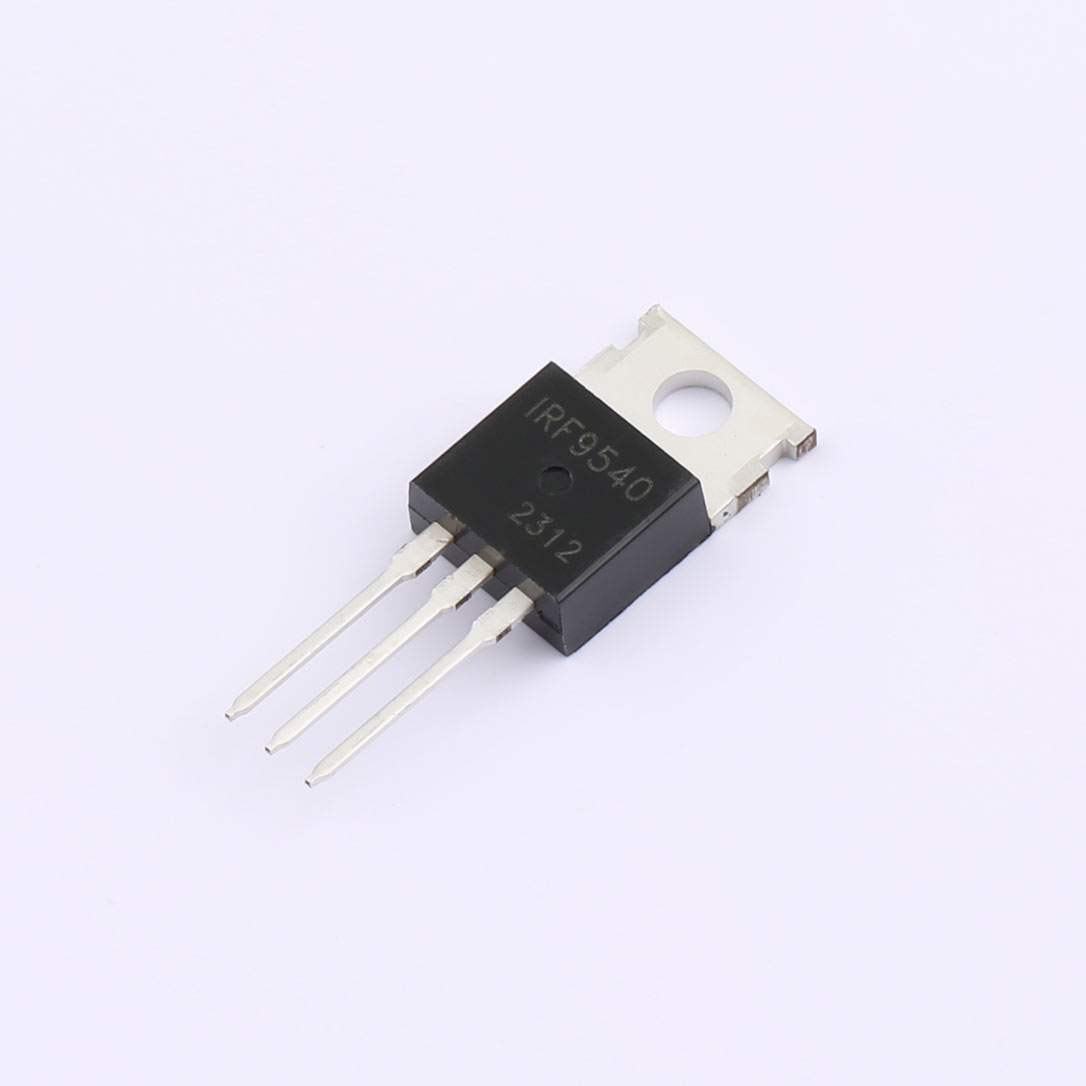

Description
●This P-Channel MOSFET uses advanced trench technology and design to provide excellent RDS(on) with low gate charge. It can be used in a wide variety of applications.
Features
●VDS=-100V,ID=-20A,RDS(ON)<90mΩ@VGS=-10V
●Low gate charge.
●Green device available.
●Advanced high cell denity trench technology for ultra lowRDS(ON).
●Excellent package for good heat dissipation.
| File Name | Title | Description |
|---|---|---|
| IRF9540 TO-220.pdf | IRF9540 TO-220 | - |
| Proposition-65-Compliance-Report_1.pdf | Proposition 65 Compliance Report_1 | - |
| Proposition-65-Compliance-Report_2.pdf | Proposition 65 Compliance Report_2 | - |
| REACH.pdf | REACH | - |
| RoHS-1.pdf | RoHS | - |
