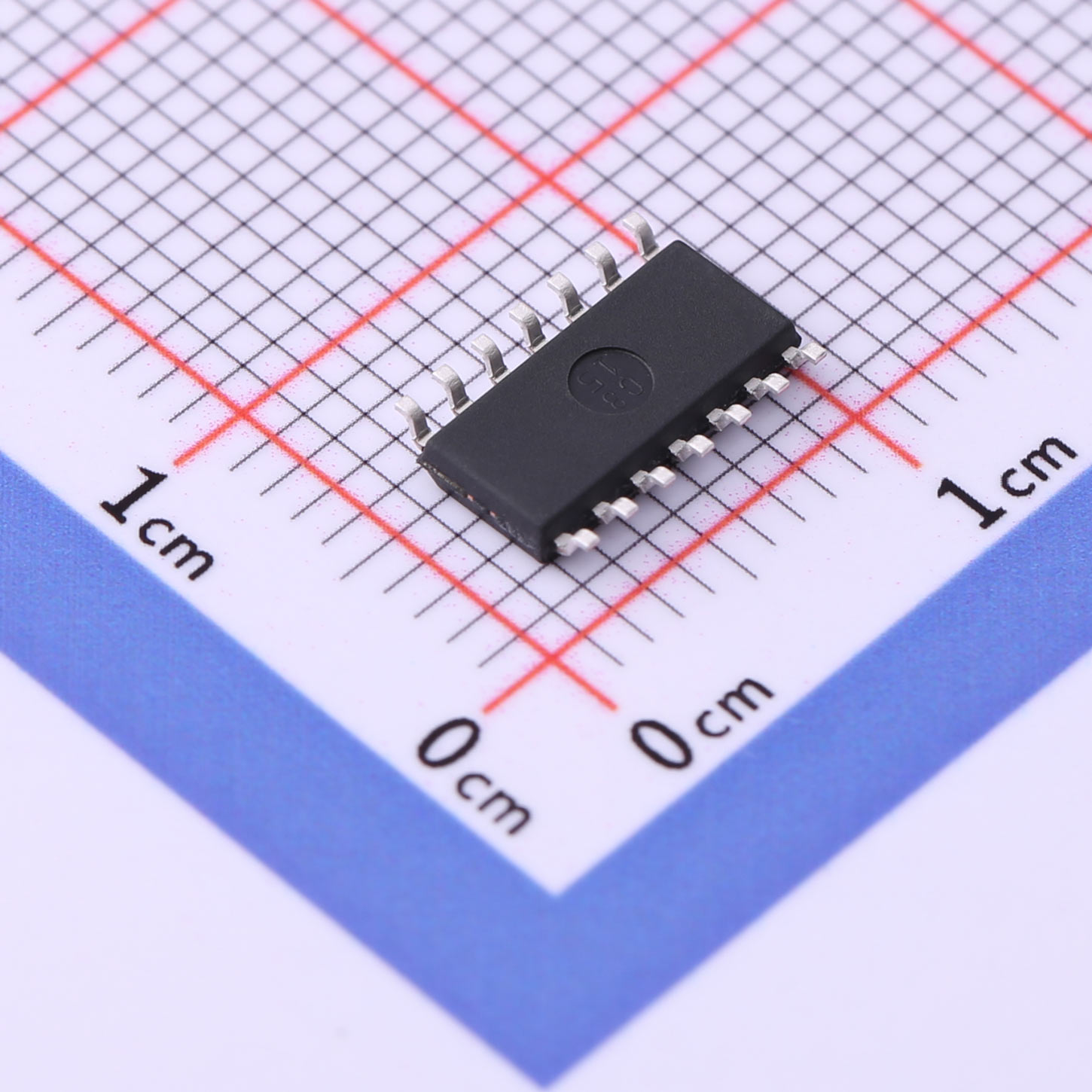

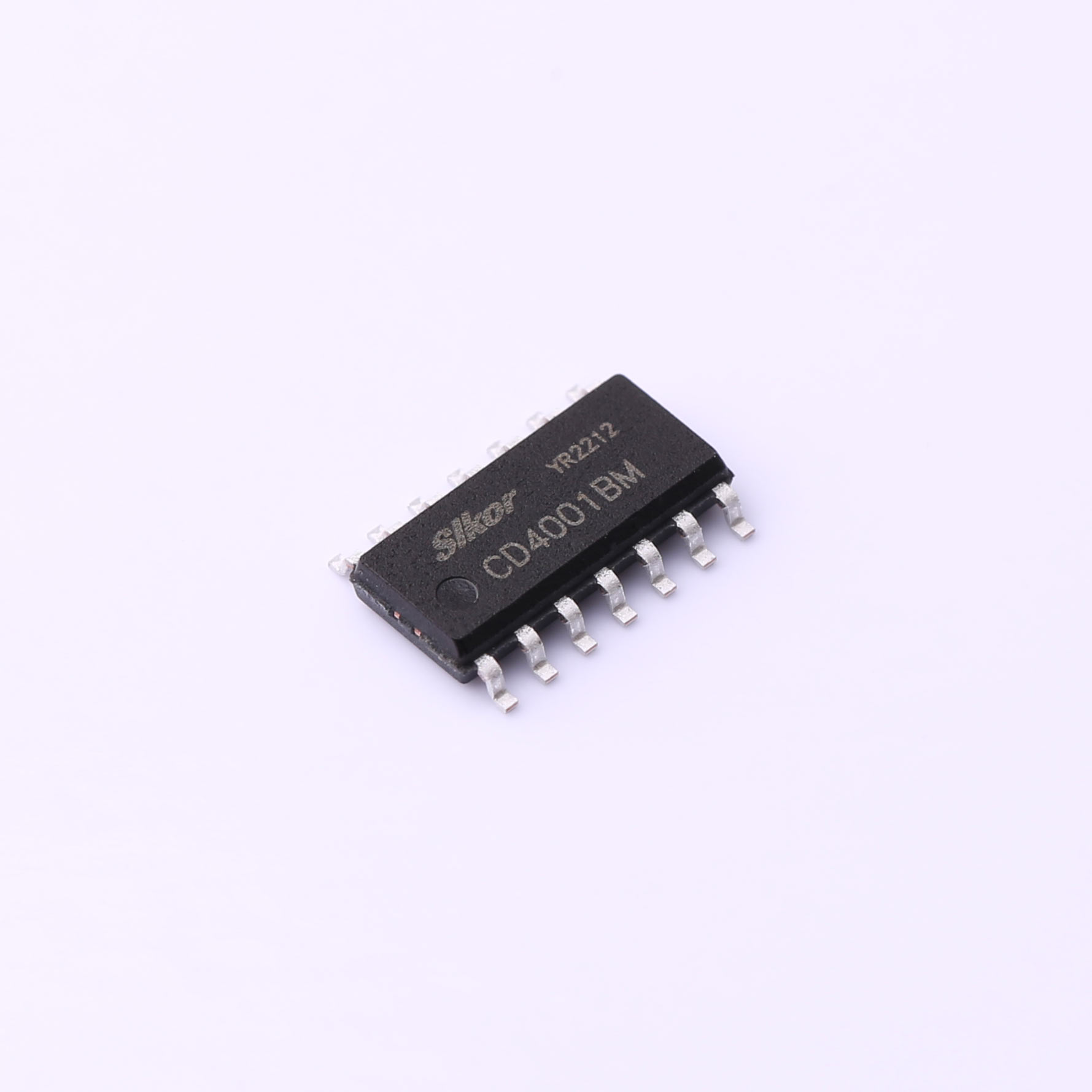

Alternative equivalent for Texas Instruments CD4001BM | Slkor CD4001BM Logic Gates SOP-14

4-way 2-input AND/NOR gate circuit

Our advantages

Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China.  As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.

Slkor alternative equivalents to Texas Instruments.

Description

These four gates are single chip complementary MOS (CMOS) integrated circuits composed of N-channel and p-channel enhanced mode transistors.They have equal source and sink current capabilities and comply with standard B-series output drivers. The device also has a buffered output, which improves transmission characteristics by providing very high gain.All inputs are protected by diodes for electrostatic discharge of V_DD and V_SS.

Features

● Two drivers 74L compatibility or one driver 74LS in low-power TTL fans

● Reference voltage of 5V-10V-15V

● Standard symmetrical output characteristics

● When the maximum input leakage exceeds 15V within the full temperature range, it is 1mA

Applications

● Digital Circuits: Implementing fundamental logic functions such as AND, OR, and NOT gates in digital systems.

● Signal Processing: Used in filtering, encoding, and decoding circuits for signal processing tasks.

● Computational Devices: Building blocks for arithmetic operations and decision-making circuits in computational systems.

● Consumer Electronics: Integrated into devices such as remote controls, appliances, and audio systems for logical decision-making.
