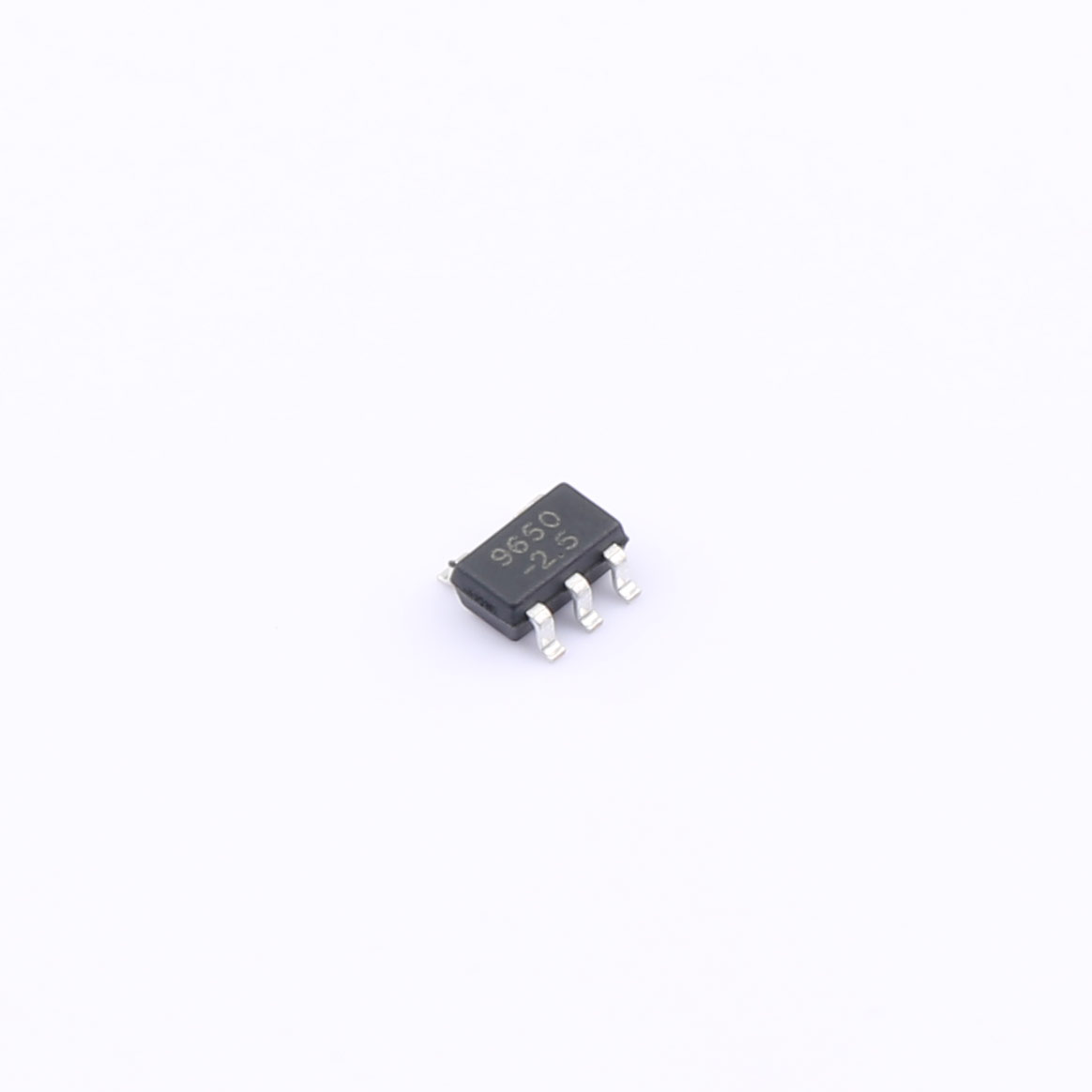

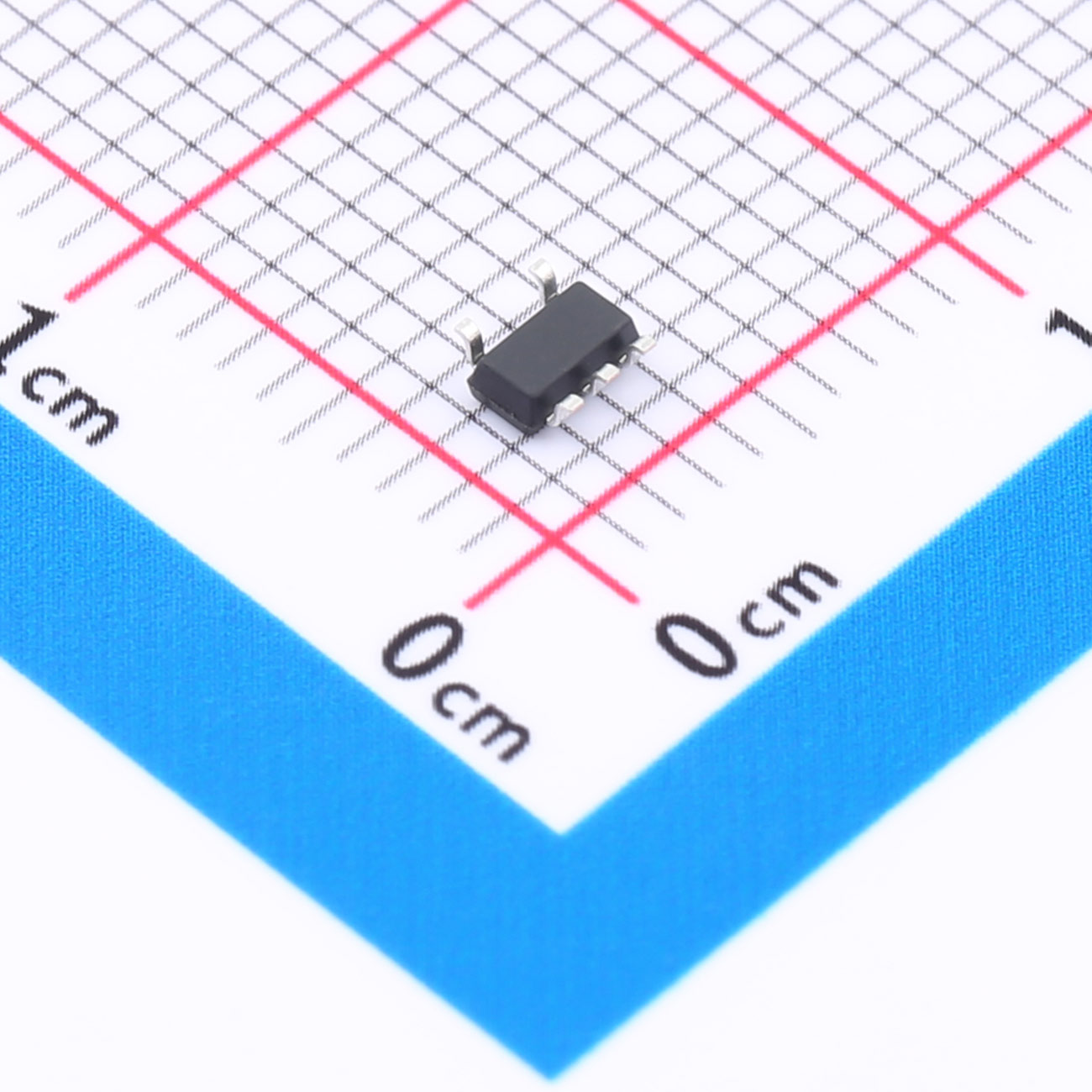

The SL9650 Series is a low dropout, positive linear regulator with very low quiescent current. It can supply 600mA output current with a input range from 1.7V to 7V, which makes it suitable for all kinds of applications.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
● The SL9650 Series is a low dropout, positive linear regulator with very low quiescent current. It can supply 600mA output current with a input range from 1.7V to 7V, which makes it suitable for all kinds of applications.
● SL9650 Series use advanced CMOS technology to achieve very low dropout voltage (300mV @600mA). Fast structural design achieves 75dB PSRR at 1kHz while still maintaining a small 50uA quiescent current.
● Trimming technique is used to guarantee output voltage accuracy within ±2% (Fixed Output); ±1%(Adjustable Output).SL9650 Series provides full fault protection including current limit, short circuit protection and thermal shutdown protection.
Features
● Fixed Output Voltages：
● 0.7V,1.0V,1.2V,1.5V,1.8V,2.5V,2.8V,3.0V,3.3V,3.6V,Other output can be customized
● Adjustable Output from 0.6V to (VIN-Vdrop)
● Maximum Output Current:600mA
● Input Voltage Range:1.7V~7V
● Low Quiescent Current:50uA(Typ.)
● Very low dropout voltage：
● 300mV@600mA(Vout=3.3V)
● Highly Accurate:±2%(Fixed Output)
● ±1%(Adjustable Output)
● 0.02%/V Line Regulation
● Auto discharge function
● 75dB PSRR @ 1KHz
● -40°C~125°C Wide Operating Temperature
● 2000V HBM ESD
● 150 °C Thermal Protection
Applications
● Battery powered portable devices
● Smart phone, tablet
● Hi resolution camera sensor power
● Wireless modules
● RF,PLL,VCO clock power
| File Name | Title | Description |
|---|---|---|
| SL9650M33SE SOT-23-5.pdf | SL9650M33SE SOT-23-5 | - |
