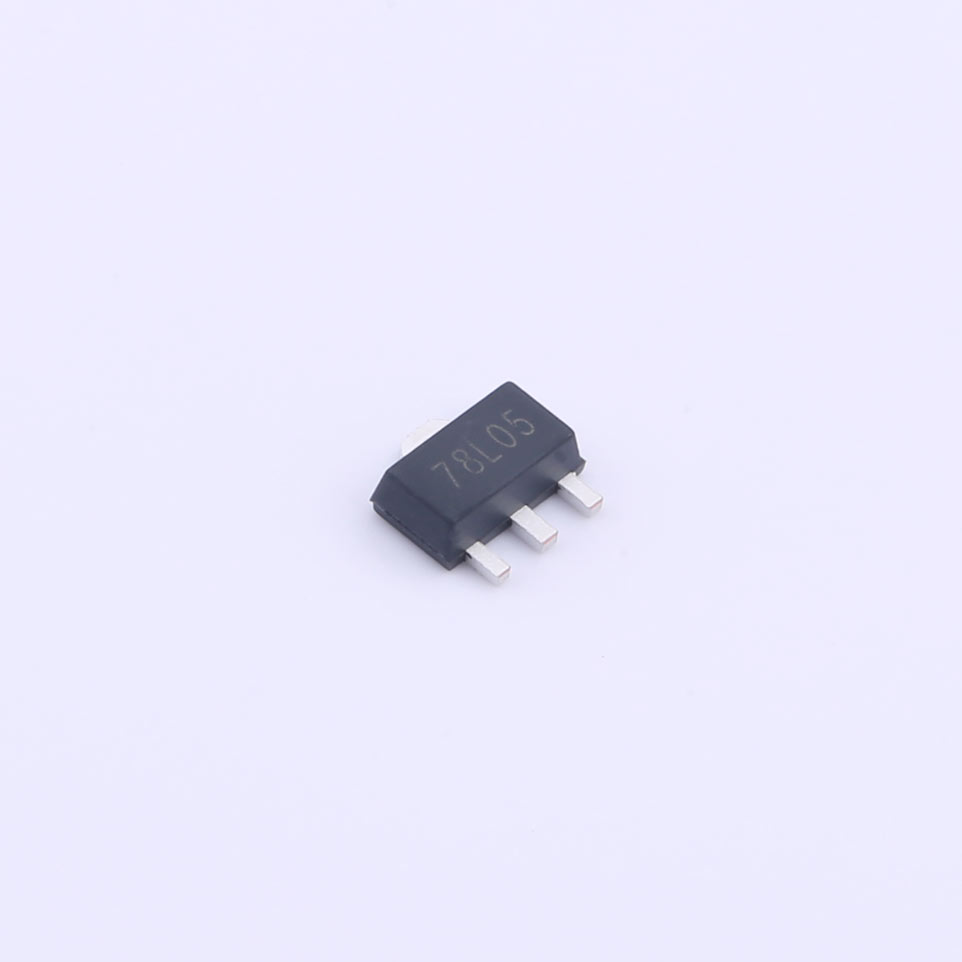

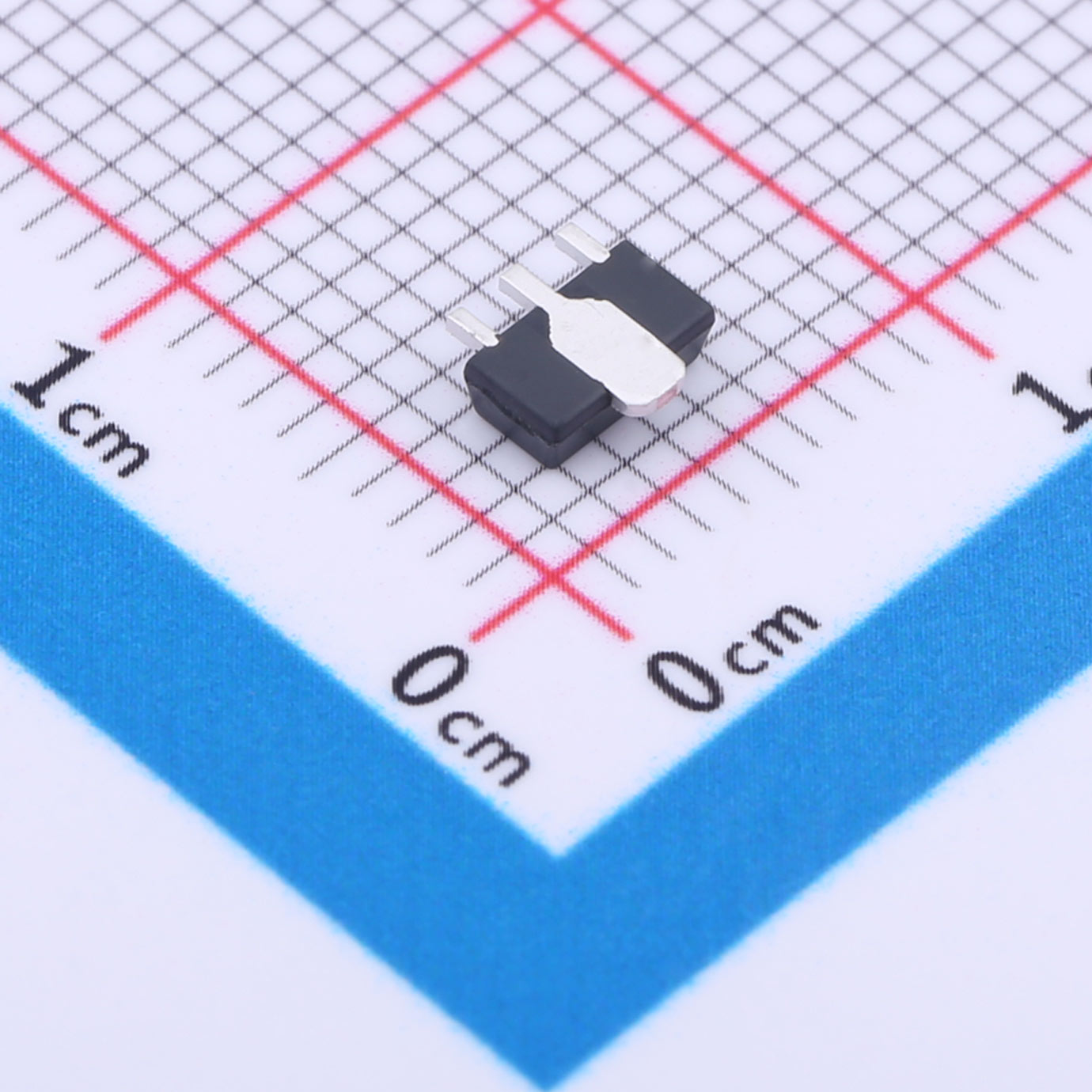

The SL78L05 is a low voltage dropout regulator designed to deliver stable and reliable 5V output voltage from a higher input voltage source. Housed in a compact SOT-89 package, this regulator is capable of accepting input voltages up to 35V, making it versatile for various power supply applications. It is optimized to provide a dropout voltage (Vdrop) of 1.7V, ensuring efficient regulation even when the input voltage is close to the output voltage. With a maximum output current (IOUT) of 100mA, the SL78L05 is suitable for powering small to moderate loads with minimal power loss.
Download datasheet Inquiry
Our advantages:
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description:
The SL78L05 is a low voltage dropout regulator designed to deliver stable and reliable 5V output voltage from a higher input voltage source. Housed in a compact SOT-89 package, this regulator is capable of accepting input voltages up to 35V, making it versatile for various power supply applications. It is optimized to provide a dropout voltage (Vdrop) of 1.7V, ensuring efficient regulation even when the input voltage is close to the output voltage. With a maximum output current (IOUT) of 100mA, the SL78L05 is suitable for powering small to moderate loads with minimal power loss.
Features:
● Input voltage: up to 30V
● Output5V
● Output current up to 100 mA, internal thermaloverload protection and short-circuit limiting.
Applications:
The SL78L05 regulator is ideal for a wide range of applications:
● Embedded Systems: Provides stable 5V power for microcontrollers, sensors, and other digital logic components.
● Battery-Powered Devices: Efficiently regulates voltage from higher battery voltages to 5V for portable electronics.
● Consumer Electronics: Powers peripherals and interface circuits in audio equipment, small appliances, and digital displays.
● Industrial Control: Ensures reliable voltage supply in control systems, PLCs, and instrumentation devices.
● Automotive Electronics: Supports 5V circuits in automotive applications such as dashboard electronics and control modules.
| File Name | Title | Description |
|---|---|---|

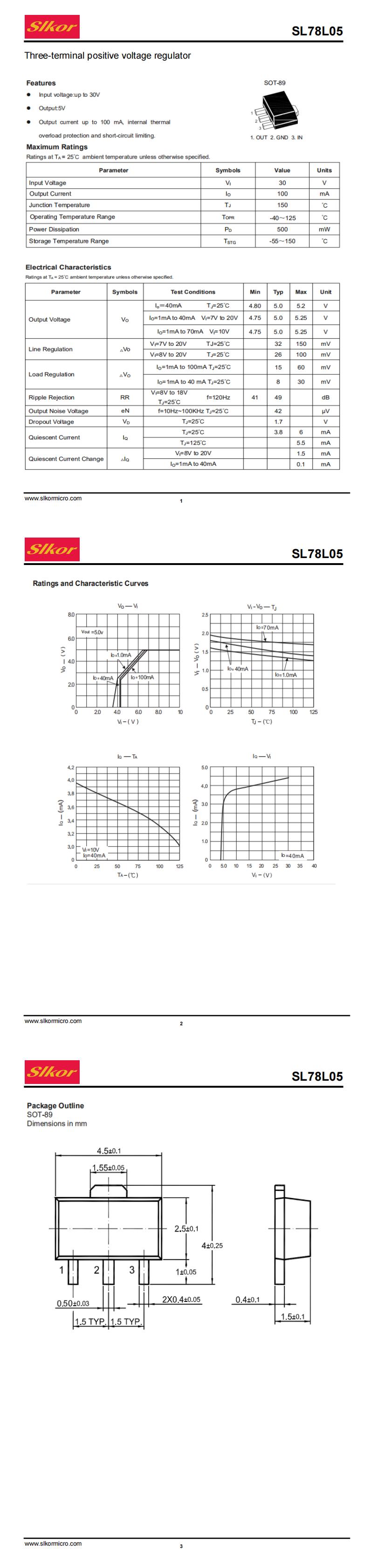

| SL78L05.pdf | SL78L05 | - |
