SL75xx is a low drop-out linear voltage regulator with the CMOS technology. The maximum output current is 100mA, and the allowed maximum input withstanding voltage is 36V. The device has several fixed output voltage values, with ranges from 2.5V to 5.0V. The COMS technology can ensure the characteristics of low dropout and low quiescent current.
Download datasheet Inquiry
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
SL75xx is a low drop-out linear voltage regulator with the CMOS technology. The maximum output current
is 100mA, and the allowed maximum input withstanding voltage is 36V. The device has several fixed output
voltage values, with ranges from 2.5V to 5.0V. The COMS technology can ensure the characteristics of low dropout and low quiescent current.
Features and Applications
Low power consumption
low dropout
Relatively low temperature coefficient
A device with power supply of batteries
Communication device
An audio/video device
Maximum input voltage: 36V
Typical quiescent current: 2uA
Maximum output current: 100mA
Output voltage accuracy: ±2%

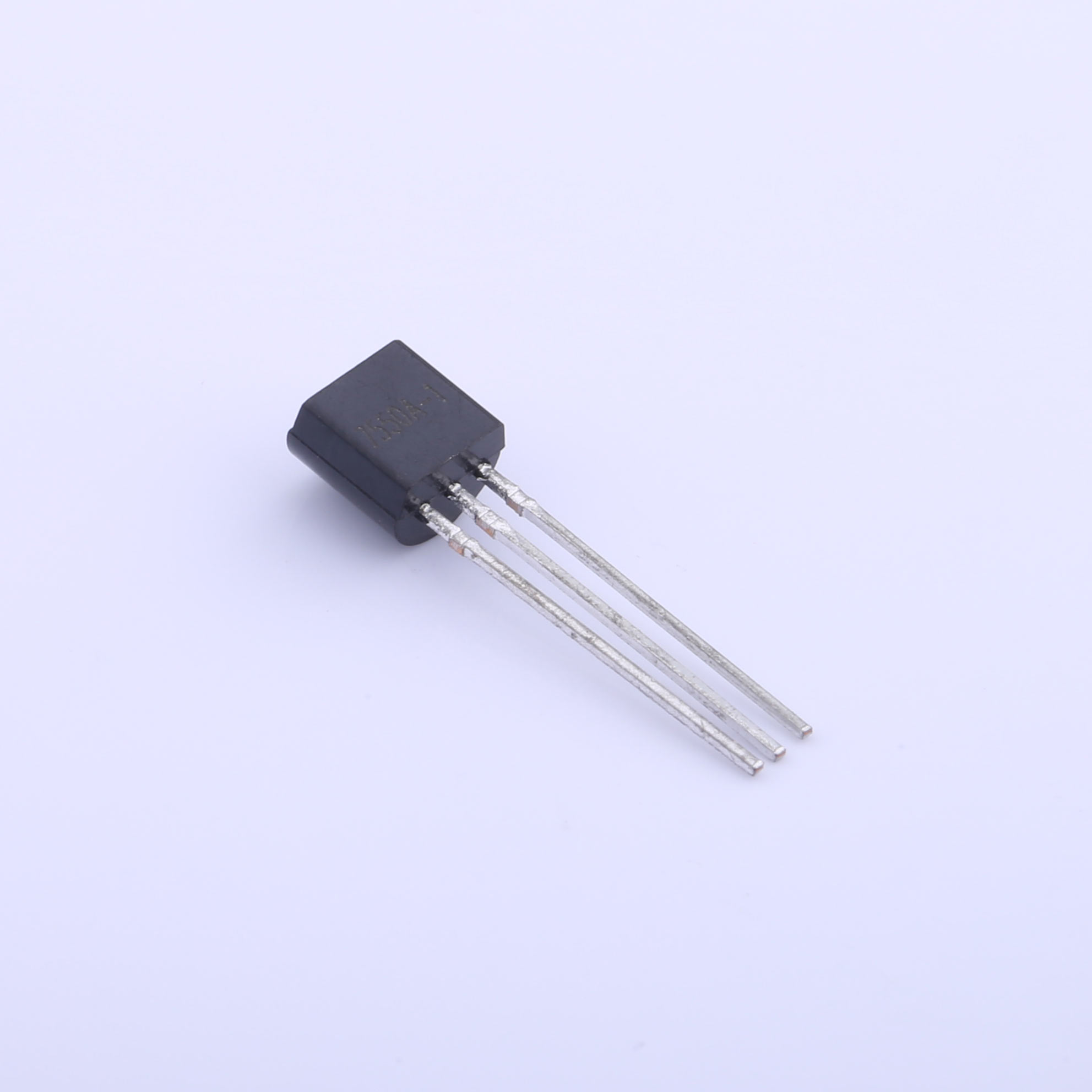

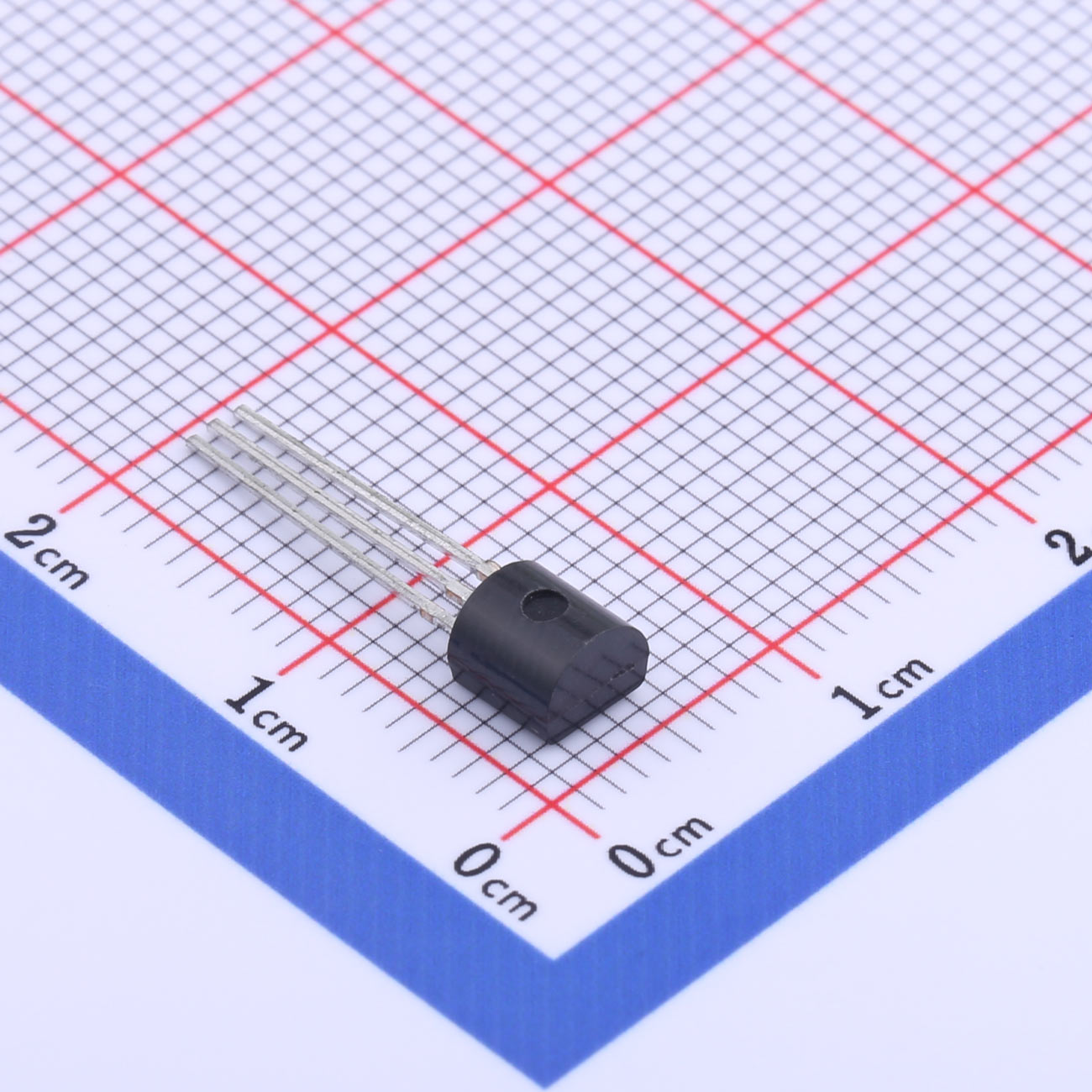

Package type: SOT23-3，TO92，SOT89
| File Name | Title | Description |
|---|---|---|

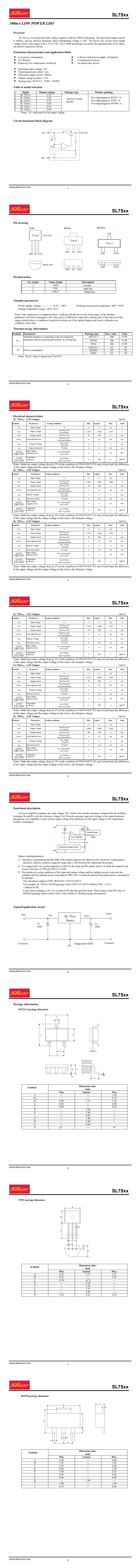

| SL7550-9.pdf | SL7550-9 | - |
