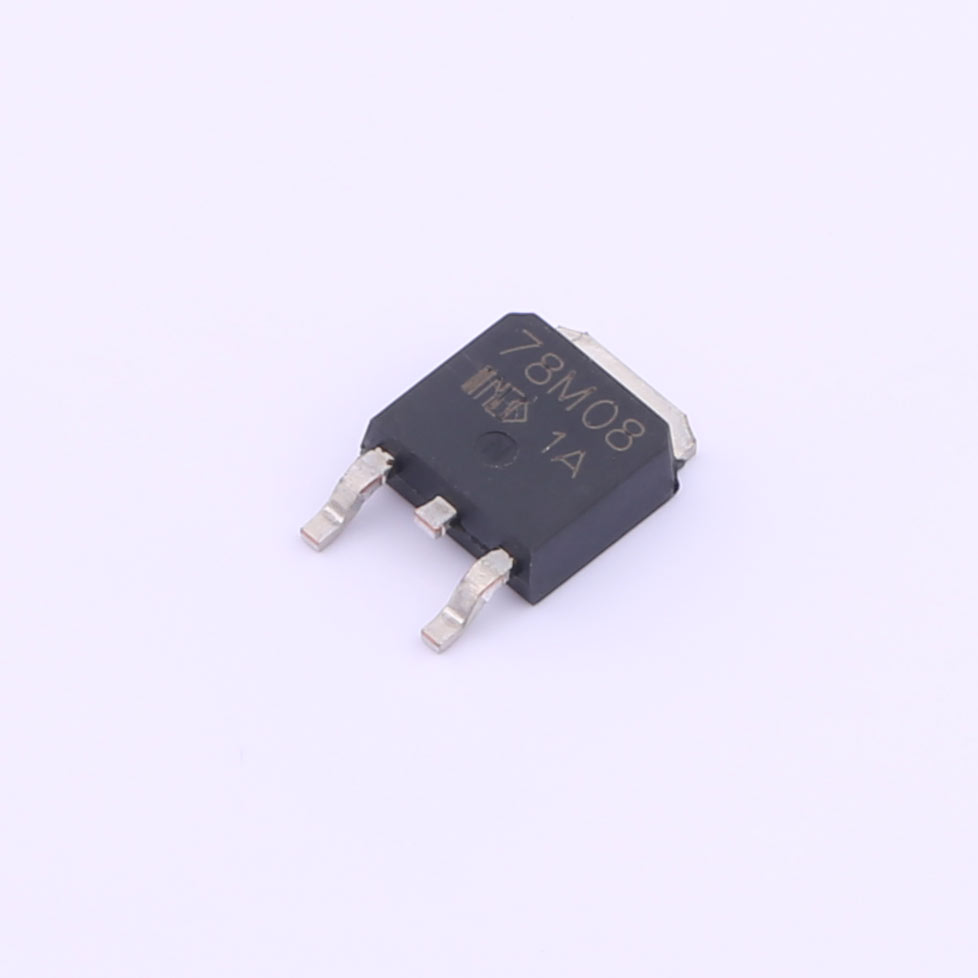

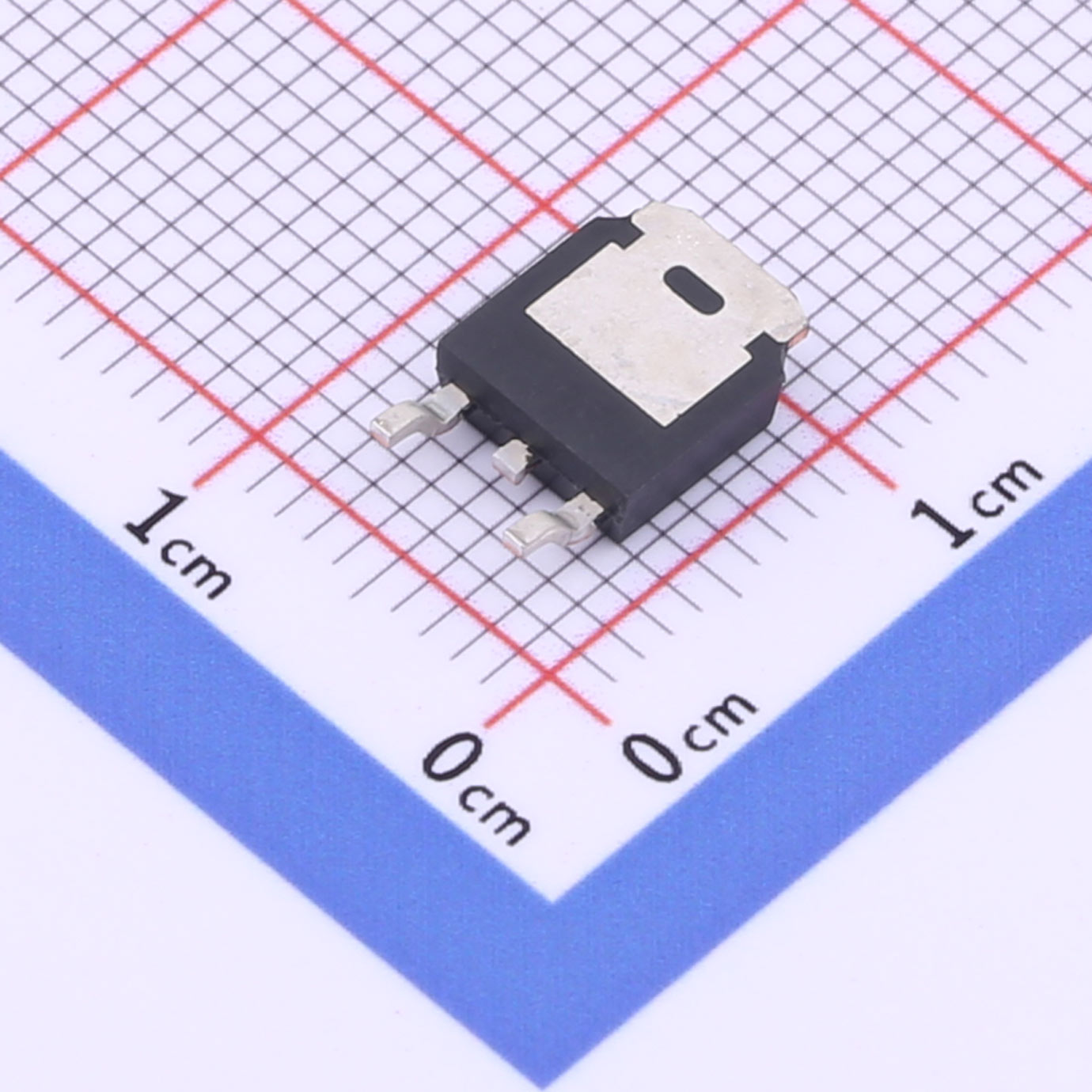

The 78MXXA series of three-terminal package with several fixed output voltages making it useful in a wide range of applications.
Download datasheet Inquiry
3-Terminal 0.5A Positive Voltage Regulator
Description
lThe 78MXXA series of three-terminal package with several fixed output voltages making it useful in a wide range of applications.
Features
lOutput Current up to 0.5A
lOutput Voltages of 5, 6, 8, 12, 15, 18, 24V
lThermal Overload Protection
lShort Circuit Protection
lOutput Transistor Safe Operating Area (SOA)Protection
| File Name | Title | Description |
|---|---|---|
| 78M05A TO-252.pdf | 78M05A TO-252 | - |
