Q137. What are the best-selling models and main parameters of SLKOR's rectifier bridge?

FAQs|FAQs about SLKOR|

2024-10-28 16:35:51 1021

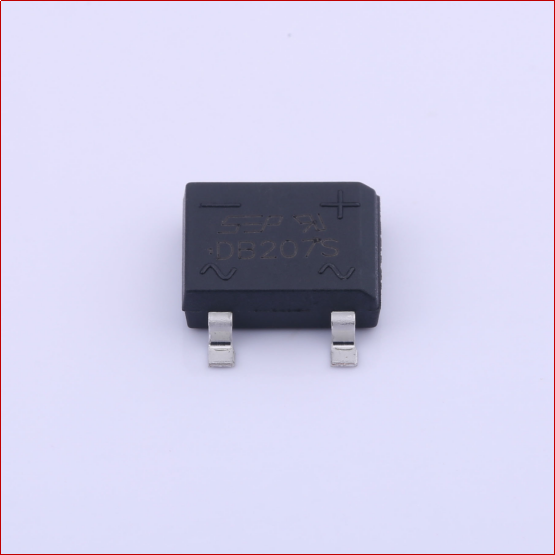

Detailed Analysis of SLKOR DB207S Rectifier Bridge

SLKOR is a well-known brand in the electronic components industry, and its DB207S rectifier bridge has achieved significant success in the market due to its outstanding performance and reliable quality. A rectifier bridge is an essential component in power conversion circuits, primarily used to convert alternating current (AC) into direct current (DC). The performance of the rectifier bridge directly impacts the efficiency and stability of the entire power system. Below is a detailed analysis of the DB207S rectifier bridge.

1. Key Parameters

The key parameters of the DB207S rectifier bridge include:

- Reverse Working Voltage (VRRM): 1000V

- DC Output Current (Io): 2.0A

- Forward Voltage drop (VF): 1.1V

- Surge Current (IFSM): 60A

- Package Type: DBS

These parameters collectively define the core performance of the DB207S, making it suitable for a wide range of applications.

2. Reverse Working Voltage (VRRM)

The DB207S features a reverse working voltage of up to 1000V, allowing it to excel in high-voltage environments. Many industrial applications and power electronic devices require rectifiers that can withstand high voltages, making the DB207S widely used in power supplies, inverters, and motor drives. Its high reverse voltage capability not only ensures operational safety but also extends the component's lifespan.

3. DC Output Current (Io)

With a DC output current of 2.0A, the DB207S is capable of providing stable DC output to meet the power requirements of various appliances and devices. This output capability allows the DB207S to play a vital role in a range of applications, from household appliances to industrial control systems, providing reliable power support. When selecting a rectifier bridge, the high output capacity of the DB207S offers designers greater flexibility in power circuit design.

4. Forward Voltage drop (VF)

The forward voltage drop of the DB207S is 1.1V, indicating minimal energy loss during operation. A lower forward voltage drop means that the rectifier bridge consumes less energy when current flows through it, thus enhancing the overall system efficiency. This is particularly important under high load conditions, as it reduces power loss and heat generation. Energy efficiency is a key metric in modern power designs, and the DB207S excels in this area, giving it a competitive edge in the market.

5. Surge Current (IFSM)

The DB207S can withstand a surge current (IFSM) of up to 60A, enabling it to effectively resist transient current spikes. Many power circuits experience transient currents during startup or fault conditions; a rectifier bridge that can handle higher surge currents protects both itself and connected loads from damage. This feature not only enhances the reliability of the rectifier bridge but also improves the overall stability of the power system.

6. Performance Features

The DB207S rectifier bridge boasts several excellent performance characteristics that make it popular in the market. Firstly, its efficient energy conversion capability minimizes energy loss during the AC-DC conversion process. Secondly, its high output current capacity meets current demands across a wide range of applications. Additionally, the low power consumption feature ensures that the DB207S generates less heat during prolonged operation, helping to lower cooling costs.

7. Installation and Integration

The DB207S uses a DBS package, which allows for easy installation and integration. This compact design not only provides good thermal management but also saves space on circuit boards, which is particularly important in modern electronic product design. The compact design requirements give engineers more flexibility in circuit layout, allowing them to make efficient use of limited space.

Moreover, the pin layout of the DB207S is thoughtfully designed for both automated and manual soldering, reducing labor and time costs in the production process. Whether in small-scale production or large-scale manufacturing, the DB207S offers an efficient solution, simplifying production workflows and improving operational efficiency.

8. Application Areas

The DB207S has a wide range of applications, covering various scenarios from household appliances to industrial control. In household appliances, it is widely used in refrigerators, washing machines, air conditioners, and more, providing stable power support. In industrial control, this rectifier bridge plays a critical role in automation equipment and motor drive systems. Additionally, the DB207S is extensively used in LED lighting power supplies and adapters, ensuring efficient current conversion.

9. Future Outlook

As electronic technology continues to evolve, the demand for high-performance rectifier bridges is increasing. With its superior performance, SLKOR's DB207S rectifier bridge is set to play an important role in future power designs. Engineers will find the DB207S to be a trustworthy choice in designing the next generation of electronic products, providing robust power support for various applications.

In summary, SLKOR's DB207S rectifier bridge stands out in the market due to its high efficiency, high output current, low power consumption, and excellent surge current handling capabilities. As electronic products continue to be updated and upgraded, the DB207S will consistently provide strong support for the reliable operation of electronic devices.
