Q136. What is the functionality of MMBT3904?

FAQs|FAQs about SLKOR|

2024-10-28 16:18:55 676

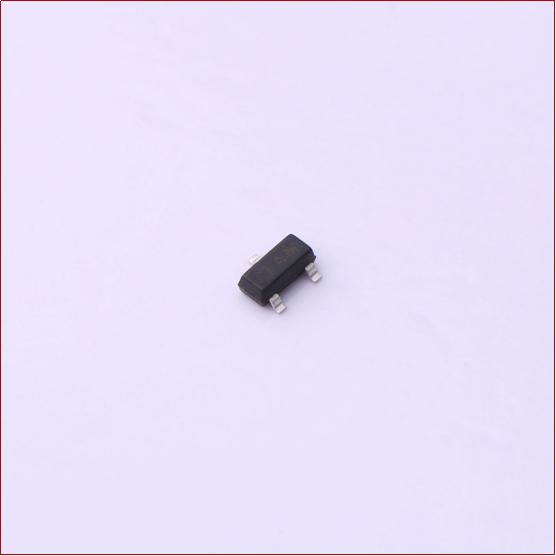

Detailed Overview of MMBT3904 Small NPN Switching Transistor

The MMBT3904 is a widely used NPN switching transistor, featuring a maximum collector-emitter voltage (Vce) of 40V and a maximum collector current (Ic) of 200mA. Known for its excellent performance and stability, this transistor finds extensive applications across various electronic systems.

1. Key Characteristics

The MMBT3904 is designed in a compact package, making it easy to integrate into tight circuits. It operates effectively at high frequencies, typically maintaining stability at frequencies exceeding 100MHz, which makes it suitable for high-frequency switching applications. The transistor has a β (DC current gain) value ranging from 100 to 300, allowing it to control a large collector current (Ic) with a small base current (Ib), thereby achieving efficient switching operations.

Main Parameters:

- Collector-Emitter Voltage (Vce): Up to 40V

- Collector Current (Ic): Up to 200mA

- Total Power Dissipation (Ptot): 500mW

- DC Current Gain (hFE): 100 to 300

- Operating Temperature Range: -55°C to 150°C

These features make the MMBT3904 a popular choice in electronic design, particularly in applications requiring higher voltage and current.

2. Operating Principle

The basic operating principle of the MMBT3904 is based on its NPN semiconductor structure. When sufficient base current (Ib) flows into the base (B), the transistor enters the conductive state, creating a low-resistance path between the collector (C) and emitter (E), allowing collector current (Ic) to flow. Variations in base current directly affect collector current, enabling signal amplification or switching control.

In the cutoff state, the base current approaches zero, resulting in very high impedance between the collector and emitter, thus preventing current flow. By adjusting the base current, the switching state of the transistor can be precisely controlled, facilitating both current switching and amplification.

3. Application Areas

The MMBT3904 is utilized across multiple sectors in the electronics industry, including:

- Switching Power Supplies: In switching power supply circuits, the MMBT3904 can function as a switching element, controlling power delivery through base signal adjustments to enhance energy efficiency.

- Audio Amplifiers: In audio amplifiers, it is often used in pre-amplification circuits to boost audio signal strength, ensuring clear signal transmission.

- Signal Processing Circuits: The MMBT3904 can be employed in various signal processing applications to build gain amplifiers, oscillators, and other processing units, ensuring signal stability and strength.

- Digital Circuits: In digital circuits, the MMBT3904 is frequently used as a logic level converter, enabling effective connections between different voltage levels and ensuring reliable signal transmission.

4. Performance Advantages

The MMBT3904’s advantages lie in its compact size and high efficiency. Its small package makes it ideal for space-constrained circuit designs. Additionally, its high gain characteristic allows designers to use smaller base currents to control larger collector currents, improving circuit efficiency and performance.

Moreover, the MMBT3904 features high voltage tolerance, allowing it to operate reliably in various environments. Its wide operating temperature range ensures stability under demanding conditions.

5. Design Considerations

When using the MMBT3904, several design considerations should be taken into account:

- Thermal Management: While the MMBT3904 has relatively low power dissipation, it may still generate heat under high loads, so appropriate thermal management strategies should be implemented to avoid performance degradation or failure due to overheating.

- Base Current Control: Proper calculation and control of base current (Ib) are crucial for ensuring the transistor switches effectively between saturation and cutoff regions. Designers should select appropriate current-limiting resistors based on application needs to ensure stable operation.

- Layout and Shielding: Thoughtful positioning of the MMBT3904 in circuit layouts is important to minimize signal interference, ensuring stability and reliability in high-frequency applications.

6. Conclusion

In summary, the MMBT3904 is an outstanding small NPN switching transistor that, due to its high efficiency and broad application range, has become a vital component in electronic design. Whether used in switching power supplies, audio amplifiers, signal processing, or digital circuits, the MMBT3904 delivers reliable performance and stable operation. As electronic technology continues to evolve, the MMBT3904 will remain an indispensable core component in many emerging applications.
