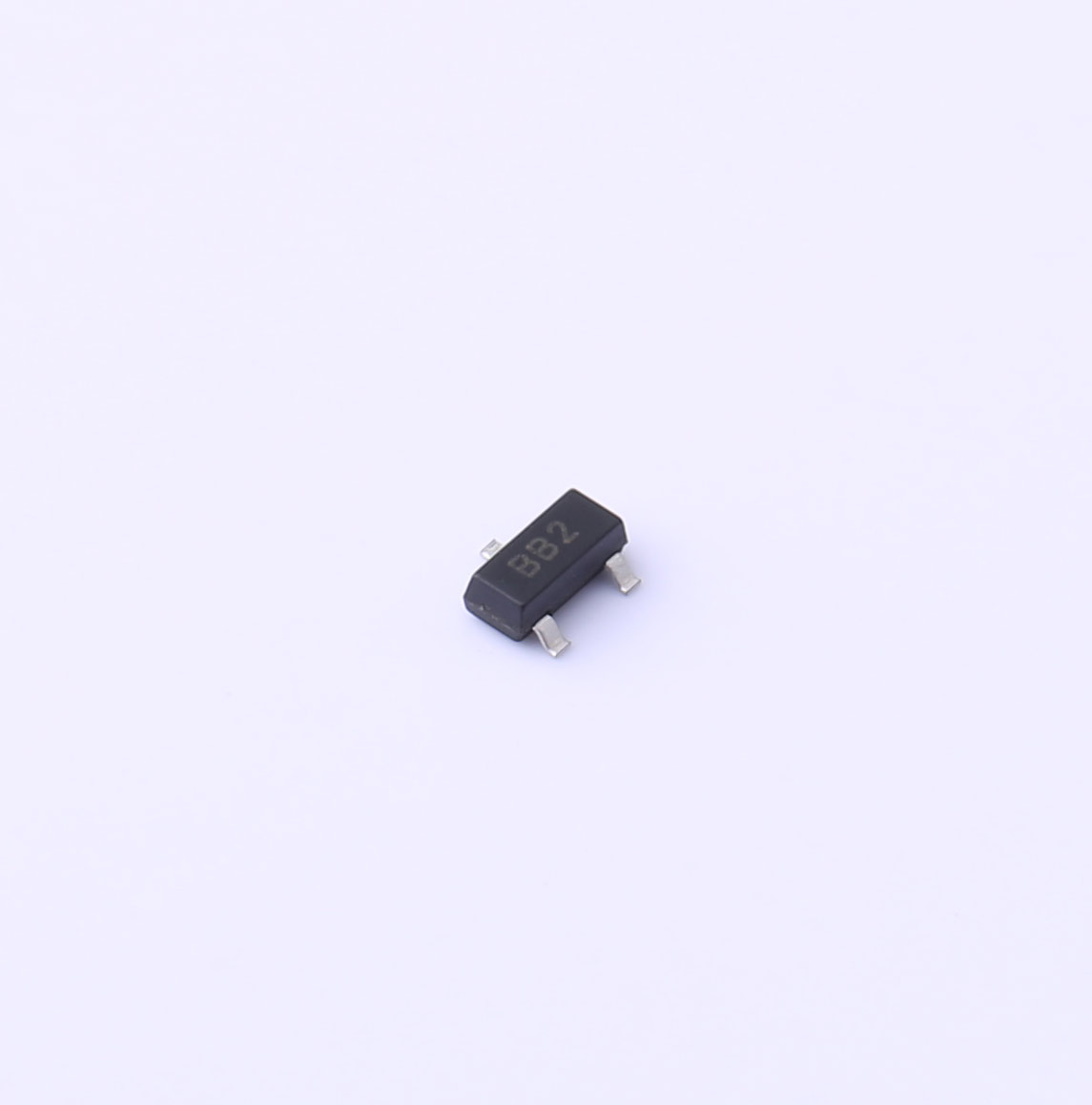

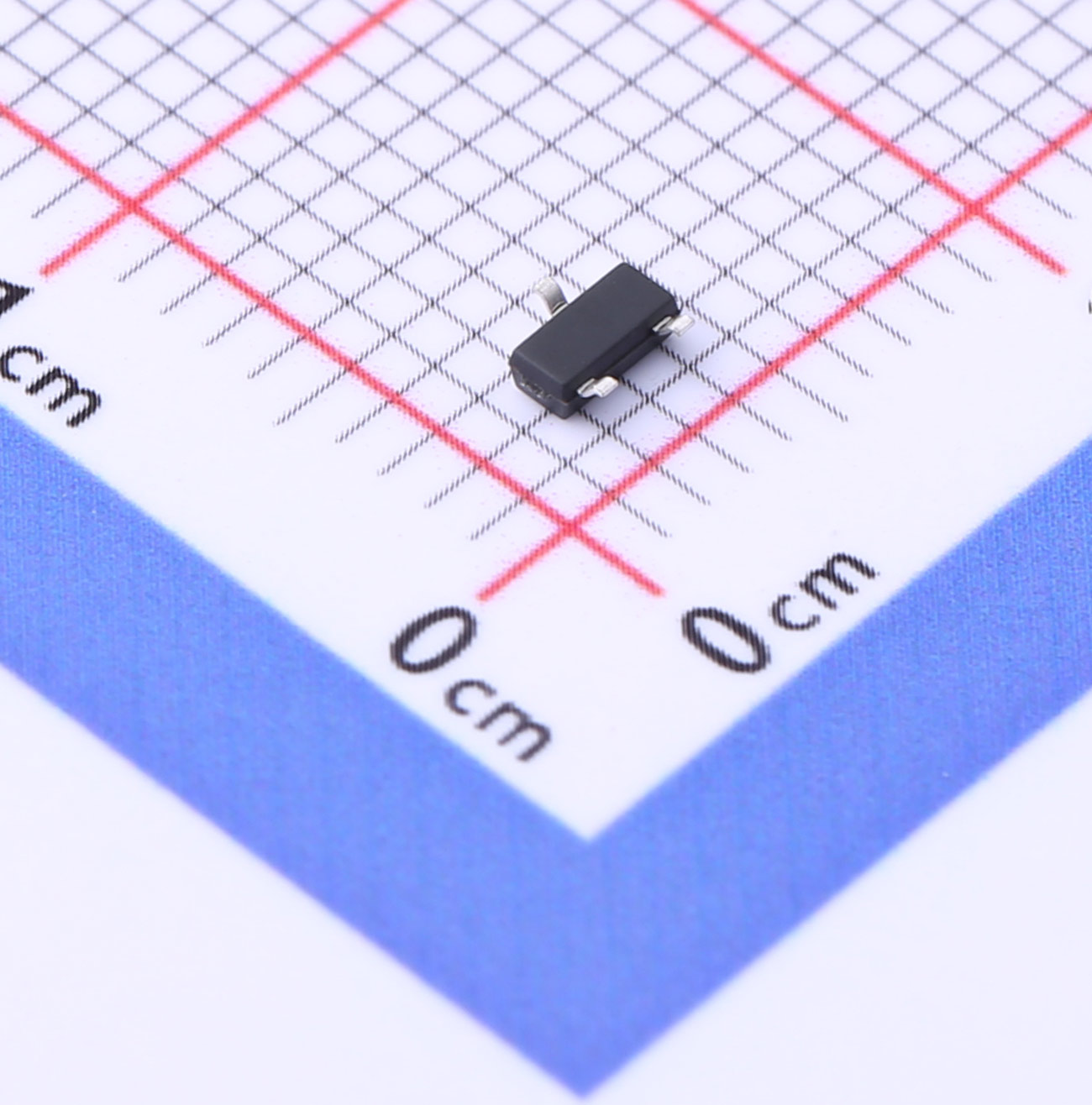

The SM15C is housed in a compact SOT-23 package, making it suitable for space-constrained applications where efficiency and reliability are paramount. It ensures minimal leakage current (0.5μA), offering robust protection against overvoltage conditions with a clamping voltage of 43V. With a junction capacitance of 25pF, the SM15C excels in maintaining signal integrity and stability across various operating conditions.
Download datasheet Inquiry
Our adventage
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt forproduction outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SM15C is housed in a compact SOT-23 package, making it suitable for space-constrained applications where efficiency and reliability are paramount. It ensures minimal leakage current (0.5μA), offering robust protection against overvoltage conditions with a clamping voltage of 43V. With a junction capacitance of 25pF, the SM15C excels in maintaining signal integrity and stability across various operating conditions.
Features
● 400 Watts peak pulse power (tp = 8/20μs)
● Bidirectional and unidirectionalconfigurations
● Solid-state silicon-avalanche technology
● Low clamping voltage
● Low leakage current
● Protection two data lines
● IEC 61000-4-2 ±30kV contact ±30kV air
● IEC 61000-4-4 (EFT) 40A(5/50ns)
● IEC 61000-4-5 (Lightning) 11A(8/20μs)
Applications
● Dataline
● Automatic Teller Machines
● Net works
● Power line
| File Name | Title | Description |
|---|---|---|

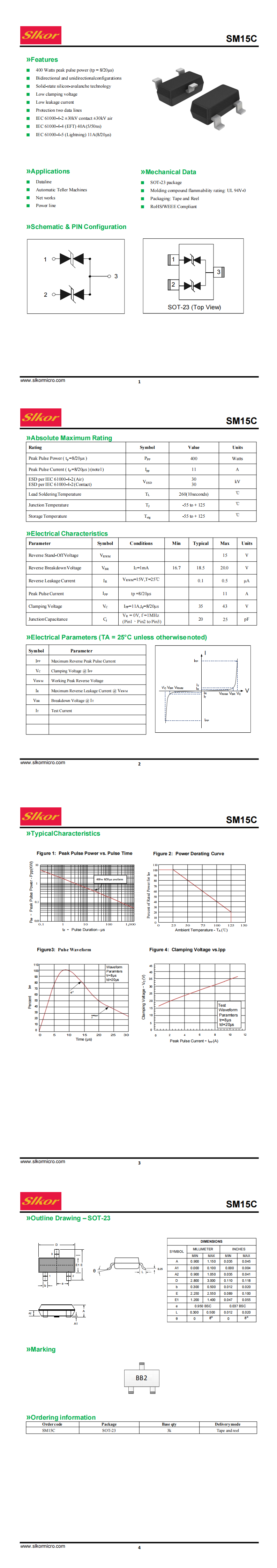

| SM15C .pdf | SM15C | - |
