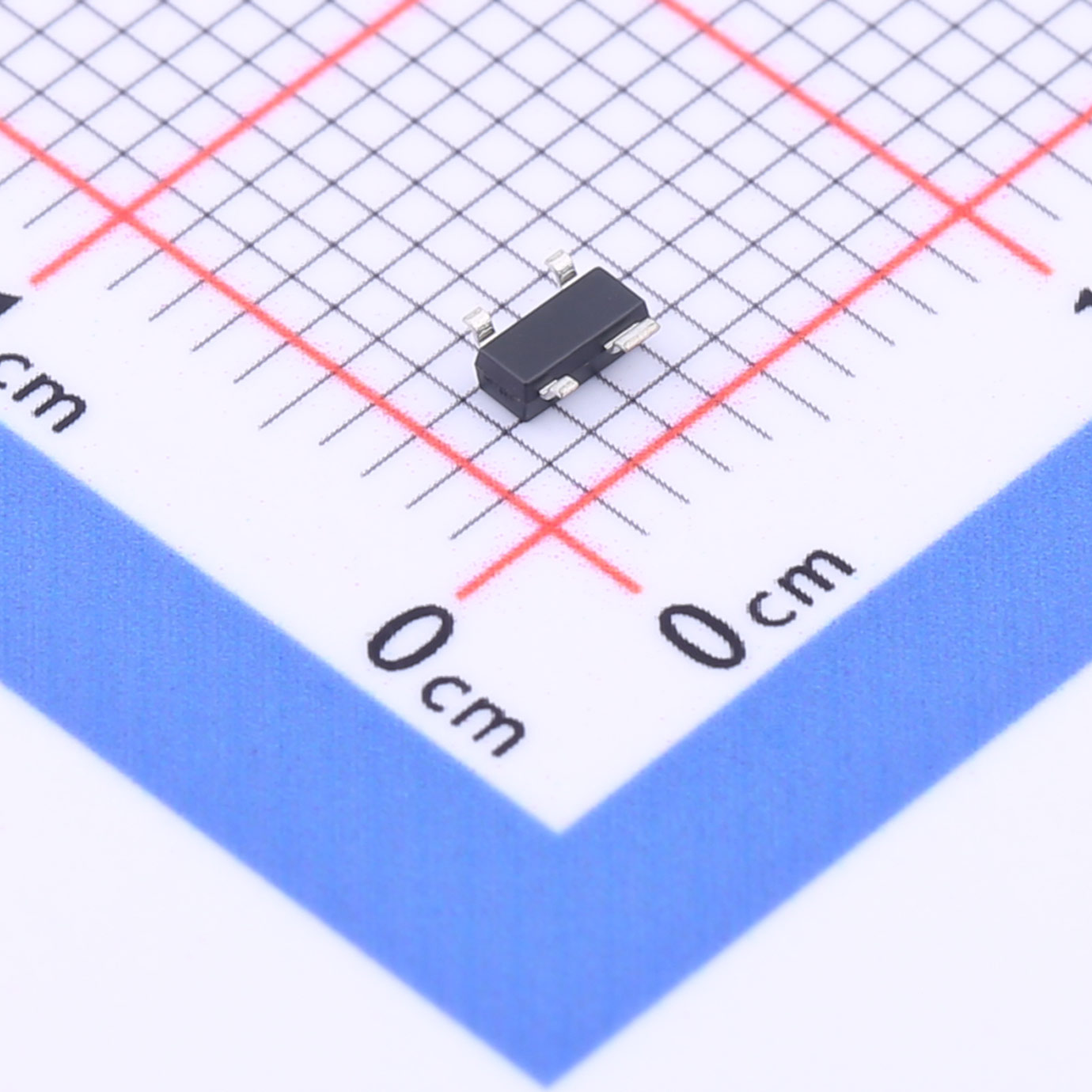

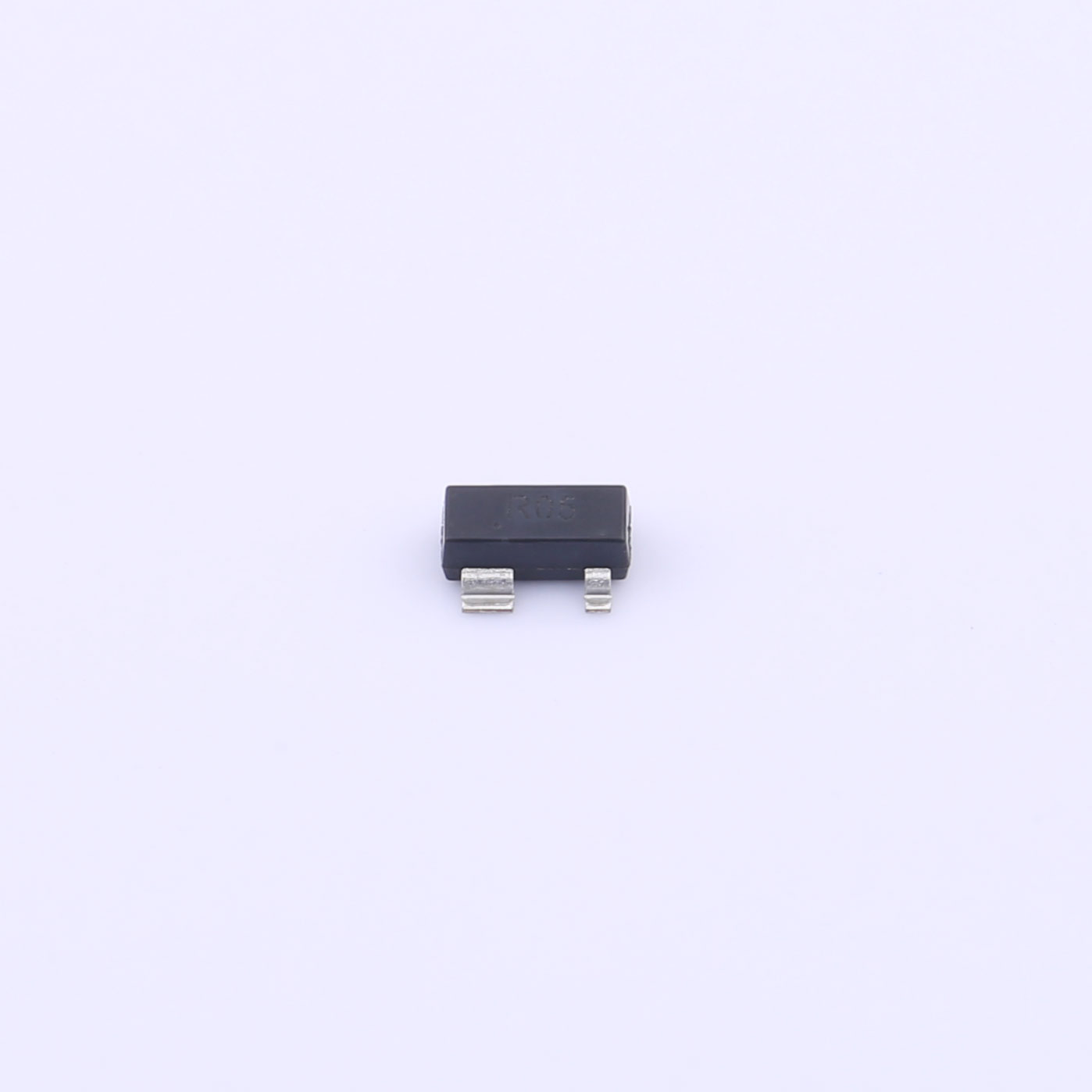

SLPRT5V0U2X Provides a typical line to linecapacitance of 0.6pF and low insertion loss up to 3GHz providing greater signal integrity making it ideally suited for USB 2.0 applications, such as Digital TVs, DVD players, Computing, set-topboxes and MDDI applications in mobile computing devices.This device has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD(electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
Download datasheet Inquiry
Bidirectional TVS Diodes
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
SLPRT5V0U2X Provides a typical line to linecapacitance of 0.6pF and low insertion loss up to 3GHz providing greater signal integrity making it ideally suited for USB 2.0 applications, such as Digital TVs, DVD players, Computing, set-topboxes and MDDI applications in mobile computing devices.This device has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD(electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).
Features
● Protects two I/O lines and one Vcc line
● Low capacitance
● Low leakage current
● No insertion to 3.0 GHz
● 5V operating voltage
● Response time < 1ns
● Solid-state silicon avalanche technology
● Device meets MSL 1 requirements
● RoHS compliant
Applications
● xDSLI
● USB 1.1/2.0/OTG
● IEEE 1394 Firewire Ports
● Notebooks & Handhelds
● Projection TV & Monitors
● Set-top box
● Flat Panel Displays

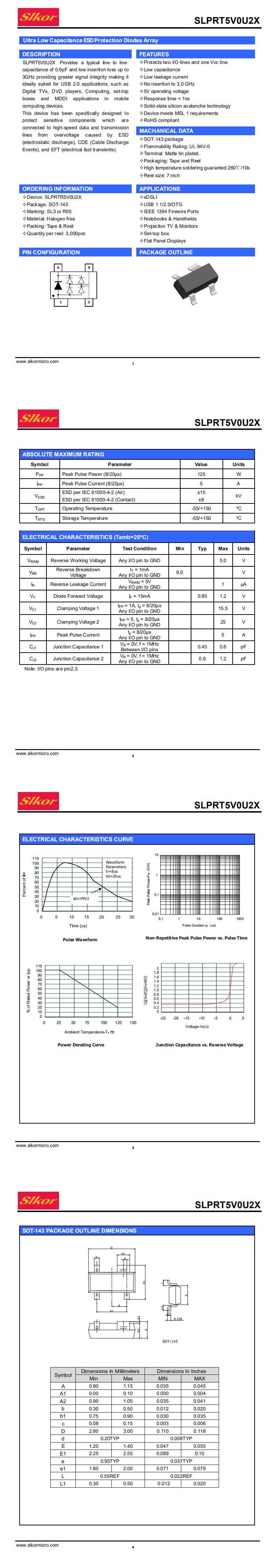

| File Name | Title | Description |
|---|---|---|
| SLPRT5V0U2X.pdf | SLPRT5V0U2X | - |
