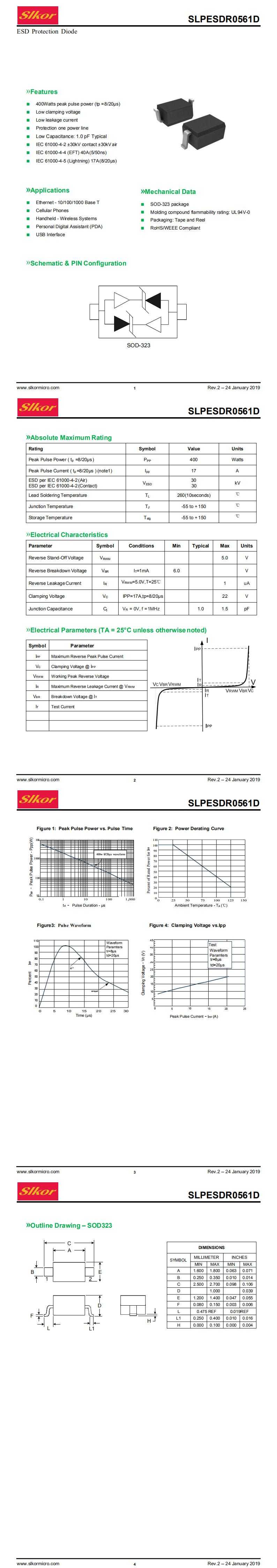

The SLPESDR0561D offers a high level of protection for circuits with a maximum working voltage of 5V. It features a low breakdown voltage, a high clamping voltage, and minimal junction capacitance, making it ideal for high-speed and sensitive electronic applications.
Download datasheet InquiryOur advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SLPESDR0561D offers a high level of protection for circuits with a maximum working voltage of 5V. It features a low breakdown voltage, a high clamping voltage, and minimal junction capacitance, making it ideal for high-speed and sensitive electronic applications.
Features
● 400Watts peak pulse power (tp =8/20μs)
● Low clamping voltage
● Low leakage current
● Protection one power line
● Low Capacitance: 1.0 pF Typical
● IEC 61000-4-2 ±30kV contact ±30kVair
● IEC 61000-4-4 (EFT) 40A(5/50ns)
● EC 61000-4-5 (Lightning) 17A(8/20μs)
Applications
● Ethernet - 10/100/1000 Base T
● Cellular Phones
● Handheld - Wireless Systems
● Personal Digital Assistant (PDA)
● USB Interface
| File Name | Title | Description |
|---|---|---|
| SLPESDR0561D.PDF | SLPESDR0561D | - |
