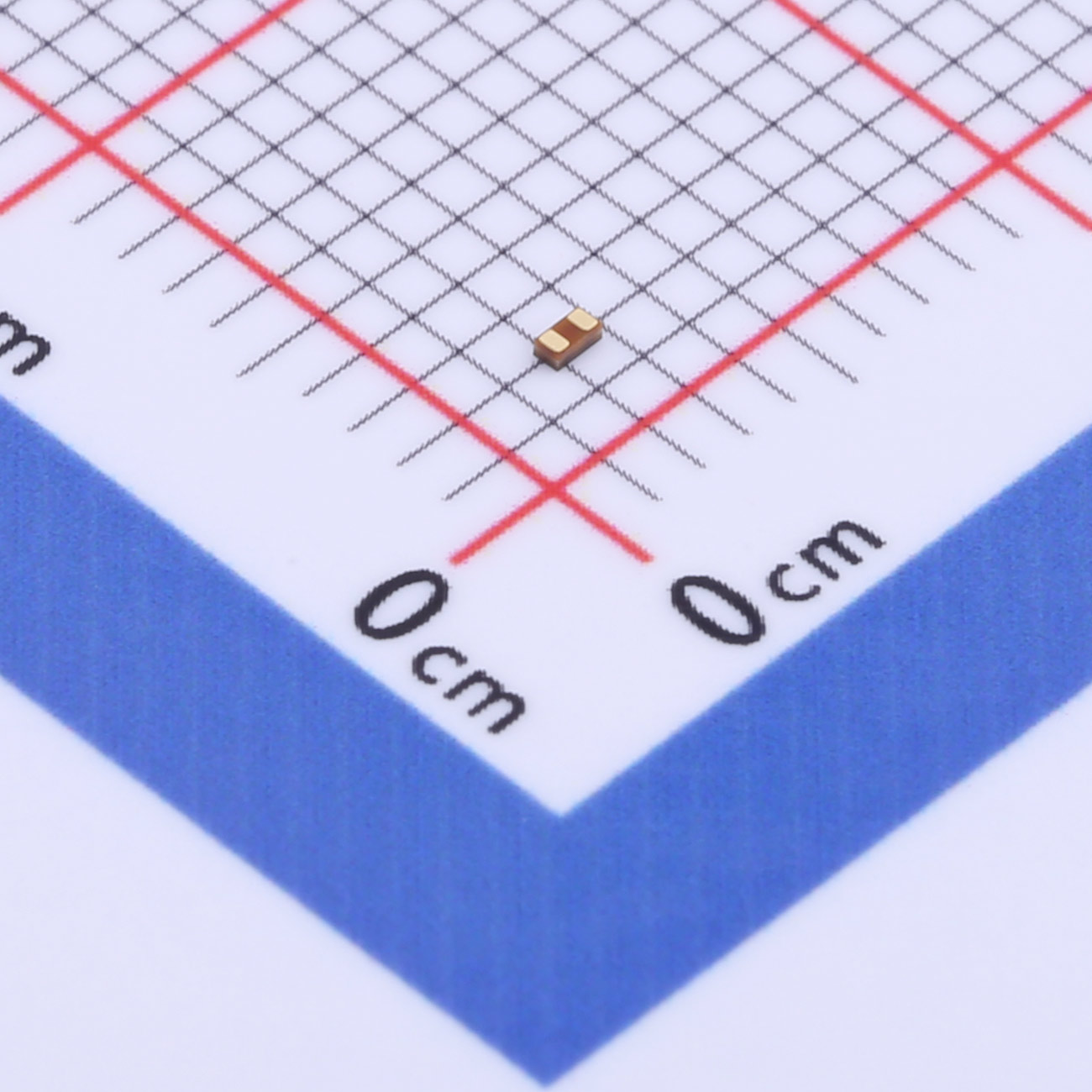

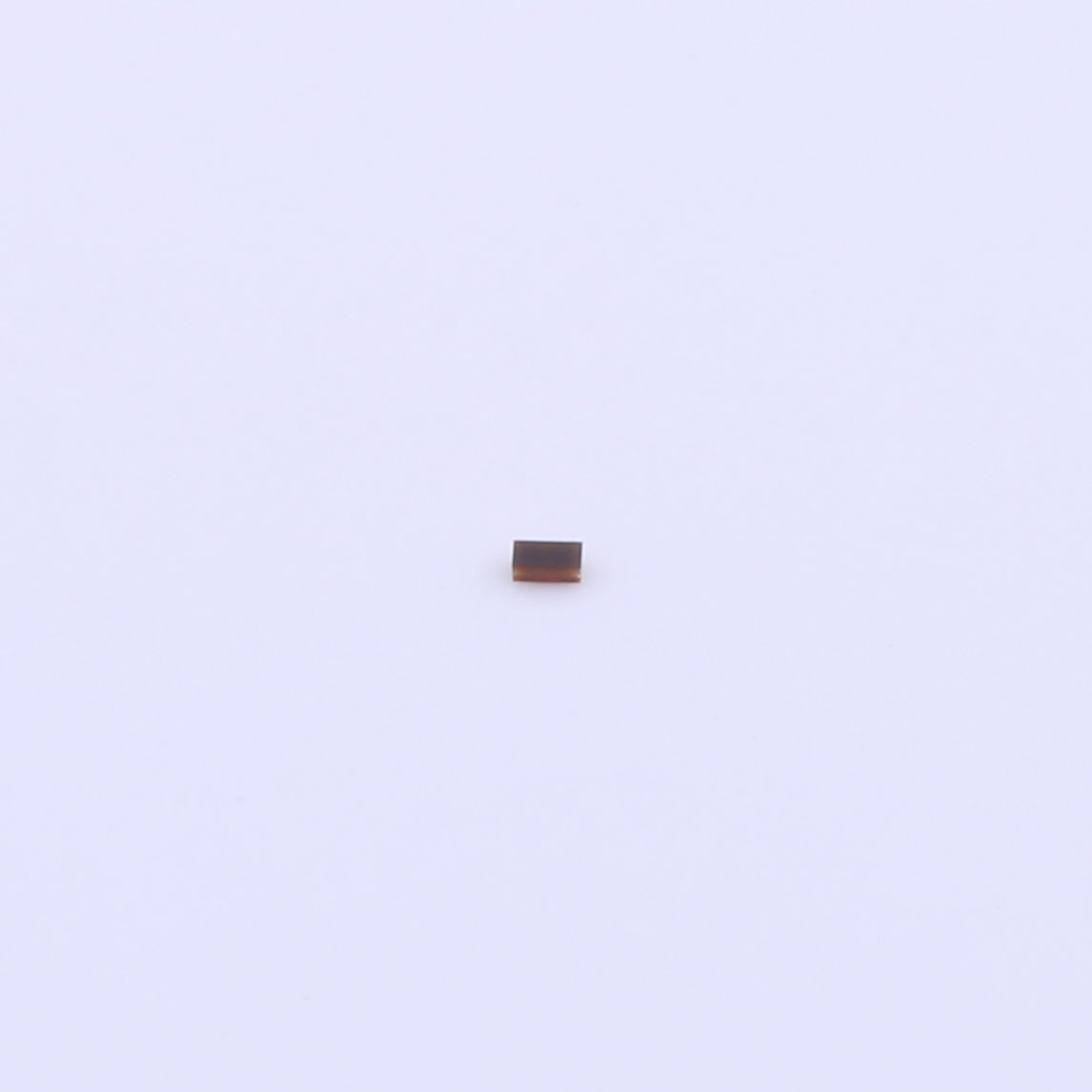

SLPESD0402M05 ESD Protection Devices 0402
Download datasheet Inquiry
Channel Ultra-low Capacitance ESD Protection
Features
Ultra-Low capacitance: 0.05pF(typ.)
Low leakage current(<10nA)
Fast response time(<1ns)
Bi-directional, single line protection
IEC61000-4-2(ESD Air): 15kV
IEC 61000-4-2(ESD Contact): 8kV
Applications
USB3.0/3.1
HDM1.3/1.4/2.0
RF Antenna
SATA and eSATA Interface
| File Name | Title | Description |
|---|---|---|

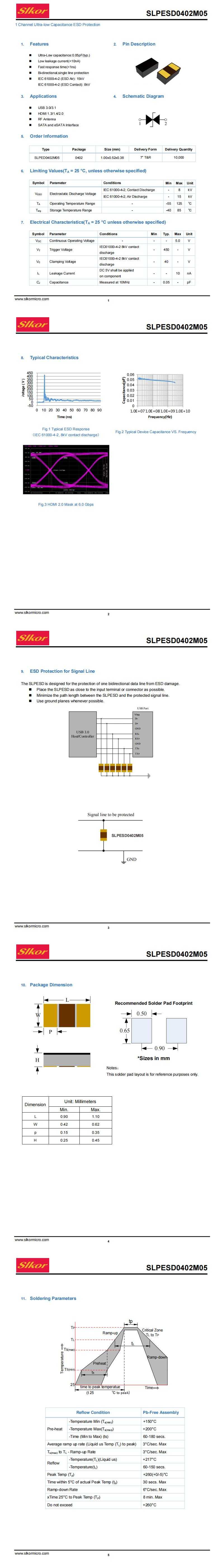

| SLPESD0402M05.pdf | SLPESD0402M05 | - |
